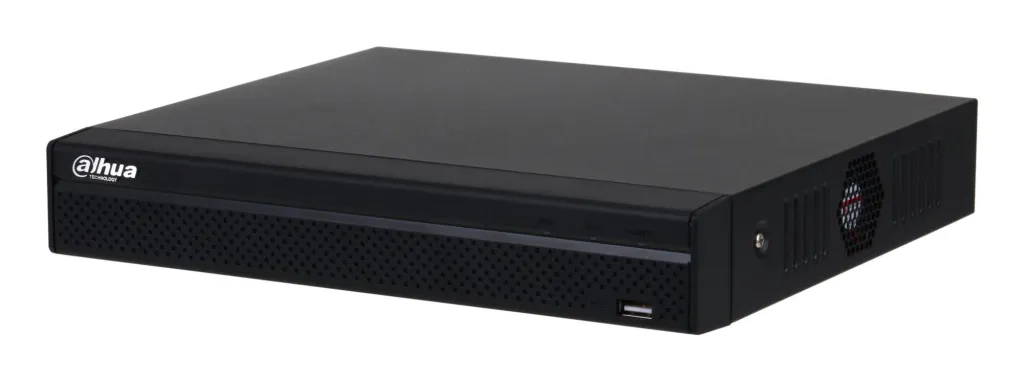

NET VIDEO RECORDER 4CH/NVR4104HS-4KS3 DAHUA
238.20€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 11.85 €. Taotle järelmaksu ostukorvis.
The NVR4000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. When an IPC is connected to the NVR, a variety of AI functions become available such as face detection, perimeter protection, and people counting. This NVR is both cost-effective and easy-to-install, making it ideal for a wide range of applications such as for cities, transportation, education and finance.
Functions
- SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
- Face Detection by Camera
Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.
- Face Recognition by Camera
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database.
- Perimeter Protection by Camera
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
- Stereo Analysis by Camera
With deep learning algorithm and 3-dimensional scene information, Dahua Stereo Analysis technology can recognize people's behaviors, such as fall detection, violence detection, stay detection, and space exception, and then generates alarm signals and triggers linkage.
- Heat Map by Camera
Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.
- Comes with an internal 960GB SSD
- Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
- Max. decoding capability: 8 × 1080p@30 fps or 4 × 4 MP@30 fps
- Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth
- Supports IP cameras with a resolution up to 12 MP
- AI by Recorder supports 4-channel SMD Plus
- AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map
- Supports EPTZ, and one-click arming and disarming
Tootja
DAHUA
Tootekood
DHI-NVR4104HS-4KS3
EAN
6923172573759
Google link
lisainfo
Garantiiaeg
36 kuud
.: Üldised andmed :.
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4104HS-4KS3
.: Disain :.
- Toote värv
- Must
.: Protsessor :.
- Sisseehitatud protsessor
- Jah
- Protsessori seeria
- Industrial-grade processor
.: Audio :.
- Toetatud audioformaadid
- G.711 µ-law/G.711 A-law/G.726/PCM
.: Kaamera :.
- Näotuvastus
- Jah
- Videosalvestusrežiimid
- 1080p/720p/960p
.: Võrgustumine :.
- WiFi
- Ei
- Ethernet LAN
- 10/100
- Ethernet LAN-i andmeedastuskiirused
- 10/100 Mbit/s

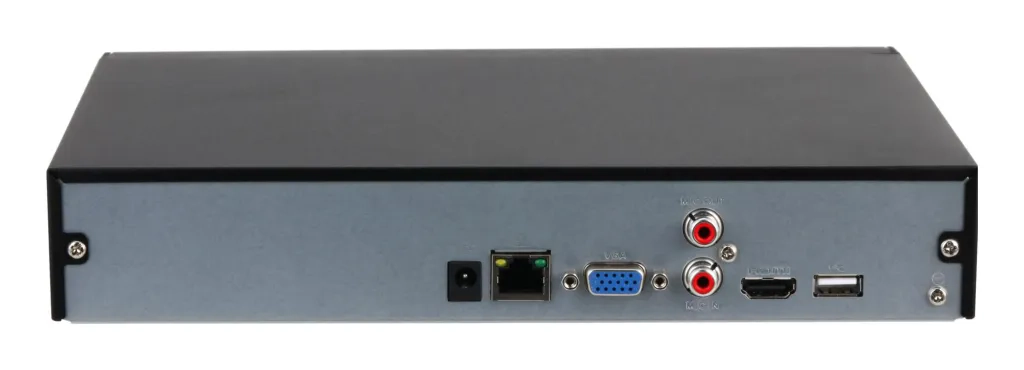

.: Pesad & liidesed :.
- Audioväljund
- 1
- Ethernet LAN (RJ-45) pordid
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- VGA (D-Sub) portide arv
- 1
.: Tarkvara :.
- Installitud operatsioonisüsteem
- Embedded LINUX
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
- Võimsustarve (tüüpiline)
- 10 W
Toide
- Toitenõuded
- 12 VDC, 2 A
- Voolutarve
- 10 W
Funktsioonid
- Mudeli originaalnimi
- NVR4104HS-4KS3
Logistika andmed
- Kogus transpordikasti kohta
- 1
Töötingimused
- Hoiustamistemperatuur (T-T)
- -20 - 60 °C
- Kasutamistemperatuur (T-T)
- -10 - 55 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 93 %
.: Pakendi andmed :.
- Pakendi laius
- 334 mm
- Pakendi kõrgus
- 314 mm
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.009486 cubm
- Transpordipakendi kaal
- 1.452 kg
- Transpordipakendi kõrgus
- 31 cm
- Transpordipakendi laius
- 9 cm
- Transpordipakendi sügavus
- 34 cm
- Pakendi sügavus
- 89 mm
- Pakendi kaal
- 1380 g
Tehnilised andmed
- Video motion detection
- Jah
- Multi-screen
- Jah
- Üksuse kalkuleeritud maht
- 0.009486 cubm
- CnKood
- 85219000
- Unit Box Width
- 0.09
- Unit Box Length
- 0.34
- Unit Box Height
- 0.31
- Rack capacity
- 1U
- eSATA ports quantity
- 1
- Video input channels
- 4 channels
- Supported resolutions
- 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Browser supported
- Chrome; IE; Safari; Edge; Firefox
- Rack mounting
- Jah
- VGA (D-Sub) output ports
- 1
- Supported network protocols
- HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- Audio RCA outputs
- 1
- Audio RCA inputs
- 1
- Output bandwidth
- 60 Mbit/s
- Input bandwidth
- 80 Mbit/s
- Audio sisend
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Image formats supported
- MJPEG
- Mobile operating systems supported
- Android/iOS
- Video formats supported
- H.264/H.264+/H.265/H.265+
- Certification
-
CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 - Desktop/pedestal
- Jah
- Maximum storage capacity
- 20 TB
- Number of channels
- 4
- Number of drives/bays
- 1
- Operating temperature range
- –10 °C to +55 °C
- Output current
- 2 A
- Output Voltage
- 12 V
- Rack
- Jah
- SATA
- Jah
- USB 2.0
- 2
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 1.45 kg
- Netokaal
- 0.81 kg
- Brutokaal
- 1.45 kg
- Laius
- 260 mm
- Sügavus
- 232.5 mm
- Kõrgus
- 47.6 mm
- Mõõtmed (l x s x k)
- 260.0 × 232.5 × 47.6 mm
- Toote kaal
- 810 g
