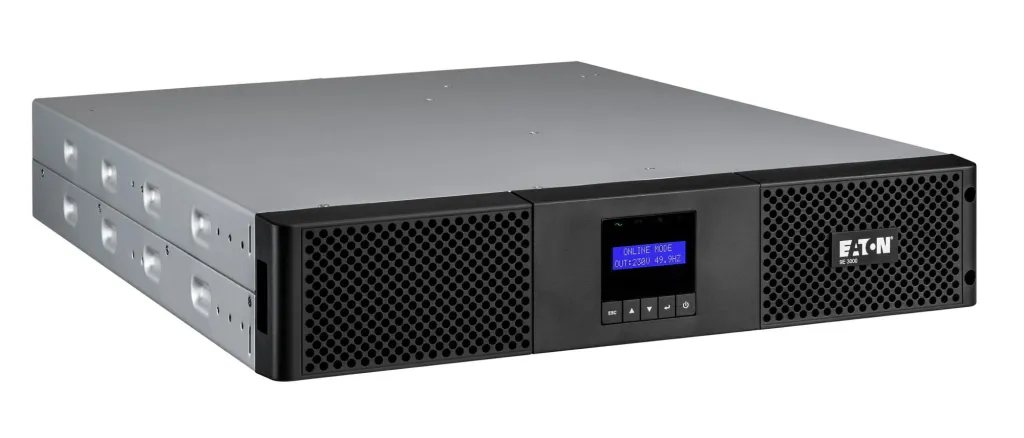

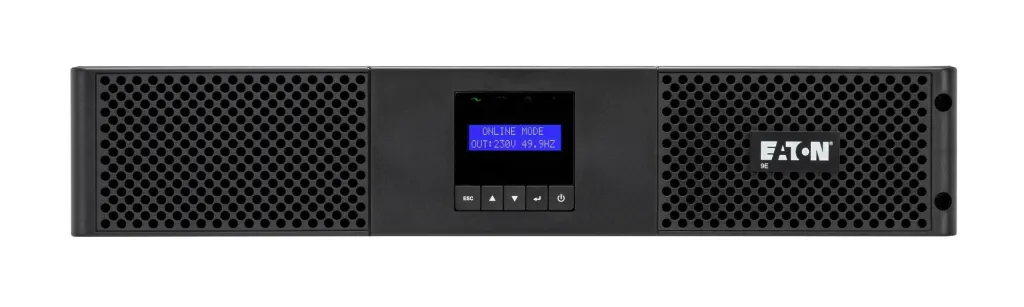

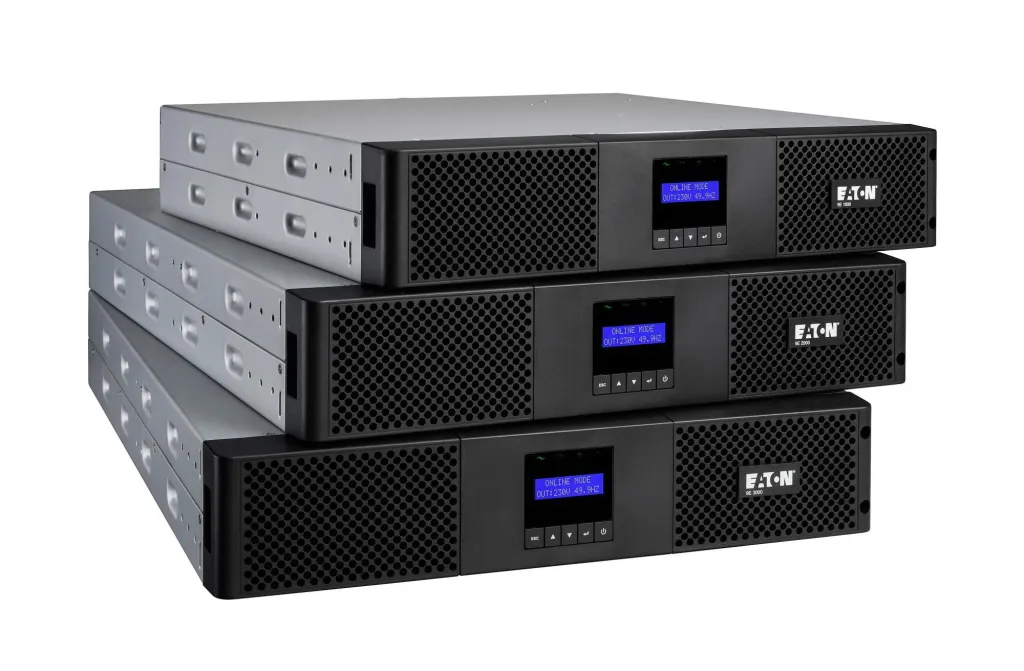

UPS|EATON|1800 Watts|2000 VA|Wave form type Sinewave|OnLine DoubleConvertion|Phase 1phase|Rack 2U|9E2000IR

.: Üldised andmed :.

Tootja koduleht

https://www.eaton.com/gb/en-gb/skuPage.9E2000IR.html

.: Üldised omadused :.

Müratase

45 dB

.: Disain :.

Toote värv

Black

Kujutegur

Tower

Toote värv

Black

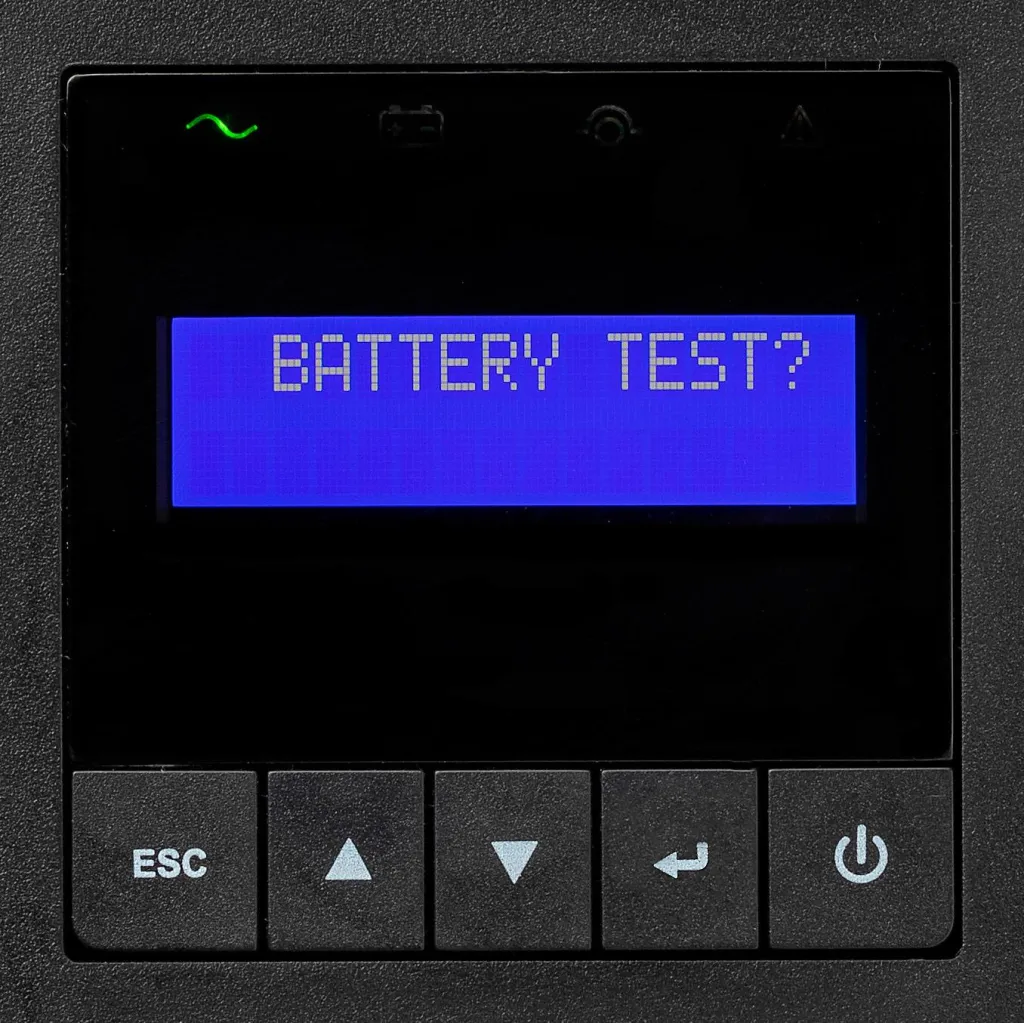

LED-indikaatorid

Jah

.: Pesad & liidesed :.

USB port

Jah

.: Aku & Toiteallikas :.

Akutehnoloogia

Lead-Acid

Toiteallika tüüp

AC

Aku mahutavus

7 Ah

Võimsus ja energiatarve

Output frequency

50/60 Hz

Väljundvõimsus

1800 W

.: Tehnilised andmed :.

Sustainability compliance

Jah

Compliance certificates

CE

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 96 %

.: Pakendi sisu :.

Kiirpaigaldusjuhend

Jah

Tarvikud kaasa arvatud

(2) IEC-IEC output cables, USB cable, Rack-mounting kit (rails and brackets), Safety instructions, Quickstart guide

.: Pakendi andmed :.

Kaablid kaasa arvatud

Output power cable,USB cable

Max kogus transpordipakendis

1

Pakendi maht

0.1041 cubm

Transpordipakendi kaal

32.4 kg

Transpordipakendi kõrgus

23 cm

Transpordipakendi laius

58 cm

Transpordipakendi sügavus

78 cm

Tehnilised andmed

Input power factor

99

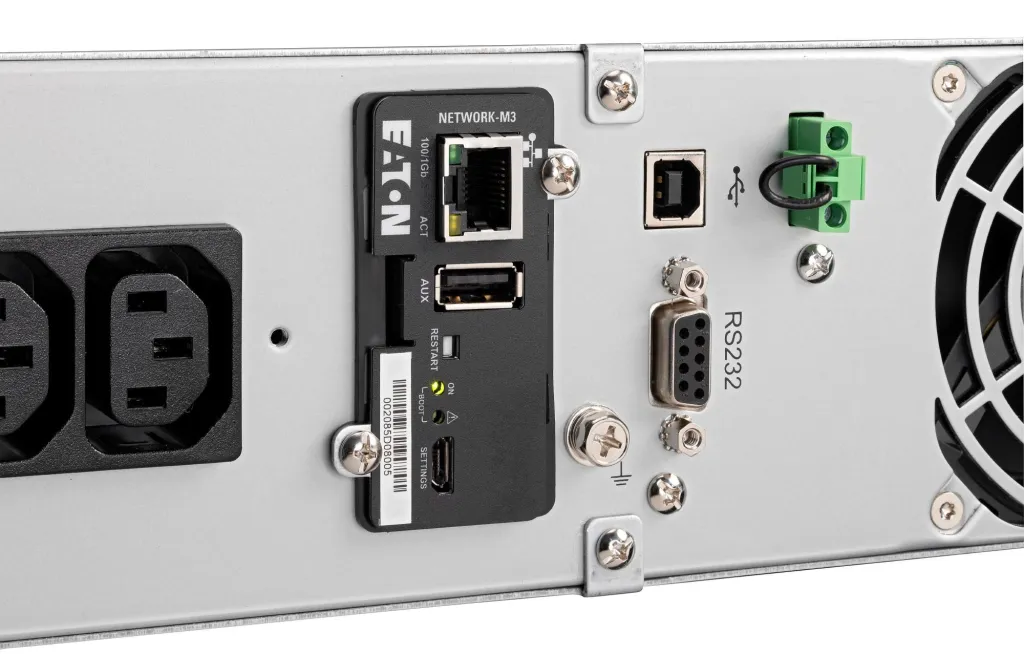

Serial interface type

RS-232

Input operation voltage (min)

140 V

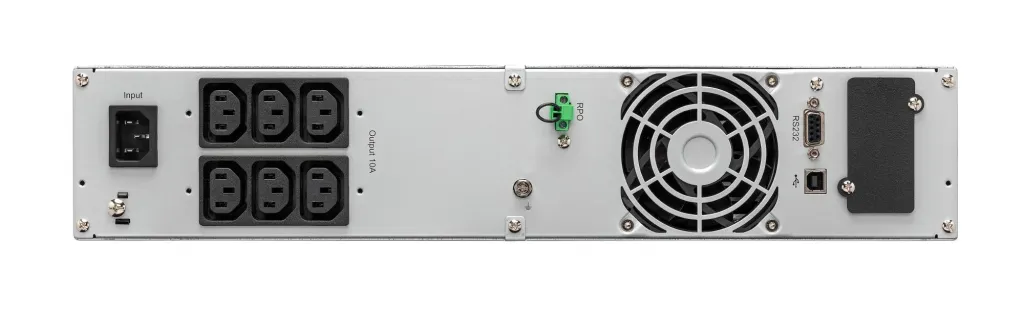

AC outlet types

C13 coupler/C14 coupler

AC outlets quantity

6 AC outlet(s)

Waveform

Sine

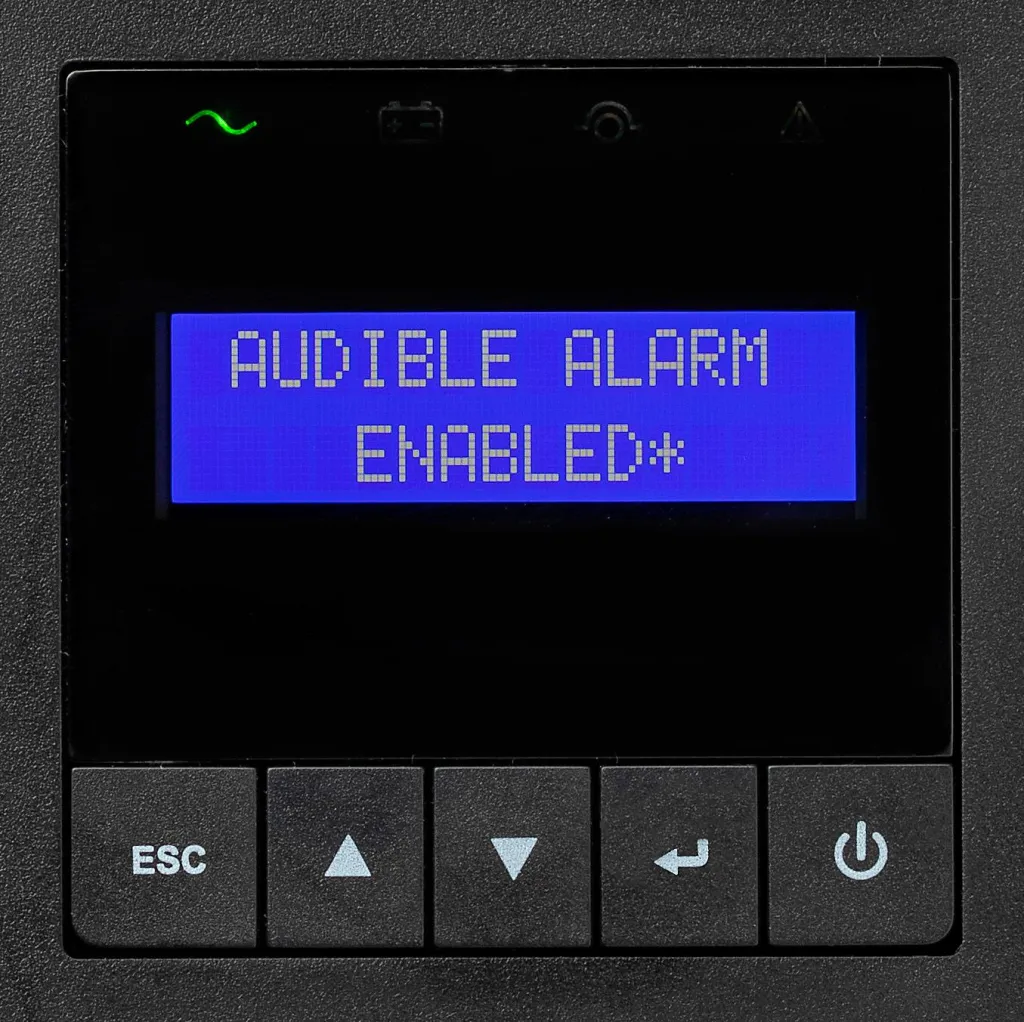

Audible alarm(s)

Jah

Power plug

C13 coupler

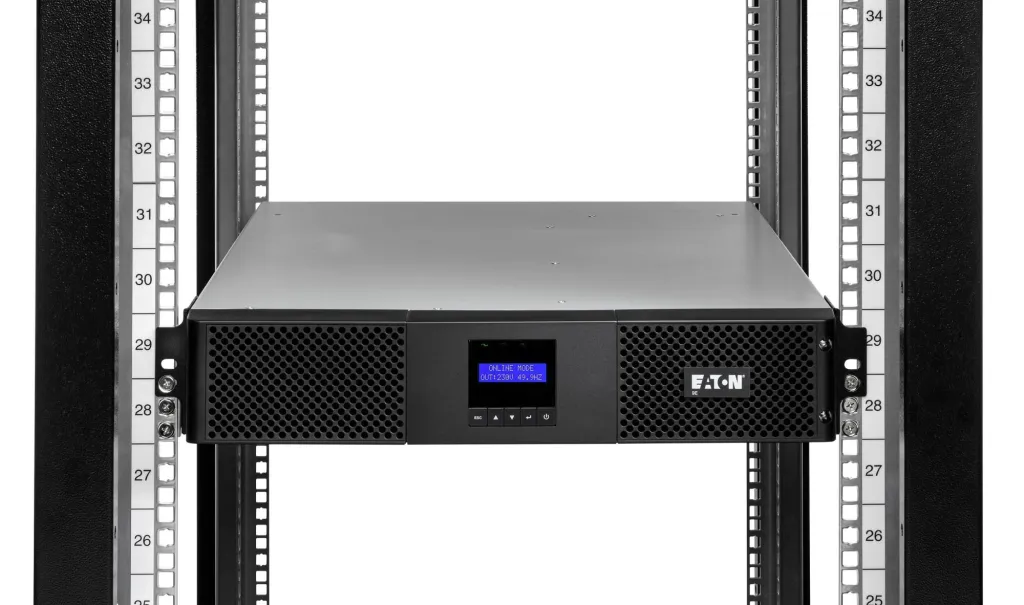

Rack capacity

2U

Rack mount kit

Jah

Unit Box Height

0.23

Unit Box Length

0.78

Unit Box Width

0.58

CnCode

85044095

Unit Calculated Volume

0.1041 cubm

Product Net Weight

29.9 kg

Unit Calculated Weight

32.4 kg

Summary

Eaton 9E2000IR. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 CE

Number of input phases

1

Number of output phases

1

Efficiency (ECO mode)

96.5 %

Output power factor

0.9

Serial interface

Jah

Control type

Buttons

Number of batteries supported

6

RS-232 ports

1

Serial ports quantity

1

UPS topology

Double-conversion (Online)

Battery voltage

12 V

Certification

IEC/EN 62040-1 IEC/EN 62040-2 CE

Efficiency

91 %

Heat dissipation

546 BTU/h

Input frequency

40/70 Hz

Input operation voltage (max)

276 V

Output operation voltage (max)

240 V

Output operation voltage (min)

220 V

Output power capacity

2 kVA

Output power capacity, VA

2000 VA

Output power capacity, W

1800 Watts

Phase

1phase

Rack 2U

Jah

Topology

OnLine DoubleConvertion

Typical backup time at full load

4.5 min

Typical backup time at half load

12 min

Wave form type

Sinewave

Tehnilised andmed

Netokaal

29.9 kg

Brutokaal

32.4 kg

Laius

438 mm

Sügavus

608 mm

Kõrgus

86.5 mm

Toote kaal

29900 g
