Mainboard|GIGABYTE|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|2xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 3.2|2xUSB-C|1xRJ45|X870GAMINGWF6

Muud näitajad

Compatible processor series

AMD Ryzen™ 7

Supported processor sockets

Pesa AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

S/PDIF out port

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Number of SATA III connectors

4

Clear CMOS jumper

Jah

Clear CMOS button

Jah

ACPI version

5.0

Number of M.2 (M) slots

3

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Supported memory module capacities

12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB

Supported storage drive interfaces

M.2,SATA III

Processor manufacturer

AMD

System management BIOS (SMBIOS) version

2.7

RGB LED pin header

Jah

USB 3.2

Jah

PCI Express x16 (Gen 5.x) slots

1

Supported memory clock speed (max)

8000 MHz

Unit Box Height

0.08

Unit Box Length

0.34

Unit Box Width

0.275

CnKood

84733020

Garantiiaeg

3 aasta(s)

Üksuse kalkuleeritud maht

0.01563 cubm

Üksuse kalkuleeritud kaal

1.9 kg

Kokkuvõte

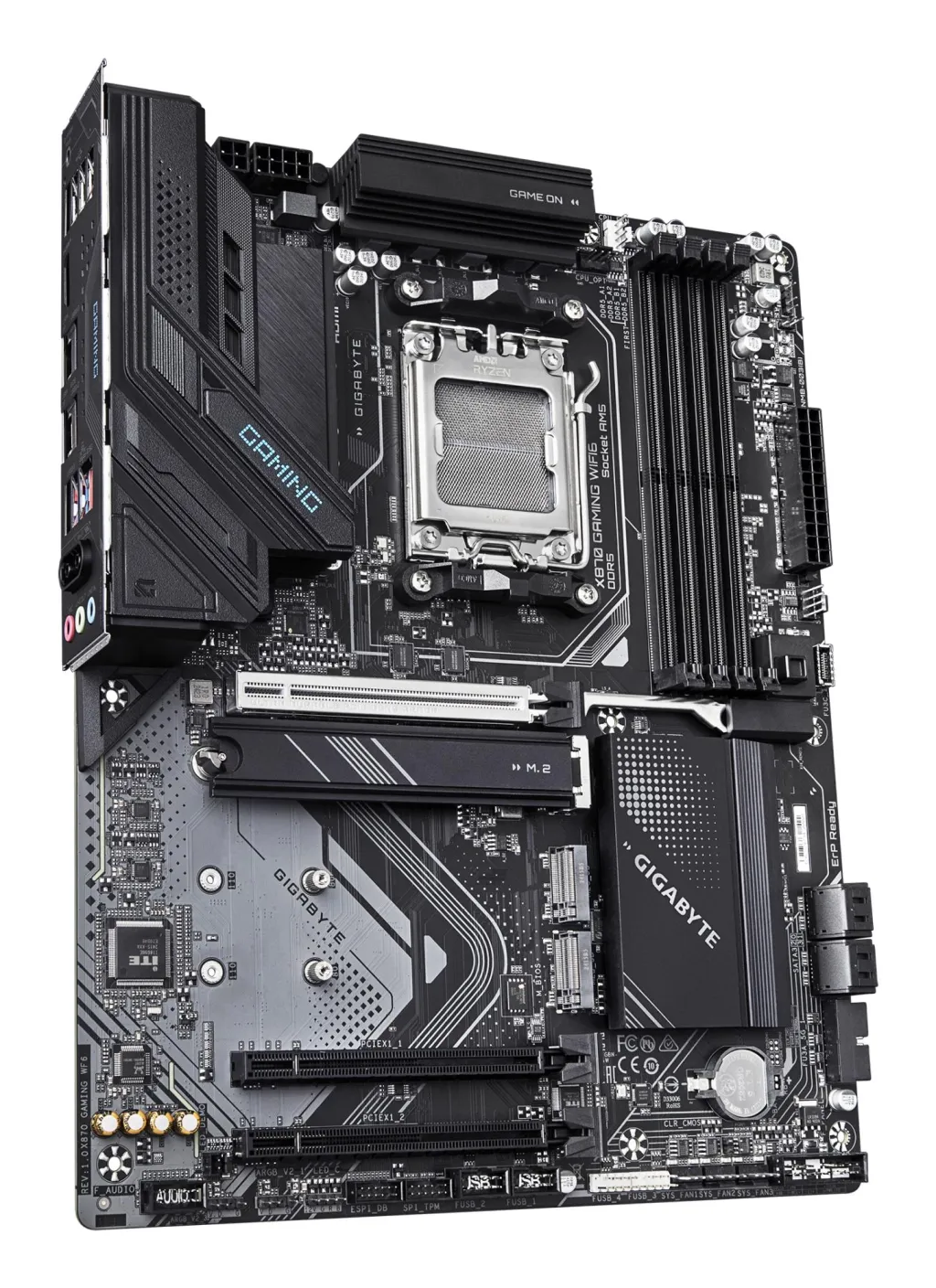

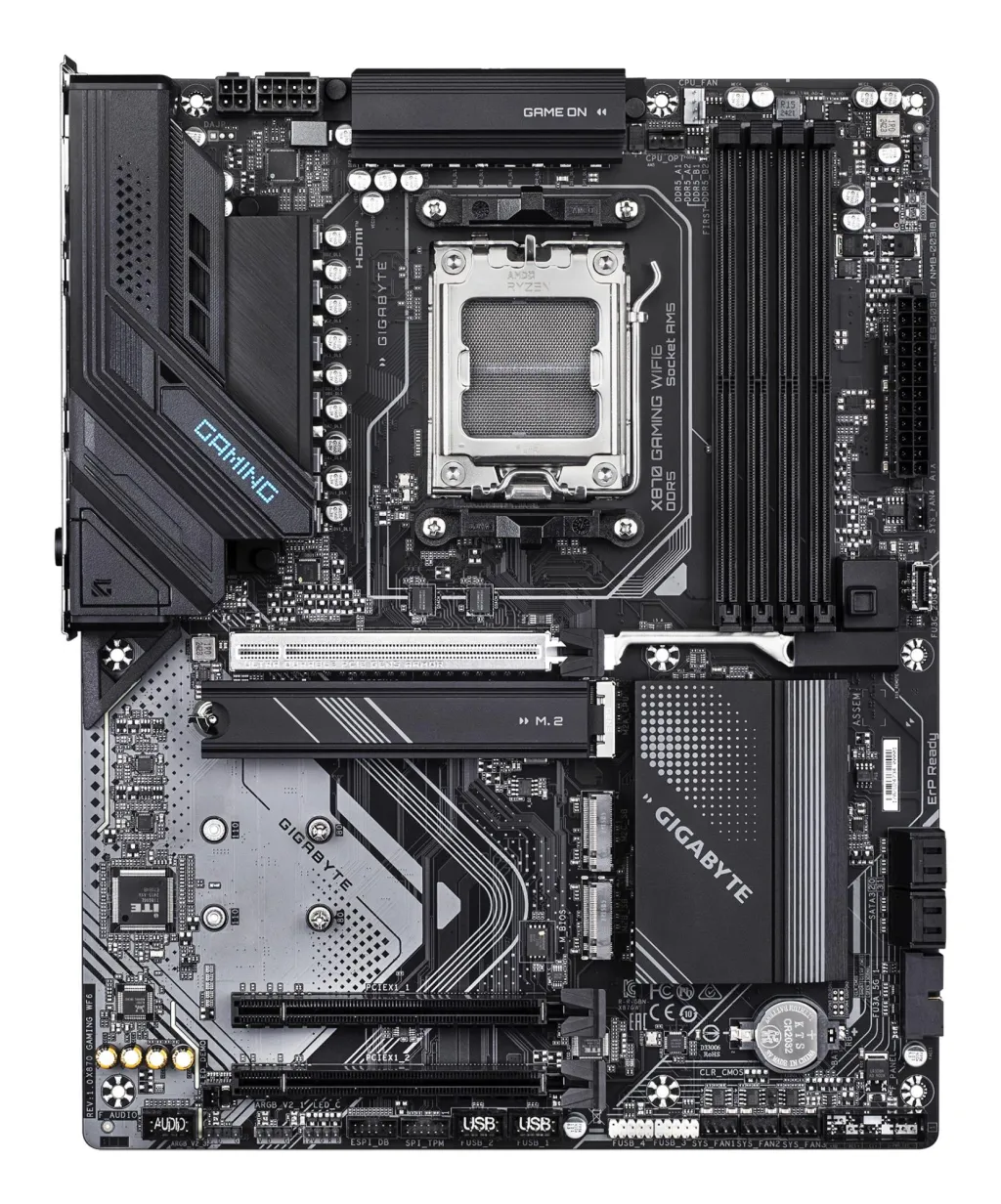

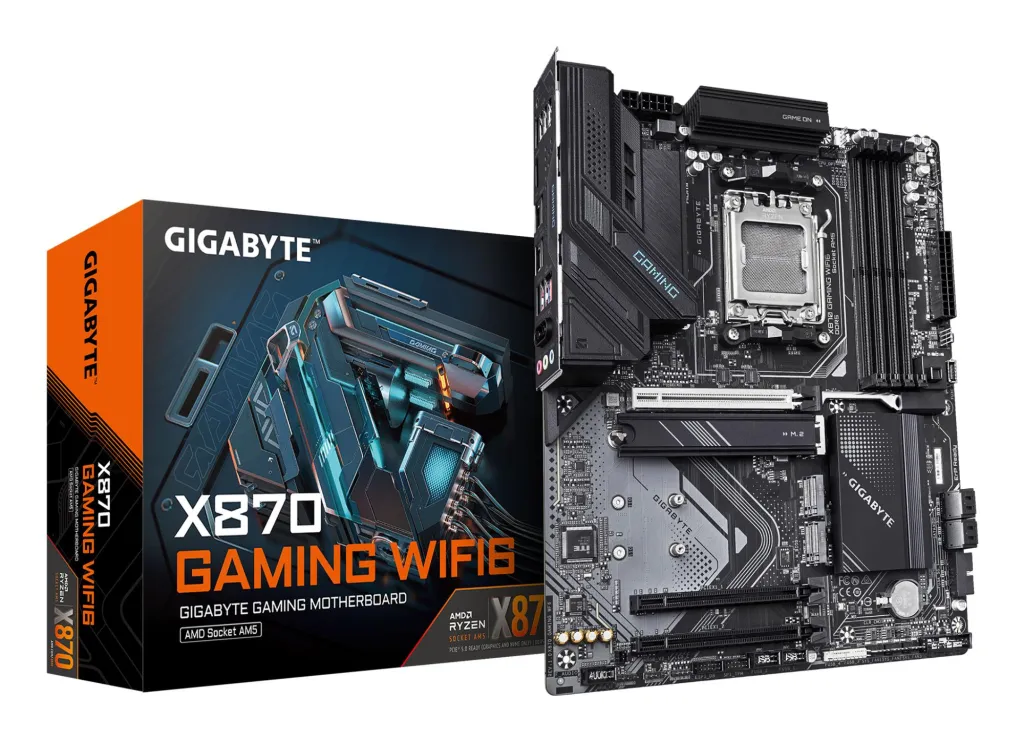

GIGABYTE X870 GAMING WIFI6 Motherboard - Supports AMD Ryzen 9000 CPUs, 8+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Products per shipping (inner) case

1 tk

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

WLAN controller model

Realtek RTL8851BE

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Total number of SATA connectors

4

Number of HDDs supported

7

USB4 Gen 2x2 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

PC health monitoring

Fan/Temperature/Voltage

Desktop Management Interface (DMI) version

2.7

12V power connector

Jah

Lithium weight per battery

0.07 g

USB 3.2 Gen 2x2 connectors

1

PCI Express x4 slots

2

Tootja koduleht

https://www.gigabyte.com/

Mudel

X870 GAMING WIFI6

Pakendi laius

335 mm

Pakendi kõrgus

80 mm

Kaasas tarkvara

Norton® Internet Security (OEM version)
LAN bandwidth management software

Component for

PC

Transpordipakendi kaal

15.22 kg

Transpordipakendi kõrgus

58 cm

Transpordipakendi laius

37.5 cm

Transpordipakendi sügavus

57.5 cm

Kogus transpordikasti kohta

8

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Pakendi sügavus

270 mm

Pakendi kaal

2530 g

Kõrgus

35 mm

Toote kaal

2230 g

DirectX version

12.0

DisplayPorts quantity

2

USB 3.0

Jah

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Päritoluriik

China

Toote värv

Must

Microphone in

Jah

Motherboard chipset

AMD X870

RAID support

Jah

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

Maximum internal memory supported by processor

256 GB

Number of memory slots

4

Processor Socket

Pesa AM5

Raid Levels

0/1/10

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz

USB 2.0 connectors

4

USB-C

2
