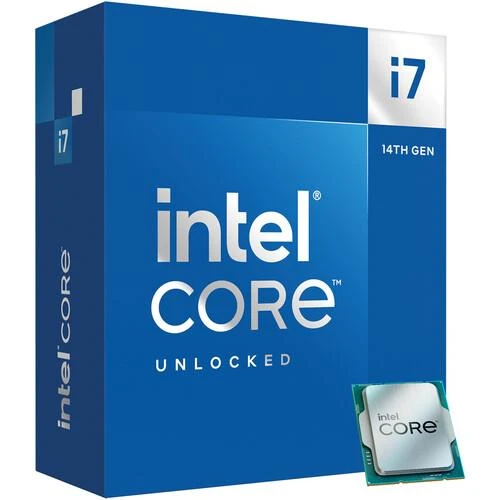

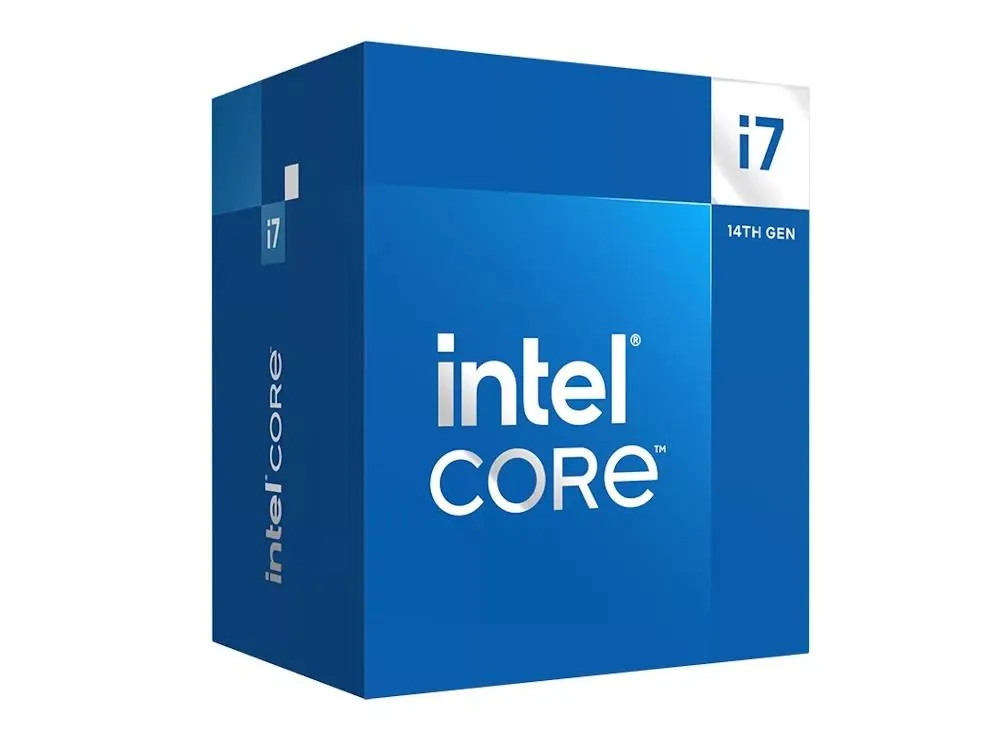

CPU|INTEL|Desktop|Intel Core i7|i7-14700F|Raptor Lake|2100 MHz|Cores 20|33MB|Socket LGA1700|65 Watts|BOX|BX8071514700FSRN3Z

Muud näitajad

Intel Virtualization Technology (VT-x)

Jah

Intel Virtualization Technology for Directed I/O (VT-d)

Jah

Intel 64

Jah

Enhanced Intel SpeedStep Technology

Jah

Embedded options available

Ei

CPU configuration (max)

1

Idle States

Jah

Intel VT-x with Extended Page Tables (EPT)

Jah

Processor codename

Raptor Lake

Maximum number of PCI Express lanes

20

Processor operating modes

64-bit

Memory types supported by processor

DDR4-SDRAM/DDR5-SDRAM

PCI Express slots version

4.0/5.0

PCI Express configurations

1x16+1x4/2x8+1x4

Supported instruction sets

AVX 2.0/SSE4.1/SSE4.2

Thermal Monitoring Technologies

Jah

Memory channels

Dual-channel

Market segment

Lauaarvuti

Scalability

1S

Launch date

Q1'24

Intel® Speed Shift Technology

Jah

Processor manufacturer

Intel

CPU application

Lauaarvuti

Intel® Turbo Boost Max Technology 3.0 frequency

5.4 GHz

Performance cores

8

Use conditions

PC/Client/Tablet

Efficient-core boost frequency

4.2 GHz

Processor generation

Intel® Core™ i7 (14th gen)

Unit Box Height

0.12

Unit Box Length

0.11

Unit Box Width

0.08

CnKood

85423190

Intel® Standard Manageability (ISM)

Jah

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Jah

Üksuse kalkuleeritud maht

0.001279 cubm

Üksuse kalkuleeritud kaal

0.507 kg

Harmonized System (HS) code

8542310001

Commodity Classification Automated Tracking System (CCATS)

740.17B1

Discrete graphics card

Ei

Discrete graphics card model

Ei ole saadaval

On-board graphics card

Ei

On-board graphics card model

Ei ole saadaval

Intel Turbo Boost Max Technology 3.0

Jah

Intel® AES New Instructions (Intel® AES-NI)

Jah

Intel® Hyper Threading Technology (Intel® HT Technology)

Jah

Intel® Secure Key

Jah

Intel® Turbo Boost Technology

2.0

L2 cache

28672 KB

Kokkuvõte

Intel Core i7-14700F. Processor family: Intel® Core™ i7, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel® Turbo Boost Max Technology 3.0 frequency: 5.4 GHz. Processor package size: 45 x 37.5 mm

Tootja koduleht

https://ark.intel.com/content/www/us/en/ark/products/236854/intel-core-i7-processor-14700f-33m-cache-up-to-5-40-ghz.html

Taktsagedus

3200/5600 MHz

Mudel

Intel Core i7 14700F (BX8071514700F S RN3Z)

Efficient cores

12

Efficient-core base frequency

1.5 GHz

Direct Media Interface (DMI) Revision

4.0

Mode-based Execute Control (MBE)

Jah

Export Control Classification Number (ECCN)

5A992C

Performance-core boost frequency

5.3 GHz

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0

Jah

Intel® Volume Management Device (VMD)

Jah

Performance-core base frequency

2.1 GHz

Processor base power

65 W

Voolutarve

65 W

Maximum turbo power

219 W

Max kogus transpordipakendis

5

Cooler included

Jah

Maximum number of DMI lanes

8

Pakendi maht

0.001279 cubm

Intel® Control-flow Enforcement Technology (CET)

Jah

Transpordipakendi kaal

2.536 kg

Intel® Thread Director

Jah

Transpordipakendi kõrgus

12 cm

Transpordipakendi laius

13 cm

Processor ARK ID

236854

Transpordipakendi sügavus

41 cm

Kogus transpordikasti kohta

5

Pakendi tüüp

Karp

Stepping

B0

Netokaal

0.03 kg

Brutokaal

0.507 kg

Mudeli number

i7-14700F

Protsessori Turbo Boost sagedus

5.4 GHz

Vahemälu

33MB

Sisemälu tüüp

DDR4/DDR5

Integrated Graphics

Ei

Maximum internal memory supported by processor

192 GB

Memory bandwidth (max)

89.6 GB/s

Memory bandwidth supported by processor (max)

89.6 GB/s

Processor package size

45 x 37.5 mm

Processor Socket

LGA 1700

Status

Launched
