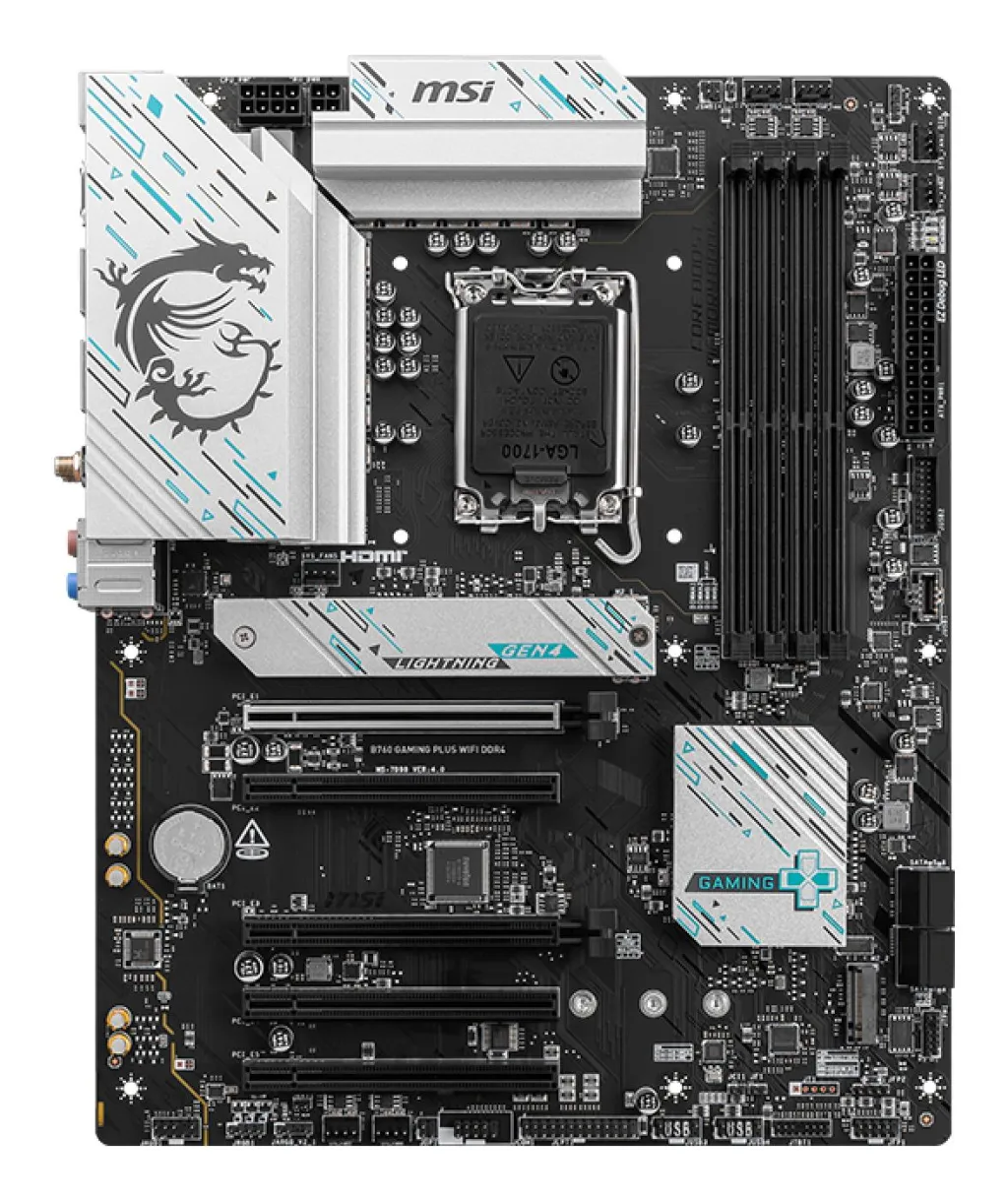

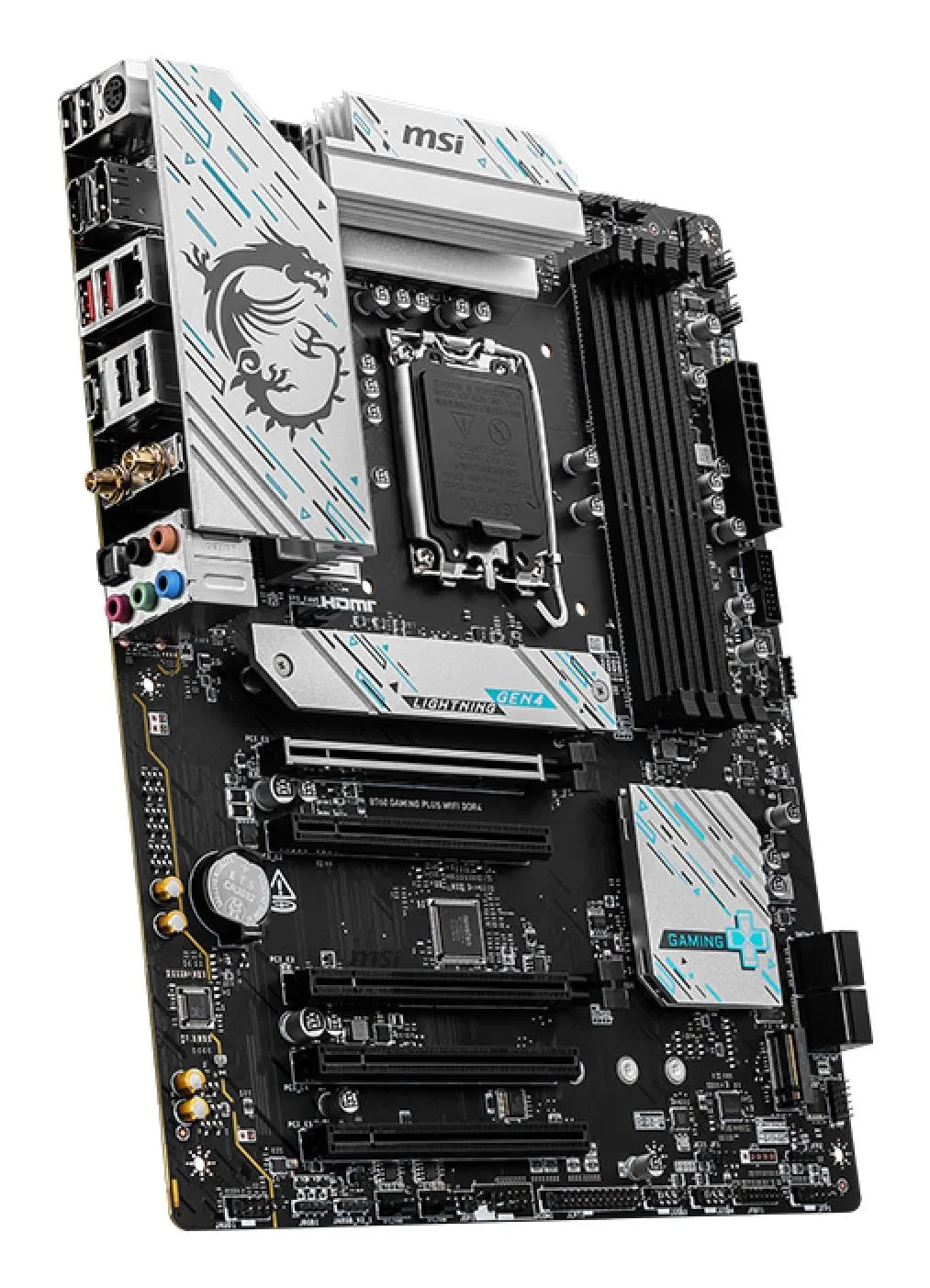

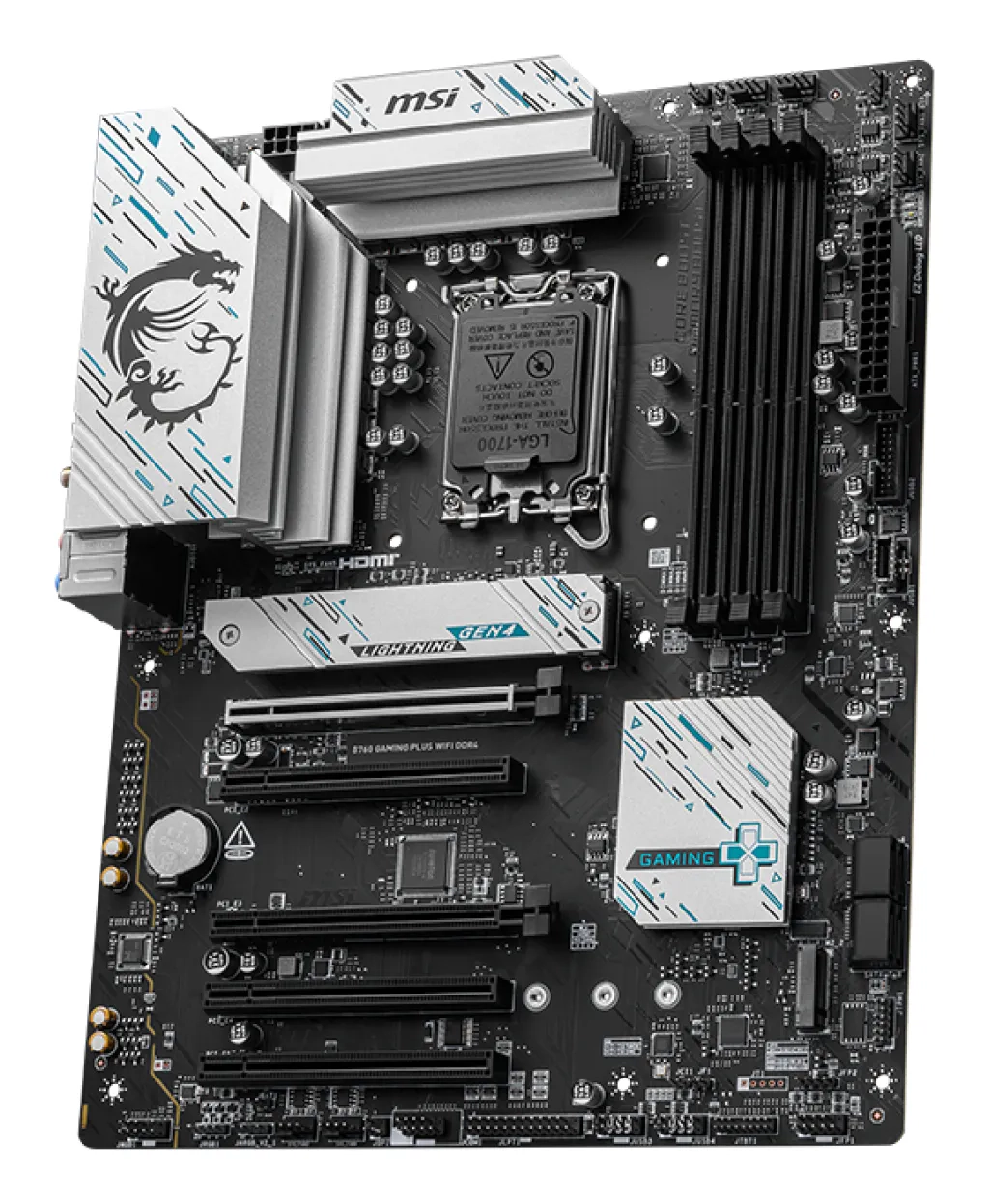

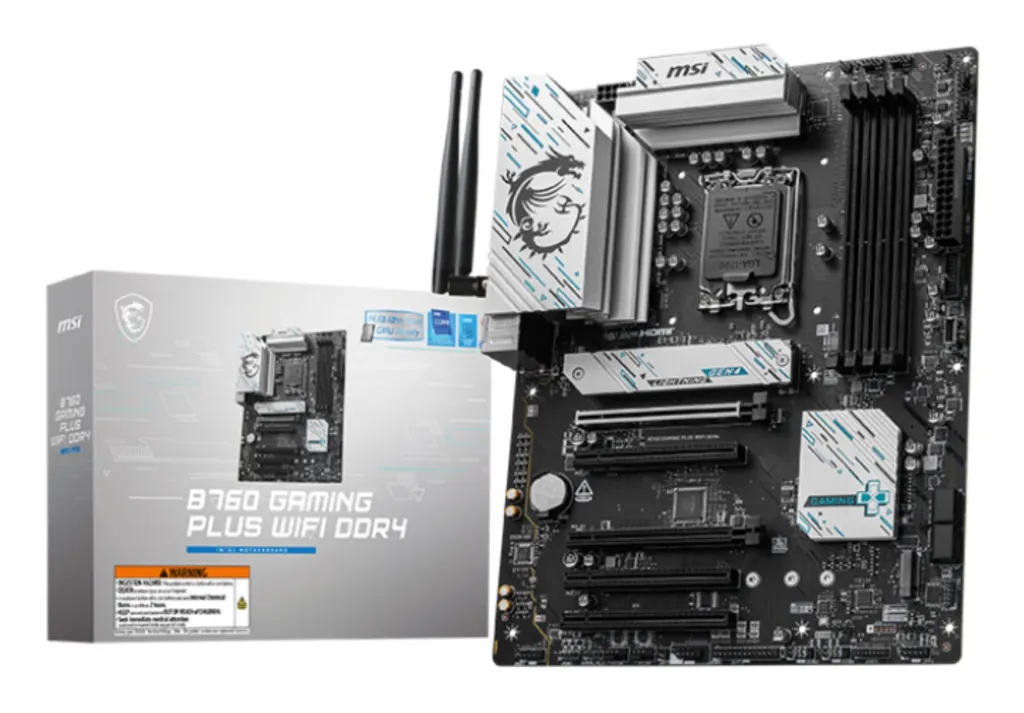

B760 GAMING PLUS WIFI DDR4
The B760 GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel® Core 14th /13th /12th Gen processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5333+(OC) MHz
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

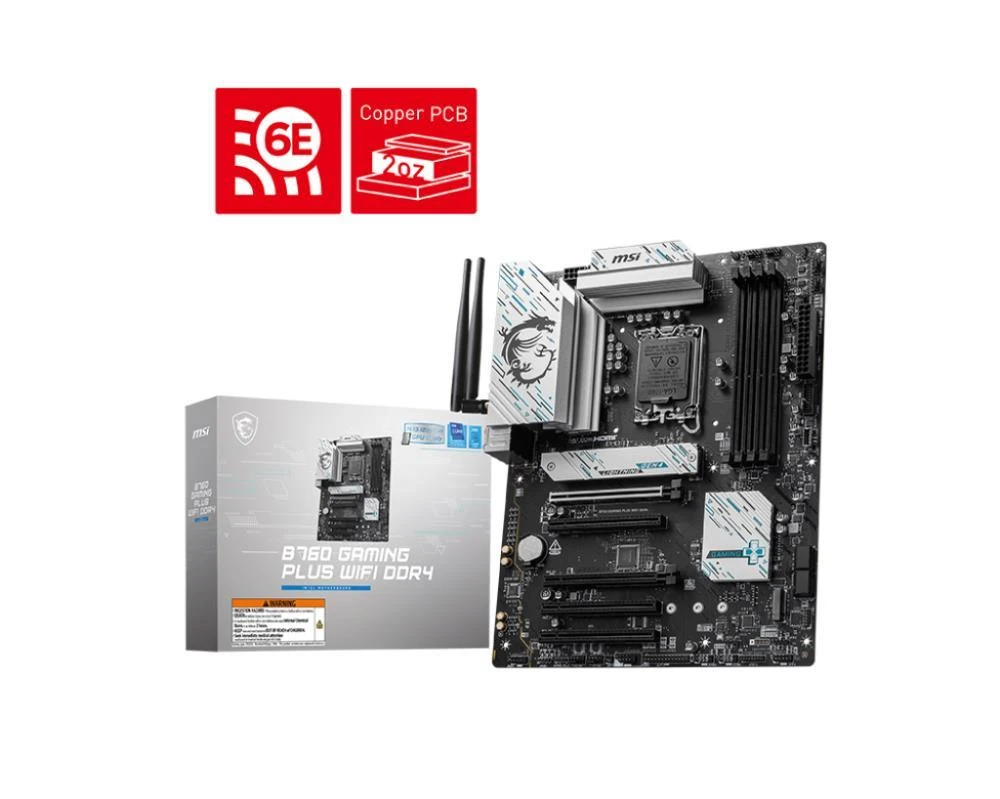

- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Tootja
MSI
Tootekood
B760 GAMING PLUS WIFI DDR4
EAN
4711377247900
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Komponent
- PC
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 243.84 mm
- Sügavus
- 304,8 mm
.: Protsessor :.
- Protsessori tootja
- Intel
- Ühilduvad protsessoriseeriad
- Intel® Celeron®, Intel® Pentium® Gold
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Emaplaadi kiibistik
- Intel
- Kiibistik ( Chipset)
- Intel B760 Express
- Emaplaadi kiip
- Intel B760
.: Mälu :.
- Toetatud mälutüübid
- DDR4-SDRAM
- Sisemälu tüüp
- DDR4
- Mälupesa tüüp
- DIMM
- Toetatud mälu taktsagedused
- 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
- Taktsagedus
- 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz
- Pesade arv
- 4
- Mälupesad
- 4
- Mälukanalid
- Kahe kanaliga
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Jah
.: Audio :.
- Helikiip
- Realtek ALC897
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 5
.: Võrgustumine :.
- LAN-kontroller
- Dragon RTL8125BG
- Ethernet LAN
- 2.5 Gigabit
- Ethernet-liidese tüüp
- 2.5 Gigabit Ethernet
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Laienduspesad
- PCI Expressi x1 pesad
- 3
- PCI Expressi x1 (Gen 3.x) pesad
- 3
- PCI Expressi x16 pesad
- 2
Kõvaketta tugi
- Kõvaketta ühenduse tüüp
- M.2, SATA
- SATA
- Jah
- SATA III ühenduste arv
- 4
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 2
- RAID-tugi
- Jah
- RAID-tasemed
- 0, 1, 5, 10
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- USB 2.0 pistmikud
- 4
- S/PDIF-väljundpistmik
- Jah
- TPM-ühenduspesa
- Header

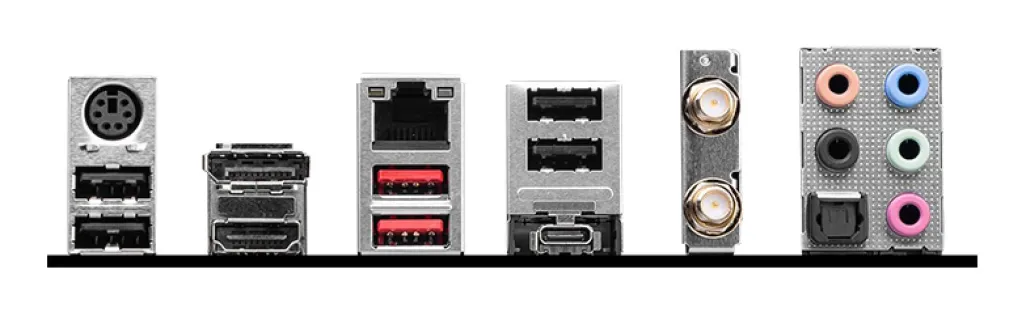

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 0
- HDMI-portide arv
- 1
- DVI-D liideste arv
- 0
- S/PDIF-väljund
- Jah
- USB 2.0 portide arv
- 4
- USB 2.0
- 4
- Ethernet LAN (RJ-45) pordid
- 1
BIOS
- BIOS-i tüüp
- UEFI AMI
- ACPI versioon
- 6.4
- BIOS-i mälu suurus
- 256 Mbit
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.7 kg
- Netokaal
- 1.2 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.006521 cubm
Muud näitajad
- DisplayPort versioon
- 1.4
- PCI Express x16 slots
- 2
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- BIOS type
- UEFI AMI
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- S/PDIF out port
- Jah
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- S/PDIF out connector
- Jah
- Number of SATA III connectors
- 4
- ACPI version
- 6.4
- Number of M.2 (M) slots
- 2
- Number of storage drives supported
- 6
- PCI Express x1 slots
- 3
- PCI Express x1 (Gen 3.x) slots
- 3
- Supported storage drive interfaces
- M.2,SATA
- Processor manufacturer
- Intel
- RGB LED pin header
- Jah
- DisplayPort arv
- 1
- RGB LED pin ots
- Jah
- USB 3.2
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) pistmikud
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) konnektorid
- 0
- PCI Express x16 (Gen 4.x) slots
- 2
- PCI Express x16 (Gen 4.x) pilud
- 2
- PCI-Express 5.0 16x
- 5
- Unit Box Height
- 0.348
- Unit Box Length
- 0.27
- Unit Box Width
- 0.066
- CnKood
- 84733020
- ECC сompatibility
- Non-ECC
- ECC ühilduvus
- Mitte-ECC
- Üksuse kalkuleeritud maht
- 0.007252 cubm
- Üksuse kalkuleeritud kaal
- 1.62 kg
- Kokkuvõte
- MSI B760 GAMING PLUS WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 3
- Toetatud Windows operatsioonisüsteemid
- Windows 10 x64, Windows 11 x64
- Tootja koduleht
- https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI-DDR4
- HDMI versioon
- 2.1
- Mudel
- B760 GAMING PLUS WIFI DDR4
- USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk
- 2
- Component for
- PC
- Transpordipakendi kaal
- 16.1599998474121 kg
- Transpordipakendi kõrgus
- 37 cm
- Transpordipakendi laius
- 35 cm
- Transpordipakendi sügavus
- 56 cm
- Kogus transpordikasti kohta
- 10
- Toetatud kõvaketaste arv
- 4
- Protsessori poolt toetatud maksimaalne operatiivmälu
- 128 GB
- Toetatud ketaste arv
- 6
- HDMI-versioon
- 2.1
- DisplayPorts quantity
- 1
- SATA-ühenduste koguarv
- 4
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Motherboard chipset
- Intel B760
- RAID support
- Jah
- Toetatud protsessoripesad
- LGA 1700
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- LAN controller
- Dragon RTL8125BG
- Maximum internal memory supported by processor
- 128 GB
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Processor Socket
- LGA 1700
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz
- USB 2.0 connectors
- 4
- USB-C
- 1
