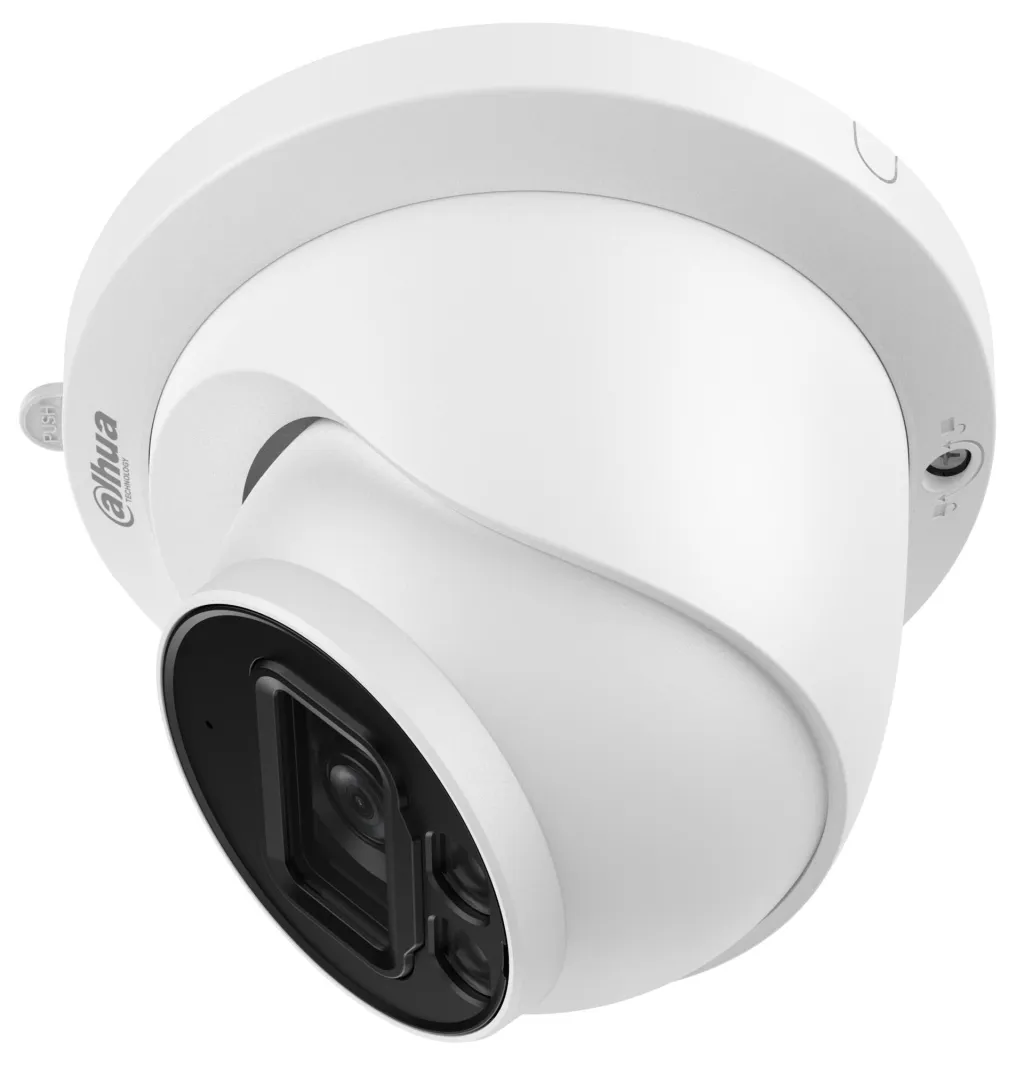

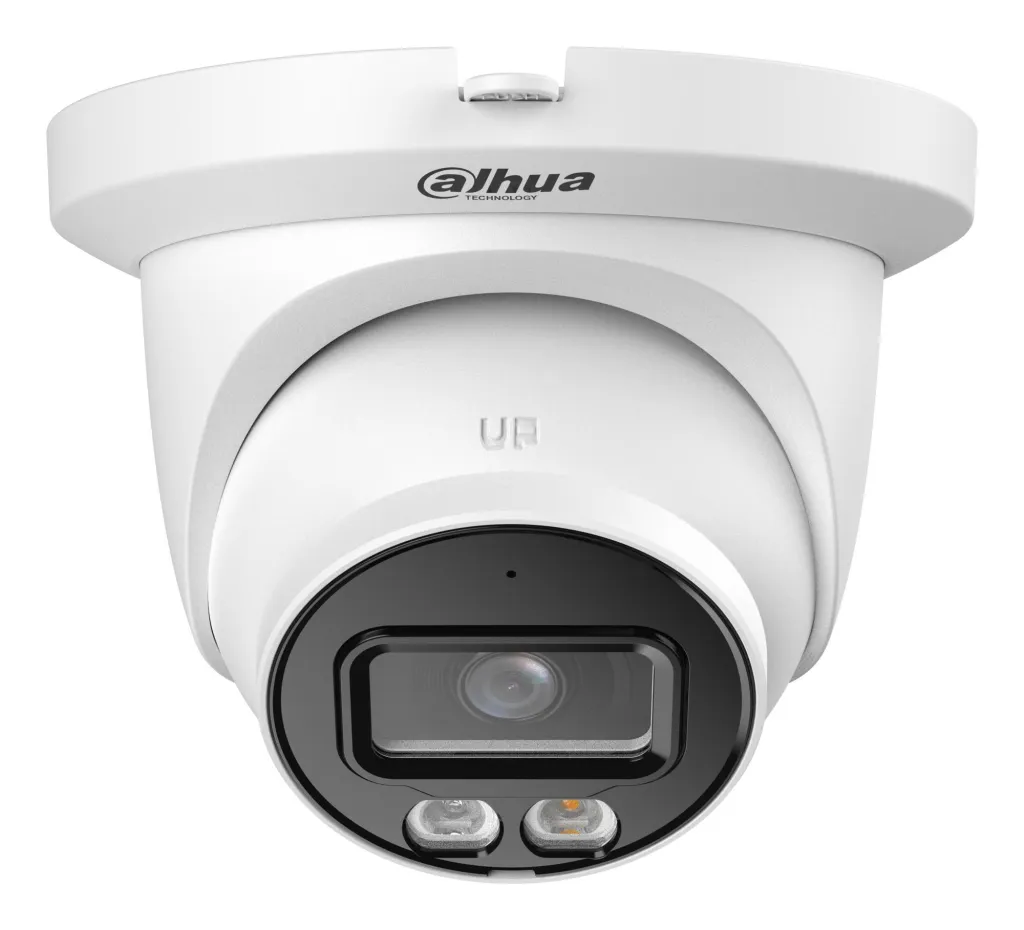

NET CAMERA 6MP EYEBALL/IPC-HDW2649TM-S-IL-0280B DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL

Mudel

IPC-HDW2649TM-S-IL-0280B

Seadme tüüp

IP security camera

.: Disain :.

Kokkuvõte

Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m

Kujutegur

Turret

Toote värv

Valge

.: Mälu :.

RAM capacity

256 MB

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Sisseehitatud mikrofon

Sisseehitatud

Toetatud audioformaadid

G.711 µ-law/G.711 A-law/G.726/PCM

.: Kaamera :.

Lens viewing angle, vertical

61 °

Valge tasakaalustus

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

.: Võrgustumine :.

WiFi

Ei

Võrgustandardid

IEEE 802.1x

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

DC-pistik

Jah

Ethernet LAN (RJ-45) pordid

1

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

2.5 W

.: Salvestusruum :.

ROM capacity

128 MB

Pildisensor

Progressiivne skaneerimine

Jah

.: Tehnilised andmed :.

Vastavussertifikaadid

CE

Juhtimisfunktsioonid

Teenusekvaliteedi (QoS) tugi

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

132 °

Lens viewing angle, horizontal

112 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12 VDC; PoE

Voolutarve

4.6 Watts

Ergonoomika

Pöördenurga ulatus

360 °

Logistika andmed

Kogus transpordikasti kohta

20

Töötingimused

Hoiustamistemperatuur (T-T)

-40 - 60 °C

Kasutamistemperatuur (T-T)

-40 - 60 °C

.: Pakendi andmed :.

Kasutusjuhend

Jah

Pakendi kaal

670 g

Tehnilised andmed

Placement supported

Siseruumidesse

Supported network protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P

Number of cameras

1

IP address filtering

Jah

Wide Dynamic Range (WDR)

Jah

Video motion detection

Jah

Number of illumination LEDs

2

LED type

IR

Supports card capacities up to

256GB

Unit Box Height

0.11

Unit Box Length

0.14

Unit Box Width

0.14

CnKood

85258900

Üksuse kalkuleeritud maht

0.002769 cubm

Tilt angle range

0 - 78 °

Camera pan control

Jah

Camera tilt control

Jah

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

3D noise reduction

Mirror

Jah

Number of sensors

1

Human and vehicle targets classification

Jah

Region of Interest (ROI) encoding

Jah

Detect distance

61.2 m

Identify distance

6.1 m

Observe distance

24.5 m

Recognize distance

12.2 m

Streaming method

Multicast

Dynamic range

120 dB

Number of Privacy masking areas

4

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Network access storage (NAS)

Jah

Fixed focus

Jah

Gain control type

Automaatne/Manuaalne

Colour night vision distance

30 m

Rahvusvaheline Kaitsekood ( IP )

IP67

Day/night mode

Jah

DC output voltage

12

Ethernet interface type

Kiire Ethernet

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.6

Mobile operating systems supported

Android/iOS

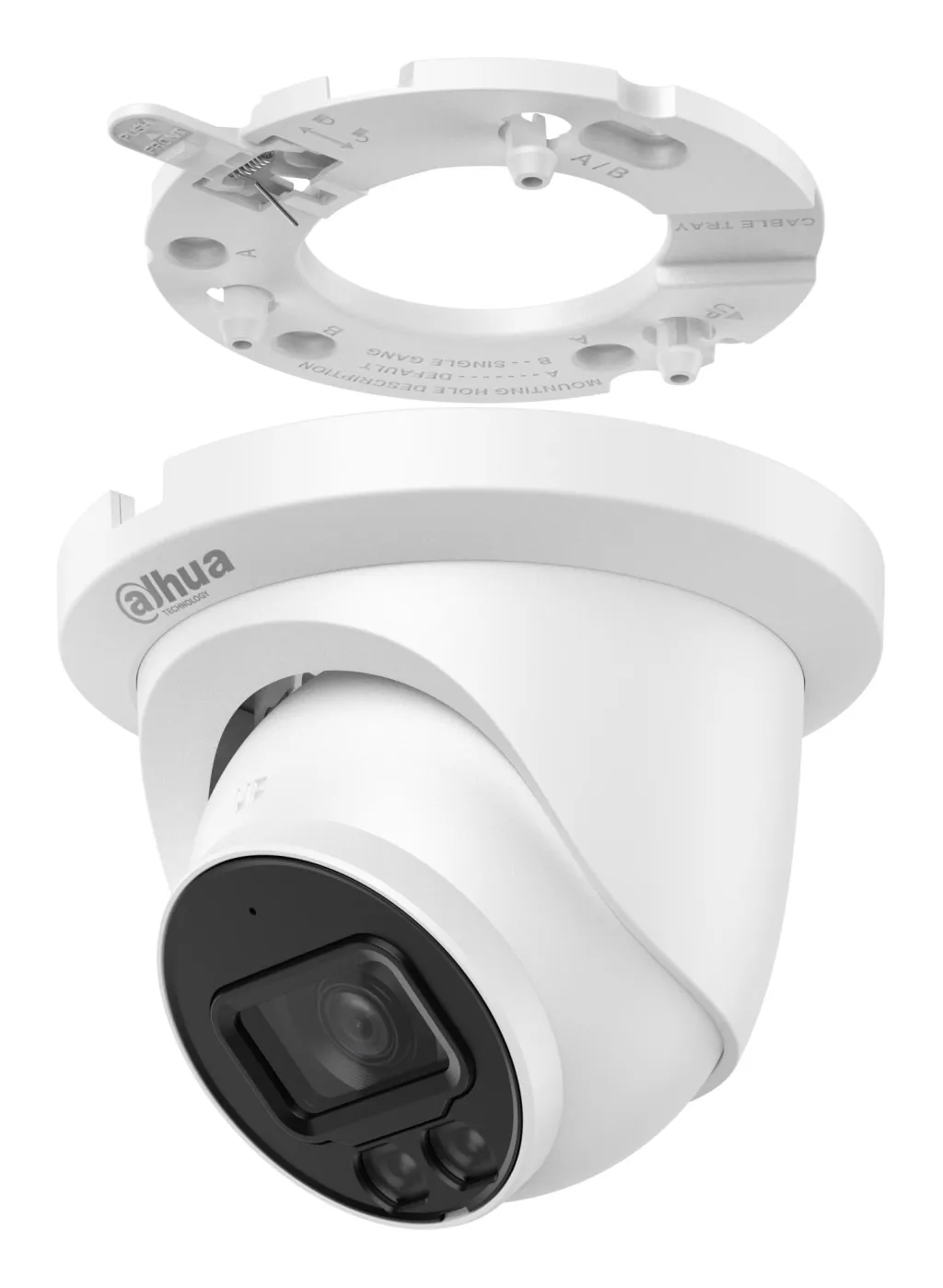

Mounting type

Ceiling/Wall/Pole

Noise reduction

Jah

Sensor type

CMOS

Video compression formats

H.264/H.264B/H.264H/H.265/M-JPEG

Video recording

Jah

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

Eyeball

Camera shutter speed

1/3 - 1/100000 s

Closest focusing distance

1 m

Connectivity Technology

Juhtmega

Diameter

121.9 mm

Effective pixels

3288 (H) × 1850 (V)

Electronic Shutter Speed

Automaatne/manuaalne 1/3 s–1/100, 000 s

Environment

Välitingimustesse

Fixed focal length

2.8 mm

Focal Length

3.6 mm; 2.8 mm

Frame Rate

30 fps

Housing material

Metall/Plastik

IR Illumination

Jah

Lens Mount

M12

Maximum memory card size

256 GB

Min. Illumination

0.0007 Lux

Minimum Illumination

0.0007 lx

Network Camera Type

HDTV/Megapixel/Outdoor

Night vision distance

30 m

Operating temperature range

–40 °C kuni +60 °C

Optical sensor size

1/2.7 "

Pan range

0 - 360 °

Resolution

6 Mega Pixel

Sensor size

1/2.7" CMOS

Total megapixels

6 MP

Video streaming

Jah

Tehnilised andmed

Üksuse kalkuleeritud kaal

0.725 kg

Netokaal

0.53 kg

Kõrgus

99.1 mm

Mõõtmed (l x s x k)

99.1 mm × Φ121.9 mm

Toote kaal

530 g
