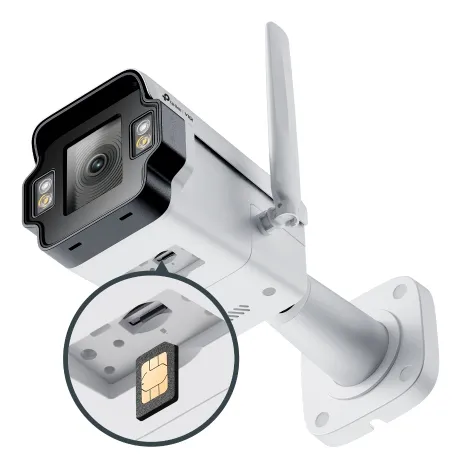

TP-Link INSIGHT S345-4G Kuul (kuju) IP süsteemiga turvakaamera Hooneväline 2688 x 1520 pikslit Sein

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.tp-link.com/ae/business-networking/vigi-network-camera/insight-s345-4g/

.: Disain :.

Toote värv

White

Kujutegur

Bullet

Toote värv

White

.: Mälu :.

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Toetatud audioformaadid

G.711 A-law

Sisseehitatud mikrofon

Built-in

.: Kaamera :.

Lens viewing angle, vertical

41.8 °

.: Võrgustumine :.

Mobile network generation

4G

Web browser

Jah

Ethernet LAN

Jah

Bluetooth

Ei

SIM-kaardi tüüp

NanoSIM

.: Pesad & liidesed :.

DC-pistik

Jah

Ethernet LAN (RJ-45) pordid

3

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC

Antenn

Antennide arv

2

Antenni tüüp

External

Pildisensor

Progressiivne skaneerimine

Jah

Juhtimisfunktsioonid

Veebipõhine haldus

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

98.7 °

Lens viewing angle, horizontal

80.4 °

Öövaatluse funktsioon

Öönägemine

Jah

Ergonoomika

Lähtestusnupp

Jah

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

Hoiustamistemperatuur (T-T)

-40 - 60 °C

WAN-ühendus

SIM kaardi ava

Jah

.: Pakendi sisu :.

Paigalduskomplekt

Jah

Tarvikud kaasa arvatud

• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter

.: Pakendi andmed :.

Kasutusjuhend

Jah

Tehnilised andmed

Password protection

Jah

Placement supported

Outdoor

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Number of cameras

1

IP address filtering

Jah

Image quality adjustment

Brightness/Contrast/Mirror/Saturation/Sharpness

Wide Dynamic Range (WDR)

Jah

Live view

Jah

Motion sensor

Jah

Sample rate

8 kHz

Video motion detection

Jah

LED type

IR/White

Number of microphones

1

Screws included

Jah

Remote viewing

Jah

Alert notification type

Push notification

HTTPS encryption

Jah

Detection Distance

120 m

Unit Box Height

0.16

Unit Box Length

0.325

Unit Box Width

0.13

CnCode

85258900

Unit Calculated Volume

0.00676 cubm

Unit Calculated Weight

1.61 kg

Summary

TP-Link INSIGHT S345-4G. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 80.4°, Lens viewing angle, vertical: 41.8°, Lens viewing angle, diagonal: 98.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

Tilt angle range

0 - 90 °

4G standard

LTE-TDD & LTE-FDD

Back Light Compensation (BLC)

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Highlight Compensation (HLC)

Jah

Mirror

Jah

Digest authentication

Jah

Human and vehicle targets classification

Jah

Infrared (IR) cut-off filter

Jah

Detect distance

80 m

Identify distance

8 m

Observe distance

33 m

Recognize distance

16 m

Weatherproof

Jah

Dynamic range

120 dB

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Audio input channels

1.0 channels

Bit rate range

0 - 64 Kbit/s

Power consumption (Power over Ethernet (PoE))

10.7 W

Cloud-managed

Jah

Fixed focus

Jah

Built-in siren

Jah

Drilling template included

Jah

Built-in speaker(s)

Jah

Day/night mode

Jah

DC output voltage

12

Ethernet LAN (RJ-45) ports

3

Maximum aperture number

1.6

Mounting type

Wall

Protection features

Waterproof

Sensor type

CMOS

Video compression formats

H.264/H.264+/H.265/H.265+

Video recording

Jah

Audio system

2-way

Bit rate

Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Built-in microphone

Jah

Camera design

Bullet

Camera shutter speed

1/3 to 1/10000 s

Connectivity Technology

Wired

Electronic Shutter Speed

1/3 to 1/10000 s

Environment

Outdoor

Fixed focal length

4 mm

Focal Length

4 mm

Housing material

Metal

IR Illumination

Jah

Lens Mount

M12

Maximum memory card size

512 GB

Maximum operating distance

80 m

Min. Illumination

0.005 Lux

Nano-SIM card tray

1

Network Camera Type

HDTV/Megapixel/Outdoor

Operating temperature range

-30 °C to 60 °C

Optical sensor size

1/2.7 "

Resolution

4 Mega Pixel

Sensor size

1/2.7“ Progressive Scan CMOS

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

4 MP

Wireless connections

4G

Tehnilised andmed

Netokaal

1.09 kg

Laius

122 mm

Kõrgus

101 mm

Mõõtmed (l x s x k)

256 × 122 × 101 mm

Toote kaal

1090 g

Pikkus

256 mm
