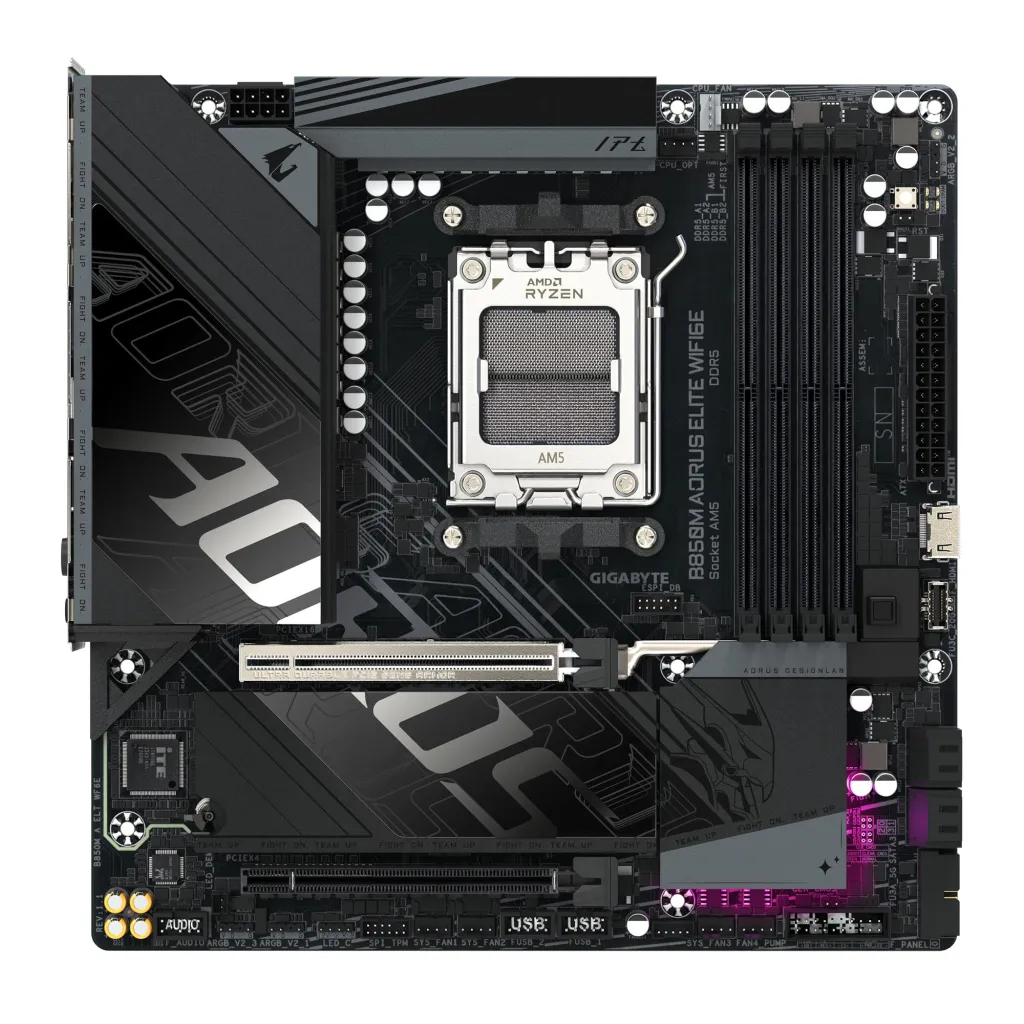

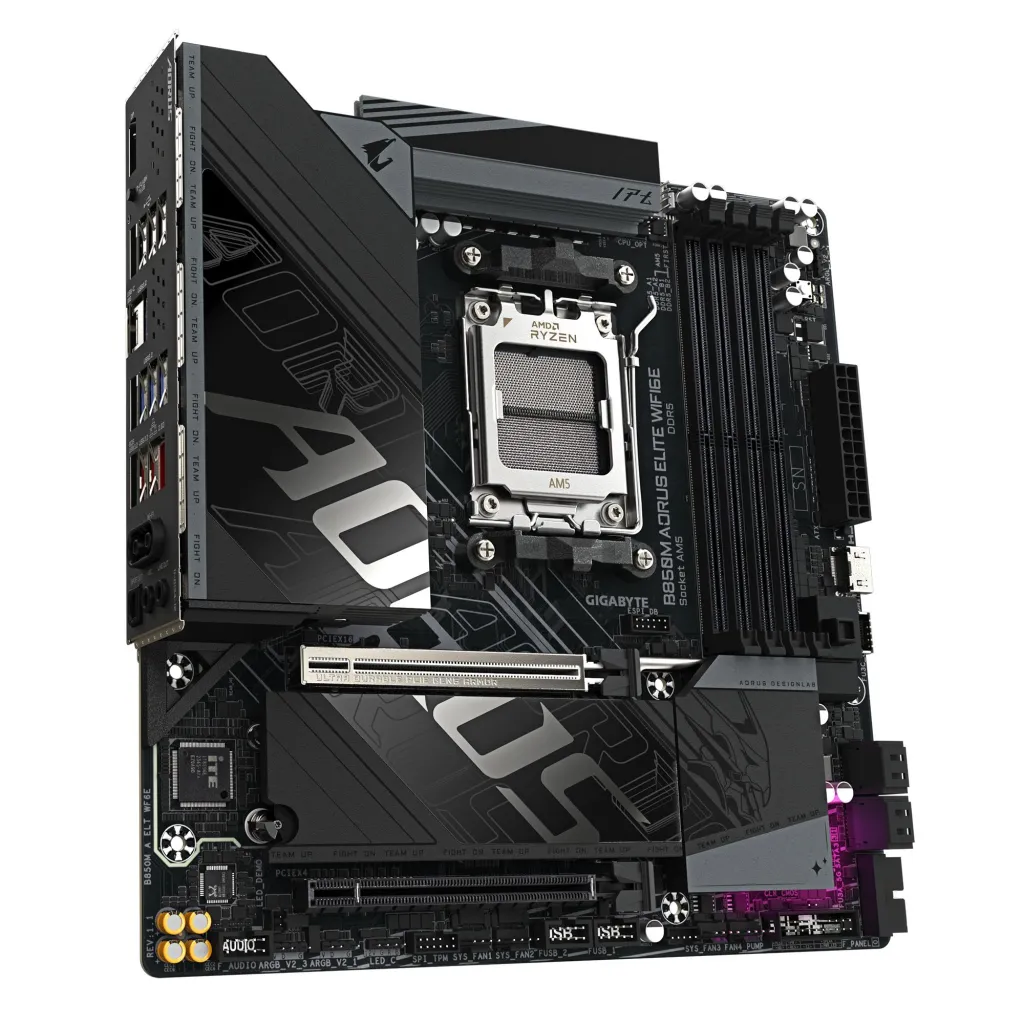

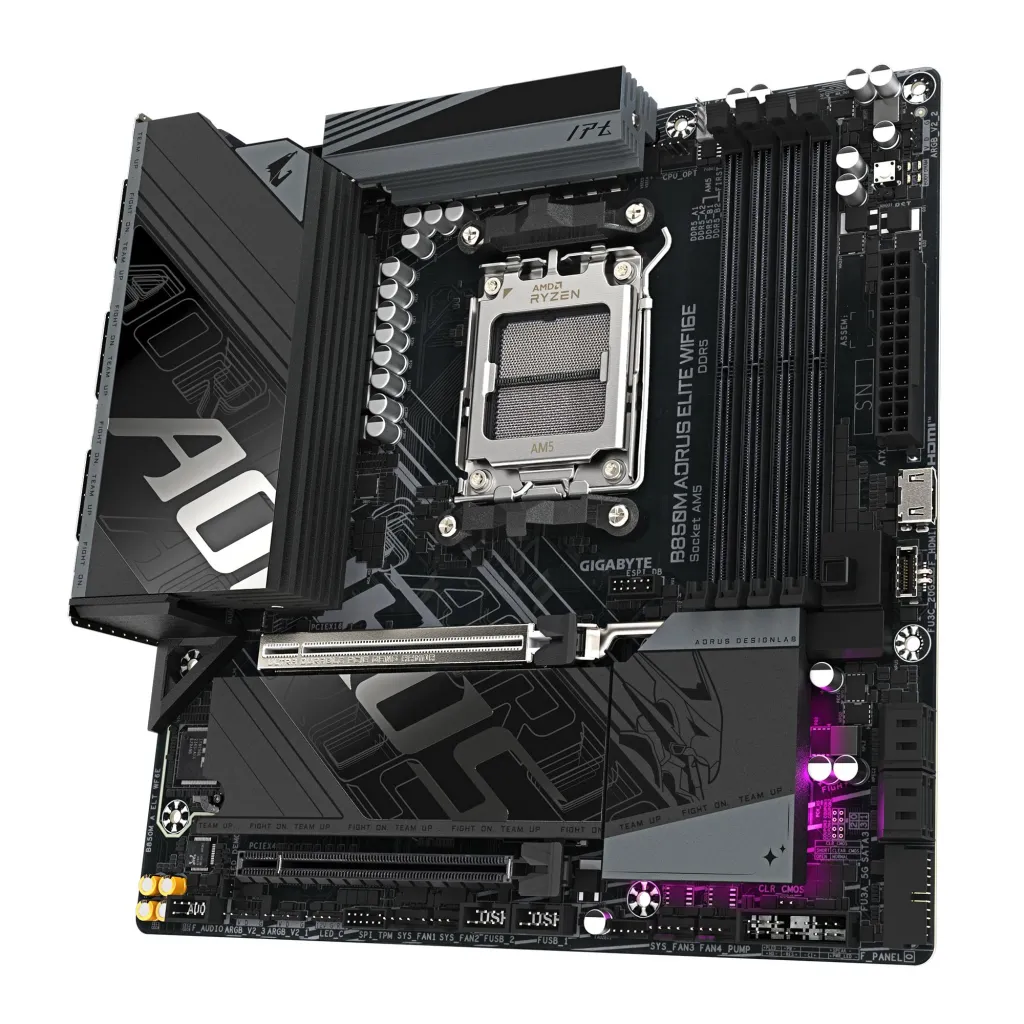

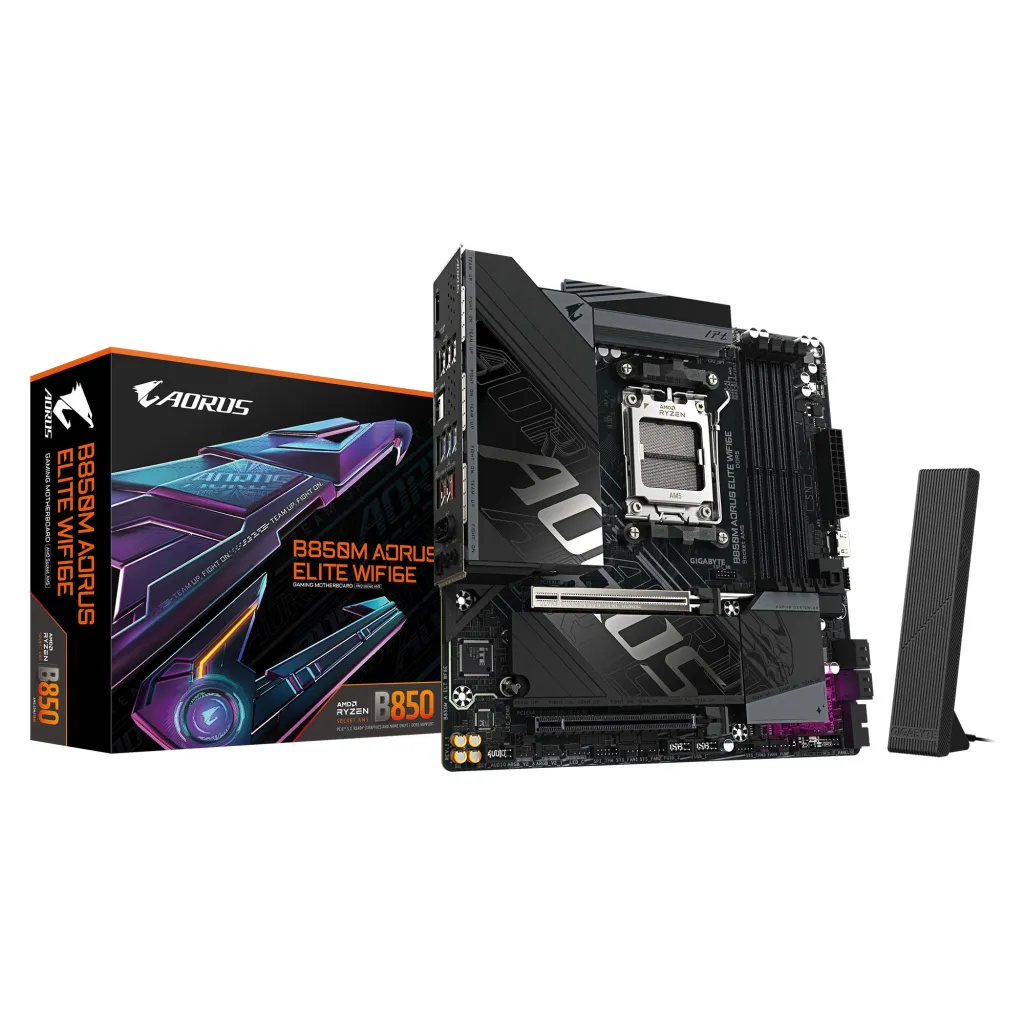

GIGABYTE B850M AORUS ELITE WIFI6E
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Tootja | GIGABYTE |
| Tootekood | B850M A ELT WF6E 1.1 |
| EAN | 4719331871123 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B850 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 256 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 2 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.3 |
| Laienduspesad | |
| PCI Expressi x1 (Gen 3.x) pesad | 1 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 1 |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

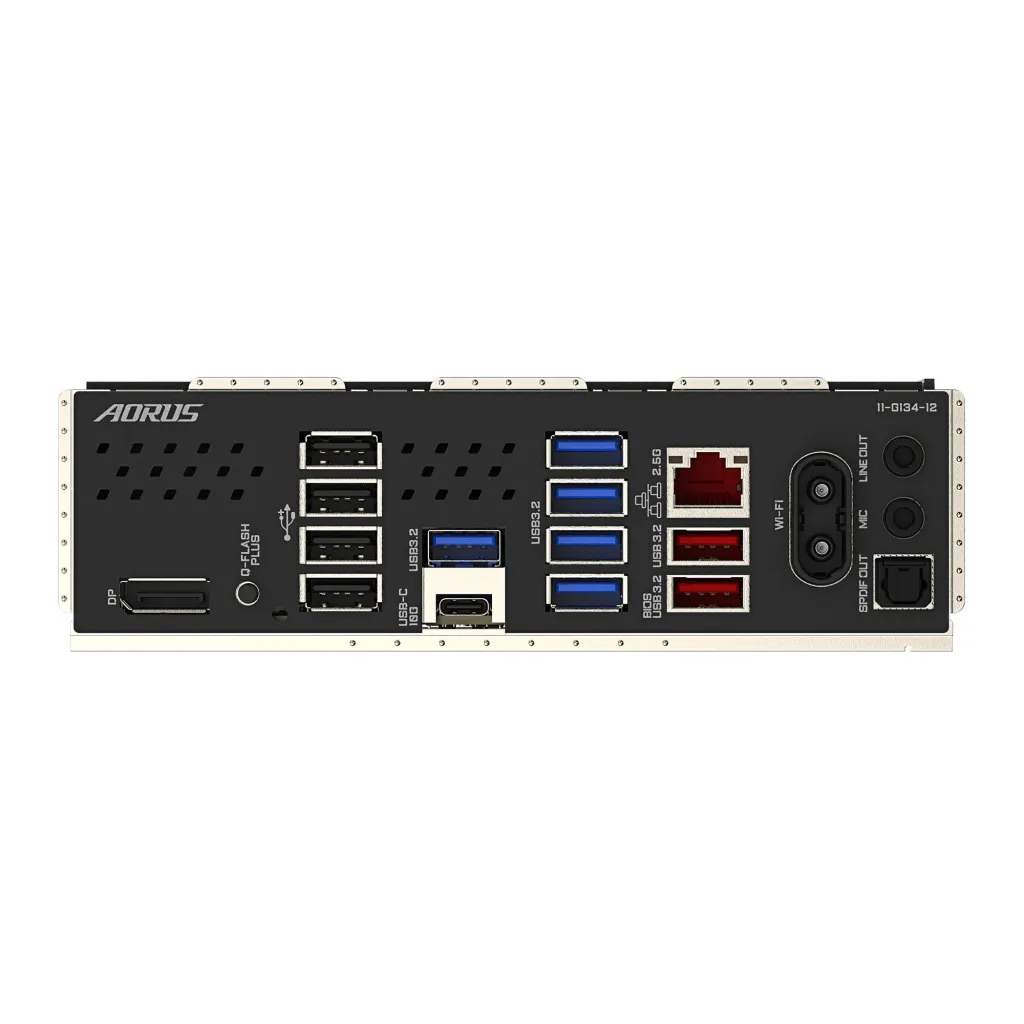

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | 4 |
| Ethernet LAN (RJ-45) pordid | 1 |
| Muud näitajad | |
| DisplayPort version | 1.4 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 4 |
| S/PDIF out port | Jah |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Parallel processing technology support | Not supported |
| Clear CMOS jumper | Jah |
| ACPI version | 5.0 |
| Number of M.2 (M) slots | 2 |
| Line-in | Jah |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| WiFi-AP antenna jack | 2 |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA III |
| Screws included | Jah |
| Processor manufacturer | AMD |
| Antenna included | Jah |
| System management BIOS (SMBIOS) version | 2.7 |
| RGB LED pin header | Jah |
| USB 3.2 | 7 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 4.0 4x | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI-Express 5.0 16x | 1 |
| Supported memory clock speed (max) | 8200 MHz |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.27 |
| CnCode | 84733020 |
| Warranty period | 3 year(s) |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.006549 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 1.96 kg |
| Summary | GIGABYTE B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| Product colour | Black |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Products per shipping (inner) case | 1 pc(s) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio chip | Realtek ALC1220-VB |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Desktop Management Interface (DMI) version | 2.7 |
| 12V power connector | Jah |
| Front panel connector | Jah |
| Lithium weight per battery | 0.07 g |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Kaasas tarkvara | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| Component for | PC |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Akuelementide arv | 1 |
| Akutehnoloogia | Lithium-Manganese Dioxide (LiMnO2) |
| Maksimaalne resolutsioon | 3840 x 2160 pixels |
| Tootja koduleht | https://www.gigabyte.com/Motherboard/B850M-AORUS-ELITE-WIFI6E-rev-1x |
| Kõrgus | 35 mm |
| Toote kaal | 1780 g |
| Cooling type | Passive |
| Digital audio optical out | 1 |
| DirectX version | 12.0 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Motherboard chipset | AMD B850 |
| Power source type | ATX |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Batteries Included | Jah |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 256 Mbit |
| DisplayPort | 1 |
| LAN controller | Realtek RTL8125 |
| Mudel | B850M AORUS ELITE WIFI6E (rev. 1.x) |
| Number of memory slots | 4 |
| Optical S/PDIF | 1 |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1972.5 g |
| Package width | 270 mm |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10 |
| Supported memory clock speeds | 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz |
| USB 2.0 connectors | 2 |
| USB-C | Jah |
