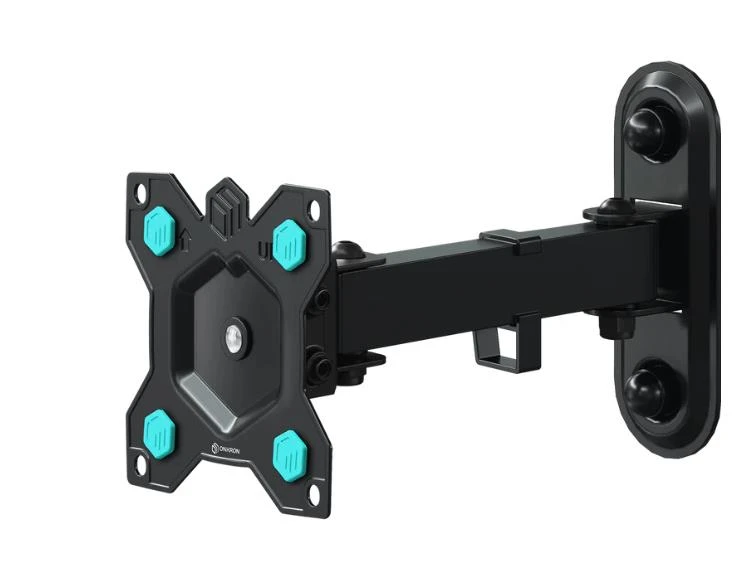

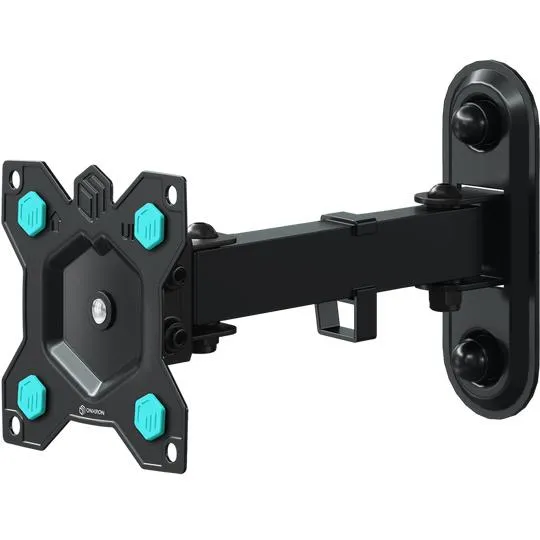

TV SET ACC WALL MOUNT /10-35"/BLACK R2-B ONKRON

.: Üldised andmed :.

Tootja koduleht

https://onkron-uk.co.uk/products/onkron-swivel-tilt-tv-wall-mount-for-10-32-inch-flat-curved-led-screens-up-to-20-kg-min-vesa-75x75-max-vesa-100x100-wall-mount-swivel-tv-mount-r2-b-black?_pos=1&_sid=0bc29c8b3&_ss=r

Mudel

R2

.: Disain :.

Kokkuvõte

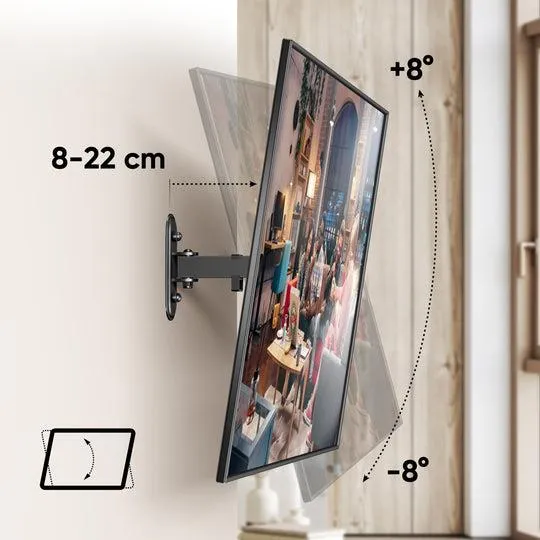

ONKRON R2-B. Maximum weight capacity: 20 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: -8 - 8°, Swivel angle range: -70 - 70°, Distance to the wall (min): 8 cm, Distance to the wall (max): 22 cm. Product colour: Black

Toote värv

Must

Logistika andmed

Kogus transpordikasti kohta

1

.: Pakendi andmed :.

Pakendi laius

215 mm

Pakendi kõrgus

77 mm

Pakendi sügavus

164 mm

Pakendi kaal

900 g

Tehnilised andmed

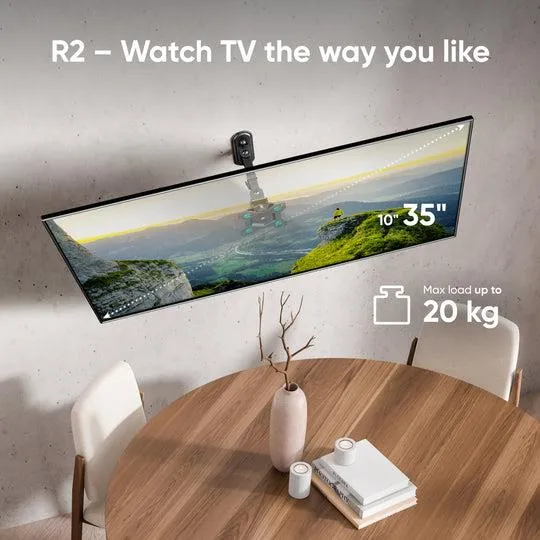

Fits screens sized

10" - 35"

Maximum weight capacity (per display)

20 kg

Minimum VESA mount

75 x 75 mm

Minimum screen size

10 "

Maximum VESA mount

100 x 100 mm

Maximum screen size

35 "

Panel mounting interface

100 x 100/75 x 75 mm

Tilt angle range

-8 - 8 °

Üksuse kalkuleeritud maht

0.00258 cubm

Unit Box Width

0.075

Unit Box Length

0.215

Unit Box Height

0.16

Maximum Weight Capacity

20 kg

Distance to the wall (max)

220 mm

Swivelling

Jah

Number of displays supported

1

Tilt adjustment

Jah

Mounting type

Sein

100 mm x 100 mm

Jah

Distance to the wall (min)

80 mm

Housing material

Teras

Max. weight

20 kg

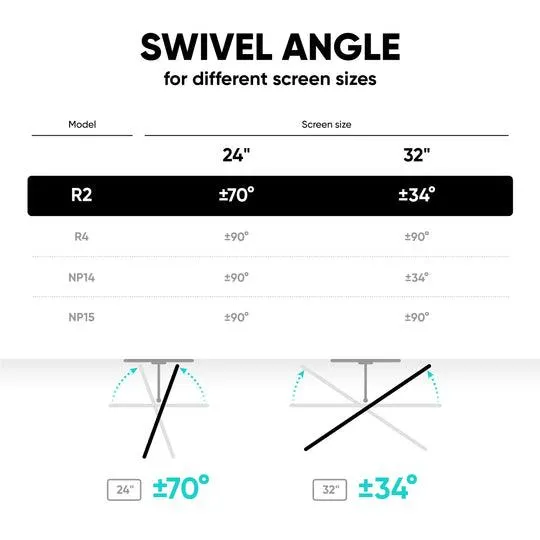

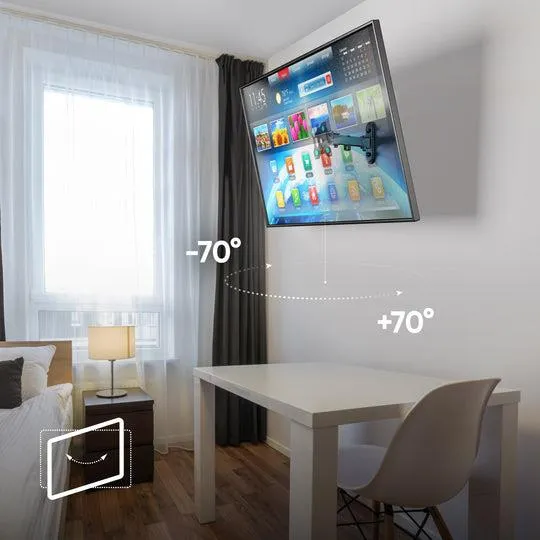

Swivel angle range

-70 - 70 °

Tehnilised andmed

Üksuse kalkuleeritud kaal

0.9 kg

Netokaal

0.7 kg
