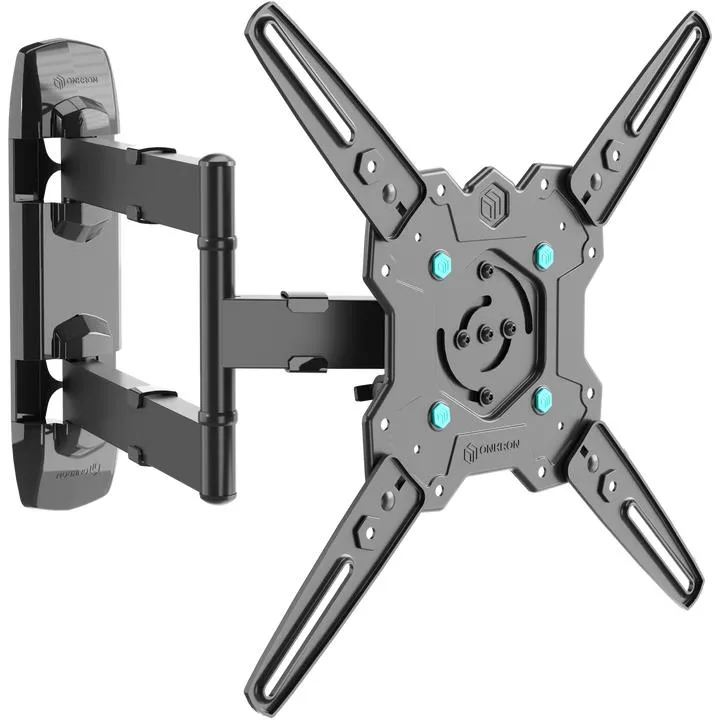

TV SET ACC WALL MOUNT /32-65"/BLACK M4R-B ONKRON

.: Üldised andmed :.

Tootja koduleht

https://onkron.us/products/full-motion-tv-wall-mount-for-32-to-65-inch-screens-onkron-m4-roto-black

Mudel

M4R

Seadme tüüp

Täis liikumine

.: Disain :.

Kokkuvõte

ONKRON Tilting and swiveling TV bracket for 32"-65" with rotation max 90 lbs, black. Maximum weight capacity: 41 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 - 5°, Angle of rotation: 90°, Distance to the wall (min): 6 cm, Distance to the wall (max): 49.6 cm. Product colour: Black

Toote värv

Must

Ergonoomika

Pöördenurga ulatus

90 °

Logistika andmed

Kogus transpordikasti kohta

5

.: Pakendi andmed :.

Transpordipakendi kaal

21 kg

Transpordipakendi kõrgus

36 cm

Transpordipakendi laius

33 cm

Transpordipakendi sügavus

40 cm

Kasutusjuhend

Jah

Pakendi tüüp

Karp

Tehnilised andmed

Panel mounting interface

100 x 100/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400 mm

Üksuse kalkuleeritud maht

0.009504 cubm

CnKood

83021000

Unit Box Width

0.32

Unit Box Length

0.395

Unit Box Height

0.07

Maximum Weight Capacity

41 kg

Fits screens sized

32"- 65"

Distance to the wall (max)

496 mm

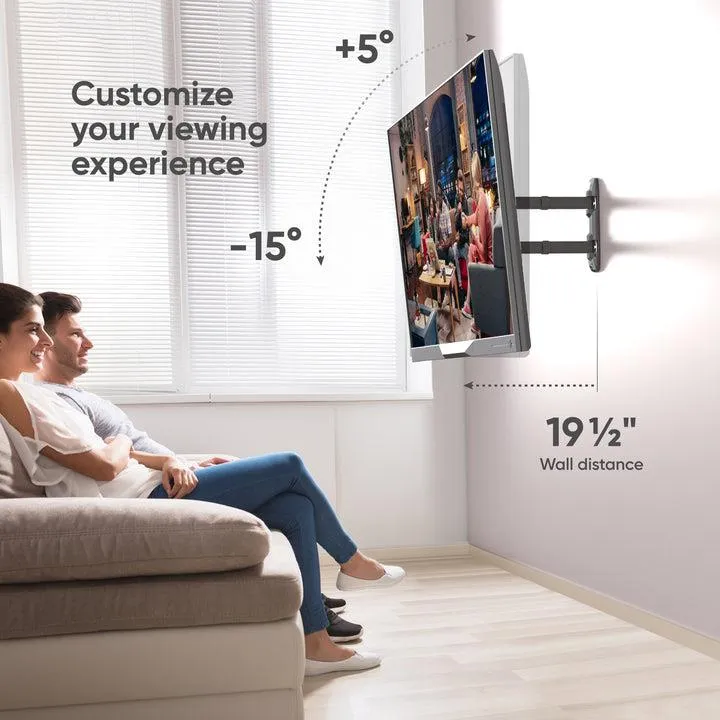

Tilt angle range

-15 - 5 °

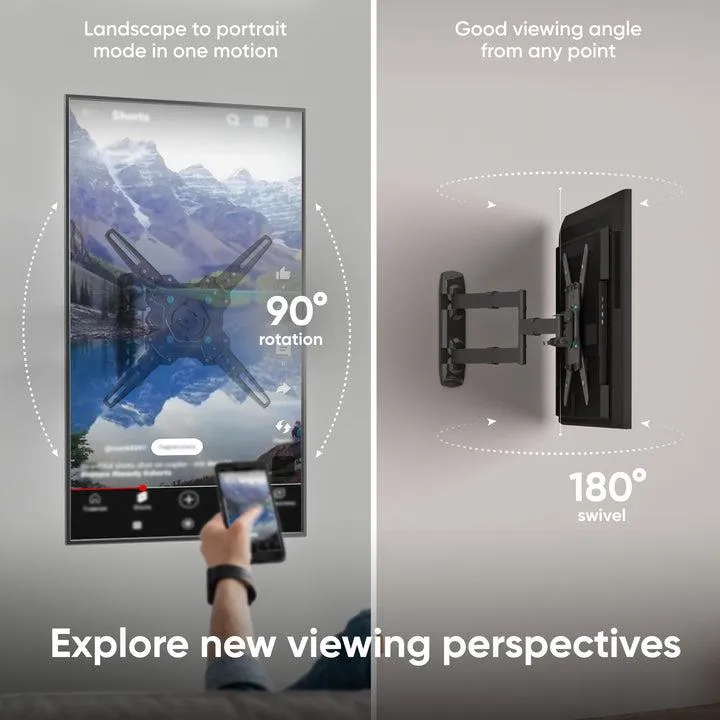

Rotating

Jah

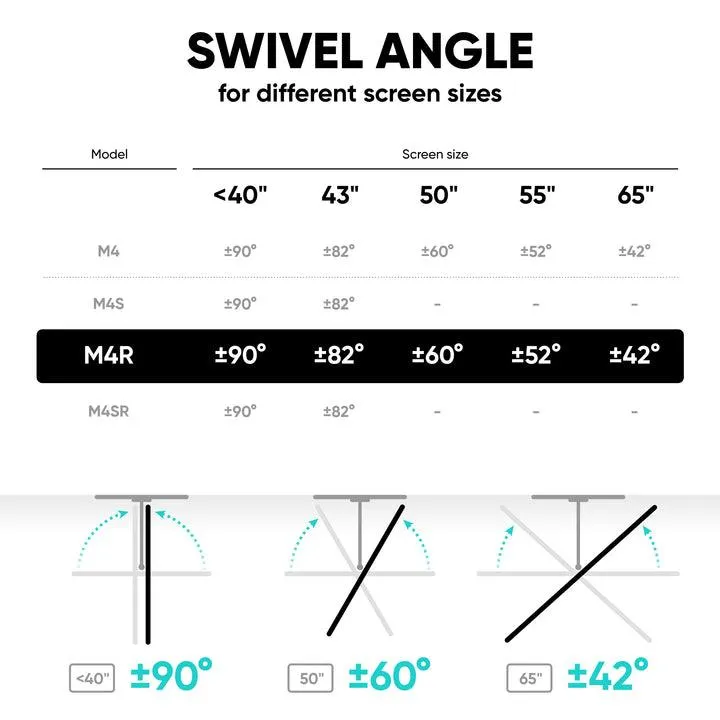

Swivel angle

180 °

Swivelling

Jah

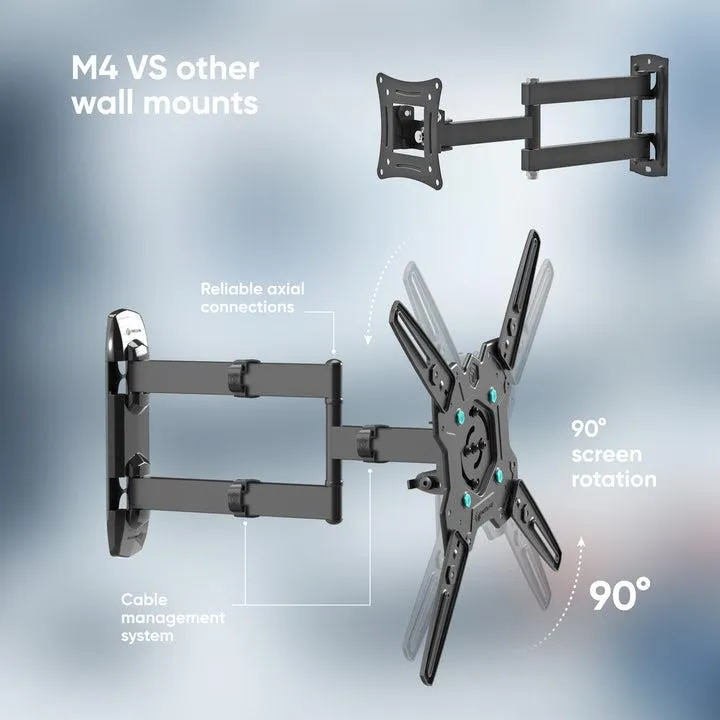

Cable management

Jah

Number of displays supported

1

Tilt adjustment

Jah

Maximum screen size

65 "

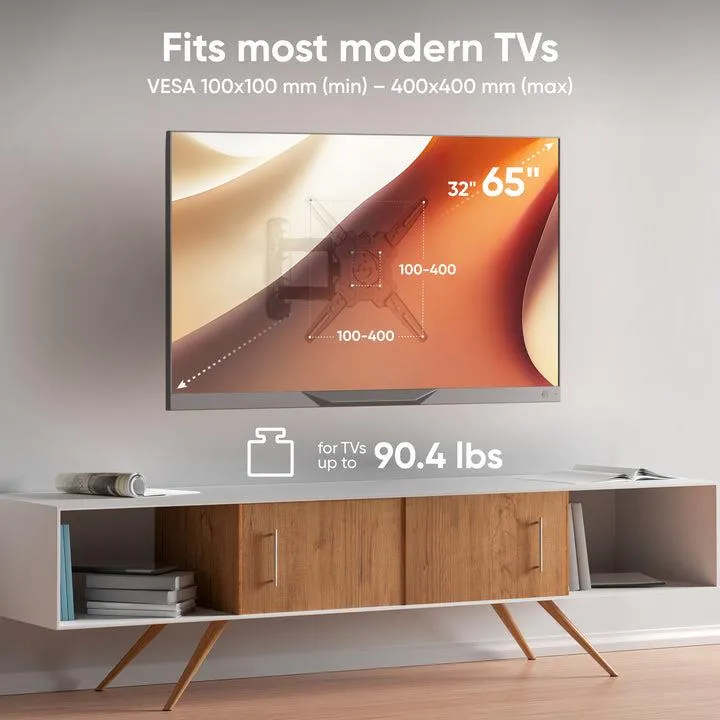

Maximum VESA mount

400 x 400 mm

Minimum screen size

32 "

Minimum VESA mount

100 x 100 mm

Maximum weight capacity (per display)

41 kg

Easy to adjust

Jah

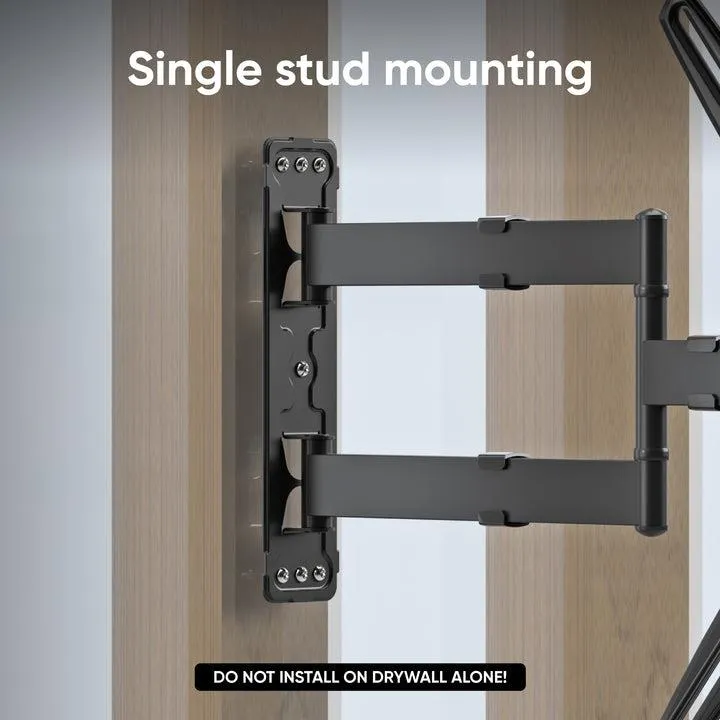

Mounting type

Sein

400 mm x 400 mm

Jah

Distance to the wall (min)

60 mm

Max. weight

40 kg

Orientation

Landscape/Portrait

Tehnilised andmed

Üksuse kalkuleeritud kaal

4.2 kg

Netokaal

3.95 kg

Tehnilised andmed

Kogus pakis

1 pair(s)

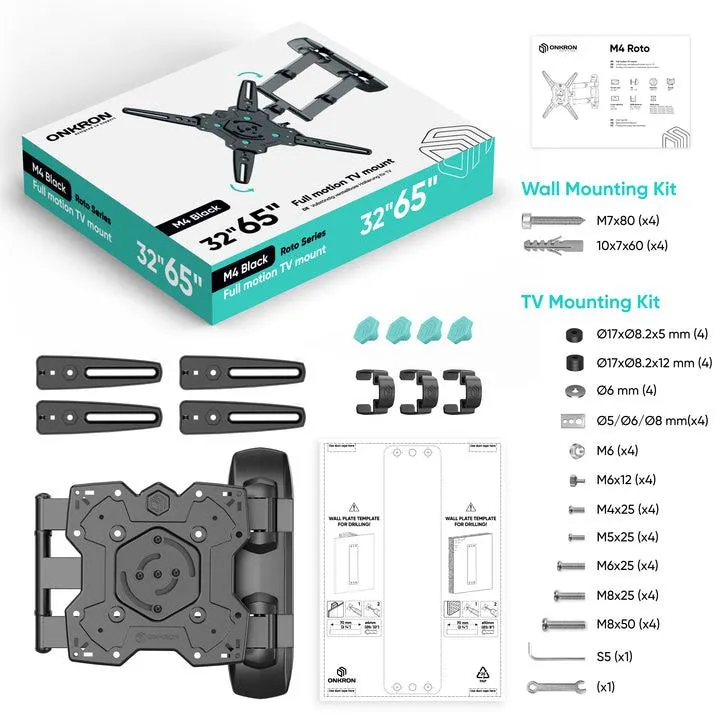

Paigalduskomplekt

Jah
