TV SET ACC WALL MOUNT/40-75"/BLACK M7L-B ONKRON

.: Üldised andmed :.

Tootja koduleht

https://onkron-uk.co.uk/products/tv-wall-mount-bracket-for-39-60-inch-lcd-led-oled-screens-67?_pos=1&_psq=M7L-B&_ss=e&_v=1.0

Mudel

M7L

Seadme tüüp

Täis liikumine

.: Disain :.

Kokkuvõte

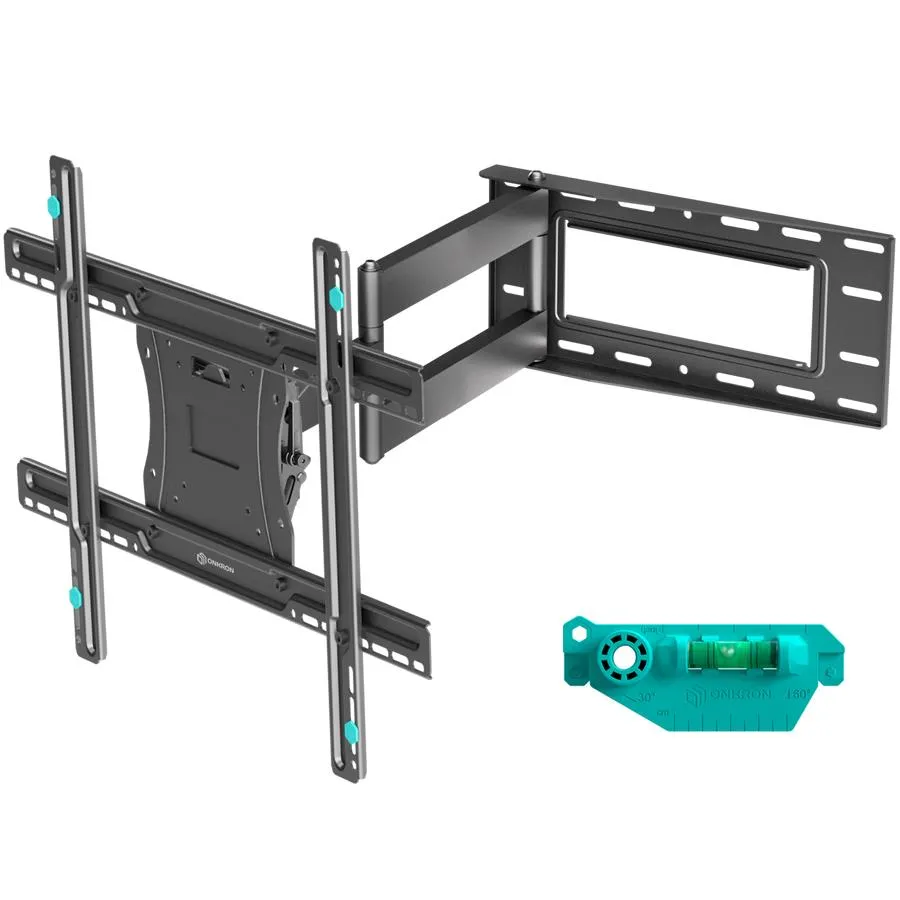

ONKRON Tilting and swiveling TV bracket for 40"-75" max 68 kg, black. Maximum weight capacity: 68 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - 15°, Distance to the wall (min): 11 cm, Distance to the wall (max): 71.1 cm. Product colour: Black

Toote värv

Must

Logistika andmed

Kogus transpordikasti kohta

1

.: Pakendi andmed :.

Pakendi laius

663 mm

Pakendi kõrgus

105 mm

Kasutusjuhend

Jah

Pakendi tüüp

Karp

Pakendi sügavus

250 mm

Pakendi kaal

9100 g

Tehnilised andmed

Distance to the wall (max)

711 mm

Fits screens sized

40"- 75"

Maximum Weight Capacity

68 kg

Unit Box Height

0.1

Unit Box Length

0.66

Unit Box Width

0.245

CnKood

83021000

Üksuse kalkuleeritud maht

0.01617 cubm

Easy to install

Jah

Tilt angle range

-5 - 15 °

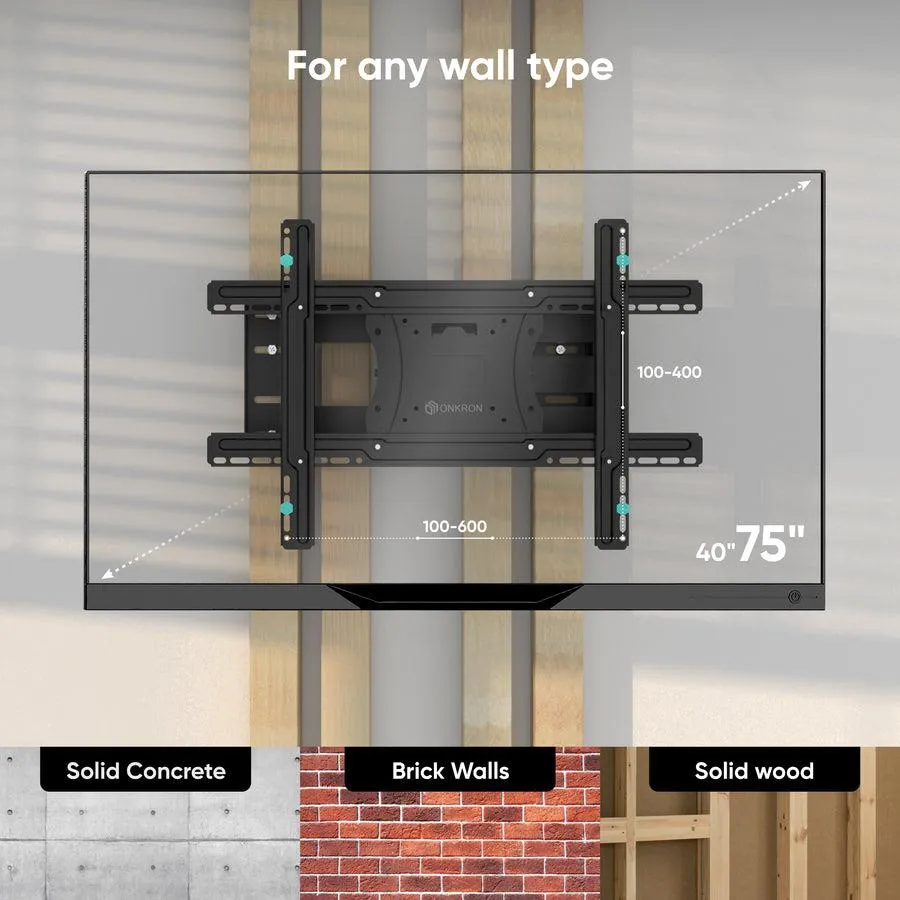

Panel mounting interface

100 x 100/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/600 x 200/600 x 300/600 x 400 mm

Illumination LED

Ei

Maximum screen size

75 "

Maximum VESA mount

600 x 400 mm

Minimum screen size

40 "

Minimum VESA mount

100 x 100 mm

Maximum weight capacity (per display)

68 kg

Depth (max)

711 mm

Swivelling

Jah

Number of displays supported

1

Tilt adjustment

Jah

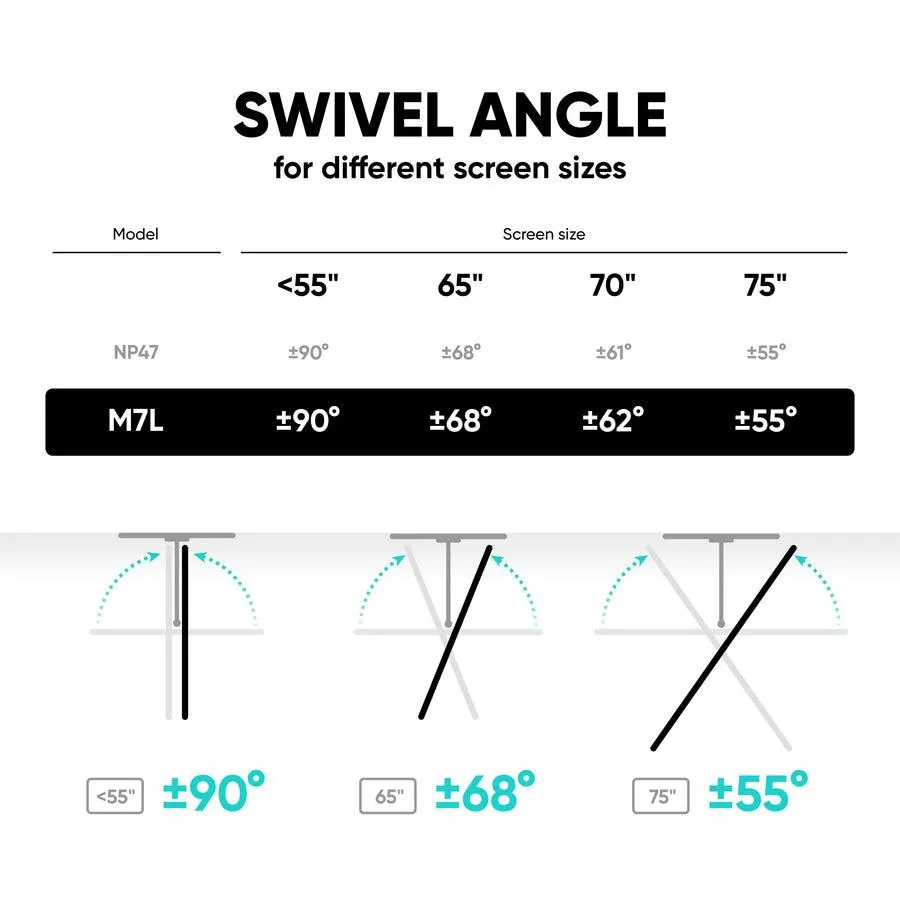

Swivel angle

180 °

Mounting type

Sein

600 mm x 400 mm

Jah

Distance to the wall (min)

110 mm

Housing material

SPCC

Max. weight

68 kg

Tehnilised andmed

Üksuse kalkuleeritud kaal

9.15 kg

Netokaal

8.9 kg

Laius

644 mm

Kõrgus

428 mm

Tehnilised andmed

Kogus pakis

1 pair(s)

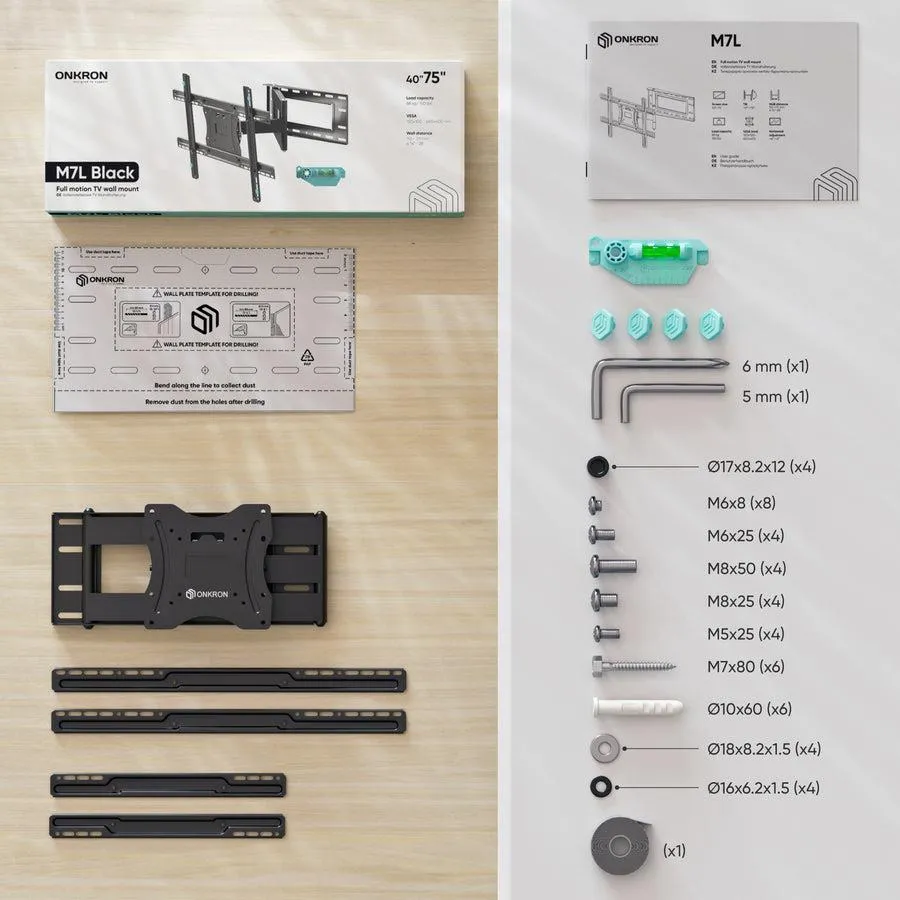

Paigalduskomplekt

Jah
