TV SET ACC WALL MOUNT/40-75"/WHITE M7L-W ONKRON

.: Üldised andmed :.

Tootja koduleht

https://onkron-uk.co.uk/products/onkron-tv-wall-mount-bracket-for-40-75-inch-up-to-68-2-kg-lcd-led-oled-screens-m7l-white?_pos=1&_sid=1db40e84a&_ss=r

Mudel

M7L

.: Disain :.

Kokkuvõte

ONKRON M7L-W. Maximum weight capacity: 68 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Angle of rotation: 4°, Distance to the wall (min): 11 cm, Distance to the wall (max): 71.1 cm. Product colour: White

Toote värv

Valge

Ergonoomika

Pöördenurga ulatus

4 °

Logistika andmed

Kogus transpordikasti kohta

1

.: Pakendi andmed :.

Pakendi laius

663 mm

Pakendi kõrgus

105 mm

Pakendi sügavus

250 mm

Pakendi kaal

9100 g

Tehnilised andmed

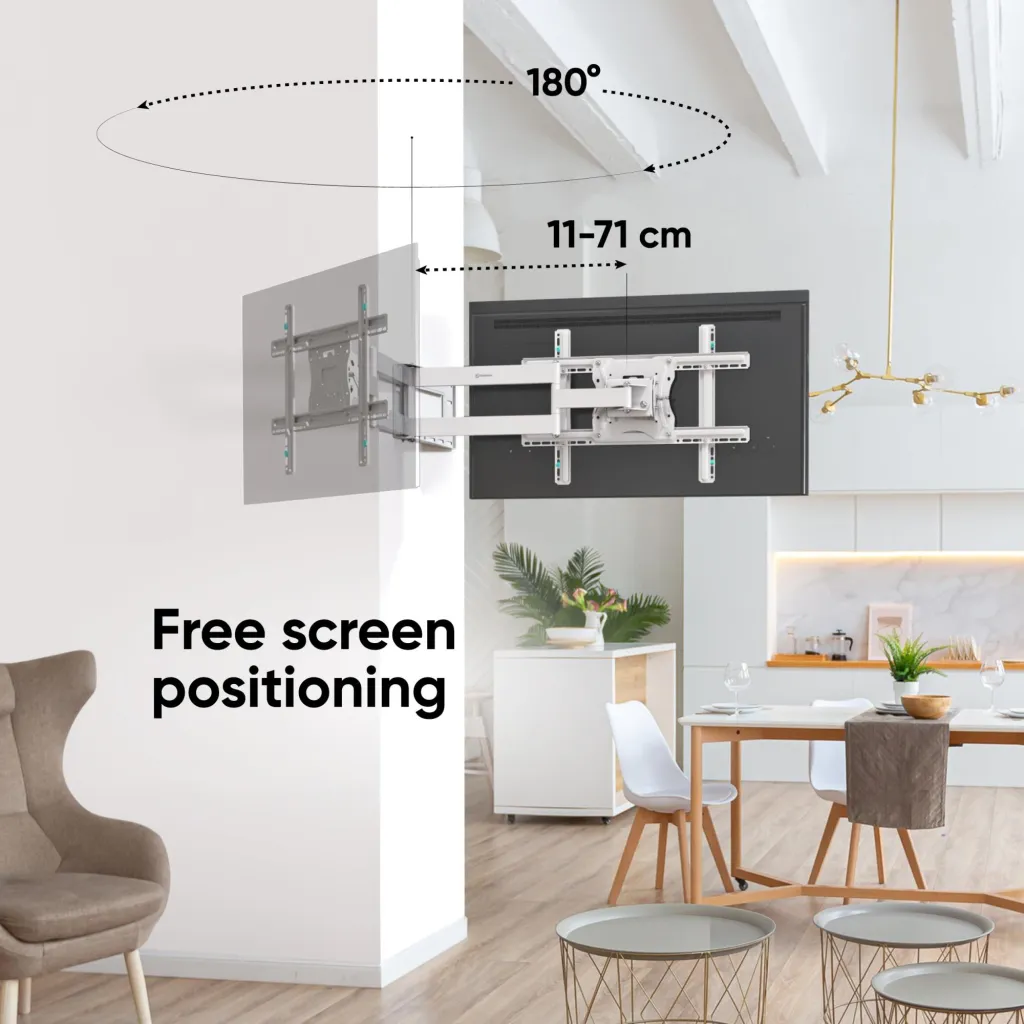

Distance to the wall (max)

711 mm

Maximum weight capacity (per display)

68 kg

Minimum VESA mount

100 x 100 mm

Minimum screen size

40 "

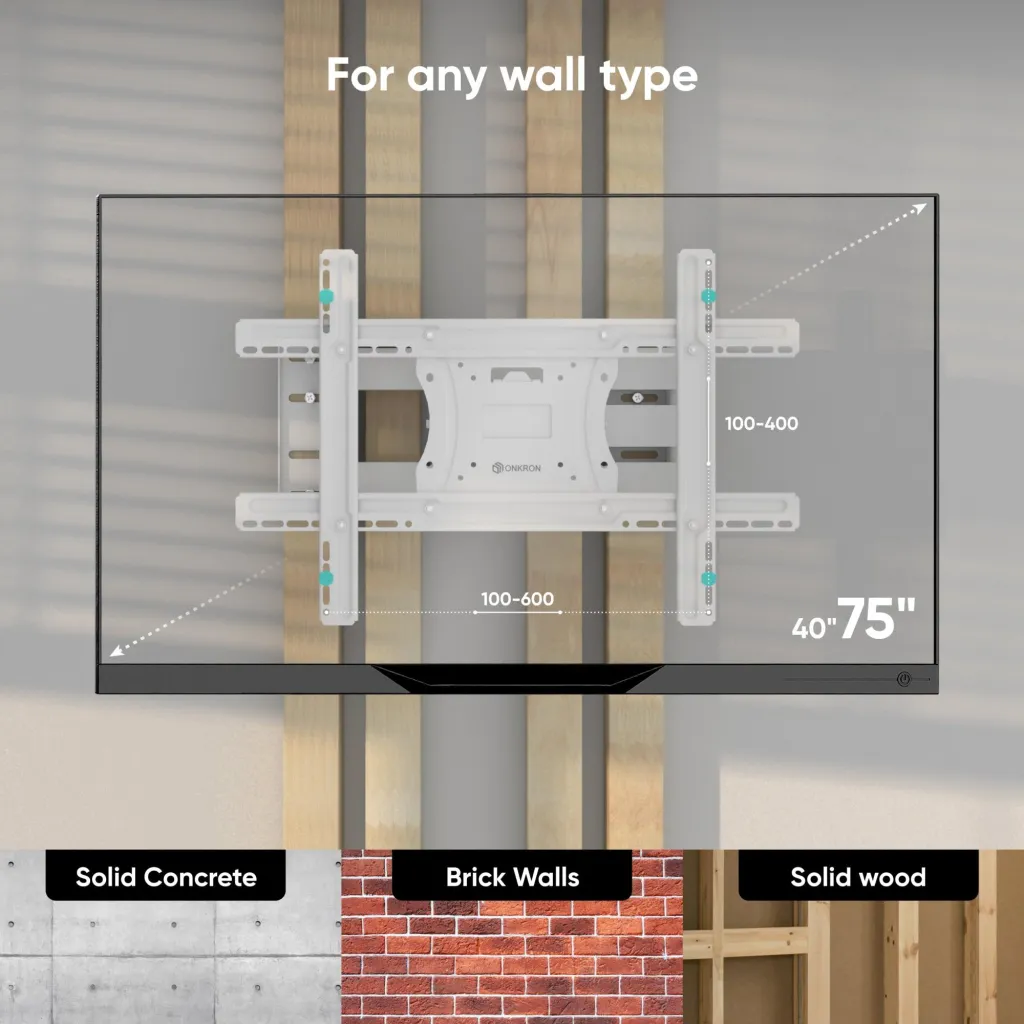

Maximum VESA mount

600 x 400 mm

Maximum screen size

75 "

Panel mounting interface

100 x 100/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400 mm

Üksuse kalkuleeritud maht

0.01617 cubm

CnKood

83021000

Unit Box Width

0.245

Unit Box Length

0.66

Unit Box Height

0.1

Maximum Weight Capacity

68 kg

Fits screens sized

40"- 75"

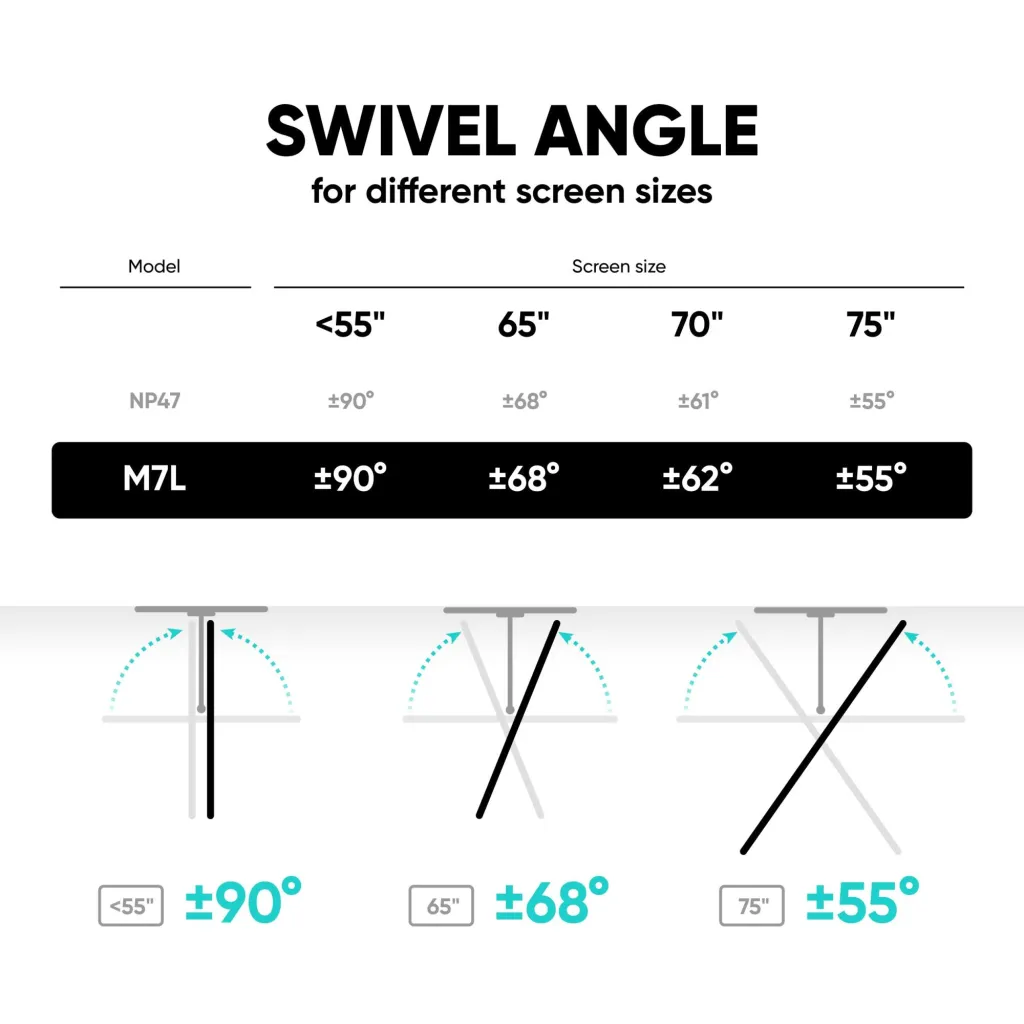

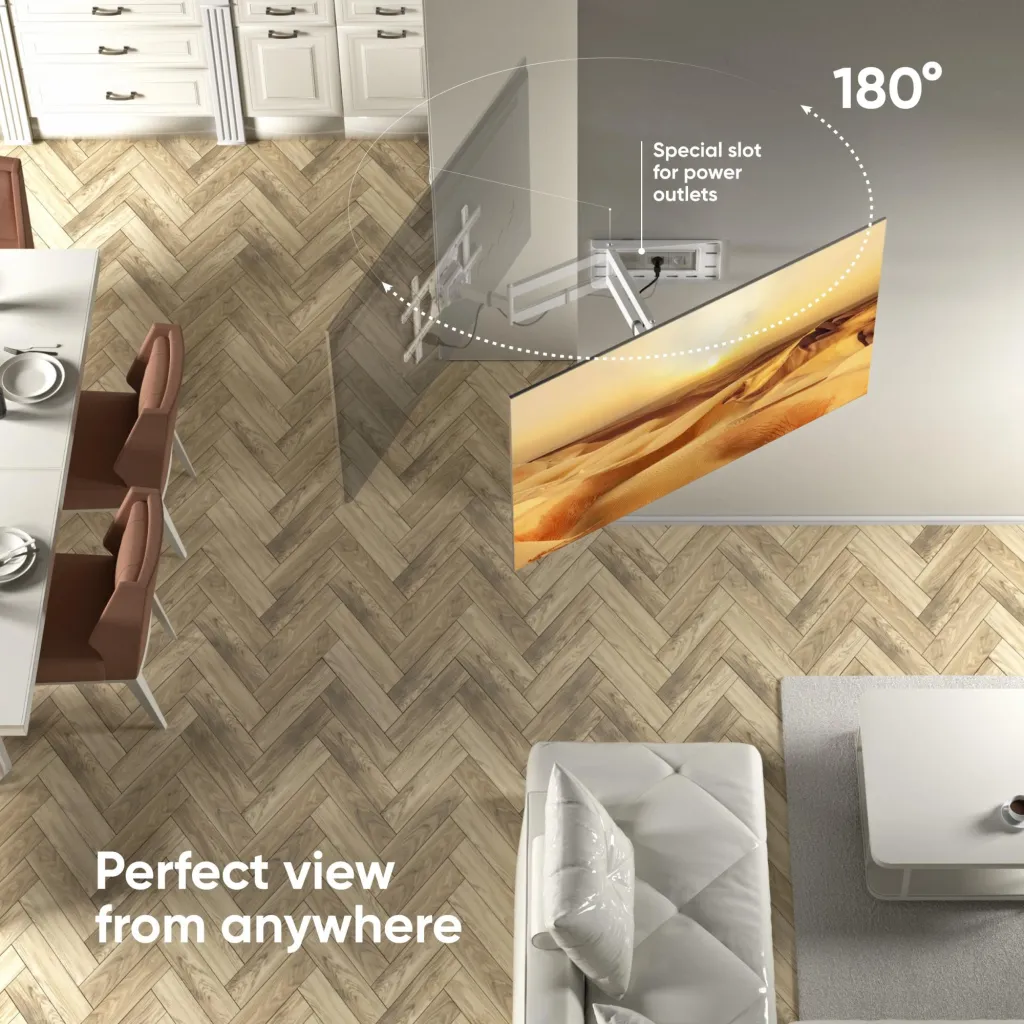

Swivel angle

180 °

Swivelling

Jah

Number of displays supported

1

Mounting type

Sein

600 mm x 400 mm

Jah

Distance to the wall (min)

110 mm

Housing material

Teras

Max. weight

68 kg

Tilt angle

15 °

Tehnilised andmed

Üksuse kalkuleeritud kaal

9 kg

Netokaal

8.9 kg

Tehnilised andmed

Kogus pakis

1 pair(s)
