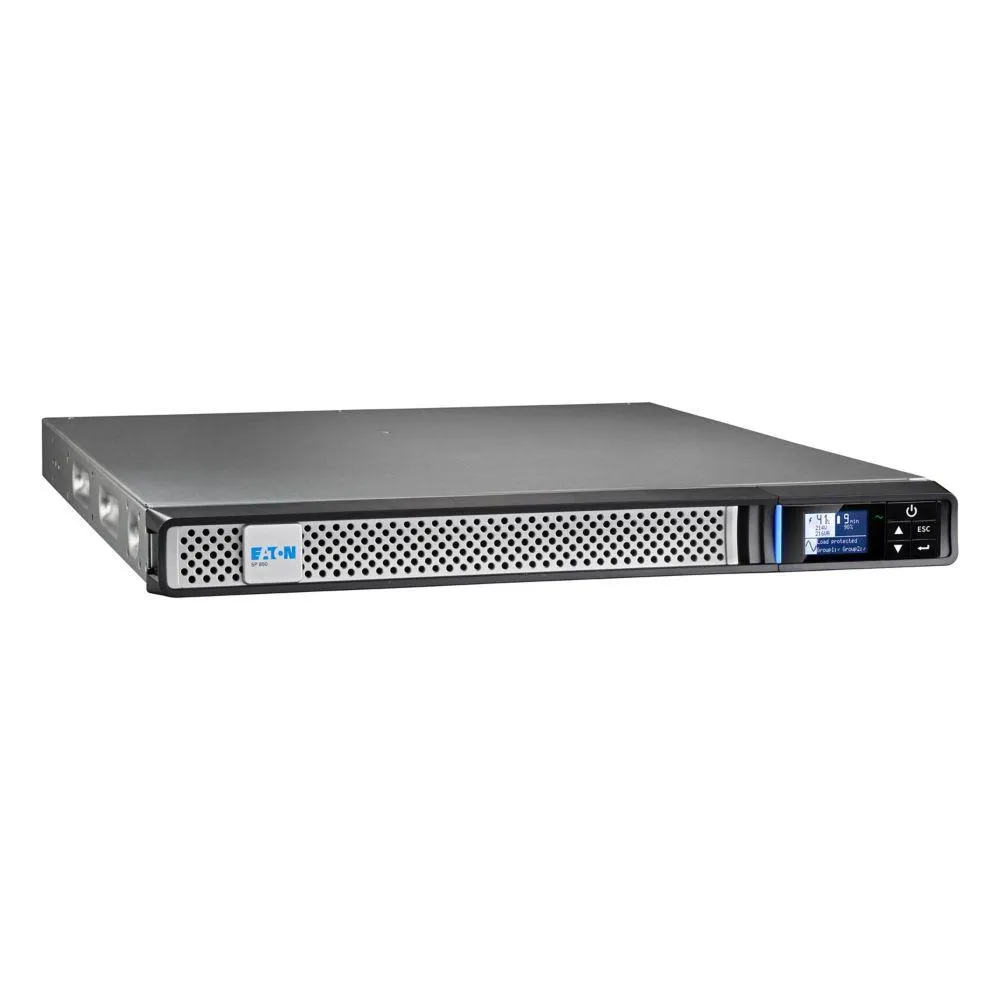

UPS|EATON|680 Watts|850 VA|LineInteractive|Phase 1phase|5P850IRNG2

.: Üldised andmed :.

Tootja koduleht

https://www.eaton.com/ua/en-gb/skuPage.5P850IRNG2.html

Mudel

5P850IRNG2

.: Üldised omadused :.

Müratase

35 dB

.: Disain :.

Kokkuvõte

Eaton 5P850IRNG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS

Kujutegur

Räkikinnitus

Toote värv

Black,Silver

.: Pesad & liidesed :.

USB port

Jah

.: Aku & Toiteallikas :.

Aku mahutavus

7 Ah

Akuelementide arv

4

Akutehnoloogia

Sealed Lead Acid (VRLA)

Võimsus ja energiatarve

Output frequency

50/60 Hz

Väljundvõimsus

680 W

.: Tehnilised andmed :.

Vastavussertifikaadid

Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 90 %

.: Pakendi andmed :.

Kaablid kaasa arvatud

USB-kaabel

Tehnilised andmed

Serial interface type

RS-232

Input operation voltage (min)

150 V

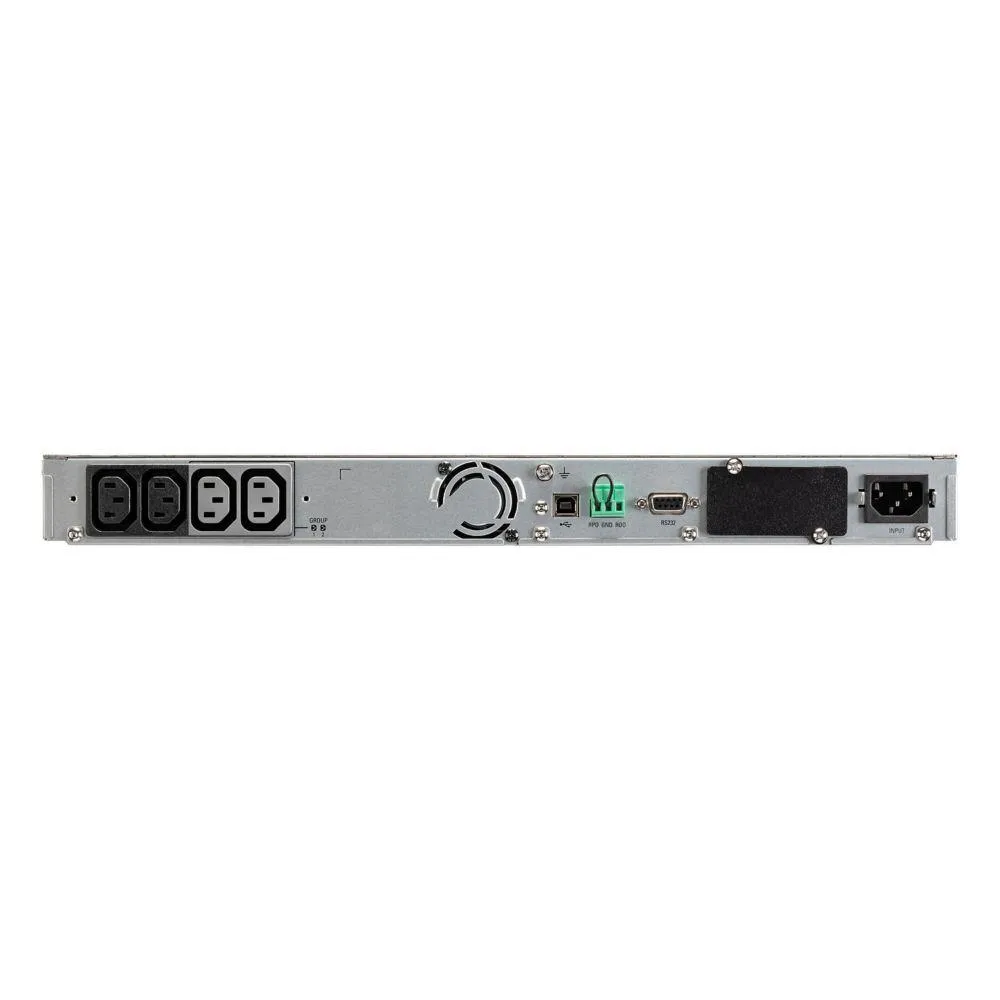

AC outlet types

C13 coupler

AC outlets quantity

4 AC outlet(s)

Waveform

Sine

Hot-swap battery

Jah

Automatic Voltage Regulation (AVR)

Jah

Power plug

C14 coupler

Rack mount kit

Jah

Unit Box Height

0.17

Unit Box Length

0.59

Unit Box Width

0.54

CnKood

85044095

Üksuse kalkuleeritud maht

0.05416 cubm

Waste Electrical and Electronic Equipment (WEEE) compliance

Jah

Number of input phases

1

Number of output phases

1

USB port type

USB tüüp-B

Serial interface

Jah

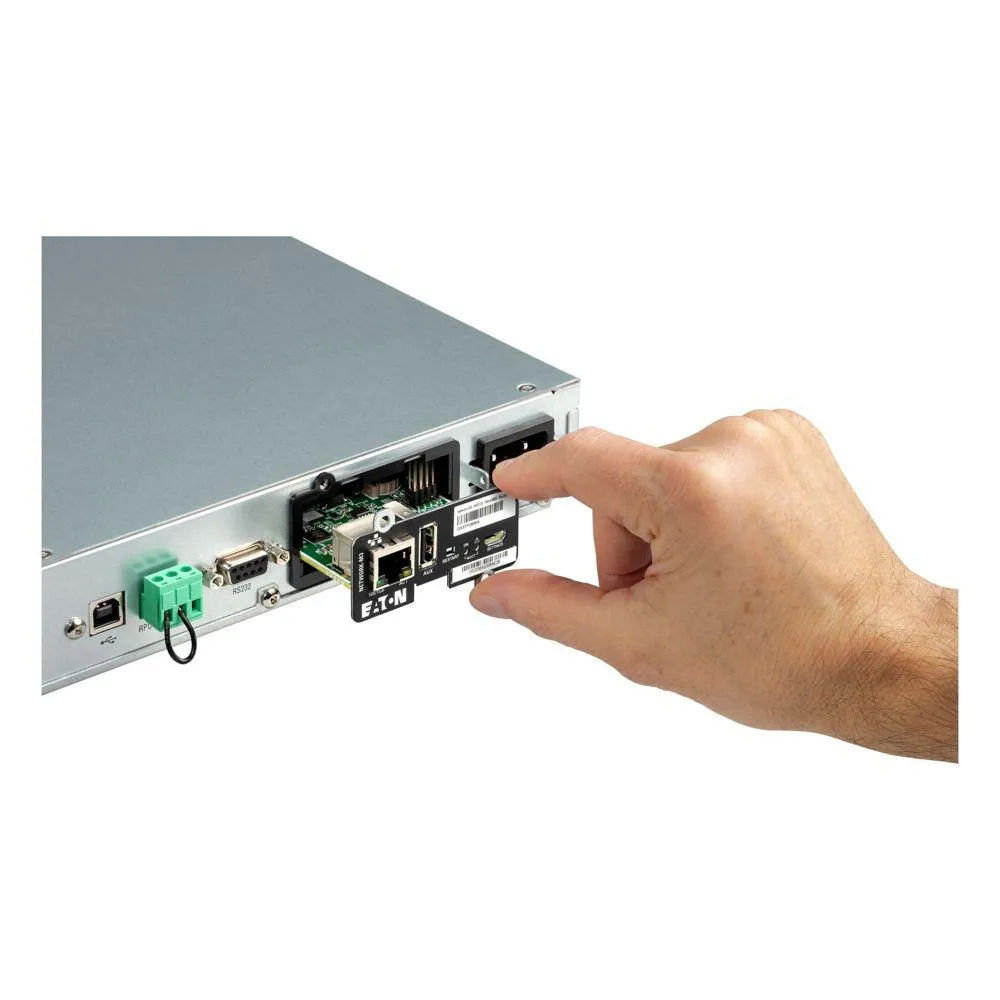

Network card slot

Jah

RS-232 ports

1

Serial ports quantity

1

UPS topology

Line-Interactive

Battery voltage

6 V

Certification

IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS

Efficiency

98 %

Heat dissipation

307 BTU/h

Input frequency

47/70 Hz

Input operation voltage (max)

294 V

Operating altitude

0 - 3000 m

Output operation voltage (max)

240 V

Output operation voltage (min)

200 V

Output power capacity

0.85 kVA

Output power capacity, VA

850 VA

Output power capacity, W

680 Watts

Phase

1phase

Power factor

0.8

Rack

Jah

Rack 1U

Jah

Topology

LineInteractive

Typical backup time at half load

13 min

Tehnilised andmed

Üksuse kalkuleeritud kaal

18.5 kg

Netokaal

13.78 kg

Laius

438 mm

Sügavus

509 mm

Kõrgus

43.2 mm

Mõõtmed (l x s x k)

509 x 43.2 x 438 mm

Toote kaal

13780 g

Tehnilised andmed

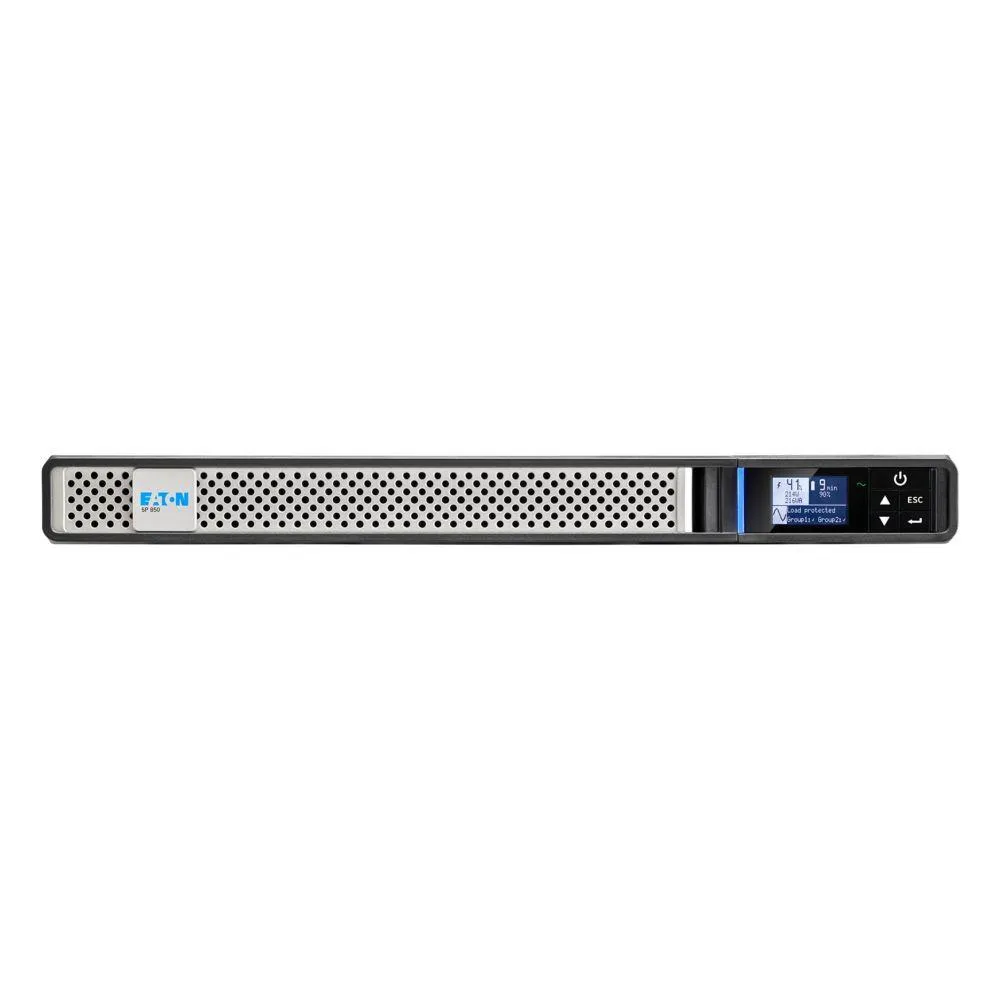

Ekraani tüüp

LCD

Tehnilised andmed

Kiirpaigaldusjuhend

Jah

Tarvikud kaasa arvatud

Rack-mounting kit
Cable locking system
USB cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
Network card
