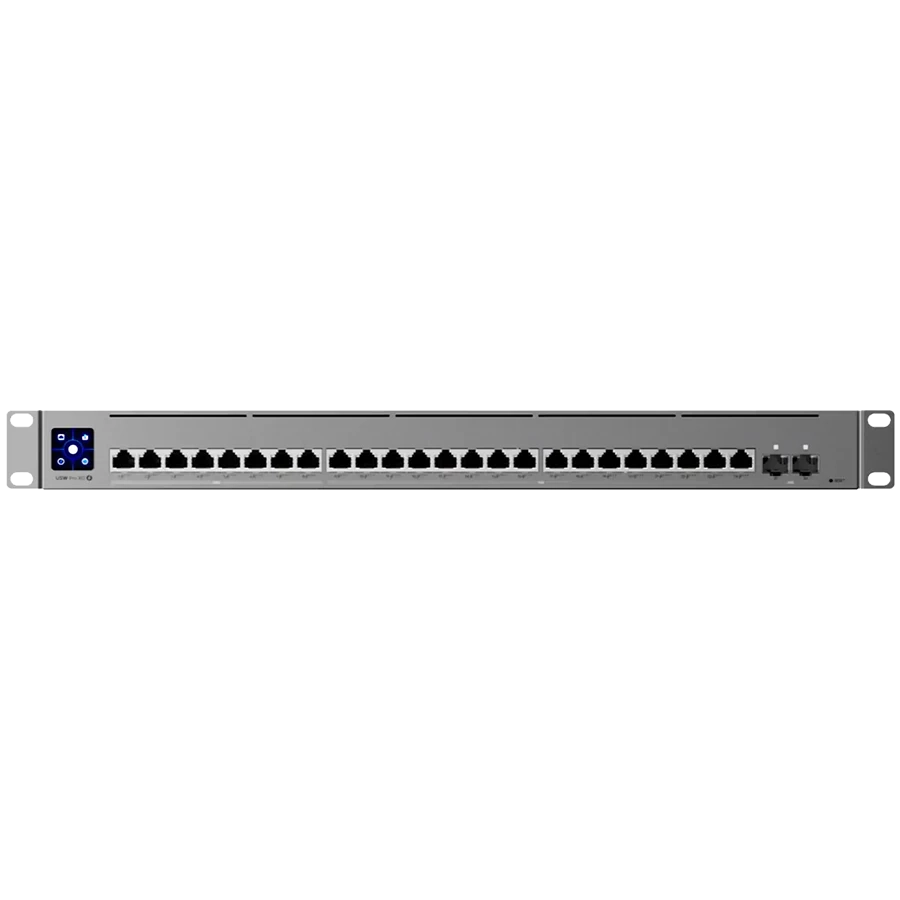

Ubiquiti Layer 3 Etherlighting USW-Pro-XG-24-PoE-EU (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports

.: Disain :.

Seadme paigaldus

Väline

Võimsus ja energiatarve

Energiakulu

150 W

.: Tehnilised andmed :.

Vastavussertifikaadid

CE, FCC, IC, Anatel

Korpuse värv

Hall

Toide

Toiteallikas

InternalAC 100-240 V, 50/60 Hz

Logistika andmed

Transpordikarbi brutokaal

13.8457 kg

Muud funktsioonid

Garantiiteave

Serial Number

Pakendi netokaal

9.346 kg

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

90 %

.: Pakendi andmed :.

Pakendi tüüp

Retail

Kogus pakendi kohta

1

Pakendi pikkus ( mm )

769 mm

Tehnilised andmed

Warranty Term Notes

24 months - for EU

Retail Packaging Net Weight Carton

0 kg

Retail Packaging Net Weight Plastic

0 kg

Packs in Box

1

Network/Transport Protocol

IPv4 ARP DHCP QoS IGMP STP RSTP LLDP NDI

Warranty Products Returnable

Jah

Pack Length (mm)

680.5 mm

Pack Width (mm)

509 mm

Pack Height (mm)

144 mm

Standard Rack Height

1U

Box Width (mm)

593 mm

Box Height (mm)

237 mm

Mounting Capability

Räkikinnitus

Networking Compliant Standards

IEEE 802.1Q(VLAN) IEEE 802.1X IEEE 802.3bt

LAN Management Protocol Supported

Ethernet, AR

Switching Layers

Layer 2 Layer 3

Switching Protocol

Ethernet

Total Number of Ports

26

Networking features

DHCP Server Built-in Jumbo Frames Support Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting Port Isolation Port Mirroring Loop Protection 24 Ports 4PPoE Etherlighting DHCP Relay LACP Port Aggregation Touchscreen

Data Link Protocol Supports

10 Gbps Fast Ethernet/Ethernet 1 Gbps 5 Gbps 25 Gbps

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

-5 °C

Minimum Operating Humidity

10 %

Depth (mm)

480 mm

Height (mm)

44 mm

Width (mm)

442 mm

Nominal Weight

7.9 kg

LAN

24 (RJ-45); 2 (SFP28)

MAC Address Table Size

128K

Number of ports

24

Tehnilised andmed

Tarvikud kaasa arvatud

Power CableMount kit
