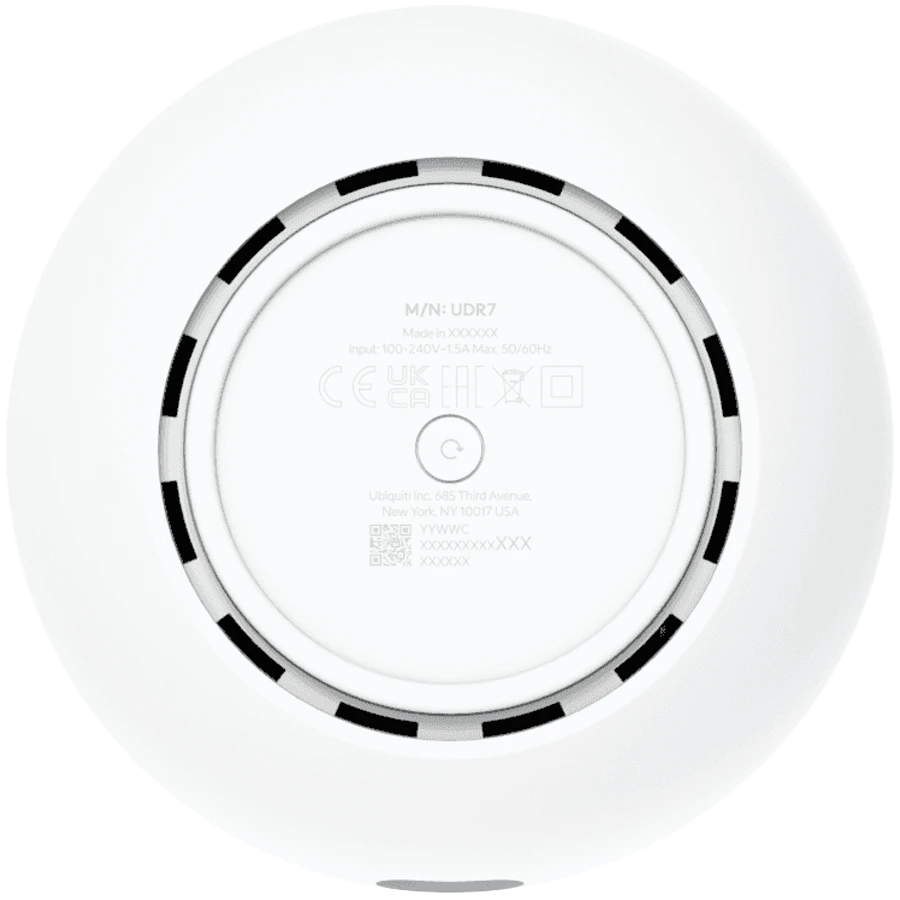

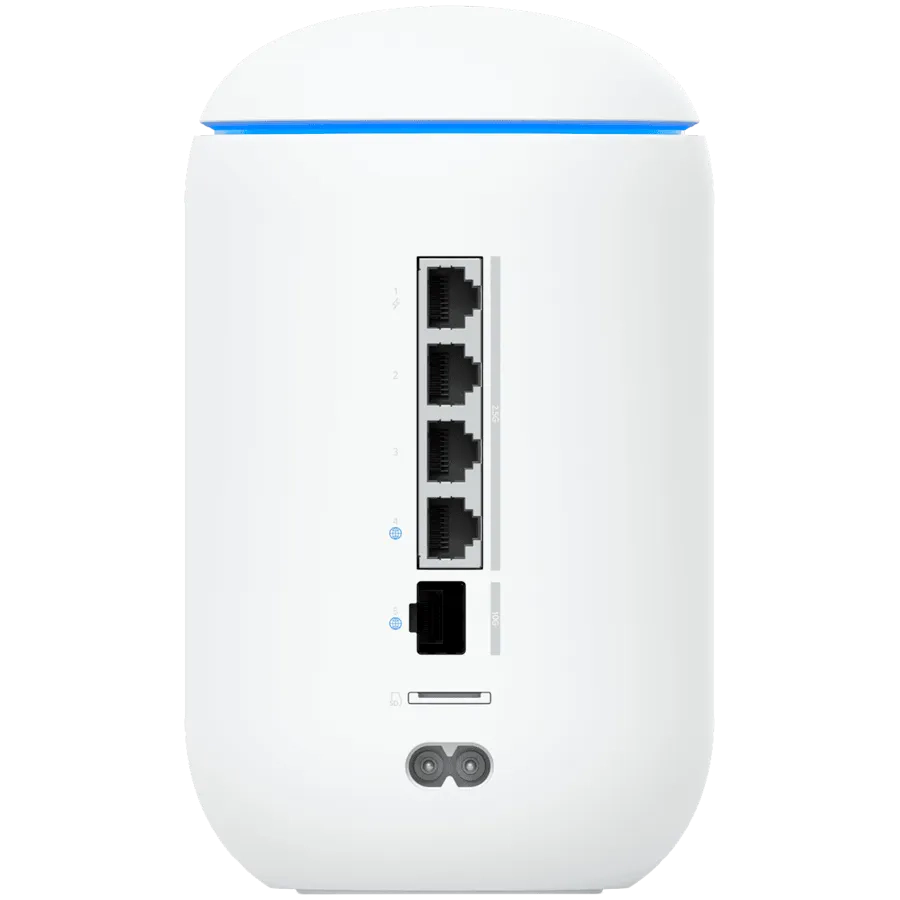

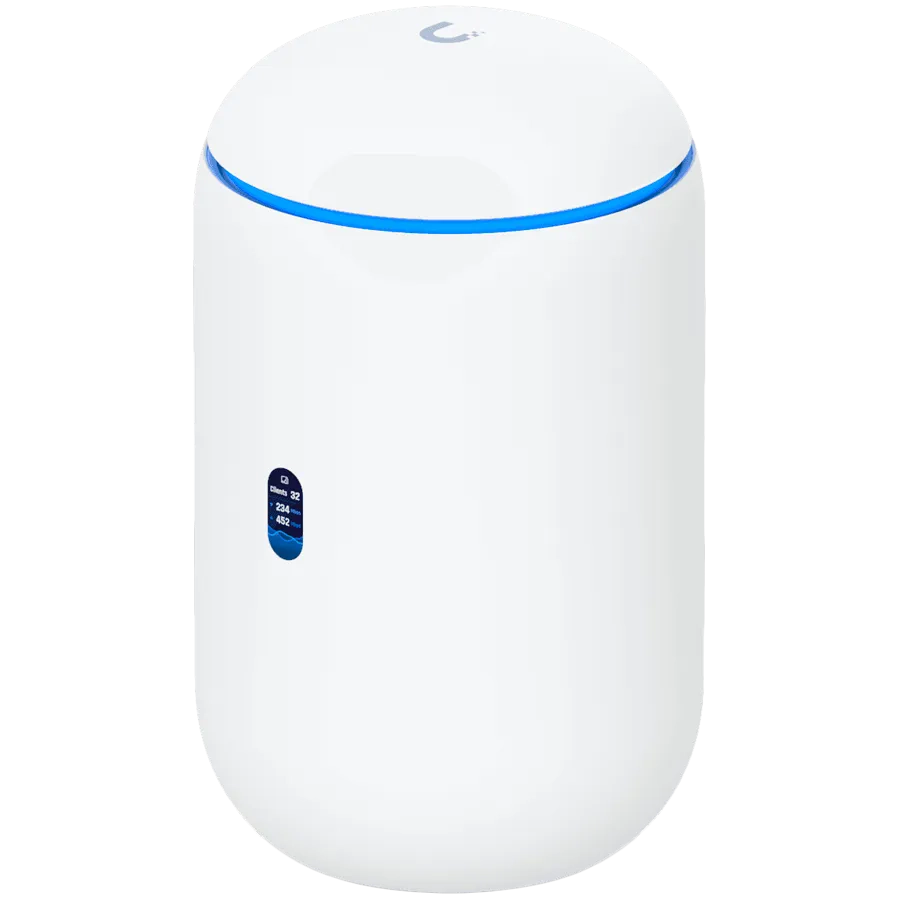

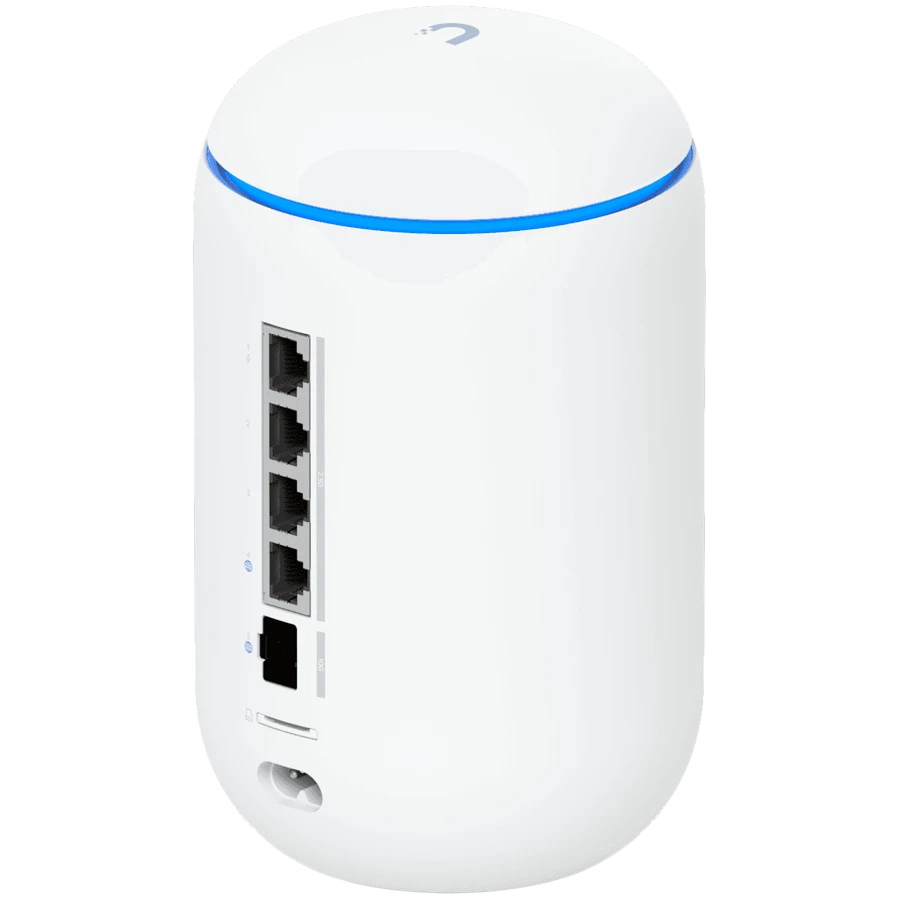

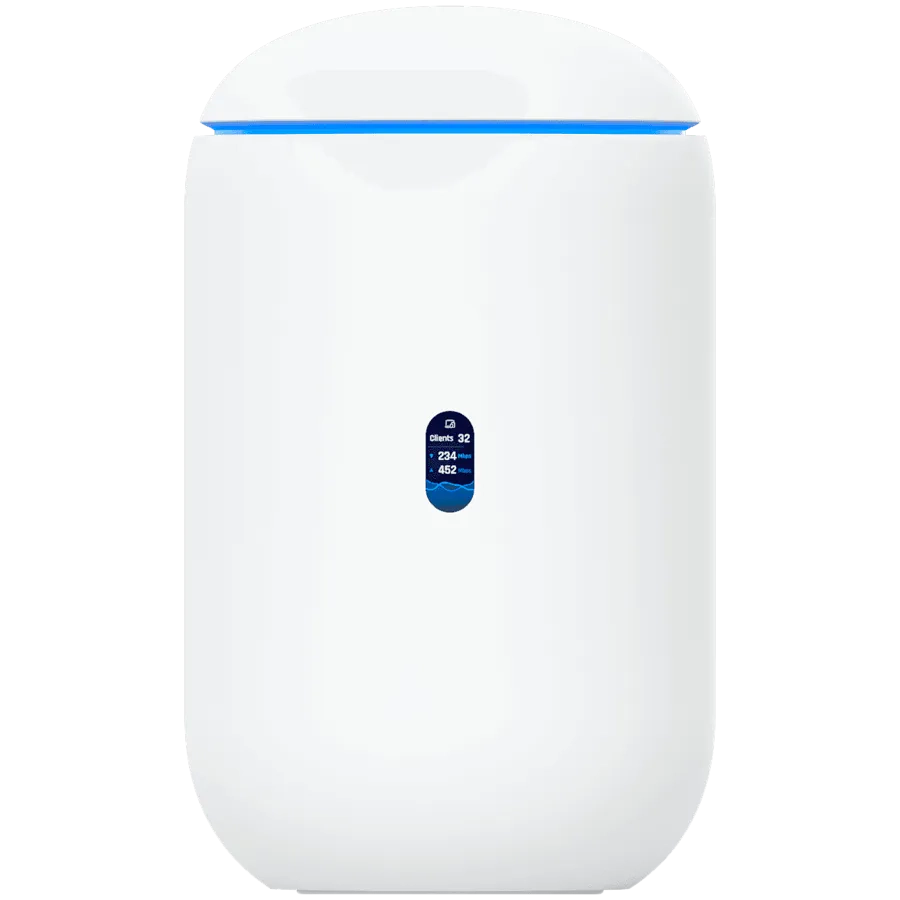

UBIQUITI UniFi Dream Router 7

.: Üldised andmed :.

Seadme tüüp

Router/Range Extender

.: Disain :.

Seadme paigaldus

Väline

.: Protsessor :.

Protsessori sagedus

1.5 GHz

Protsessorituumad

4

Protsessori seeria

Vars Cortex-53

.: Mälu :.

Paigaldatud operatiivmälu

3 GB

Sisemine mälumaht

Flash Memory 64 GB, Secure Digital Form Factor

.: Tehnilised andmed :.

Vastavussertifikaadid

CE, FCC, IC

Korpuse värv

Valge

Logistika andmed

Transpordikarbi brutokaal

0.9 kg

Muud funktsioonid

Garantiiteave

Serial Number

Pakendi netokaal

0.675 kg

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

-10 %

.: Pakendi andmed :.

Pakendi tüüp

Retail

Kogus pakendi kohta

1

Pakendi pikkus ( mm )

549 mm

Tehnilised andmed

Warranty Term Notes

24 months - for EU

Retail Packaging Net Weight Plastic

0 kg

Packs in Box

6

Pack Length (mm)

286 mm

Pack Width (mm)

153 mm

Pack Height (mm)

161 mm

Box Width (mm)

371 mm

Box Height (mm)

364 mm

Maximum Power Consumption

50 W

Retail Packaging Net Weight Carton

0 kg

Status LED Indicators

Activity Status

Data Link Protocol Supports (New)

Wi-Fi + LAN + Bluetooth

Supported Networking Compliant Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.1Q(VLAN) IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6 IEEE 802.11ax Wi-Fi 6E IEEE 802.11be Wi-Fi 7

Router Features

Power over Ethernet (PoE) Multiple Input Multiple Output (MIMO) DHCP Server

Wireless Networking

IEEE 802.11a 2.4 GHz, up to 54 MbpsIEEE 802.11b 2.4 GHz, up to 11 MbpsIEEE 802.11g 2.4 GHz, up to 54 MbpsIEEE 802.11n 2.4 GHz, up to 600 MbpsIEEE 802.11ac 5 GHz, up to 1.7 GbpsIEEE 802.11ax 5 GHz, up to 2.4 GbpsIEEE 802.11be 6 GHz, up to 5.7 Gbps

Protocols (OSI Model)

IPv6IGMPL2TPTLS

Firewall Functions and Protocols

NAT Support MAC address filtering

WAN

1 (SFP+), 1 (RJ-45)

Application Layer

DNS

Authentication, Authorization, Accounting (AAA Protocol)

RADIUS

Depth (mm)

110 mm

Maximum Input Voltage

240 V

Minimum Input Frequency

50 Hz

Minimum Input Voltage

100 V

Maximum Input Frequency

60 Hz

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

95 °C

Minimum Operating Humidity

5 %

Height (mm)

110 mm

Width (mm)

184.1 mm

Nominal Weight

1.1 kg

Warranty Products Returnable

Jah

Lisaseadmed

Reset ButtonCard Reader (Micro SD)

Encryption Algorithm

WEP WPA-PSK WPA WPA2 WPA3 WPA3-Enterprise

LAN

1 x 10Base-T/100Base-TX SFP+1 x RJ-45

MAC Address Table Size

2K

Tehnilised andmed

Tarvikud kaasa arvatud

Kiire algus juhend
