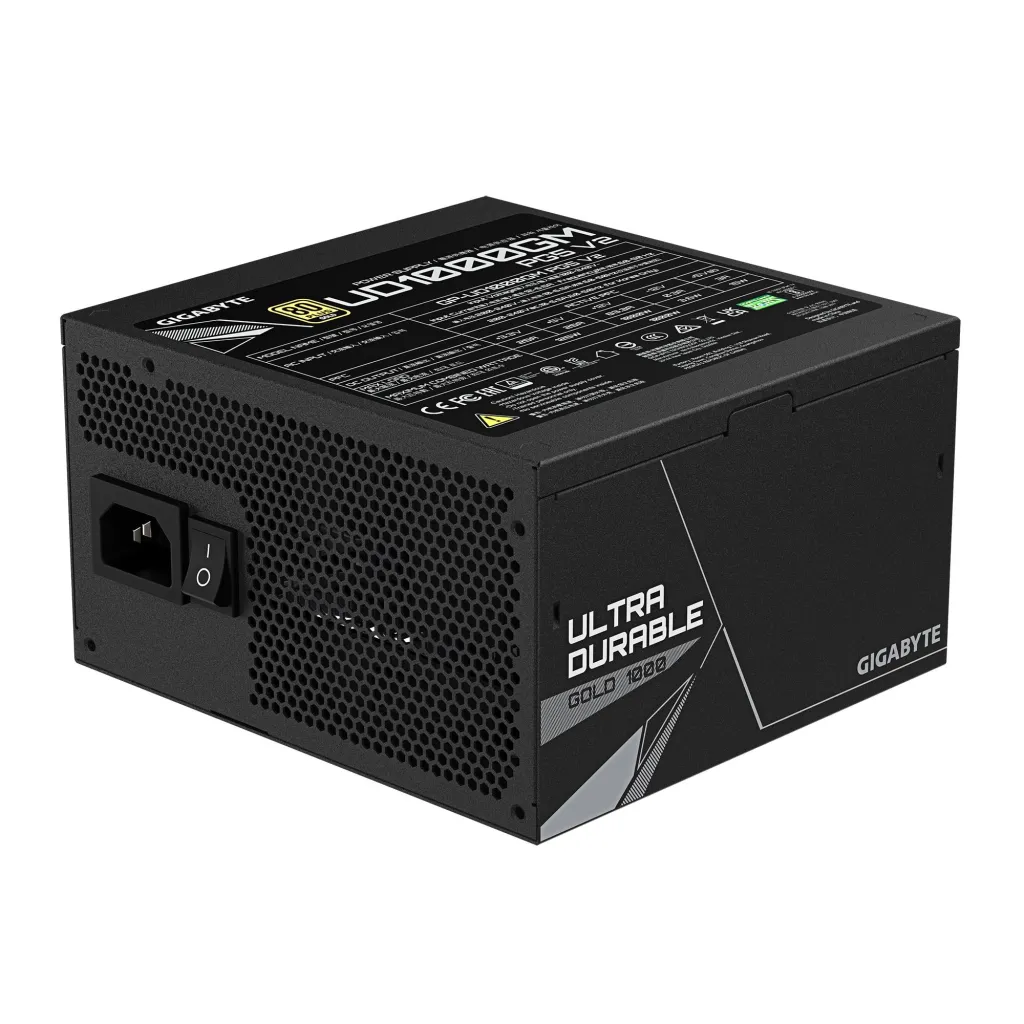

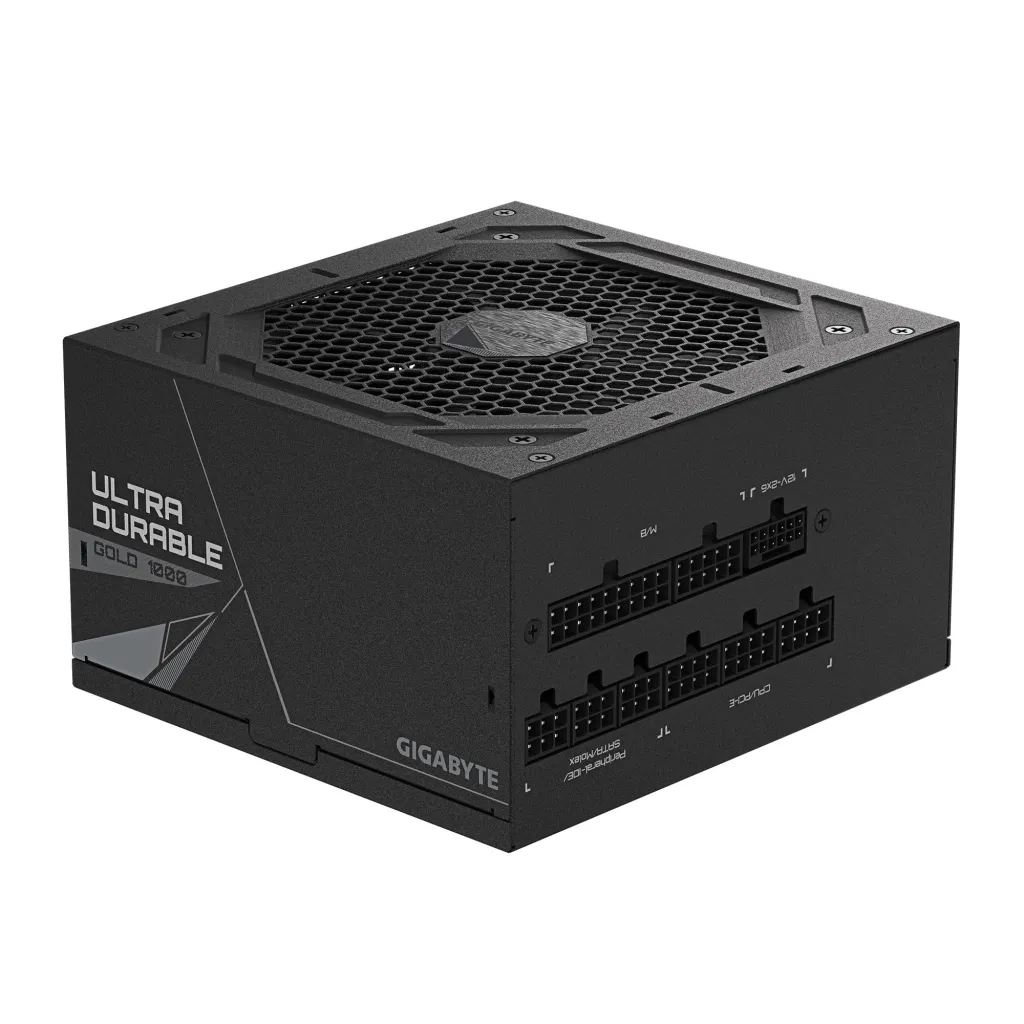

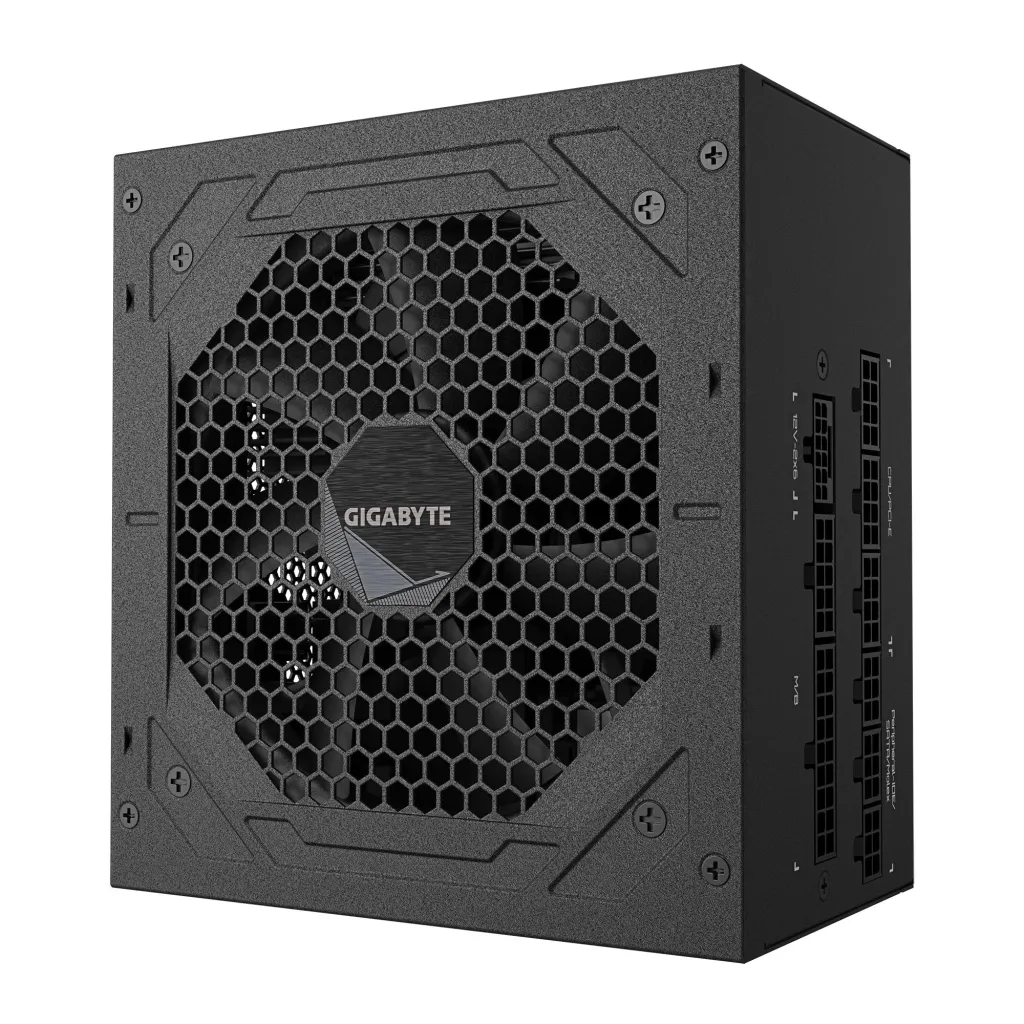

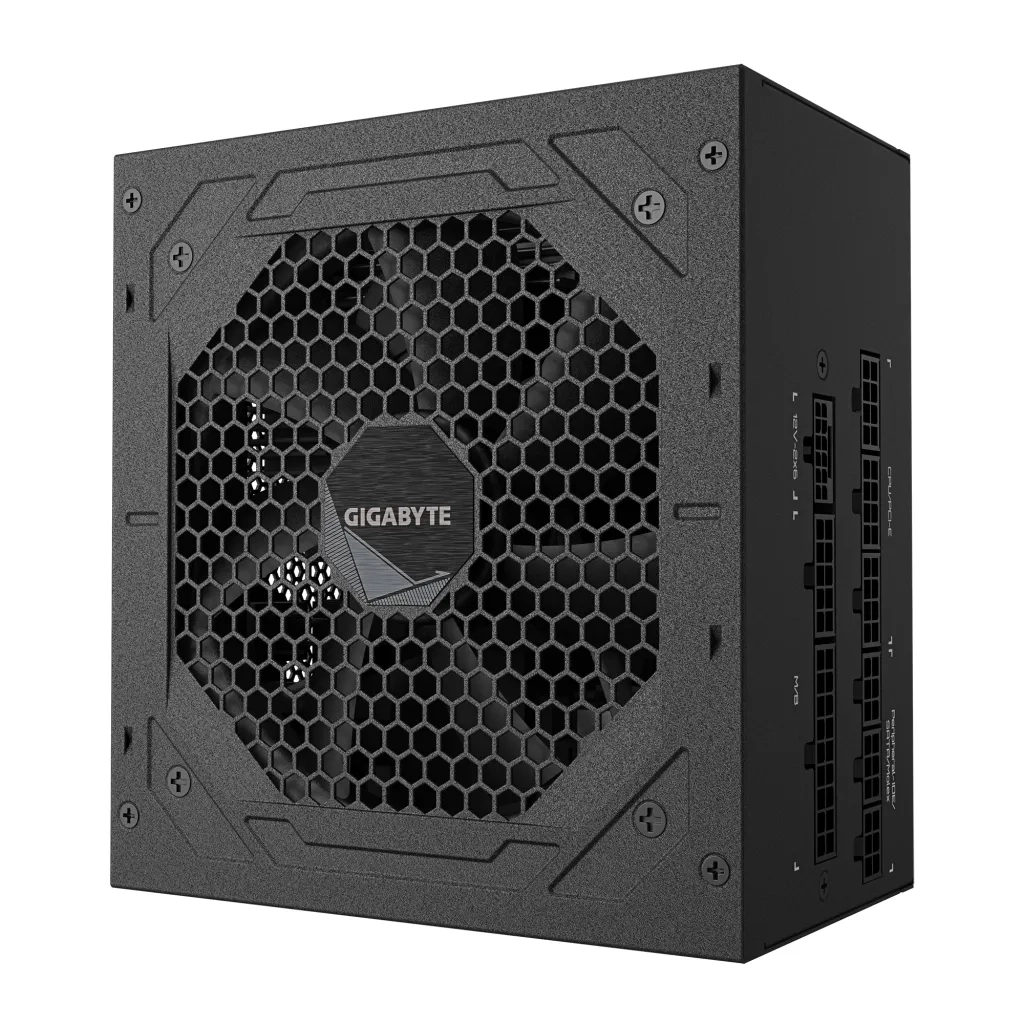

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Tootja | GIGABYTE |
| Tootekood | GP-UD1000GM PG5 V2 |
| EAN | 4719331556112 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-rev-20#kf |
| .: Disain :. | |
| Toote värv | Black |
| Jahutuse tüüp | Active |
| .: Toimimine :. | |
| Power supply unit (PSU) form factor | ATX |
| .: Pesad & liidesed :. | |
| CPU power cable length | 600 mm |
| Võimsus ja energiatarve | |
| Sisendvool | 15 - 6.5 A |
| Sisendsagedus | 50/60 Hz |
| Jahutus | |
| Ventilaatorite arv | 1 fan(s) |
| .: Tehnilised andmed :. | |
| Warranty period | 10 year(s) |
| Ergonoomika | |
| On/off nupp | Jah |
| Funktsioonid | |
| Vahelduvvoolu pinge | 100 - 240 V |
| Mudeli originaalnimi | GP-UD1000GM |
| Logistika andmed | |
| Kogus transpordikasti kohta | 5 |
| .: Pakendi andmed :. | |

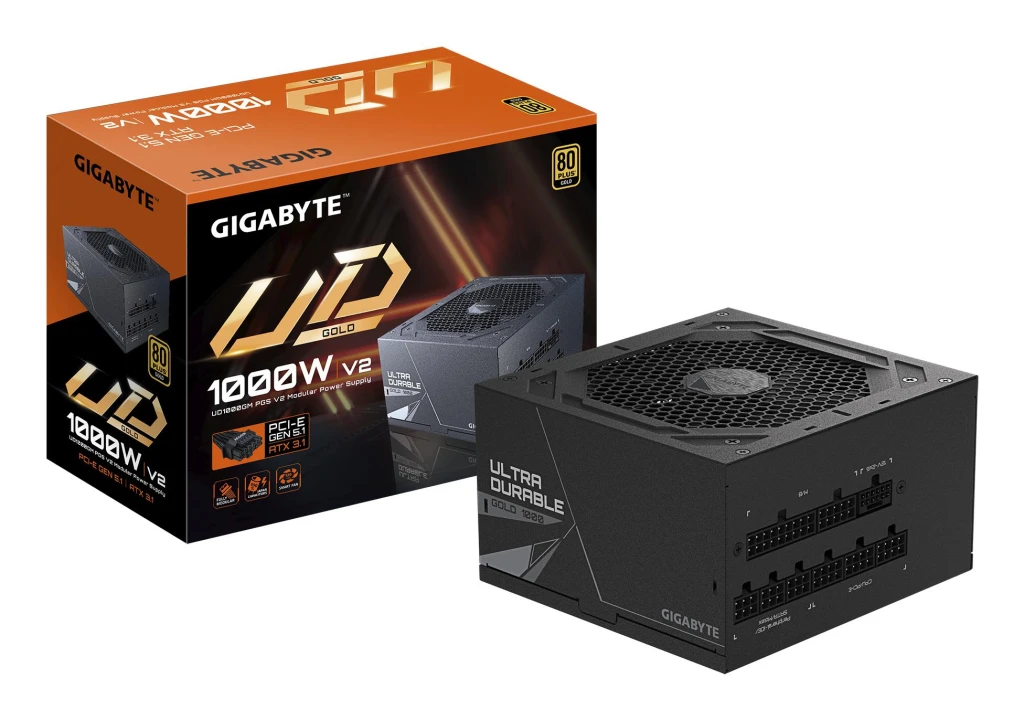

| Pakendi tüüp | Box |
| PCI Express power connectors (16-pin) | 1 |
| Bearing technology | HYB |
| ATX version | 3.1 |
| Hold time | 16 ms |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.255 |
| Unit Calculated Volume | 0.007812 cubm |
| Product Net Weight | 2.5 kg |
| Unit Calculated Weight | 2.7 kg |
| Summary | GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Motherboard power cable length | 610 mm |
| Peripheral (Molex) power cable length | 120/150/500 mm |
| SATA power cable length | 150/600 mm |
| PCI Express power cable length | 700 mm |

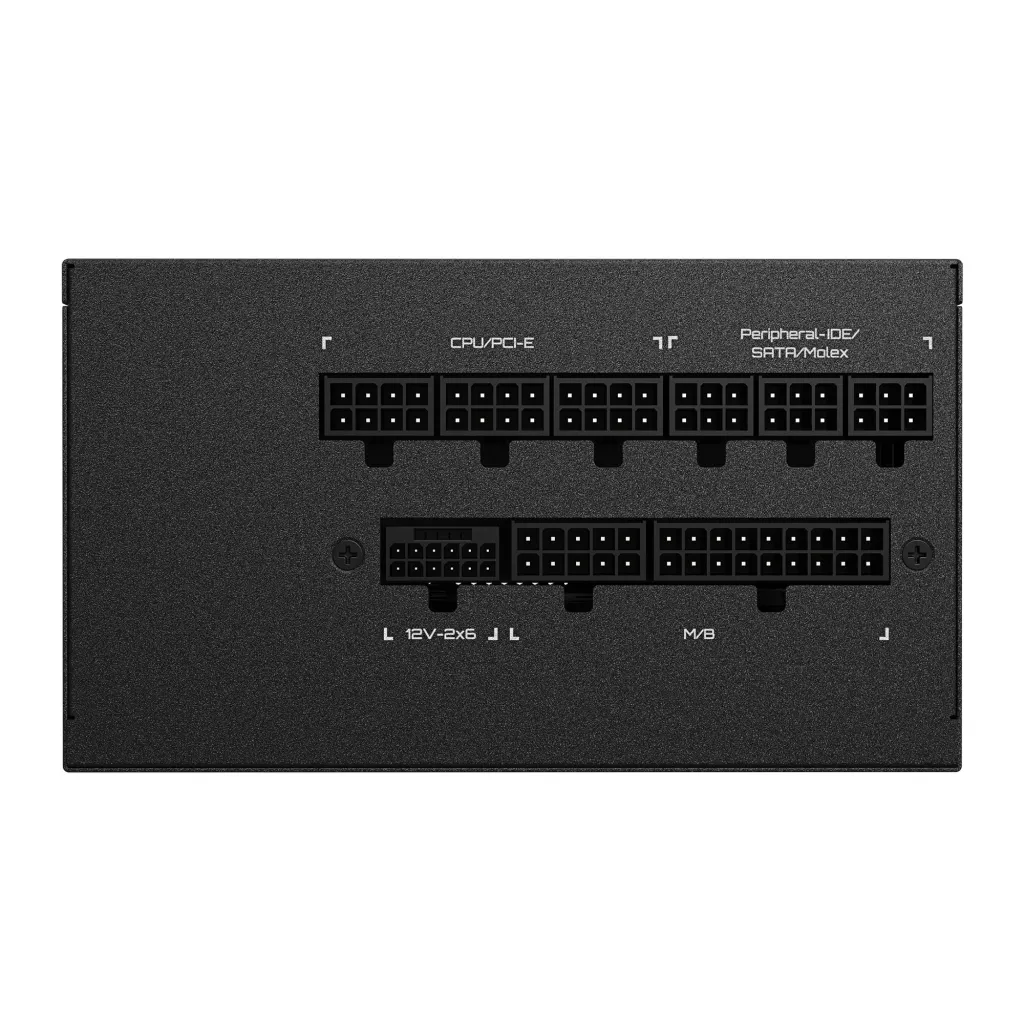

| Number of EPS connectors | 2 |
| CPU power connector (4+4 pin) | Jah |
| Floppy drive power connector | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| PCI Express connector | Jah |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Purpose | PC |
| 80 PLUS Certification | 80 PLUS Gold |
| Cabling Type | Fully-Modular |

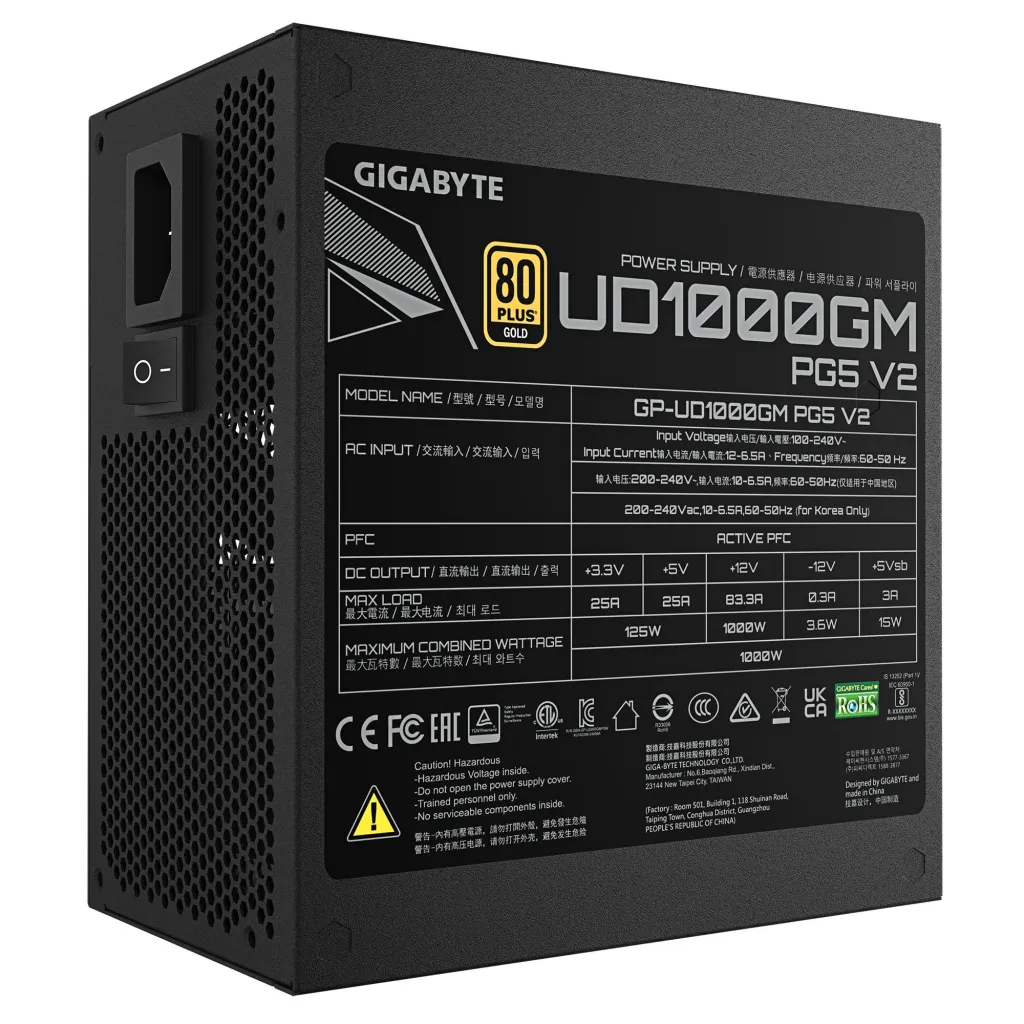

| Combined power (+12V) | 1000 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 90 % |

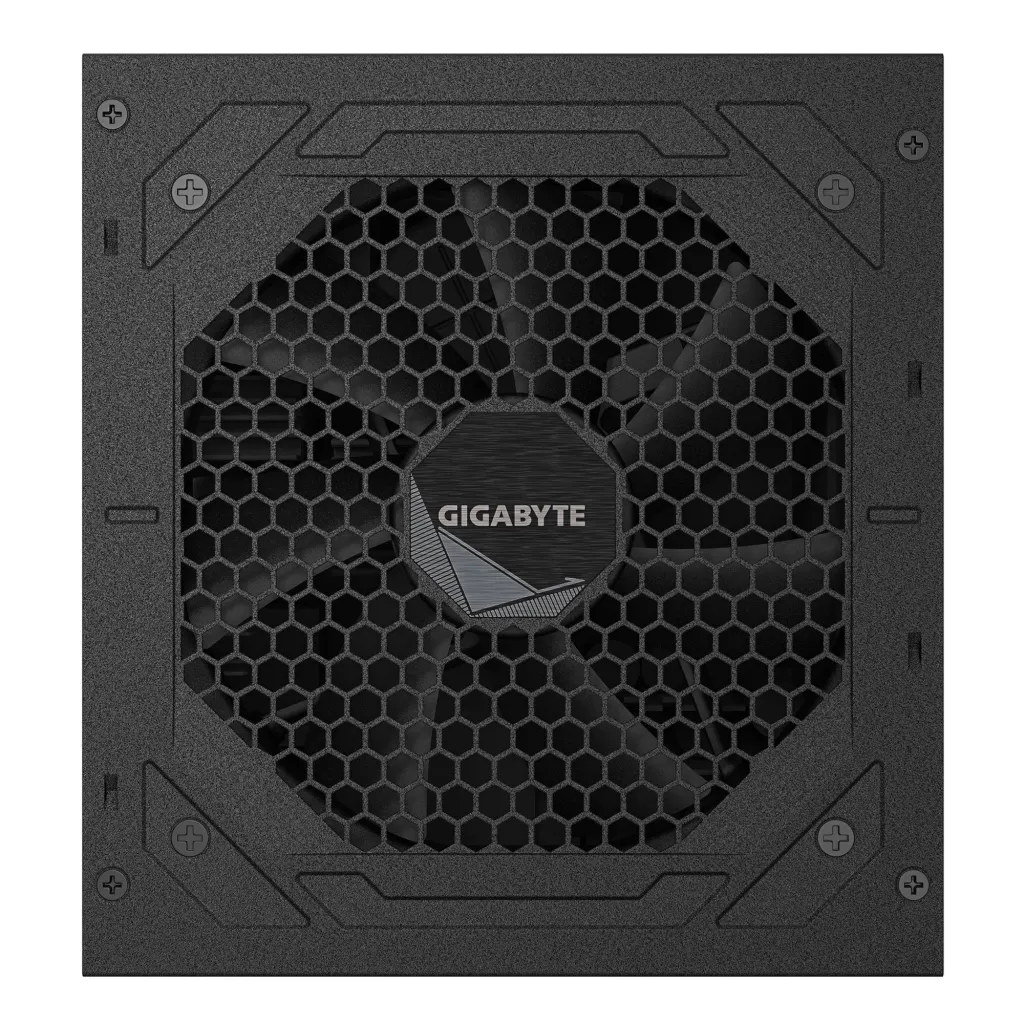

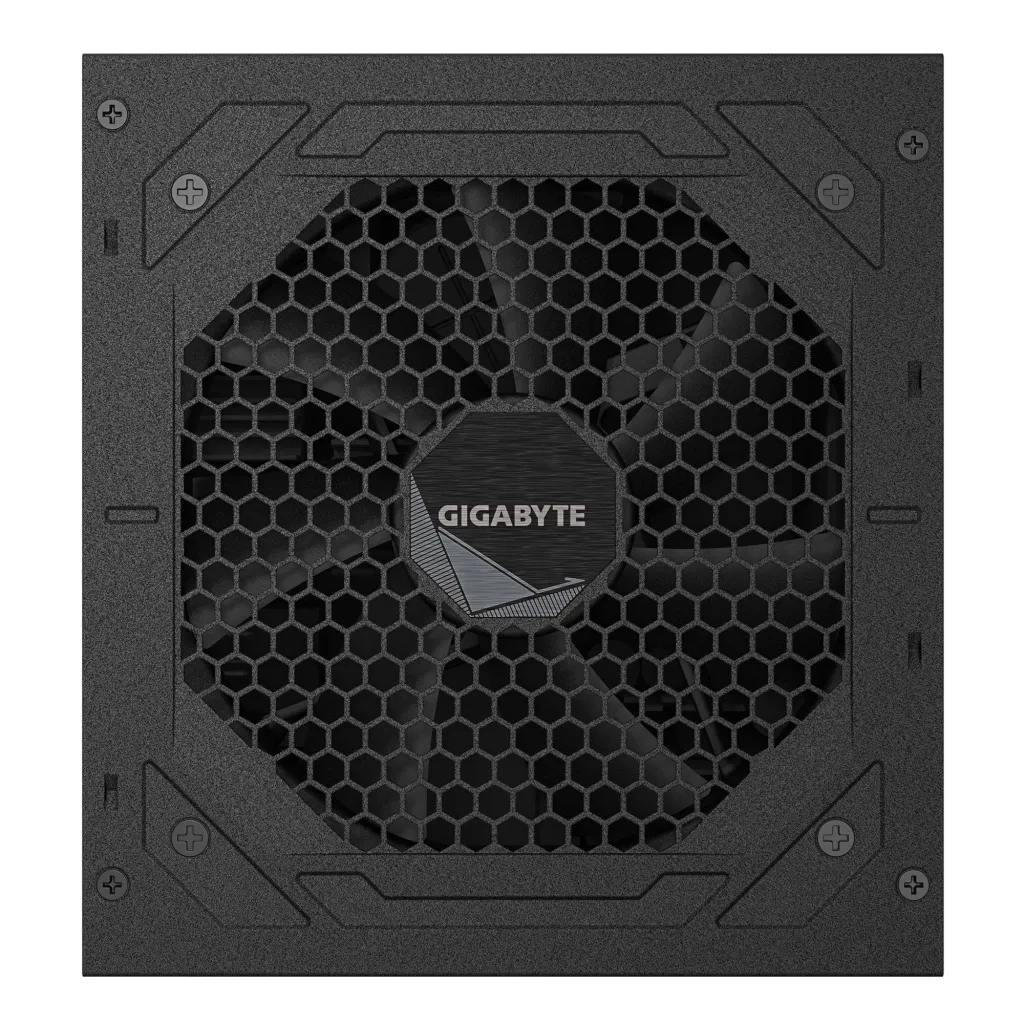

| Fan Diameter | 120 mm |
| Max output current (+12V) | 83.3 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Mean time between failures (MTBF) | 100000 h |
| Package depth | 269 mm |
| Package height | 211 mm |
| Package weight | 2640 g |
| Package width | 618 mm |
| Power factor | 0.9 |
| Total power | 1000 W |
| Laius | 150 mm |
| Sügavus | 140 mm |
| Kõrgus | 86 mm |
| Toote kaal | 2480 g |
