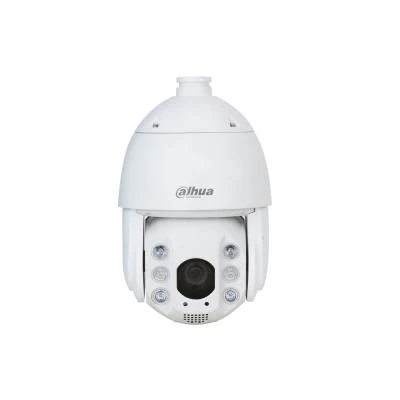

NET CAMERA 8MP PTZ DOME/SD6C3825GA-HNR-A-PV1 DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Discontinued-Products/PTZ-Cameras/SD6C3825GA-HNR-A-PV1

Mudel

SD6C3825GA-HNR-A-PV1

Seadme tüüp

IP security camera

.: Disain :.

Kokkuvõte

Dahua Technology SD6C3825GA-HNR-A-PV1. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.0001 lx, Lens viewing angle, horizontal: 61.6 - 3.6°, Lens viewing angle, vertical: 35.7 - 2°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 25x, Digital zoom: 16x, Focal length range: 5.4 - 135 mm

Kujutegur

Dome

Toote värv

Valge

.: Mälu :.

RAM capacity

1024 MB

.: Kaamera :.

Automaatfookus

Jah

Lens viewing angle, vertical

35.7 - 2 °

Valge tasakaalustus

Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp

.: Võrgustumine :.

WiFi

Ei

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

Audioväljund

1

Ethernet LAN (RJ-45) pordid

1

Ühenduvustehnoloogia

Juhtmega

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

13 W

.: Salvestusruum :.

ROM capacity

4096 MB

Objektiivi süsteem

Lens viewing angle, diagonal

66.6 - 4 °

Lens viewing angle, horizontal

61.6 - 3.6 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

24 VDC/2.5 A ± 25% (included) PoE+ (802.3at)

Voolutarve

23 W

Funktsioonid

Sensori tüüp

CMOS

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576

Töötingimused

Kasutamistemperatuur (T-T)

-40 - 70 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

.: Pakendi andmed :.

Pakendi kaal

7130 g

Tehnilised andmed

Placement supported

Välitingimustesse

Supported network protocols

FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;R TP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP; UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP

Number of cameras

1

Wide Dynamic Range (WDR)

Jah

Video motion detection

Jah

Unit Box Height

0.45

Unit Box Length

0.265

Unit Box Width

0.26

Üksuse kalkuleeritud maht

0.03101 cubm

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

2D noise reduction,3D noise reduction

Number of sensors

1

Number of lenses

1

Region of Interest (ROI) encoding

Jah

Focal length range

5.4 - 135 mm

Streaming method

Multicast/Unicast

Number of Privacy masking areas

24

Bit rate control

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Bit rate range

51 - 12288 Kbit/s

Cloud-managed

Jah

Alarm input channels

1

Alarm output channels

1

Gain control type

Automaatne/Manuaalne

PTZ control

Jah

PTZ modes

5 Pattern/5 Scan/8 Tour/Preset point

Auto-tracking

Jah

Auto patrol mode

Jah

Rahvusvaheline Kaitsekood ( IP )

IP66

Audio sisend

1

Camera shutter type

Elektrooniline

Day/night mode

Jah

Ethernet interface type

Kiire Ethernet

Maximum aperture number

1.6

Minimum aperture number

4

Mounting type

Ceiling/wall

Noise reduction

Jah

Video compression formats

H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG

Zoom capability

Jah

Alarm In

2

Alarm Out

1

Built-in HDD

Ei

Camera design

Dome

Camera shutter speed

1/1 - 1/30000 s

Certification

CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN
50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4

Closest focusing distance

2 m

Digital Zoom

16 x

Effective pixels

3840 (H) × 2160 (V)

Electronic Shutter Speed

1/1 s–1/30,000 s

Environment

Välitingimustesse

Focal Length

5.4 mm–135 mm

Focus

Manuaalne

Frame Rate

30 fps

Image stabilizer

Jah

IR Illumination

Jah

Min. Illumination

0.0001 Lux

Minimum Illumination

0.0001 lx

Network Camera Type

HDTV/Megapixel/Outdoor/PTZ

Operating temperature range

–40 °C to +70 °C

Optical sensor size

1/1.8 "

Optical Zoom

25 x

Power Options

PoE

Resolution

8 Mega Pixel

Sensor size

1/1.8

Total megapixels

8 MP

Video streaming

Jah

Tehnilised andmed

Üksuse kalkuleeritud kaal

6.8 kg

Netokaal

4.6 kg

Laius

202 mm

Sügavus

202 mm

Kõrgus

325.3 mm

Mõõtmed (l x s x k)

325.3 mm × Φ202.0 mm

Toote kaal

4600 g
