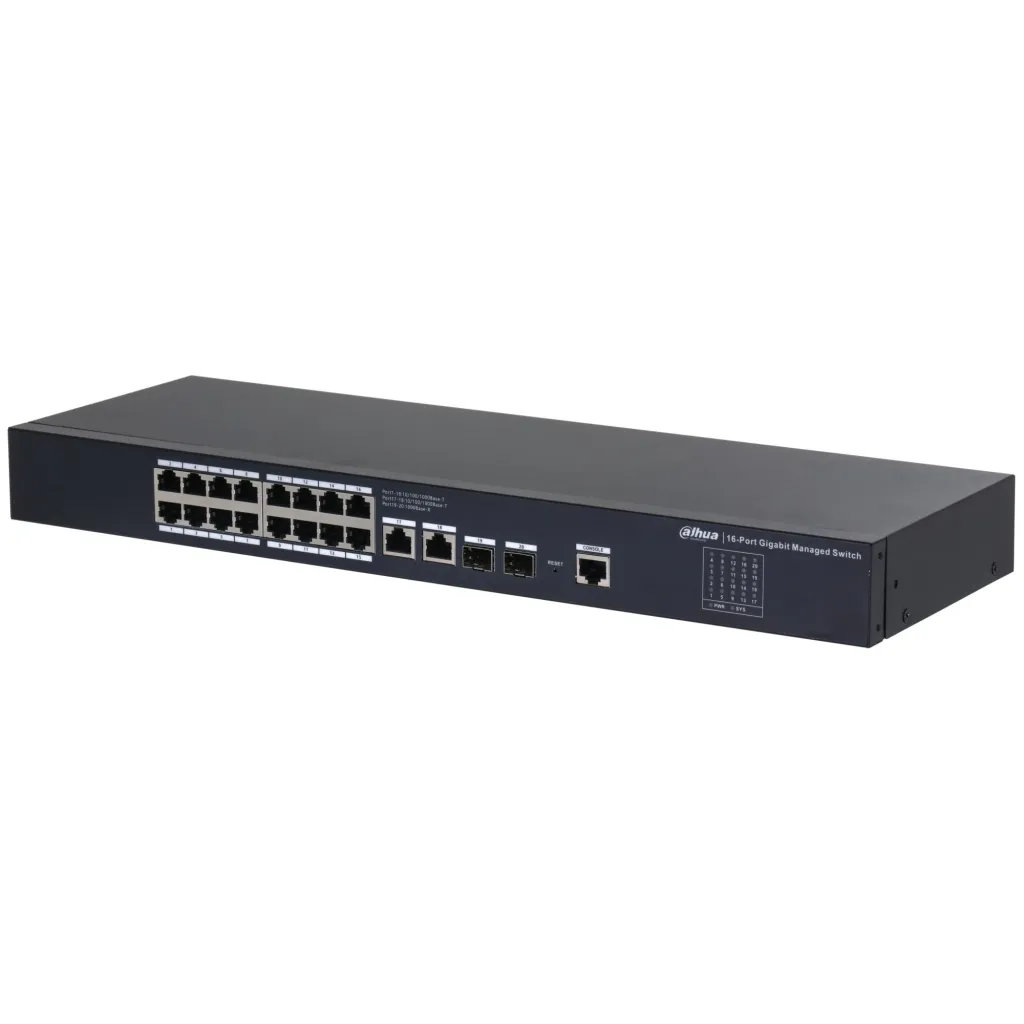

Switch|DAHUA|DH-SG4020|SG4020
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.63 €. Taotle järelmaksu ostukorvis.
Equipped with a high performance switching engine, the 20-Port All-Gigabit Managed Switch performs optimally. It has low transmission delay, large buffer and is highly reliable. It also has a strong switching capability and optimizes transmission performance when accessing Ultra HD videos. With its full metal design and fanless design, the device has great heat dissipation and is low power consumption,
working in environments ranging from –10°C to 55°C (+14°F to +131°F). With protection against overvoltage, EMC and overcurrent from power input terminals, the switch effectively resists interference from static electricity, lightning, and pulses. It also has powerful network management functions, supporting IGMP Snooping, Link Aggregation, QoS, LLDP, STP/RSTP, Web.
Link Aggregation
Combines multiple physical links into one virtual channel for dynamic redundancy and load balancing, ensuring that the connection remains stable.
Quality of Service (QoS)
Uses mechanisms designed to control bandwidth, delay, jitter, and loss to ensure the performance of services when the capacity is limited.
Link layer discovery protocol (LLDP)
Enables network devices to advertise their information mutually, allowing you to conveniently monitor and manage devices in the local topology. This makes it easy for administrators to effectively perform troubleshooting.
Spanning Tree Protocol (STP)
Uses algorithms that calculate the best loop-free path through a Layer 2 network while providing path redundancy to prevent the occurrence of broadcast storms and enhance the stability of operations and services.
IGMP snooping
Listens to multicast traffic, and solely forwards information to registered clients based on the multicast forwarding table. This ensures the safety of information and improves network efficiency.
Fanless Design
The fanless design reduces noise, enhances user experience, reduces mechanical losses and improves service life to a certain extent.
- Supports web management
- Supports STP and RSTP
- Supports manual aggregation and static LACP protocol aggregation
- 10/100/1000 Mbps self-adaptive Ethernet port
- Highly integrated, it is exquisite, convenient and easy to use
.: Üldised andmed :.
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/Managed-Switch/SG4020
.: Disain :.
- Toote värv
- Black
- Kujutegur
- 1U
- LED-indikaatorid
- Jah
.: Võrgustumine :.
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- VLAN-i tugi
- Jah
- Ethernet LAN-i andmeedastuskiirused
- 10,100,1000 Mbit/s
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Ei
Turvalisus
- DHCP features
- DHCP client/DHCP server/DHCP snooping
.: Tehnilised andmed :.
- Sustainability compliance
- Jah
- Compliance certificates
- CE
Andmeedastus
- Jumbo frames
- 10000
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Veebipõhine haldus
- Jah
Toide
- Toiteallikas
- DC
Ethernet LAN-funktsioonid
- IEEE 802.3x
- Jah
Ergonoomika
- Lähtestusnupp
- Jah
Funktsioonid
- Virtual LAN features
- Port-based VLAN/Tagged VLAN
- Mudeli originaalnimi
- DH-SG4020
Logistika andmed
- Kogus transpordikasti kohta
- 4
Töötingimused
- Kasutamistemperatuur (T-T)
- -10 - 55 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
- Hoiustamistemperatuur (T-T)
- -40 - 75 °C
.: Pakendi andmed :.
- Pakendi sügavus
- 520 mm
- Pakendi kõrgus
- 107 mm
- Pakendi kaal
- 2250 g
- Pakendi laius
- 271 mm
Tehnilised andmed
- Spanning tree protocol
- Jah
- Rack mounting
- Jah
- Gigabit Ethernet (copper) ports quantity
- 18
- Full duplex
- Jah
- Switch layer
- L2
- Jumbo frames support
- Jah
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 18
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 2
- Flow control support
- Jah
- DC input voltage
- 12 V
- Console port
- RJ-45
- Multicast support
- Jah
- Number of VLANs
- 4000
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Link aggregation
- Jah
- Fanless
- Jah
- Unit Box Height
- 0.11
- Unit Box Length
- 0.52
- Unit Box Width
- 0.275
- CnCode
- 85176200
- Unit Calculated Volume
- 0.01864 cubm
- Unit Calculated Weight
- 2.95 kg
- Summary
- Dahua Technology SG4020. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 V. Rack mounting, Form factor: 1U
- Cloud-managed
- Ei
- Power supply included
- Jah
- 10Base-T / 100Base-TX / 1000Base-T
- 18
- Forwarding rate
- 29.76 Mpps
- MAC address table
- 8000 entries
- Mean time between failures (MTBF)
- 467125.73 h
- Operating temperature range
- –10°C to +55°C
- Packet buffer memory
- 4.1 MB
- Power Options
- 12V
- Primary port count
- 18
- SFP
- 2
- Storage relative humidity (H-H)
- 5 - 95 %
- Switch type
- Managed
- Switching capacity
- 56 Gbit/s
Tehnilised andmed
- Netokaal
- 1.57 kg
- Laius
- 163.85 mm
- Sügavus
- 440 mm
- Kõrgus
- 43.65 mm
- Mõõtmed (l x s x k)
- 440 mm × 163.85 mm × 43.65 mm
- Toote kaal
- 1570 g
