PRIME PX ATX 3.1
Power. Performance. PRIME.
PRIME PX ATX 3

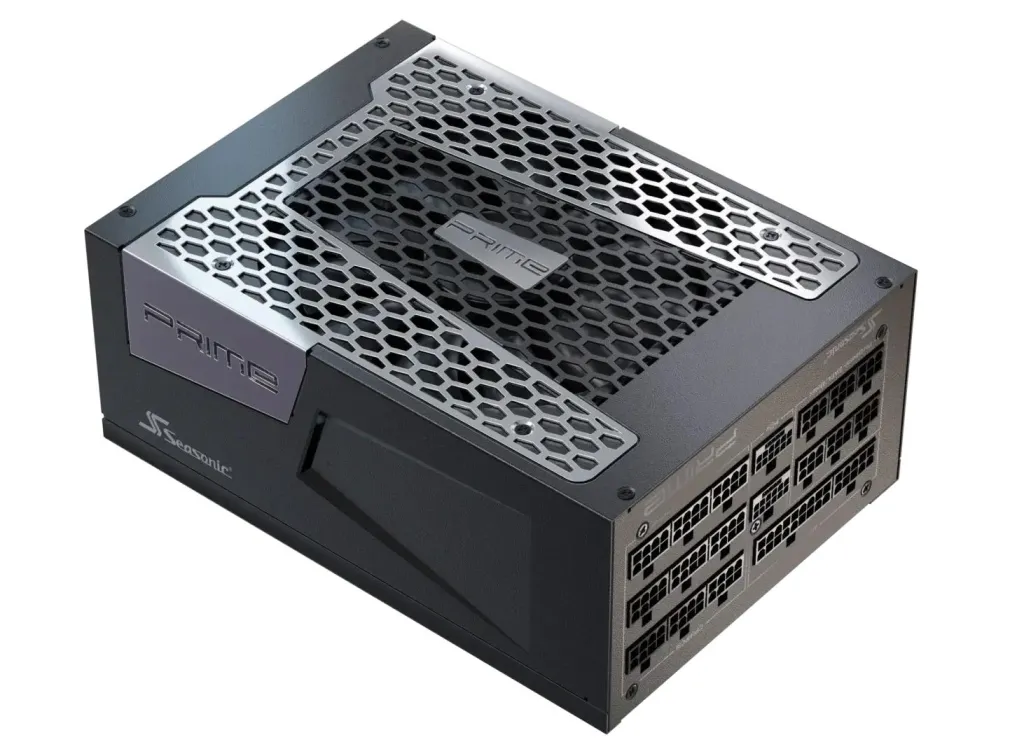

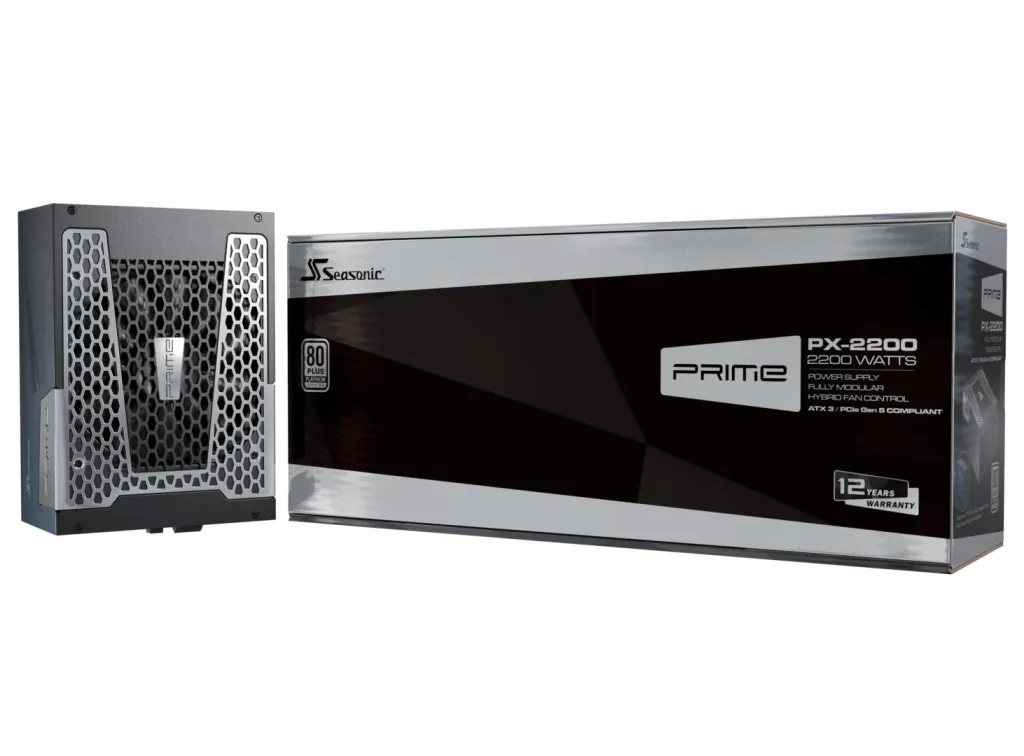

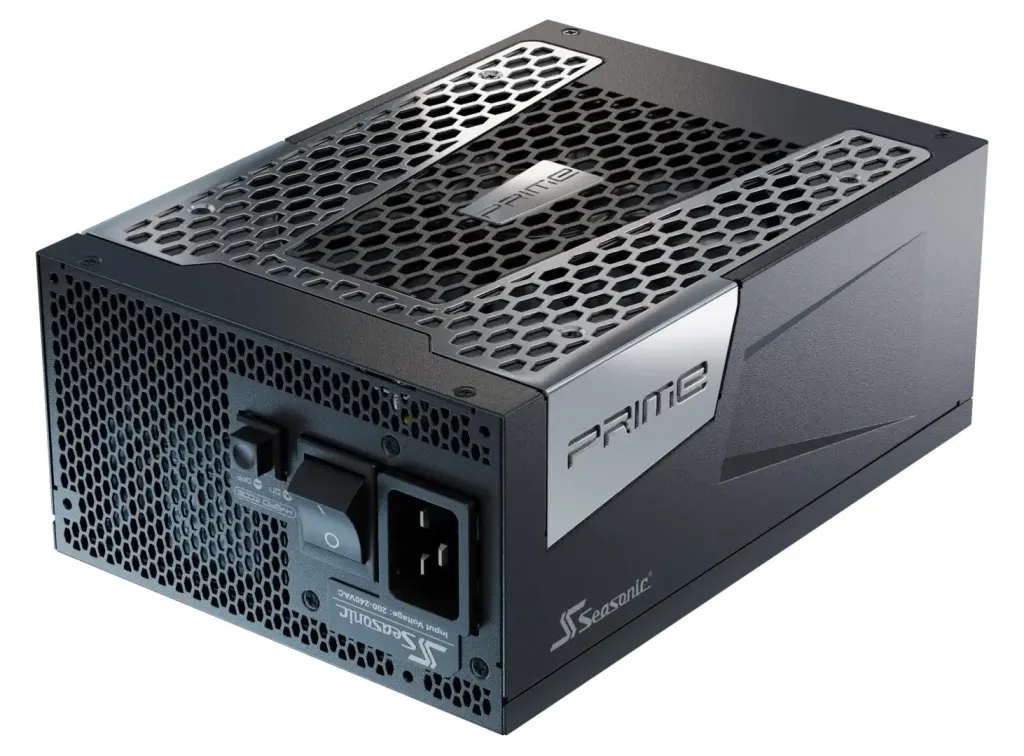

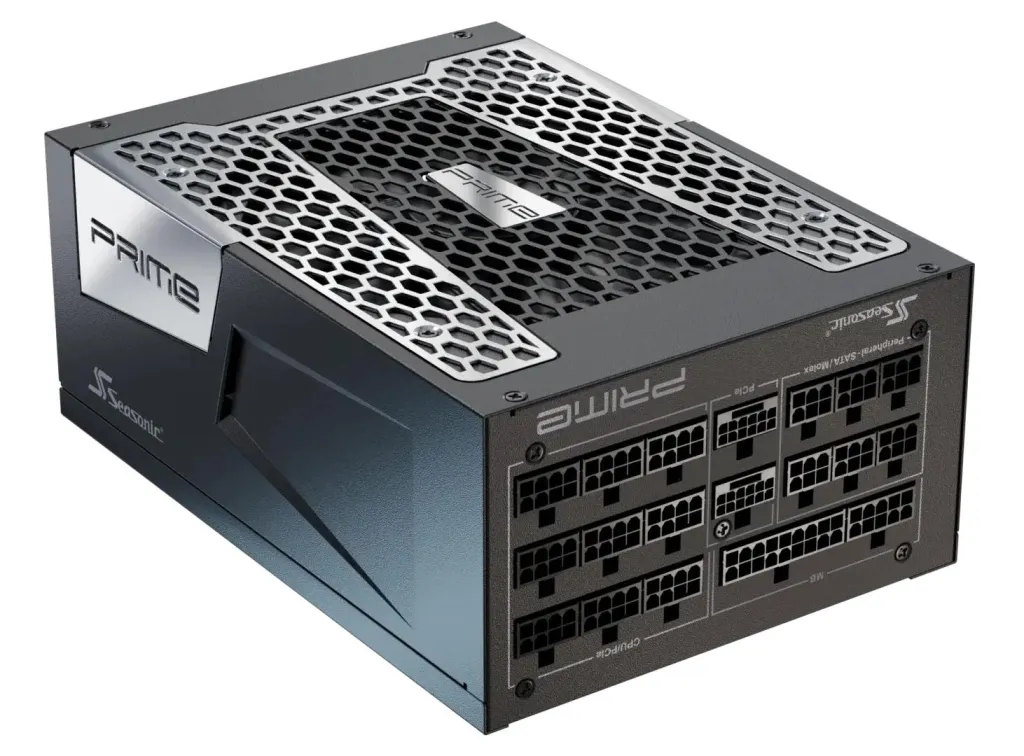

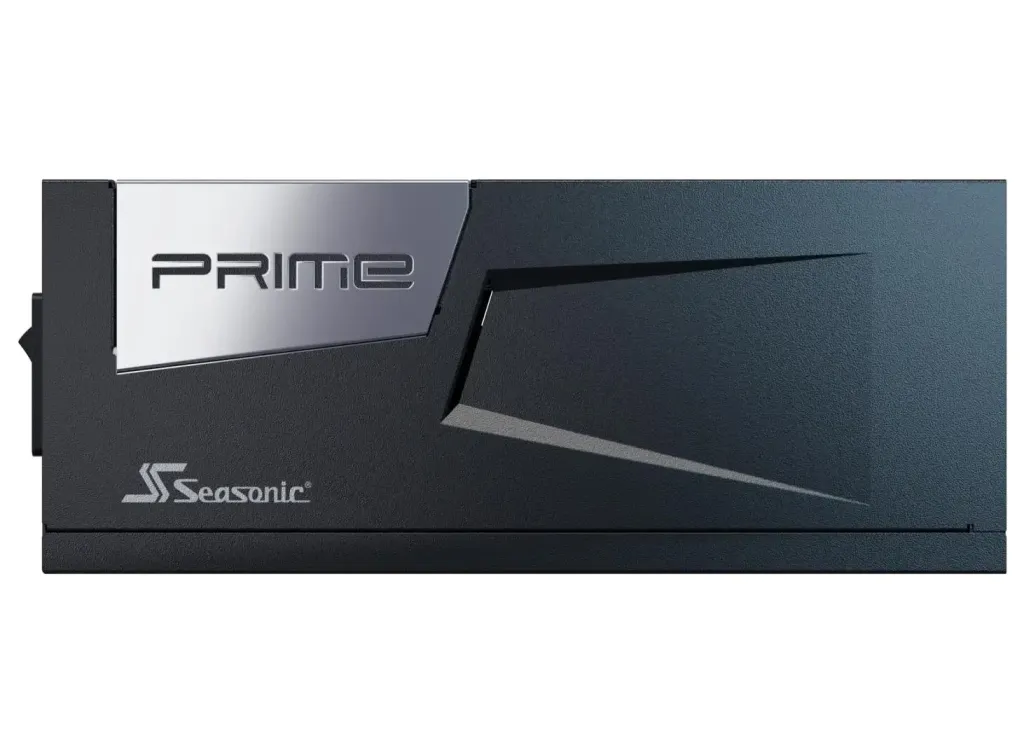

When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.
ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.

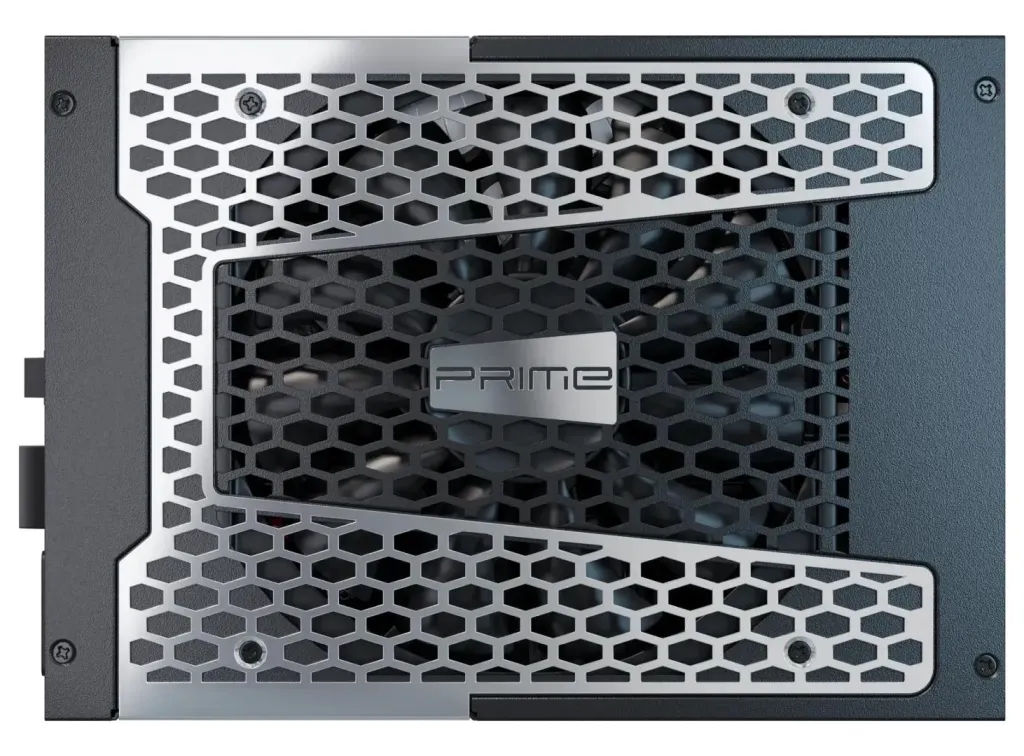

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
| Tootja | Seasonic |
| Tootekood | PRIME-PX-2200-ATX30 |
| EAN | 4711173878414 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://seasonic.com/atx3-prime-px-2200/ |
| .: Toimimine :. | |
| Power supply unit (PSU) form factor | ATX |
| .: Pesad & liidesed :. | |
| CPU power cable length | 700 mm |
| Võimsus ja energiatarve | |
| Sisendvool | 15 A |
| Jahutus | |
| Ventilaatorite arv | 1 fan(s) |
| .: Tehnilised andmed :. | |
| Compliance certificates | CCC/CE/REACH/RoHS/WEEE |
| Ergonoomika | |
| On/off nupp | Jah |
| Funktsioonid | |
| Vahelduvvoolu pinge | 115 - 240 V |
| Mudeli originaalnimi | PRIME PX ATX 3.1 |
| Töötingimused | |
| Kasutamistemperatuur (T-T) | 0 - 50 °C |
| .: Kaal ja mõõtmed :. | |
| Laius | 150 mm |
| Sügavus | 210 mm |
| Kõrgus | 86 mm |
| .: Pakendi andmed :. | |
| Pakendi tüüp | Box |

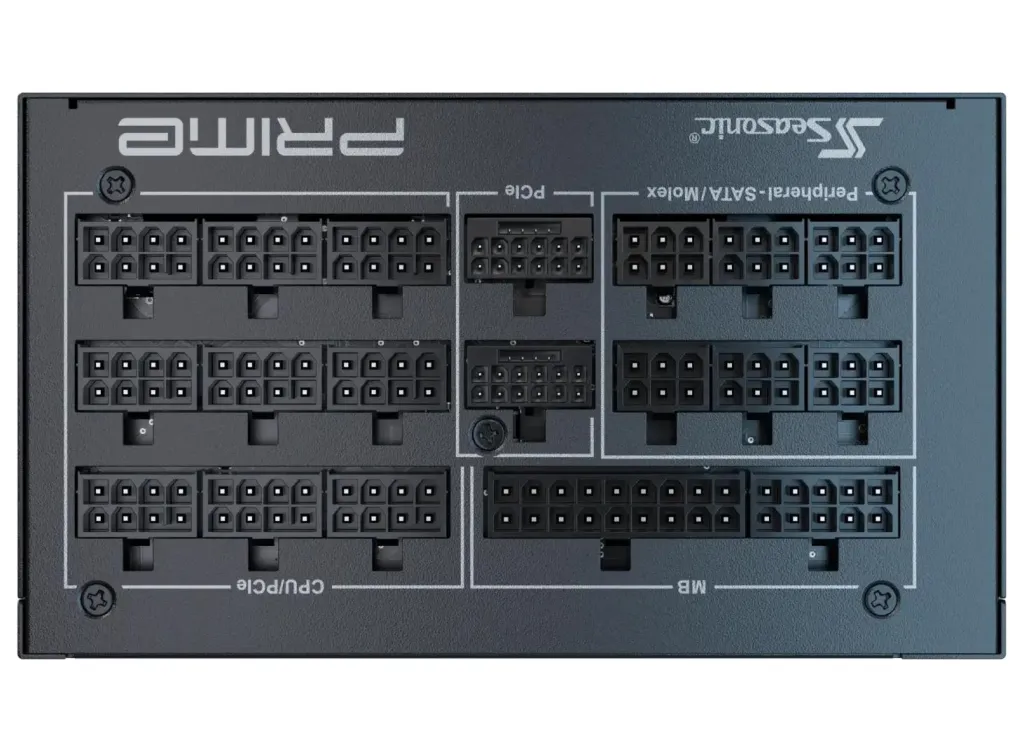

| Kaablid kaasa arvatud | AC,CPU,PCIe,Peripheral (Molex),SATA |
| Muud andmed | |
| Units per Shipping Box | 4 |
| EPS power connector (8-pin) | Jah |
| Bearing technology | FDB |
| ATX version | 3.0 |
| Unit Box Height | 0.2 |
| Unit Box Length | 0.455 |
| Unit Box Width | 0.13 |
| Unit Calculated Volume | 0.01406 cubm |
| Unit Calculated Weight | 6.2 kg |
| Summary | Seasonic Prime PX. Total power: 2200 W, AC input voltage: 115 - 240 V, Input current: 15 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,470,550,570,760,860,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA |
| Product colour | Black |
| Motherboard power cable length | 610 mm |
| Peripheral (Molex) power cable length | 470/690 mm |
| SATA power cable length | 450/470/550/570/760/860/950 mm |
| Cable tie(s) included | Jah |
| Cooling type | Active |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Purpose | PC |
| 80 PLUS Certification | 80 PLUS Platinum |
| Cabling Type | Fully-Modular |
| Combined power (+12V) | 2200 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 6 W |
| Fan Diameter | 135 mm |
| Max output current (+12V) | 183.3 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Mean time between failures (MTBF) | 150000 h |
| Total power | 2200 W |
