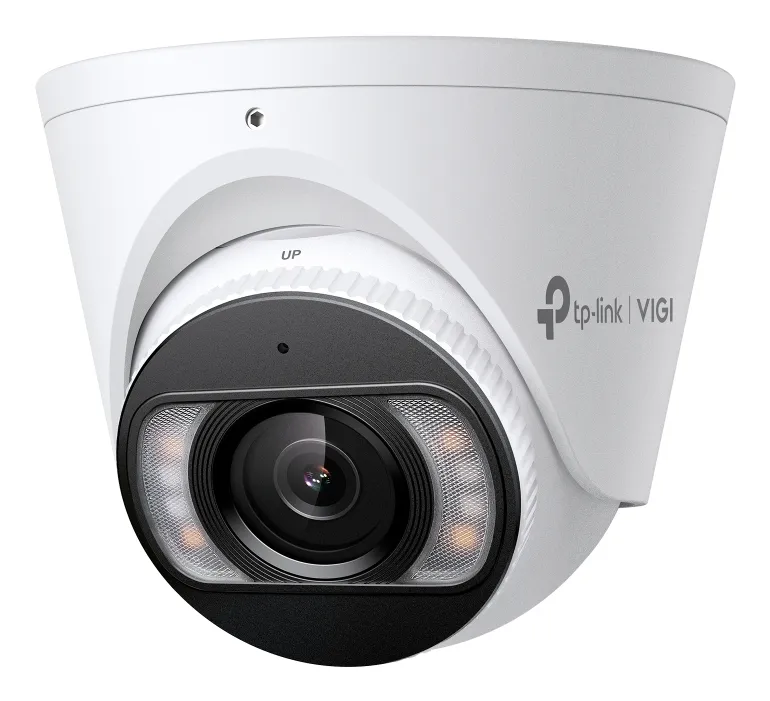

TP-Link INSIGHT S485 Torn IP süsteemiga turvakaamera Hooneväline 3840 x 2160 pikslit Lagi

.: Üldised andmed :.

Seadme tüüp

IP security camera

Tootja koduleht

https://www.tp-link.com/uk/business-networking/vigi-network-camera/insight-s485/v1%20(4mm%20lens)/

.: Disain :.

Toote värv

White

Kujutegur

Turret

.: Mälu :.

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Toetatud audioformaadid

G.711 A-law

.: Kaamera :.

Lens viewing angle, vertical

46.1 °

.: Võrgustumine :.

Võrgustandardid

IEEE 802.3af/IEEE 802.3at

Web browser

Jah

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

DC-pistik

Jah

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Pildisensor

Progressiivne skaneerimine

Jah

Juhtimisfunktsioonid

Veebipõhine haldus

Jah

Objektiivi süsteem

Lens viewing angle, horizontal

91.5 °

Lens viewing angle, diagonal

109.6 °

Öövaatluse funktsioon

Öönägemine

Jah

Ergonoomika

Lähtestusnupp

Jah

Logistika andmed

Kogus transpordikasti kohta

1

Muud funktsioonid

Toetatud resolutsioonid

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/3840 x 2160

Töötingimused

Kasutamistemperatuur (T-T)

-30 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

Hoiustamistemperatuur (T-T)

-40 - 60 °C

.: Pakendi sisu :.

Paigalduskomplekt

Jah

.: Pakendi andmed :.

Kasutusjuhend

Jah

Tehnilised andmed

LED type

IR/White

Unit Box Width

0.162

Unit Box Length

0.163

Unit Box Height

0.116

HTTPS encryption

Jah

Alert notification type

Push notification

Remote viewing

Jah

Screws included

Jah

Number of microphones

1

Drilling template included

Jah

Video motion detection

Jah

Sample rate

8 kHz

Motion sensor

Jah

Live view

Jah

Wide Dynamic Range (WDR)

Jah

Password protection

Jah

Placement supported

Outdoor

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Number of cameras

1

Image quality adjustment

Brightness/Contrast/Mirror/Saturation/Sharpness

IP address filtering

Jah

Unit Calculated Volume

0.003063 cubm

Built-in siren

Jah

Fixed focus

Jah

Cloud-managed

Jah

Power consumption (Power over Ethernet (PoE))

12.5 W

Bit rate range

0 - 64 Kbit/s

Audio input channels

1.0 channels

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Dynamic range

120 dB

Weatherproof

Jah

Recognize distance

21 m

Observe distance

44 m

Identify distance

11 m

Detect distance

107 m

Infrared (IR) cut-off filter

Jah

Mirror

Jah

Highlight Compensation (HLC)

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Back Light Compensation (BLC)

Jah

Tilt angle range

0 - 90 °

Summary

TP-Link INSIGHT S485. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 91.5°, Lens viewing angle, vertical: 46.1°, Lens viewing angle, diagonal: 109.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 107 m, Observe distance: 44 m, Recognize distance: 21 m

Unit Calculated Weight

0.74 kg

Built-in speaker(s)

Jah

Day/night mode

Jah

DC output voltage

12

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.6

Mounting type

Ceiling

Protection features

Waterproof

Sensor type

CMOS

Video compression formats

H.264/H.264+/H.265/H.265+

Video recording

Jah

Audio system

2-way

Bit rate

Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Built-in microphone

Jah

Camera shutter speed

1/3 to 1/10000 s

Connectivity Technology

Wired

Fixed focal length

4 mm

Housing material

Metal

Maximum memory card size

512 GB

Maximum operating distance

107 m

Optical sensor size

1/2.7 "

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

8 MP

Tehnilised andmed

Laius

111 mm

Kõrgus

83.7 mm

Toote kaal

480 g

Pikkus

111 mm
