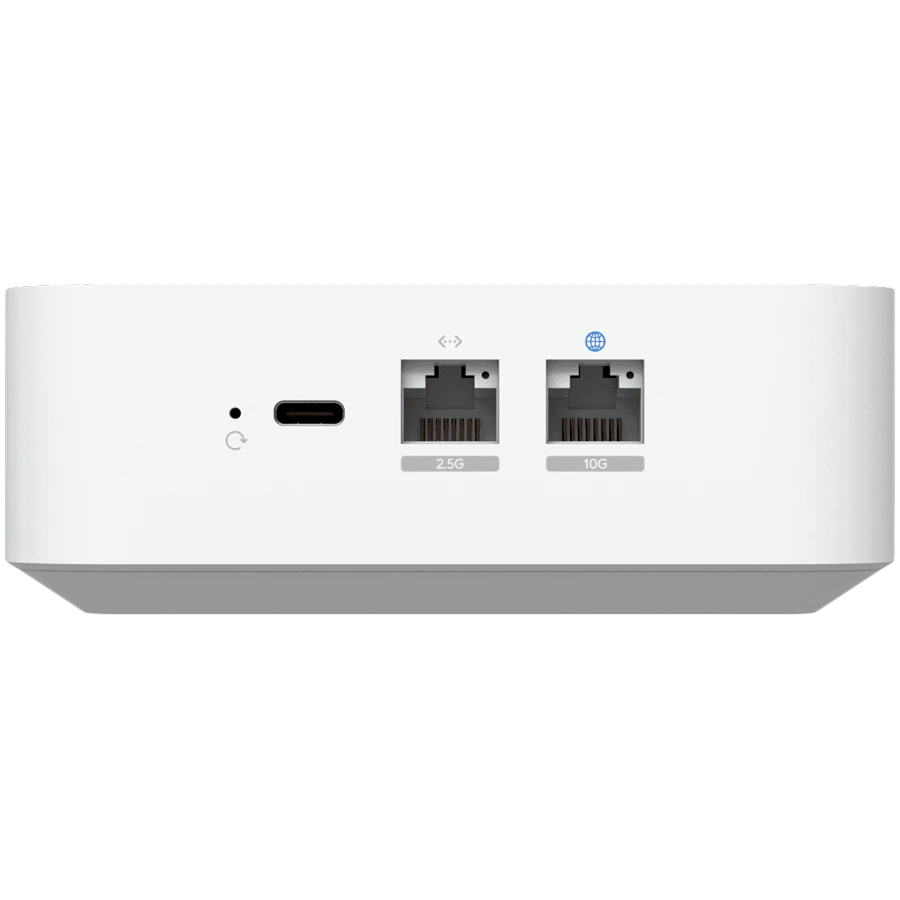

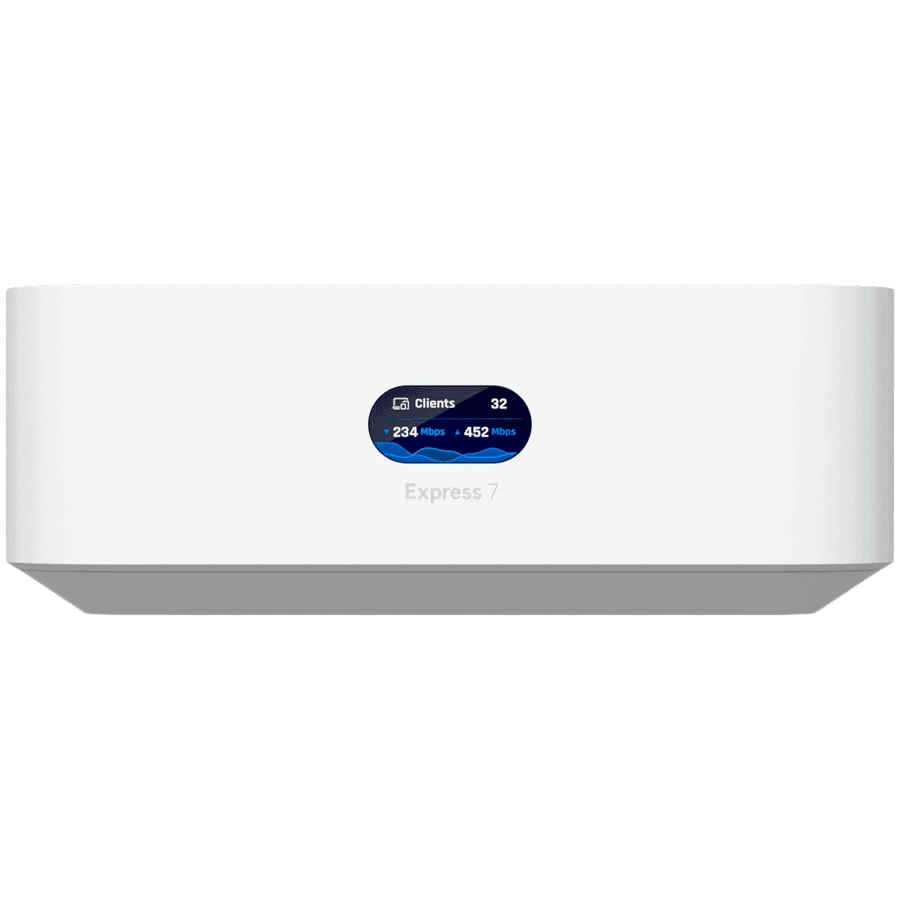

Ubiquiti UniFi Express 7 UX7 Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7, 10 GbE RJ45 WAN port, 2.5 GbE RJ45 LAN port to extend network, up to 30+ UniFi devices and 300+ clients

.: Üldised andmed :.

Seadme tüüp

Router/Range Extender

.: Disain :.

Seadme paigaldus

Väline

.: Protsessor :.

Protsessori sagedus

1.5 GHz

Protsessorituumad

4

Protsessori seeria

Vars Cortex-53

.: Mälu :.

Paigaldatud operatiivmälu

3 GB

.: Tehnilised andmed :.

Vastavussertifikaadid

CE, FCC, IC

Korpuse värv

Valge

Toide

Toiteploki asukoht

Väline

Logistika andmed

Transpordikarbi brutokaal

1 kg

Muud funktsioonid

Garantiiteave

Serial Number

Pakendi netokaal

0.42 kg

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

-10 %

.: Pakendi andmed :.

Pakendi tüüp

Retail

Kogus pakendi kohta

1

Tehnilised andmed

Pack Length (mm)

317 mm

Router Features

Power over Ethernet (PoE) Multiple Input Multiple Output (MIMO) DHCP Server

Packs in Box

1

Warranty Products Returnable

Jah

Pack Width (mm)

317 mm

Pack Height (mm)

242 mm

Supported Networking Compliant Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.1Q(VLAN) IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6 IEEE 802.11ax Wi-Fi 6E IEEE 802.11be Wi-Fi 7

Maximum Power Consumption

22 W

Warranty Term Notes

24 months - for EU

Status LED Indicators

Activity Status

Data Link Protocol Supports (New)

Wi-Fi + LAN + Bluetooth

Maximum Input Voltage

240 V

Authentication, Authorization, Accounting (AAA Protocol)

RADIUS

Application Layer

DNS

WAN

1 (RJ-45)

Firewall Functions and Protocols

NAT Support

Protocols (OSI Model)

IPv6IGMPL2TPTLSQoS

Wireless Networking

IEEE 802.11a 2.4 GHz, up to 54 MbpsIEEE 802.11b 2.4 GHz, up to 11 MbpsIEEE 802.11g 2.4 GHz, up to 54 MbpsIEEE 802.11n 2.4 GHz, up to 300 MbpsIEEE 802.11ac 5 GHz, up to 1.7 GbpsIEEE 802.11ax 5 GHz, up to 2.4 GbpsIEEE 802.11be 6 GHz, up to 5.7 Gbps

Nominal Weight

0.422 kg

Minimum Input Voltage

100 V

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

95 °C

Minimum Operating Humidity

5 %

Depth (mm)

117 mm

Height (mm)

42.5 mm

Width (mm)

117 mm

Lisaseadmed

Reset nupp

Encryption Algorithm

WEP WPA-PSK WPA2 WPA3 WPA3-Enterprise

LAN

1 (RJ-45)

USB

1 (USB tüüp C)

Tehnilised andmed

Tarvikud kaasa arvatud

Kiire algus juhend
