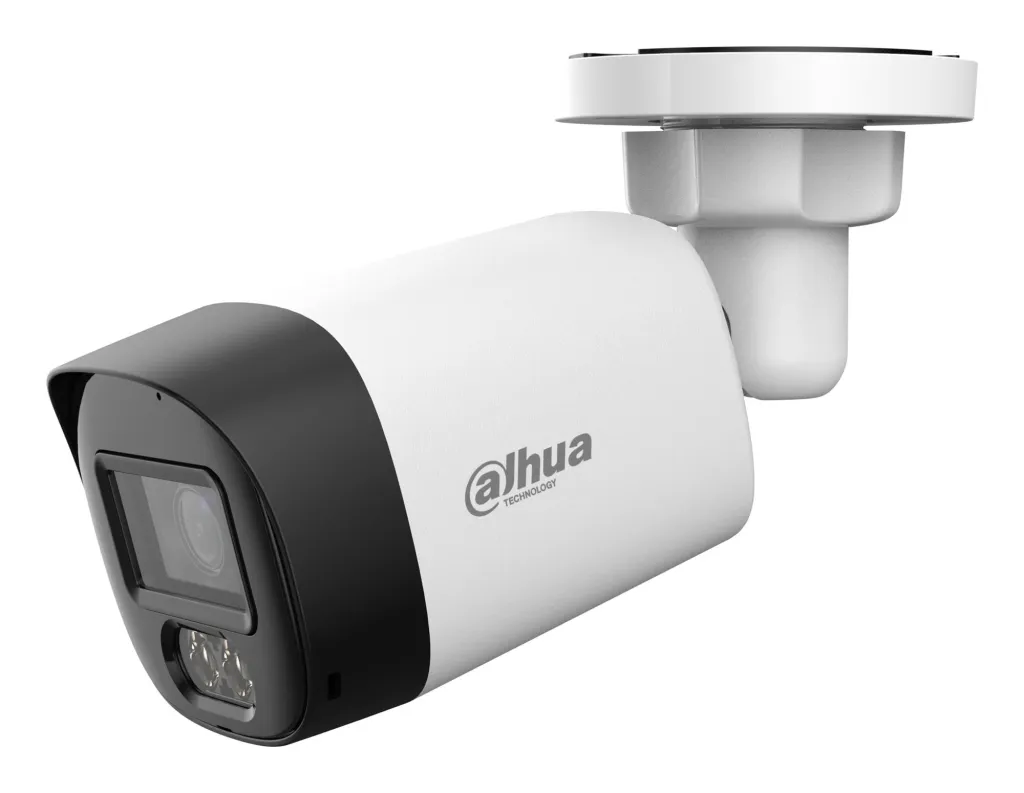

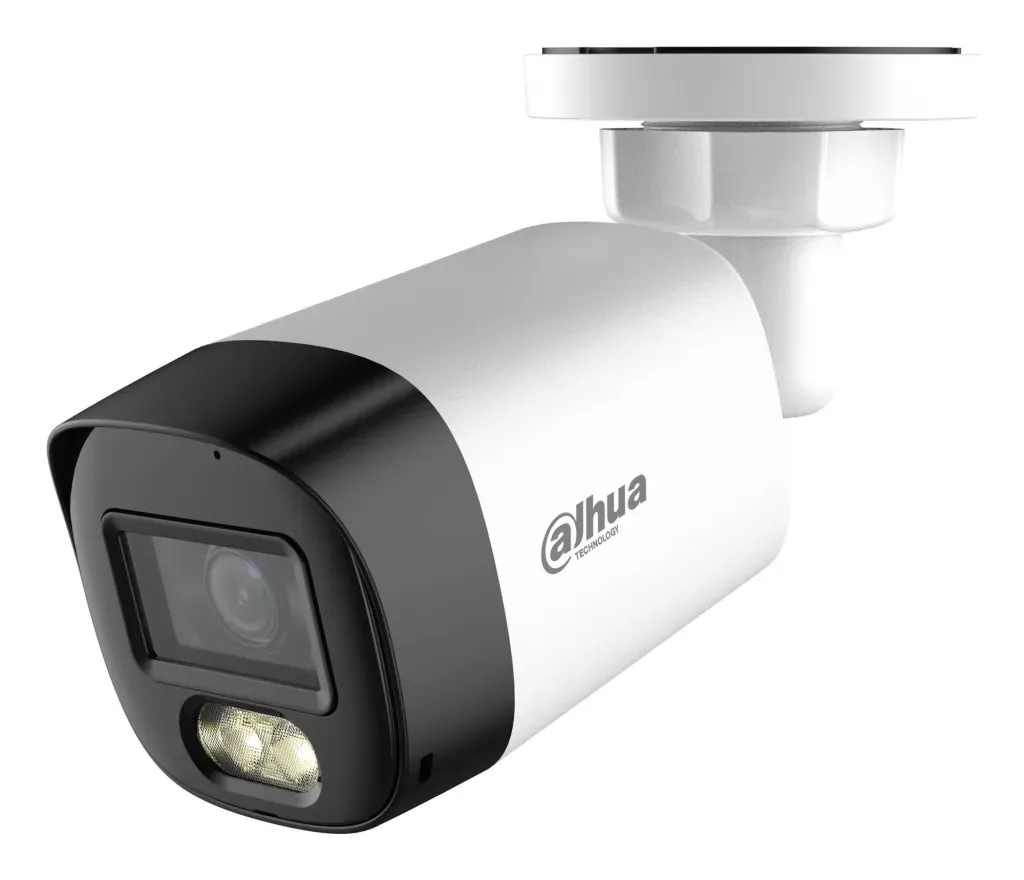

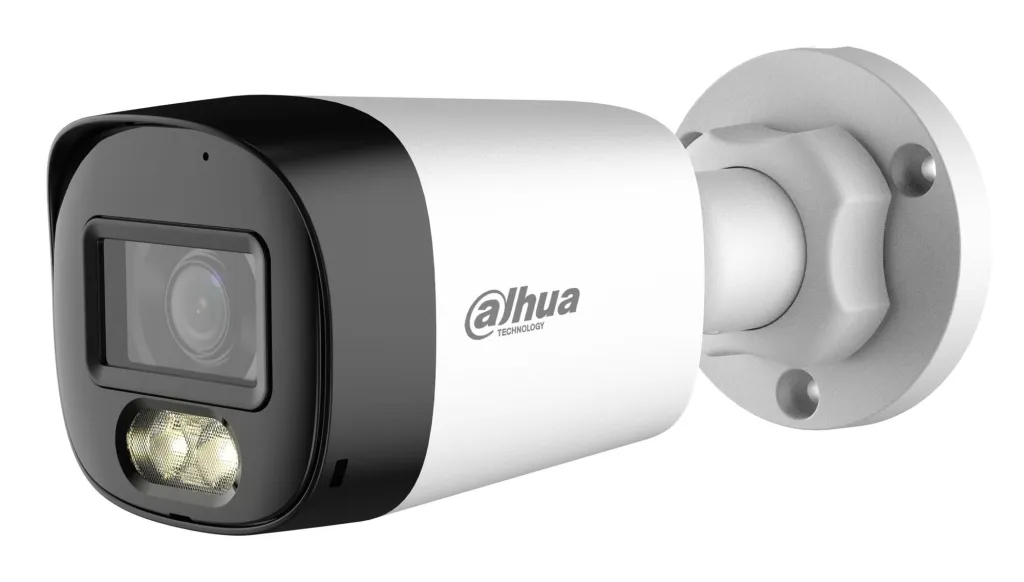

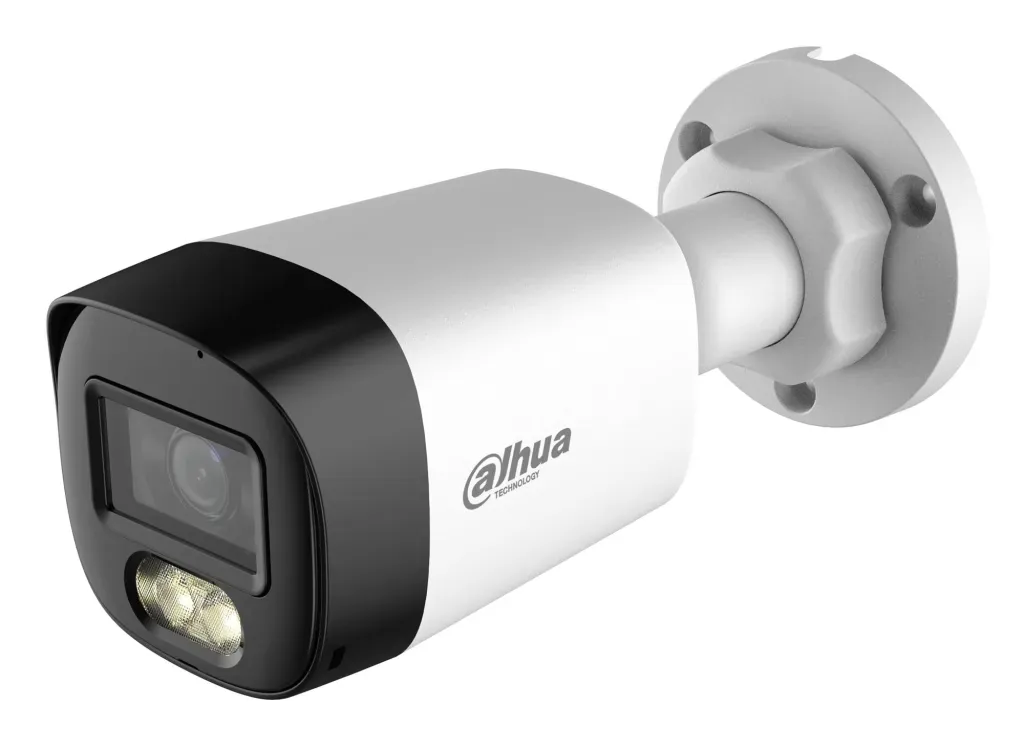

CAMERA HDCVI 8MP BULLET/HFW1801RL-IL-A-0280B-S3 DAHUA
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.
Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.
- The parameters and datasheets below can only be applied to 1801-IL-S3 series
- In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version
- In order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later version
- Max. 15 fps@4K
- Smart Dual Light
- 30 m illumination distance
- Super Adapt
- Built-in Mic
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
.: Üldised andmed :.
- Seadme tüüp
- CCTV security camera
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Smart-Dual-Light/HAC-HFW1801RL-IL-A=S3
.: Disain :.
- Toote värv
- Black/White
- Kujutegur
- Bullet
.: Kaamera :.
- Lens viewing angle, vertical
- 56.5 °
- Valge tasakaalustus
- Auto
.: Võrgustumine :.
- WiFi
- Ei
- Ethernet LAN
- Ei
- Bluetooth
- Ei
.: Pesad & liidesed :.
- Liides
- BNC
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- DC
.: Tehnilised andmed :.
- Compliance certificates
- CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Objektiivi süsteem
- Lens viewing angle, horizontal
- 105.5 °
- Lens viewing angle, diagonal
- 125.3 °
Ergonoomika
- Angle of rotation
- 360 °
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Toetatud resolutsioonid
- 3840 x 2160/960 x 480/960 x 576
Töötingimused
- Kasutamistemperatuur (T-T)
- -40 - 60 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 0 - 95 %
- Hoiustamistemperatuur (T-T)
- -40 - 60 °C
Tehnilised andmed
- Unit Calculated Weight
- 0.29 kg
- Unit Calculated Volume
- 0.00119 cubm
- Unit Box Width
- 0.085
- Unit Box Length
- 0.175
- Unit Box Height
- 0.08
- Summary
- Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 105.5°, Lens viewing angle, vertical: 56.5°. Sensor type: CMOS. Detect distance: 88 m, Observe distance: 35.2 m, Recognize distance: 17.6 m
- LED type
- IR/White
- Number of illumination LEDs
- 2
- Wide Dynamic Range (WDR)
- Jah
- Progressive scan
- Jah
- Night vision
- Jah
- Number of cameras
- 1
- Placement supported
- Indoor & outdoor
- Mirror
- Jah
- BNC output ports
- 1
- Iris
- Jah
- Gain control type
- Auto
- Fixed focus
- Jah
- Recognize distance
- 17.6 m
- Observe distance
- 35.2 m
- Identify distance
- 8.8 m
- Detect distance
- 88 m
- Smart IR
- Jah
- Noise reduction technology
- 3D noise reduction
- Highlight Compensation (HLC)
- Jah
- Digital Wide Dynamic Range (DWDR)
- Jah
- Back Light Compensation (BLC)
- Jah
- Tilt angle range
- 0 - 90 °
- Analog signal format system
- NTSC/PAL
- Camera shutter type
- Electronic
- Day/night mode
- Jah
- DC output voltage
- 12
- Lens mount interface
- M12
- Maximum aperture number
- 2
- Mounting type
- Ceiling/Wall/Pole
- Noise reduction
- Jah
- Protection features
- Corrosion resistant/Waterproof
- Sensor type
- CMOS
- Supported video modes
- 2160p/480p/576p
- Built-in HDD
- Ei
- Built-in microphone
- Jah
- Camera shutter speed
- 1/25 - 1/100000 s
- Closest focusing distance
- 1.3 m
- Connectivity Technology
- Wired
- Fixed focal length
- 2.8 mm
- Frame Rate
- 15 fps
- Housing material
- Plastic
- Night vision distance
- 30 m
- Package weight
- 240 g
- Pan range
- 0 - 360 °
- Signal-to-Noise Ratio (SNR)
- 65 dB
- Storage relative humidity (H-H)
- 0 - 95 %
Tehnilised andmed
- Laius
- 70 mm
- Kõrgus
- 69.7 mm
- Toote kaal
- 170 g
- Pikkus
- 161.6 mm
