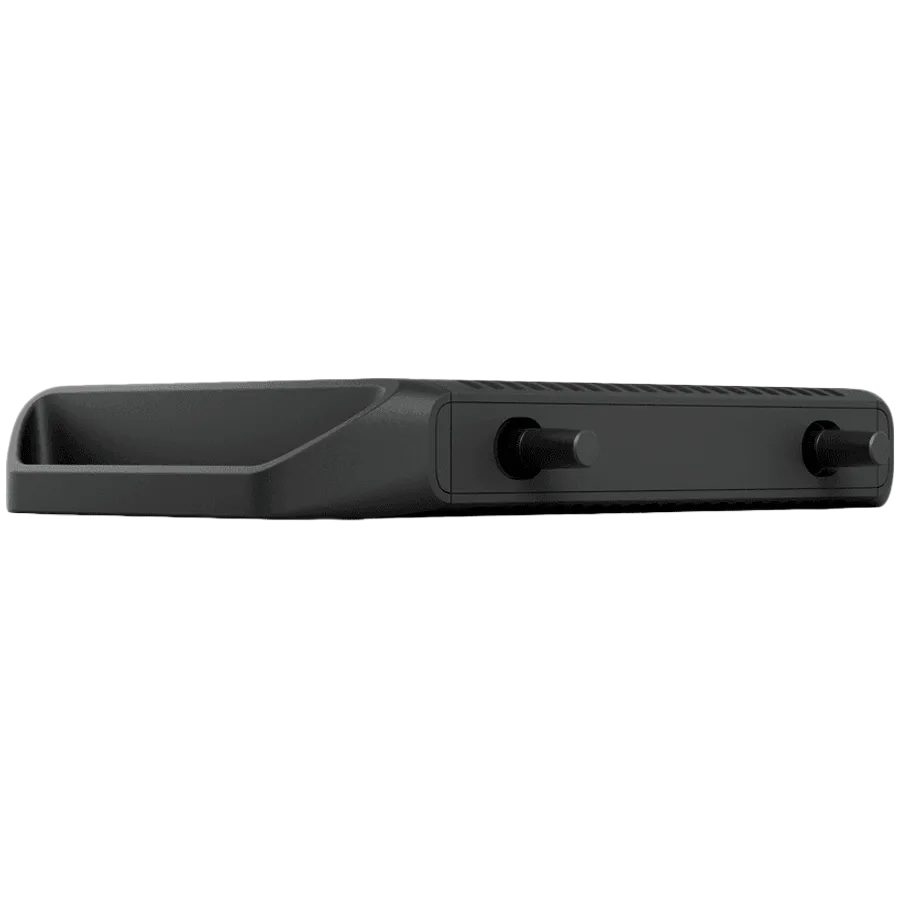

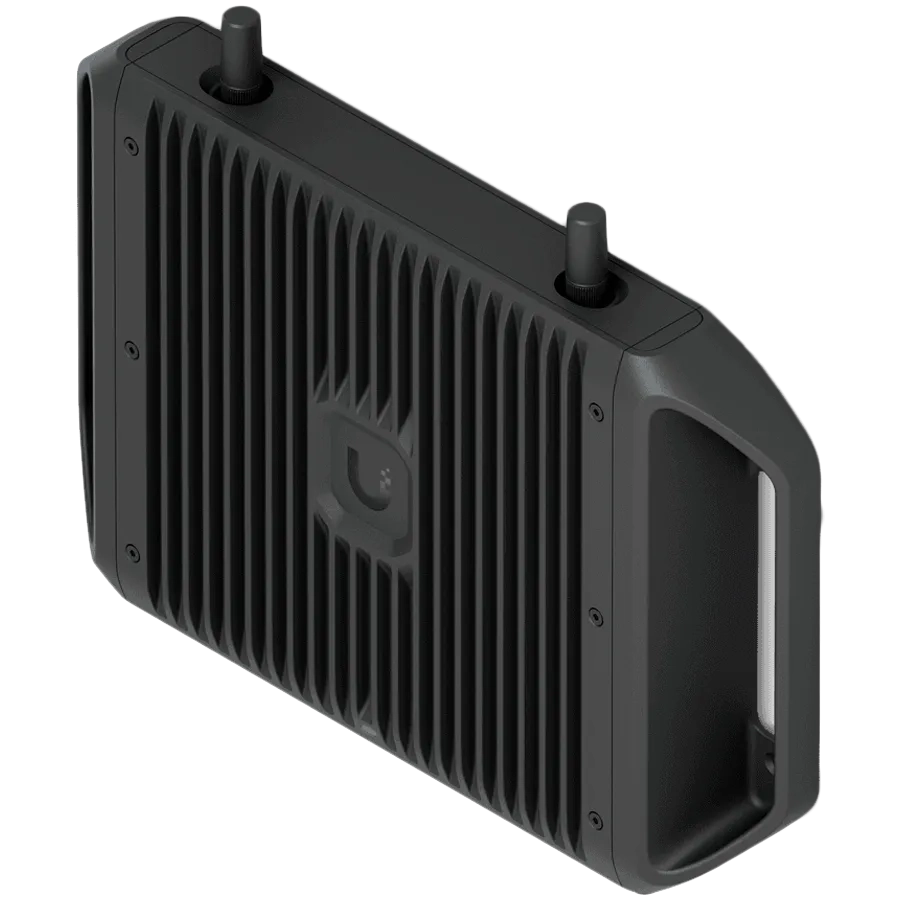

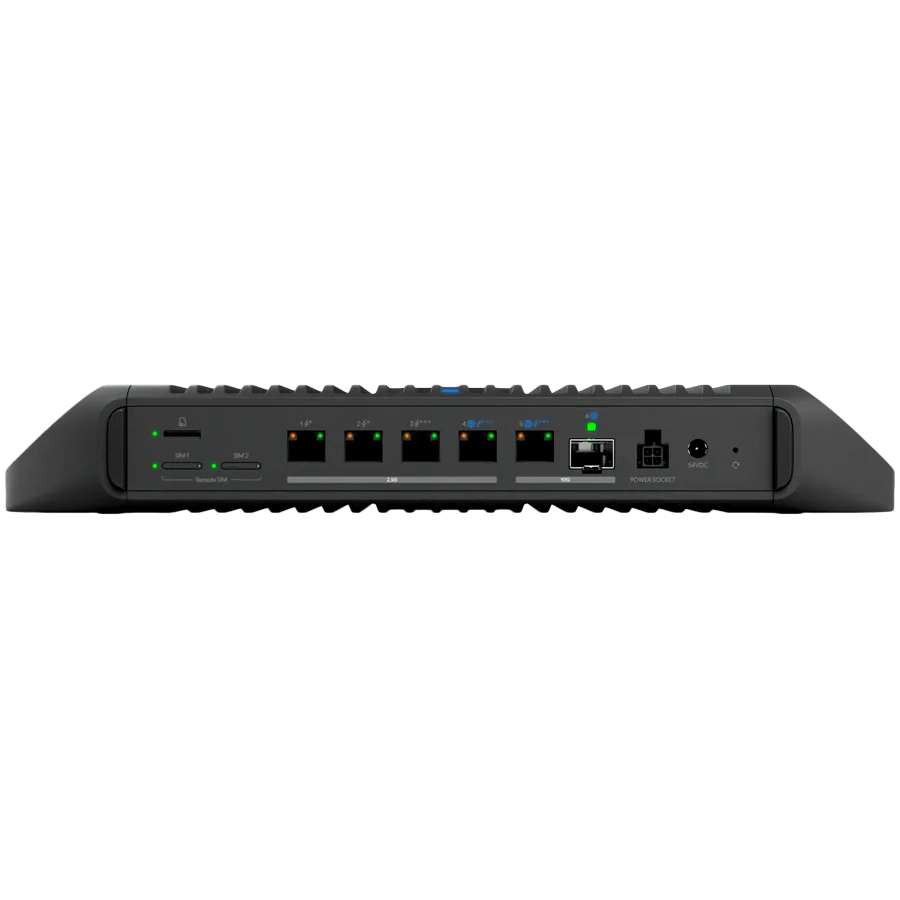

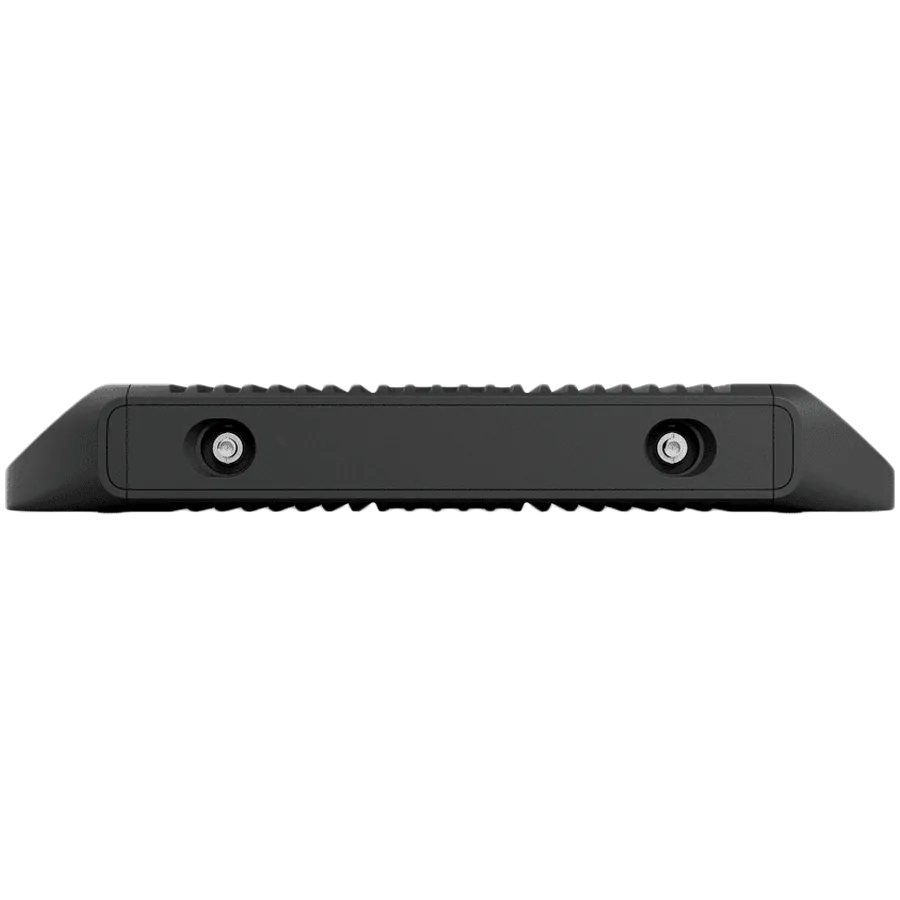

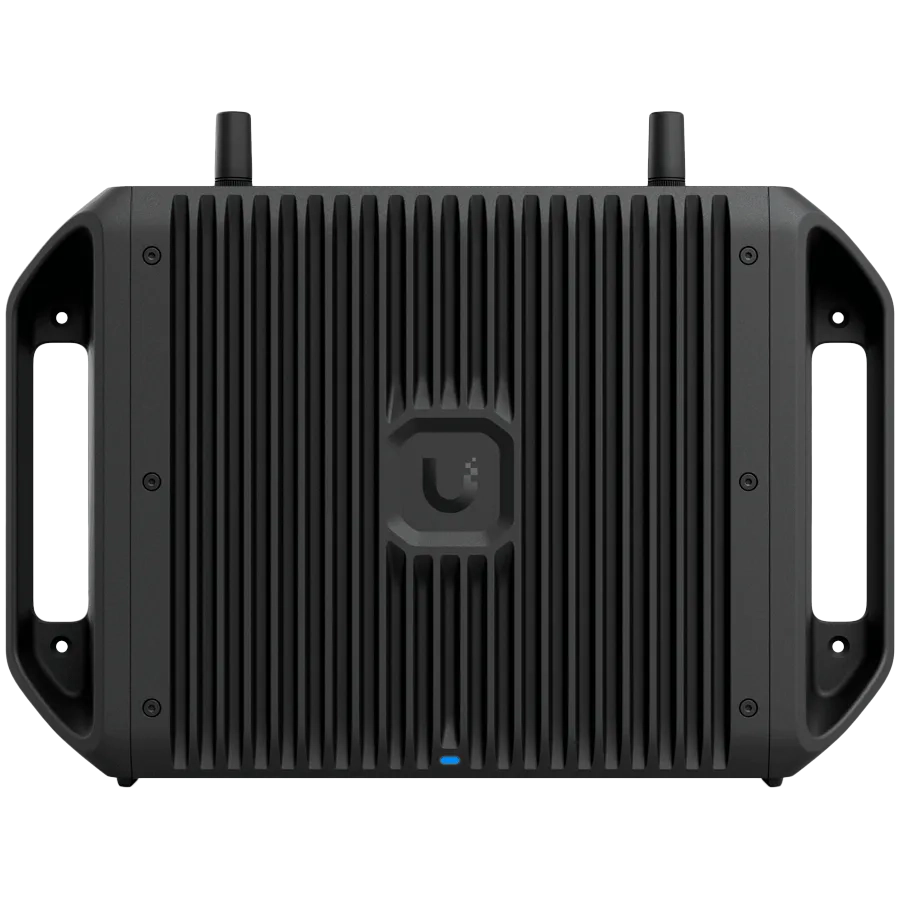

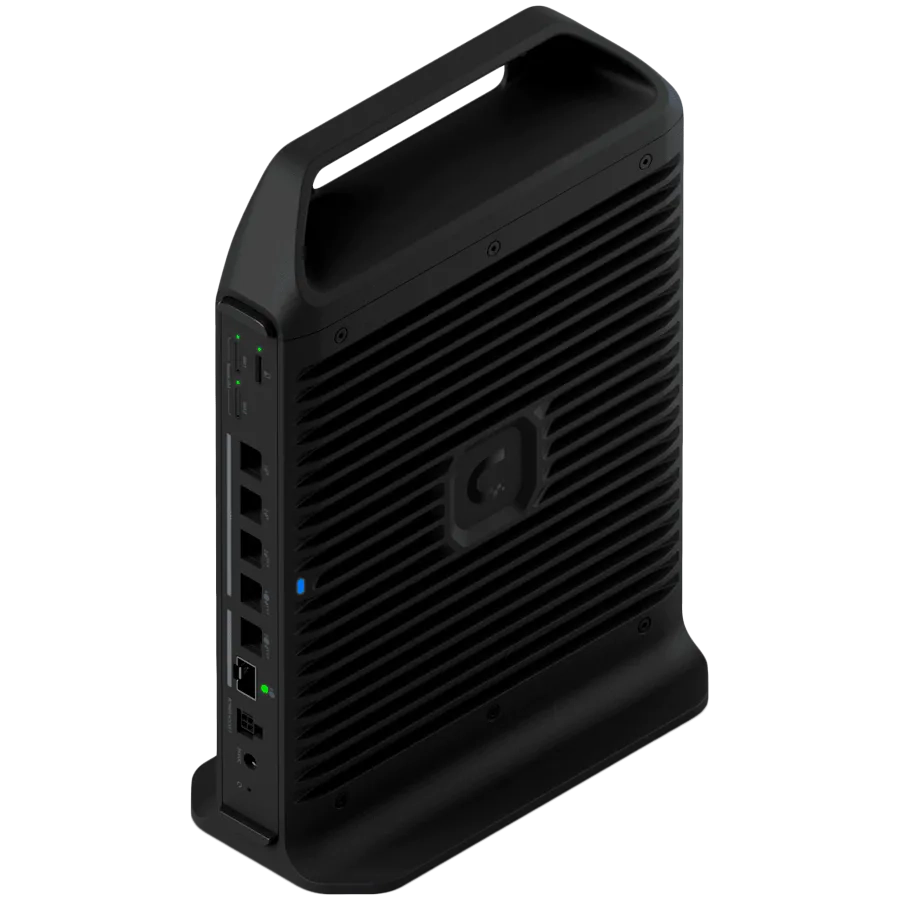

UBIQUITI UniFi Industrial Cloud Gateway, 10GbE, 350W

.: Üldised andmed :.

Seadme tüüp

Router/Gateway

.: Protsessor :.

Protsessori sagedus

2.2 GHz

Protsessorituumad

4

Protsessori seeria

Vars Cortex-73

.: Mälu :.

Paigaldatud operatiivmälu

3 GB

.: Tehnilised andmed :.

Vastavussertifikaadid

CE, FCC, IC

Korpuse värv

Must

Toide

Toiteploki asukoht

Väline

Logistika andmed

Transpordikarbi brutokaal

11.52 kg

Muud funktsioonid

Garantiiteave

Serial Number

Pakendi netokaal

1.5 kg

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

95 %

.: Pakendi andmed :.

Pakendi tüüp

Karp

Kogus pakendi kohta

1

Pakendi pikkus ( mm )

430 mm

Tehnilised andmed

Switching Layers

Layer 7

Packs in Box

2

Pack Length (mm)

365 mm

Pack Width (mm)

275 mm

Pack Height (mm)

145 mm

Box Width (mm)

330 mm

Box Height (mm)

383 mm

Maximum Power Consumption

350 W

Warranty Term Notes

24 months - for EU

Status LED Indicators

Activity Status

Data Link Protocol Supports (New)

Wi-Fi + LAN + Bluetooth

Supported Networking Compliant Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6 IEEE 802.11be Wi-Fi 7

Router Features

Power over Ethernet (PoE) Dual Band 2x2 MIMO

Protocols (OSI Model)

IPsecL2TPTLSQoS

Firewall Functions and Protocols

NAT Support MAC address filtering

WAN

5 (RJ-45), 1 (SFP+)

Application Layer

DNS

Maximum Users Supported Quantity

500

Authentication, Authorization, Accounting (AAA Protocol)

RADIUS

Width (mm)

203.5 mm

Maximum Input Frequency

240 Hz

Minimum Input Frequency

100 Hz

Maximum Operating Ambient Temperature

50 °C

Minimum Operating Ambient Temperature

-30 °C

Minimum Operating Humidity

5 %

Depth (mm)

307.9 mm

Height (mm)

43.7 mm

Nominal Weight

2.4 kg

Warranty Products Returnable

Jah

Lisaseadmed

Reset ButtonCard Reader (Micro SD)

MAC Address Table Size

4K

Tehnilised andmed

Tarvikud kaasa arvatud

Quick Guide
