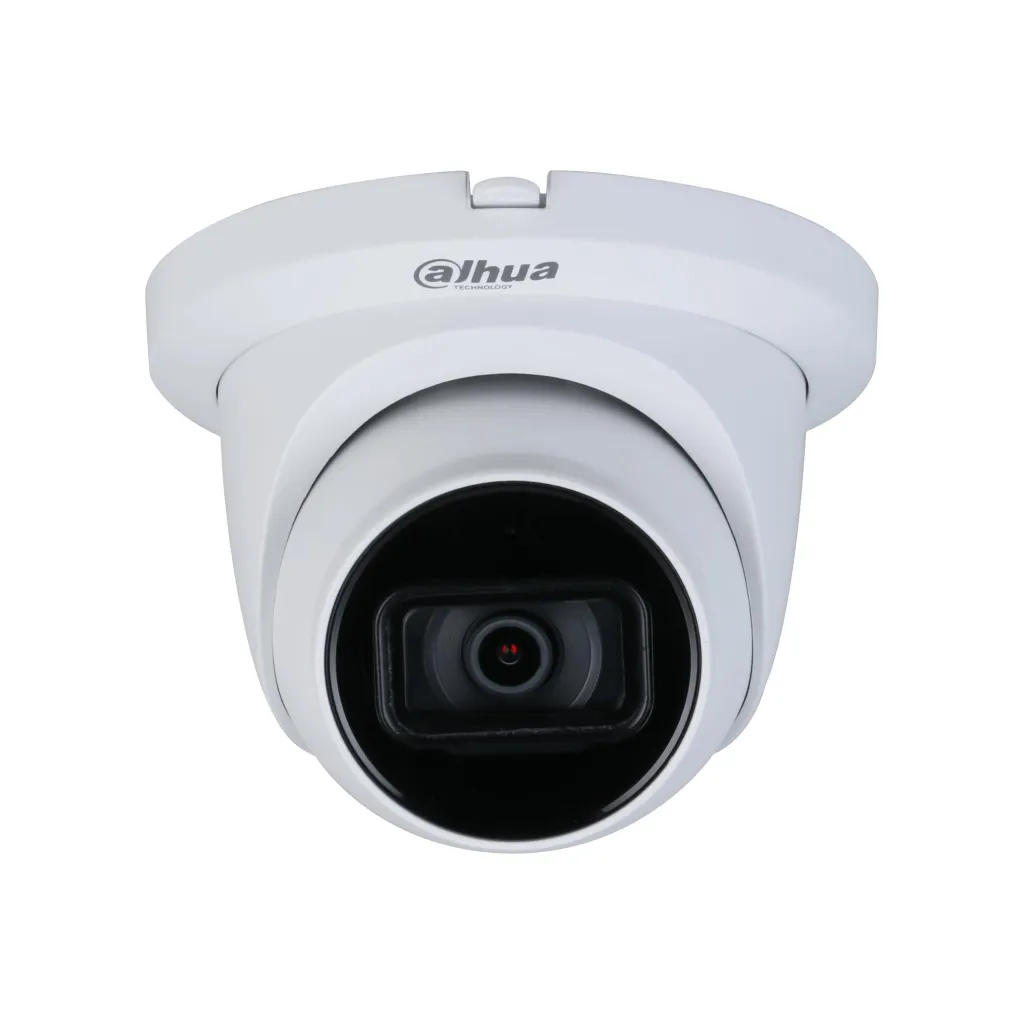

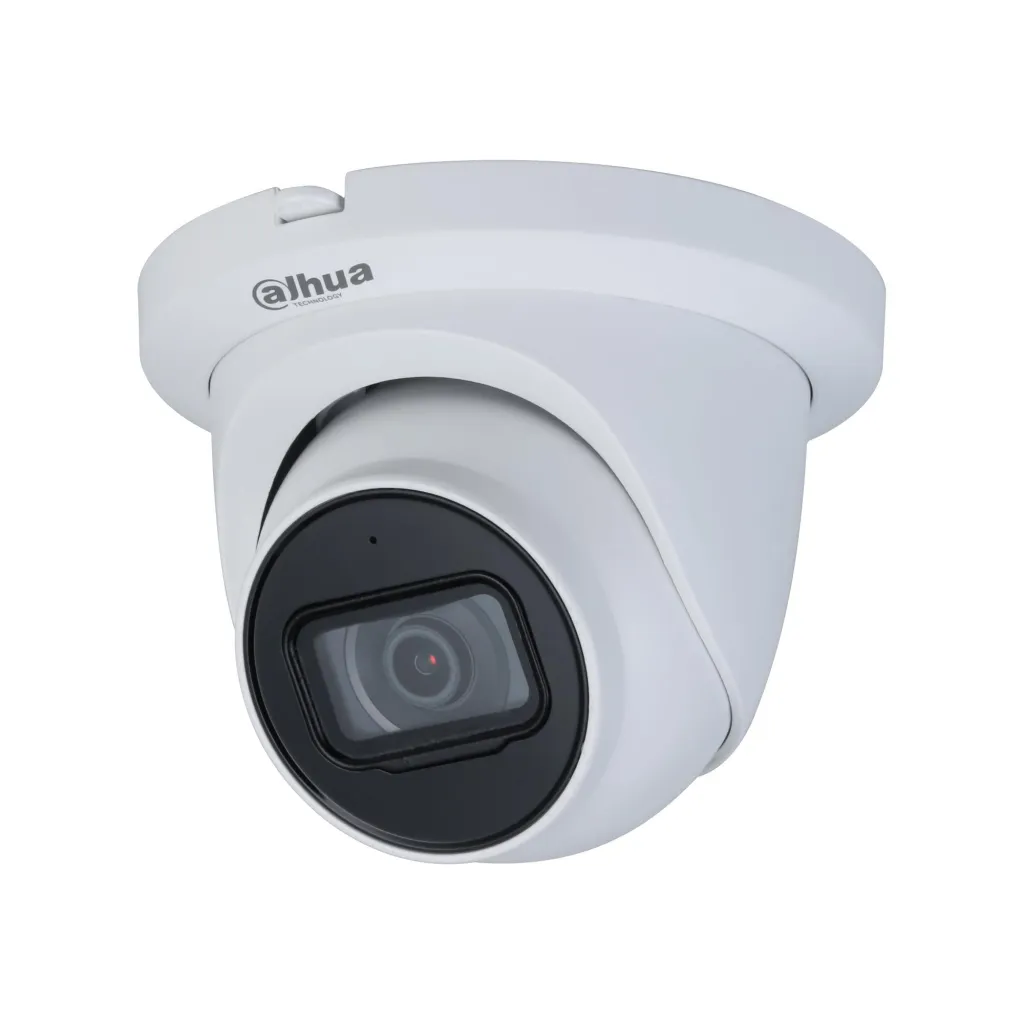

CAMERA HDCVI 5MP EYEBALL/HDW2501TMQ-A-0280B-S2 DAHUA
126.23€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.70 €. Taotle järelmaksu ostukorvis.
<p><b>System Overview</b><br />
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.<br />
<br />
<b>Functions</b><br />
<b>4 Signals over 1 Coaxial Cable</b><br />
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.<br />
<br />
<b>Easy Installation</b><br />
HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball. Quick-to-install camera reduces time and labor costs.<br />
<br />
<br />
Long Distance Transmission<br />
<br />
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m for 5MP HD video via coaxial cable, and up to 300 m via UTP cable.<br />
<br />
<b>Simplicity</b><br />
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.<br />
<br />
<b>Starlight</b><br />
With the adoption of large sized high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.<br />
<br />
<b>Broadcast-quality Audio</b><br />
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.<br />
<br />
<b>Smart IR</b><br />
The camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.<br />
<br />
<b>Wide Dynamic Range</b><br />
Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.<br />
<br />
<b>Advanced 3DNR</b><br />
3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves</p><p><ul>
<li>Max 25 fps@5MP (16:9 video output)</li>
<li>Starlight, 120 dB true WDR, 3D NR</li>
<li>CVI/CVBS/AHD/TVI switchable</li>
<li>Quick-to-install eyeball saves installation time</li>
<li>Built-in mic</li>
<li>Max. IR length 60 m, Smart IR</li>
<li>IP67, DC12V±30%</li>
<li>2.8 mm fixed lens</li>
</ul>
</p>
Tootja
DAHUA
Tootekood
DH-HAC-HDW2501TMQ-A-0280B-S2
EAN
6939554944918
Google link
lisainfo
Garantiiaeg
36 kuud
.: Üldised andmed :.
- Tootja koduleht
- https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Pro-Series/5MP/Starlight/HAC-HDW2501TMQ-A
- Seadme tüüp
- CCTV security camera
.: Disain :.
- Kujutegur
- Turret
- Toote värv
- White
.: Kaamera :.
- Lens viewing angle, vertical
- 111 °
- Valge tasakaalustus
- ATW
.: Võrgustumine :.
- WiFi
- Ei
- Ethernet LAN
- Ei
- Bluetooth
- Ei
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- DC
Võimsus ja energiatarve
- Võimsustarve (tüüpiline)
- 5.9 W
Pildisensor
- Progressiivne skaneerimine
- Jah
Objektiivi süsteem
- Lens viewing angle, horizontal
- 132 °
- Lens viewing angle, diagonal
- 58 °
Öövaatluse funktsioon
- Öönägemine
- Jah
Ergonoomika
- Pöördenurga ulatus
- 360 °
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Toetatud resolutsioonid
- 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2880 x 1620/960 x 480/960 x 576
Töötingimused
- Hoiustamistemperatuur (T-T)
- -40 - 60 °C
- Kasutamistemperatuur (T-T)
- -40 - 60 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 0 - 95 %
.: Pakendi andmed :.
- Pakendi kaal
- 730 g
Tehnilised andmed
- Unit Box Height
- 0.135
- Camera pan control
- Jah
- Tilt angle range
- 0 - 78 °
- Summary
- Dahua Technology Pro HAC-HDW2501TMQ-A-0280B-S2. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 132°, Lens viewing angle, vertical: 111°. Sensor type: CMOS. Fixed focal length: 2.8 mm, Detect distance (wide): 63.6 m, Observe distance (wide): 25.4 m
- Üksuse kalkuleeritud maht
- 0.002929 cubm
- Unit Box Width
- 0.155
- Unit Box Length
- 0.14
- BNC output ports
- 1
- Number of languages
- 11
- LED type
- IR
- Number of illumination LEDs
- 2
- Wide Dynamic Range (WDR)
- Jah
- Number of cameras
- 1
- Placement supported
- Indoor & outdoor
- Dynamic range
- 120 dB
- Recognize distance (wide)
- 12.7 m
- Observe distance (wide)
- 25.4 m
- Identify distance (wide)
- 6.4 m
- Detect distance (wide)
- 63.6 m
- Gain control type
- Auto/Manual
- Flip & mirror
- Jah
- Number of lenses
- 1
- Smart IR
- Jah
- Privacy masking
- Jah
- Noise reduction technology
- 2D noise reduction
- Highlight Compensation (HLC)
- Jah
- Back Light Compensation (BLC)
- Jah
- Camera tilt control
- Jah
- Camera shutter type
- Electronic
- Day/night mode
- Jah
- DC output voltage
- 12
- Maximum aperture number
- 1.6
- Mounting type
- Ceiling/Wall/Pole
- Noise reduction
- Jah
- Sensor type
- CMOS
- Supported video modes
- 1440p/1620p/480p/576p
- Built-in HDD
- Ei
- Built-in microphone
- Jah
- Certification
-
CE (EN55032:2015, EN 61000-3-2:2014, EN
61000-3-3:2013, EN55024:2010+A1:2015, EN
55035:2017, EN50130-4:2011+A1:2014, EN 62368-
1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1) - Closest focusing distance
- 0.9 m
- Connectivity Technology
- Wired
- Diameter
- 121.9 mm
- Fixed focal length
- 2.8 mm
- Frame Rate
- 30 fps
- Night vision distance
- 60 m
- Pan range
- 0 - 360 °
- Signal-to-Noise Ratio (SNR)
- 65 dB
- Storage relative humidity (H-H)
- 0 - 95 %
- Total megapixels
- 5 MP
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 0.61 kg
- Kõrgus
- 99.1 mm
- Toote kaal
- 540 g
