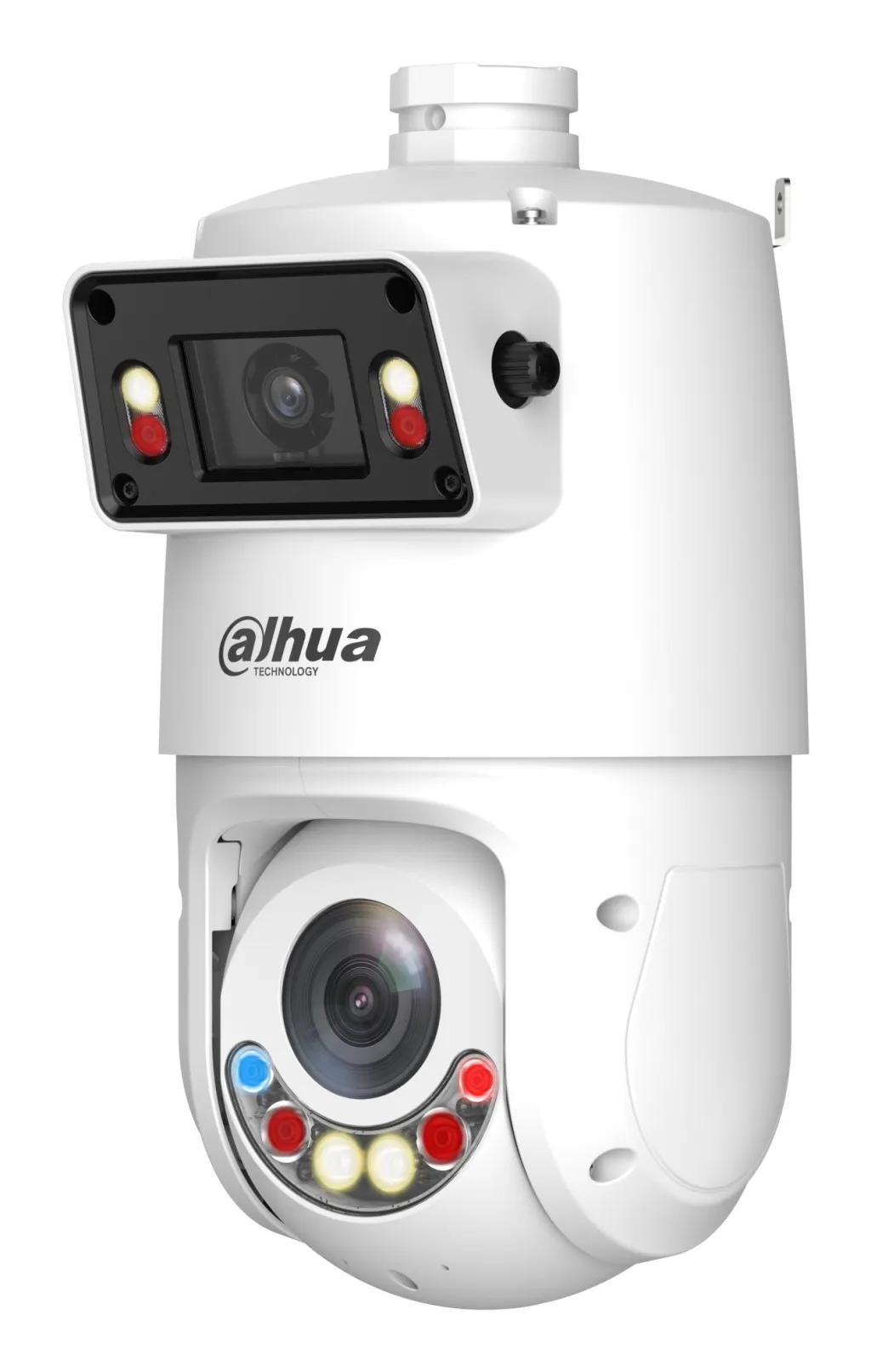

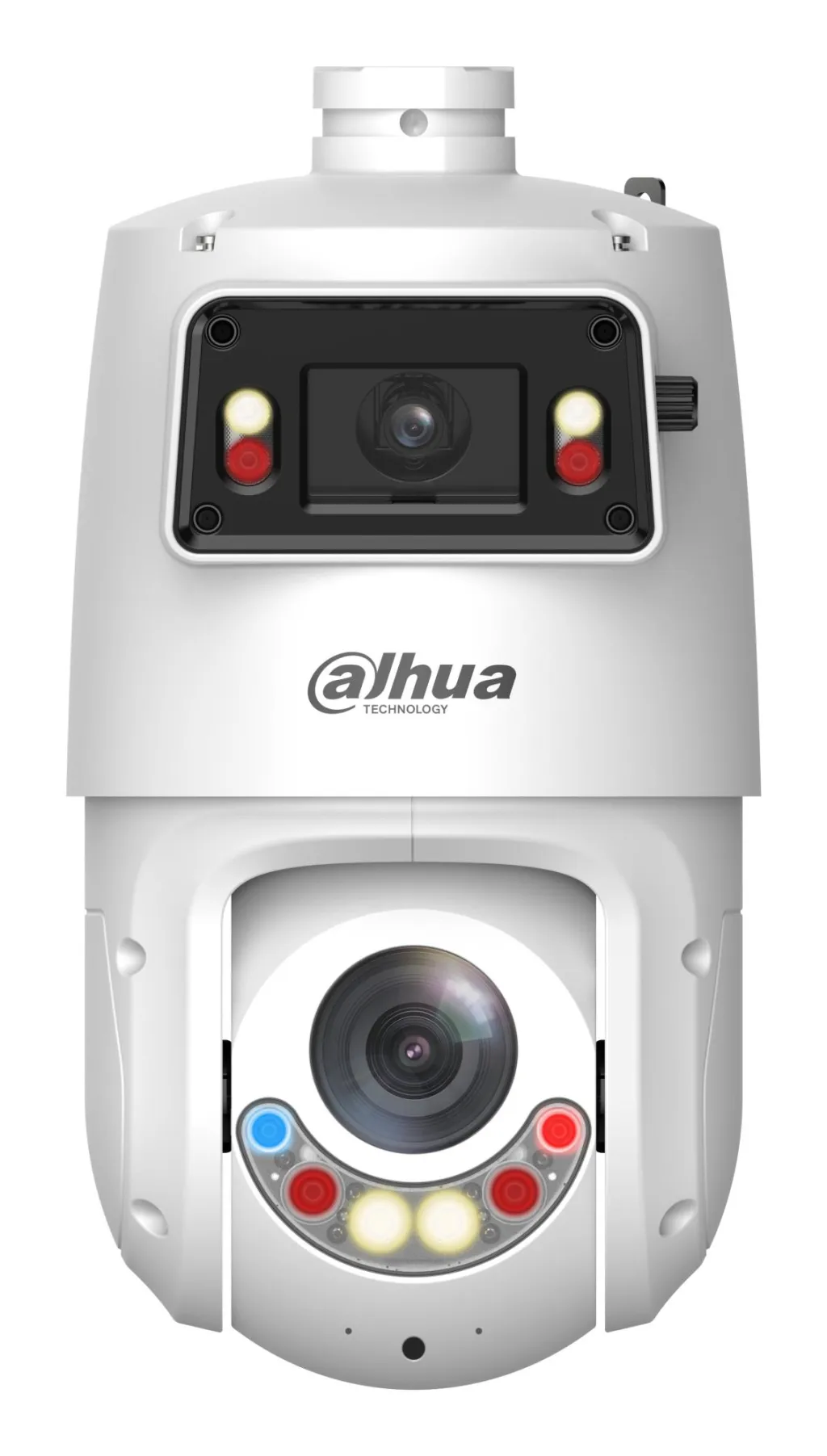

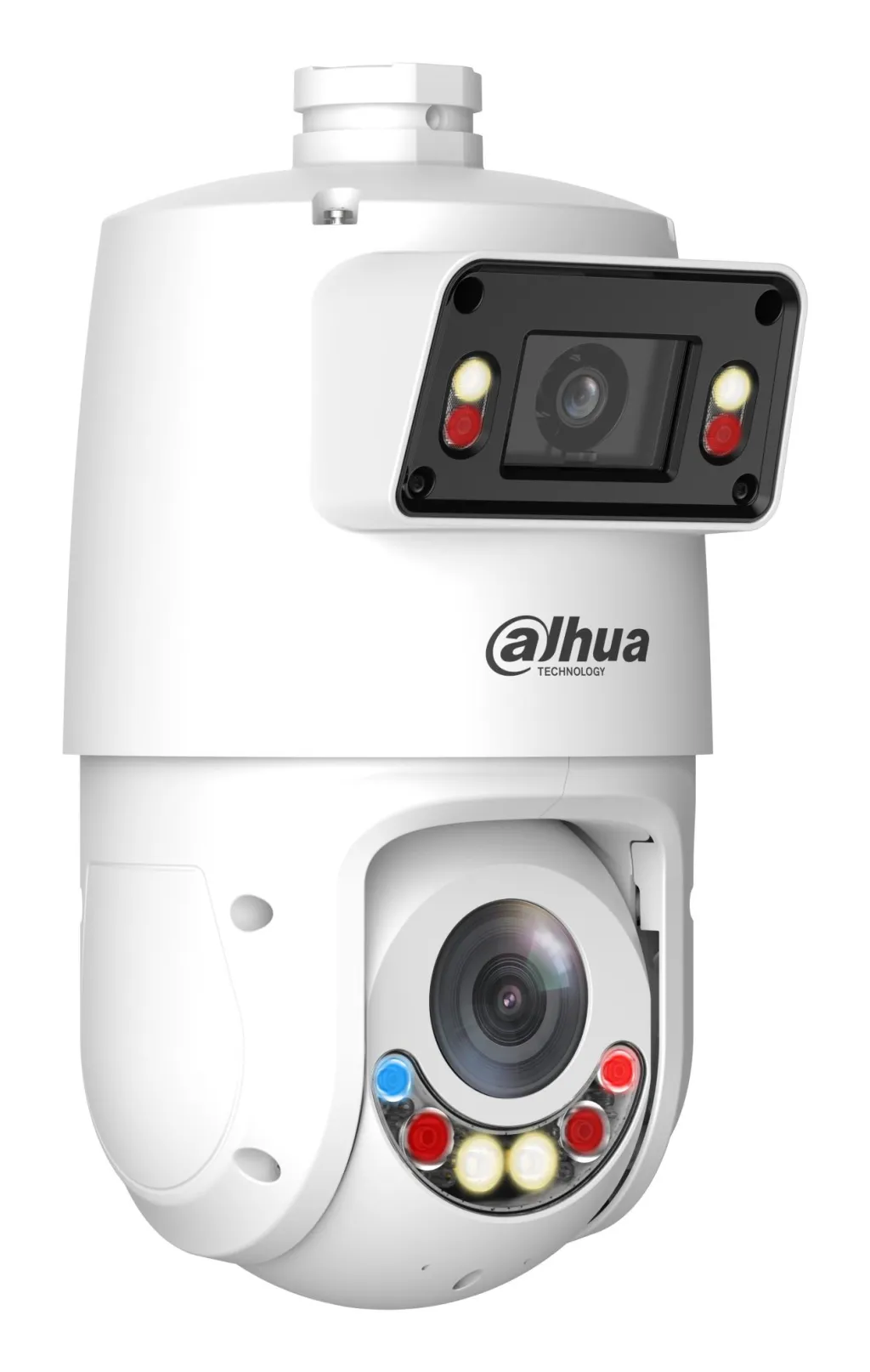

NET CAMERA 4+4MP IR PTZ DOME/SDT4E425-4F-GB-A-PV1-S2 DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/X-Spans-Series/Distribution/SDT4E425-4F-GB-A-PV1-S2=S2

Seadme tüüp

IP security camera

.: Üldised omadused :.

Audioväljundi kanalid

1.0 channels

.: Disain :.

Kokkuvõte

Dahua Technology SDT4E425-4F-GB-A-PV1-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, International Protection (IP) code: IP66. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 101°, Lens viewing angle, vertical: 53°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 25x, Detect distance: 100 m, Observe distance: 40 m

Toote värv

Valge

.: Mälu :.

RAM capacity

2048 MB

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Toetatud audioformaadid

G.711 µ-law/G.711 A-law/G.722.1/G.726/G.729/MPEG-2/PCM

.: Kaamera :.

Automaatfookus

Jah

Lens viewing angle, vertical

53 °

Valge tasakaalustus

Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp

.: Võrgustumine :.

WiFi

Ei

Võrgustandardid

IEEE 802.1x/IEEE 802.3at

Ethernet LAN

Jah

Bluetooth

Ei

.: Pesad & liidesed :.

DC-pistik

Jah

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC,PoE

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

14 W

.: Salvestusruum :.

ROM capacity

4096 MB

Pildisensor

Progressiivne skaneerimine

Jah

.: Tehnilised andmed :.

Vastavussertifikaadid

CE

Juhtimisfunktsioonid

Teenusekvaliteedi (QoS) tugi

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

120 °

Lens viewing angle, horizontal

101 °

Öövaatluse funktsioon

Öönägemine

Jah

Logistika andmed

Kogus transpordikasti kohta

2

Töötingimused

Kasutamistemperatuur (T-T)

-40 - 65 °C

.: Pakendi andmed :.

Kasutusjuhend

Jah

Tehnilised andmed

Placement supported

Indoor & outdoor

Supported network protocols

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS

Number of cameras

1

Wide Dynamic Range (WDR)

Jah

Alarm input/output

Jah

Built-in light

Jah

Video motion detection

Jah

LED type

IR

Number of microphones

2

DC output current

3 A

HTTPS encryption

Jah

Unit Box Height

0.497

Unit Box Length

0.257

Unit Box Width

0.243

Üksuse kalkuleeritud maht

0.03721 cubm

Tilt angle range

-15 - 90 °

Camera pan control

Jah

Camera tilt control

Jah

Back Light Compensation (BLC)

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

2D noise reduction,3D noise reduction

Intelligent Video Surveillance (IVS) system features

Abandoned object/Intrusion/Missing object/Tripwire

Human and vehicle targets classification

Jah

Region of Interest (ROI) encoding

Jah

Detect distance

100 m

Identify distance

10 m

Observe distance

40 m

Recognize distance

20 m

Streaming method

Multicast/Unicast

Dynamic range

120 dB

Number of Privacy masking areas

24

Bit rate control

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Audio input channels

1.0 channels

Network access storage (NAS)

Jah

Alarm input channels

2

Alarm output channels

1

Gain control type

Automaatne/Manuaalne

PTZ control

Jah

PTZ modes

5 Pattern/5 Scan/8 Tour

Preset points

Jah

Auto flip

Jah

Tour recording

Jah

Auto-tracking

Jah

Auto patrol mode

Jah

Rahvusvaheline Kaitsekood ( IP )

IP66

Built-in speaker(s)

Jah

Day/night mode

Jah

DC output voltage

12

Ethernet interface type

Kiire Ethernet

Ethernet LAN (RJ-45) ports

1

Mobile operating systems supported

Android/iOS

Mounting type

Ceiling/Wall/Pole

Noise reduction

Jah

Sensor type

CMOS

Video compression formats

H.264+/H.264B/H.264H/H.264M/H.265/H.265+/M-JPEG

Video recording

Jah

Zoom capability

Jah

Audio system

2-way

Built-in HDD

Ei

Built-in microphone

Jah

Connectivity Technology

Juhtmega

Focus

Manuaalne

Frame Rate

30 fps

Image stabilizer

Jah

Maximum memory card size

512 GB

Minimum Illumination

0.001 lx

Night vision distance

100 m

Number of users

20 user(s)

Optical sensor size

1/2.8 "

Optical Zoom

25 x

Pan range

0 - 360 °

Signal-to-Noise Ratio (SNR)

55 dB

Total megapixels

4 MP

Video streaming

Jah

Tehnilised andmed

Üksuse kalkuleeritud kaal

5.5 kg

Pikkus

160 mm

Laius

184.4 mm

Kõrgus

304.6 mm

Toote kaal

3410 g
