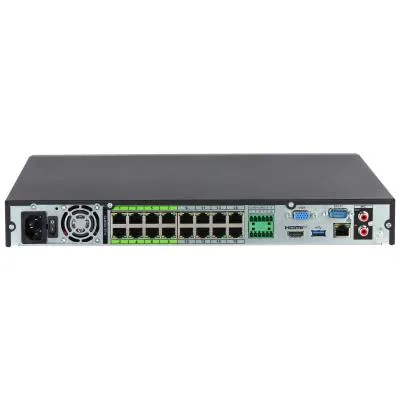

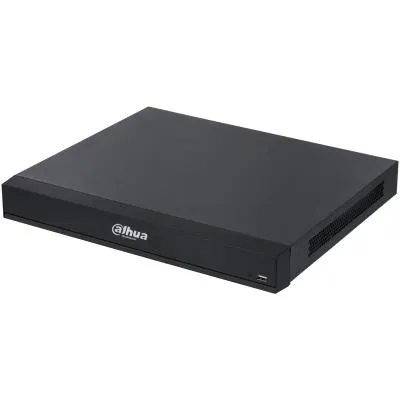

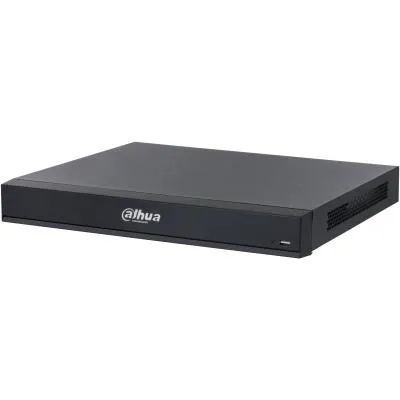

NET VIDEO RECORDER 16CH 16POE/NVR5216-16HP-XI/PRO DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizMind-Series/NVR5-XIPro/2HDD/NVR5216-16HP-XI/Pro

Mudel

NVR5216-16HP-XI/PRO

.: Disain :.

Kokkuvõte

Dahua Technology NVR5216-16HP-XI/PRO. Video input channels: 16 channels, Maximum resolution: 7680 x 4320 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 40 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;.... Rack capacity: 1U, Product colour: Black, Certification: Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN.... Power consumption (max): 15 W, AC input voltage: 100-240 V, AC input frequency: 50/60 Hz

Toote värv

Must

.: Protsessor :.

Sisseehitatud protsessor

Jah

.: Audio :.

Toetatud audioformaadid

G.711 µ-law/G.711 A-law/G.726

.: Kaamera :.

Näotuvastus

Jah

Videosalvestusrežiimid

1080p

.: Võrgustumine :.

Võrgustandardid

IEEE 802.3af/IEEE 802.3at

Ethernet LAN-i andmeedastuskiirused

10/100/1000 Mbit/s

.: Pesad & liidesed :.

Audioväljund

1

Ethernet LAN (RJ-45) pordid

1

HDMI-portide arv

1

USB 2.0 portide arv

1

.: Tarkvara :.

Installitud operatsioonisüsteem

Embedded LINUX

Võimsus ja energiatarve

Power over Ethernet (PoE)

Jah

Sisendsagedus

50/60 Hz

Toide

Toitenõuded

100–240 VAC, 50/60Hz

Voolutarve

25,5 W

Ethernet LAN-funktsioonid

PoE ports

16

Funktsioonid

Mudeli originaalnimi

NVR5216-16HP-XI/PRO

Vahelduvvoolu pinge

100-240 V

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Hoiustamistemperatuur (T-T)

-20 - 60 °C

Kasutamistemperatuur (T-T)

-10 - 55 °C

Suhteline õhuniiskus kasutamisel (H-H)

10 - 93 %

.: Pakendi andmed :.

Pakendi laius

449 mm

Pakendi kõrgus

170 mm

Pakendi sügavus

421 mm

Pakendi kaal

4060 g

Tehnilised andmed

Supported network protocols

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI

HDD interface

SATA

RS-485 ports

1

Alarm output channels

2

Alarm input channels

4

Number of HDDs supported

2

Üksuse kalkuleeritud maht

0.03287 cubm

Unit Box Width

0.17

Unit Box Length

0.455

RS-232 interface

Jah

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

VGA (D-Sub) output ports

1

Rack mounting

Jah

Supported resolutions

1920x1080, 1280x1024, 1280x720, 7680x4320, 3840x2160, 1920x1080

Video input channels

16 channels

Power over Ethernet (PoE) ports quantity

16

Video motion detection

Jah

Rack capacity

1U

VGA

1

Unit Box Height

0.425

Audio RCA inputs

1

Throughput data rate

512 Mbit/s

Number of simultaneously playbacked channels

16 channels

Audio RCA outputs

1

HDMI output

Jah

Audio sisend

1

Ethernet LAN (RJ-45) ports

1

Mobile operating systems supported

Android/iOS

RS-232 ports

1

Video formats supported

H.264/H.264+/H.265/H.265+/M-JPEG

Alarm In

4

Alarm Out

2

Certification

Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CELVD: EN 62368-1:2014

Maximum storage capacity

40 TB

Number of channels

16

Number of drives/bays

2

Power over Ethernet (PoE) power per port

25.5 W

RS-485

1

RS232

1

Total Power over Ethernet (PoE) budget

200 W

USB 2.0

1

USB 3.0 type B

1

Tehnilised andmed

Üksuse kalkuleeritud kaal

4.25 kg

Netokaal

2.72 kg

Laius

375 mm

Sügavus

327.4 mm

Kõrgus

53 mm

Mõõtmed (l x s x k)

375.0 mm × 327.4 mm × 53.0 mm

Toote kaal

2720 g
