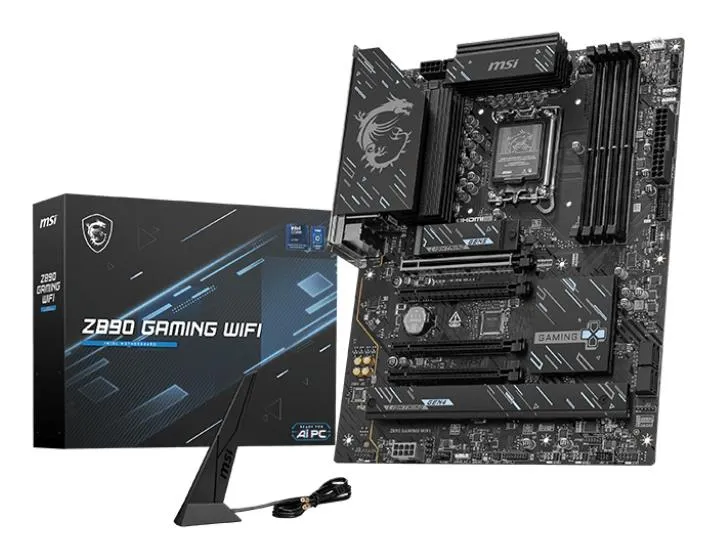

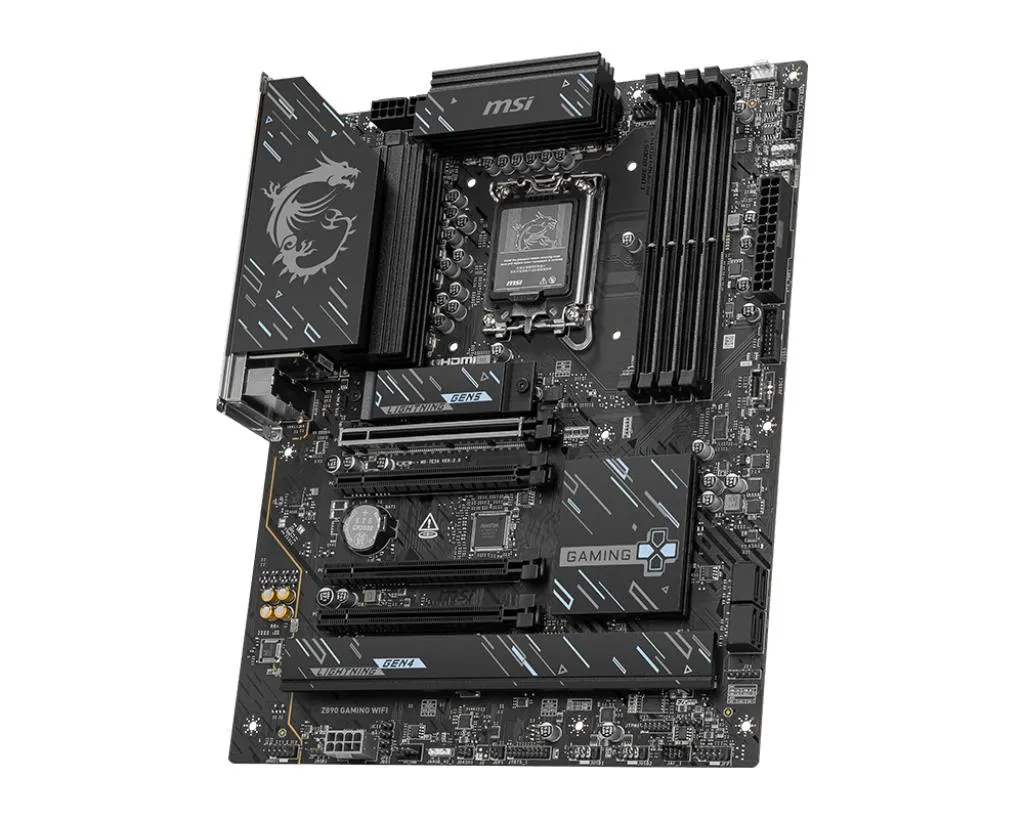

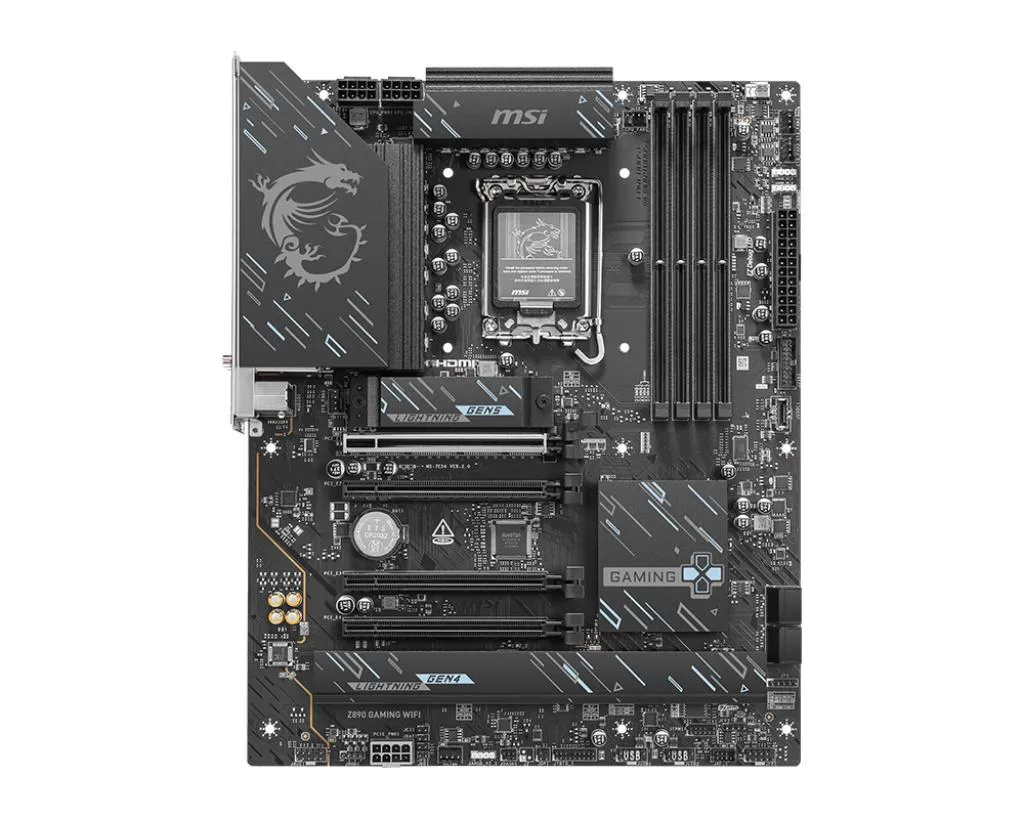

Z890 GAMING WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 2.5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
12+1+1+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI Gaming series motherboard is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
| Tootja | MSI |
| Tootekood | Z890 GAMING WIFI |
| EAN | 4711377291545 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | ATX |
| Laius | 243.84 mm |
| Sügavus | 304.8 mm |
| .: Mälu :. | |
| Maksimaalne sisemälu | 256 GB |
| .: Audio :. | |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.4 |

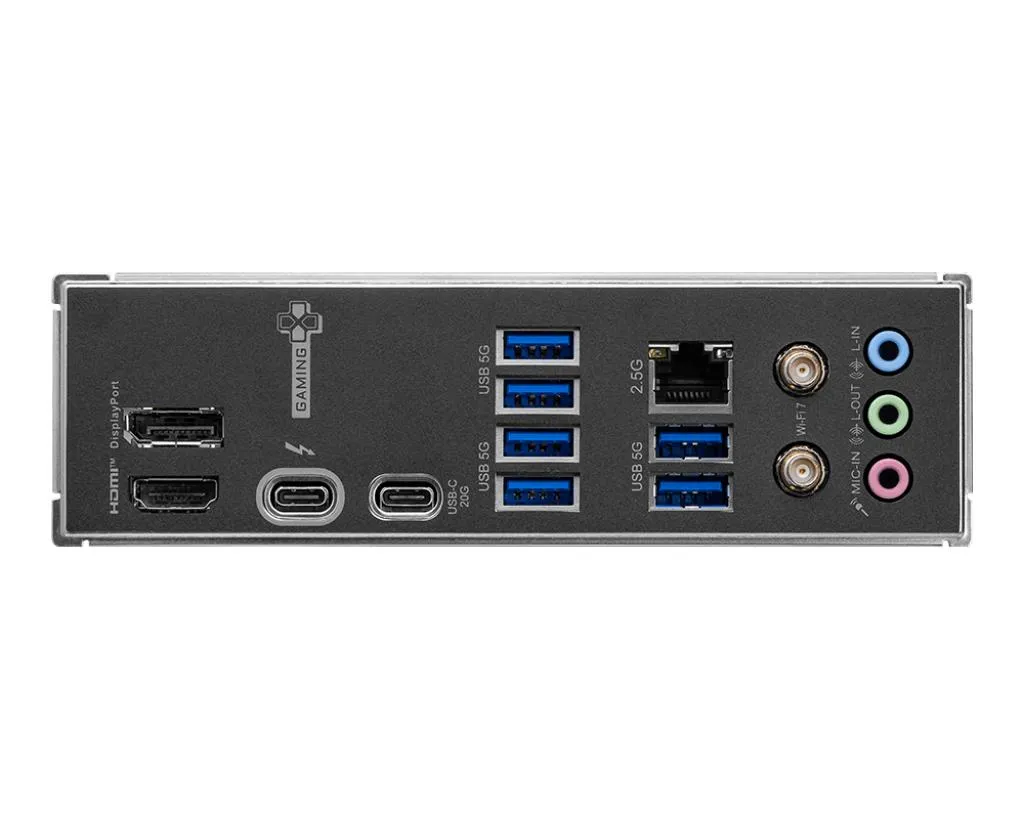

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| Muud näitajad | |
| Processor manufacturer | Intel |
| ECC сompatibility | Non-ECC |
| CnCode | 84733020 |
| Unit Box Width | 0.27 |
| Unit Box Length | 0.34 |
| Unit Box Height | 0.07 |
| Supported memory clock speed (max) | 8800 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 |
| System management BIOS (SMBIOS) version | 3.7 |
| Units per Shipping Box | 5 |
| Thunderbolt ports quantity | 1 |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Number of M.2 (M) slots | 3 |
| Number of SATA III connectors | 4 |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| WLAN controller model | Killer Wi-Fi 7 BE1750 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of HDDs supported | 7 |
| Total number of SATA connectors | 4 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| Audio chip | Realtek ALC897 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| ACPI version | 6.5 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| On-board graphics card | Ei |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Product colour | Black |
| Summary | MSI Z890 GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Unit Calculated Weight | 1.9 kg |
| Unit Calculated Volume | 0.008014 cubm |
| Memory slots type | DIMM |
| EPS power connector (8-pin) | Jah |
| Motherboard chipset family | Intel |
| ATX Power connector (24-pin) | Jah |
| BIOS type | UEFI AMI |
| Supported processor sockets | LGA 1851 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| DisplayPort version | 1.4 |
| Number of EPS power connectors (8-pin) | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| Component for | PC |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Tootja koduleht | https://www.msi.com/Motherboard/Z890-GAMING-WIFI |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Motherboard chipset | Intel Z890 |
| RAID support | Jah |
| Windows operating systems supported | Windows 11 |
| BIOS memory size | 256 Mbit |
| LAN controller | Realtek RTL8125D |
| Number of memory slots | 4 |
| Processor Socket | LGA 1851 (Socket V1) |
| Raid Levels | 0/1/10/5 |
| Supported memory clock speeds | 4800/5600/6400/7200/8800 MHz |
| USB 2.0 connectors | 4 |
