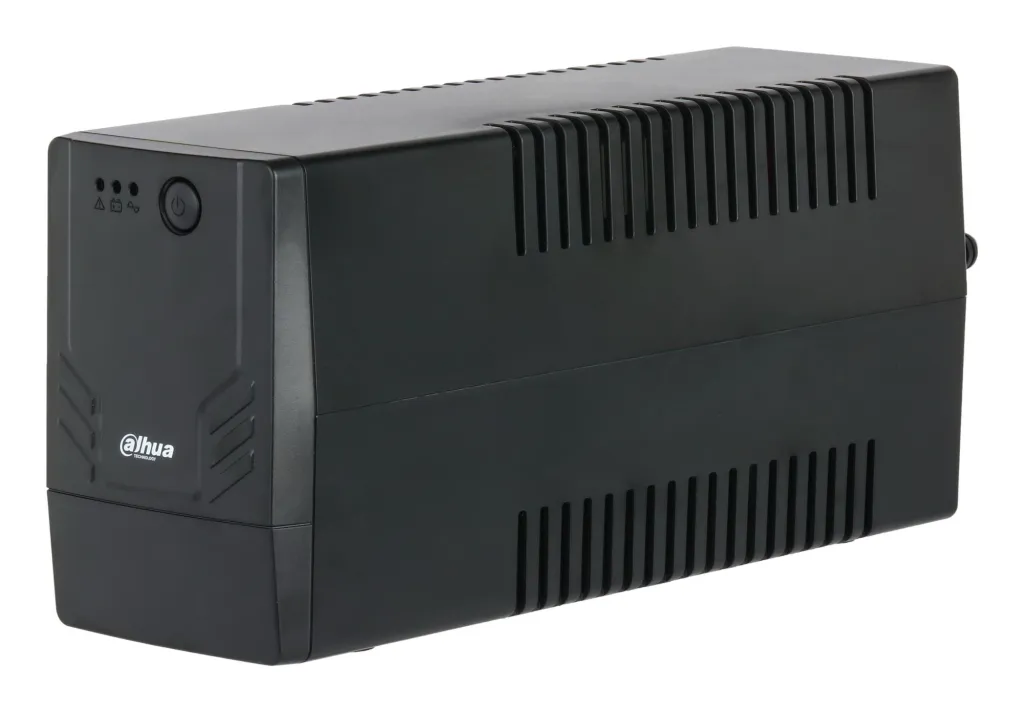

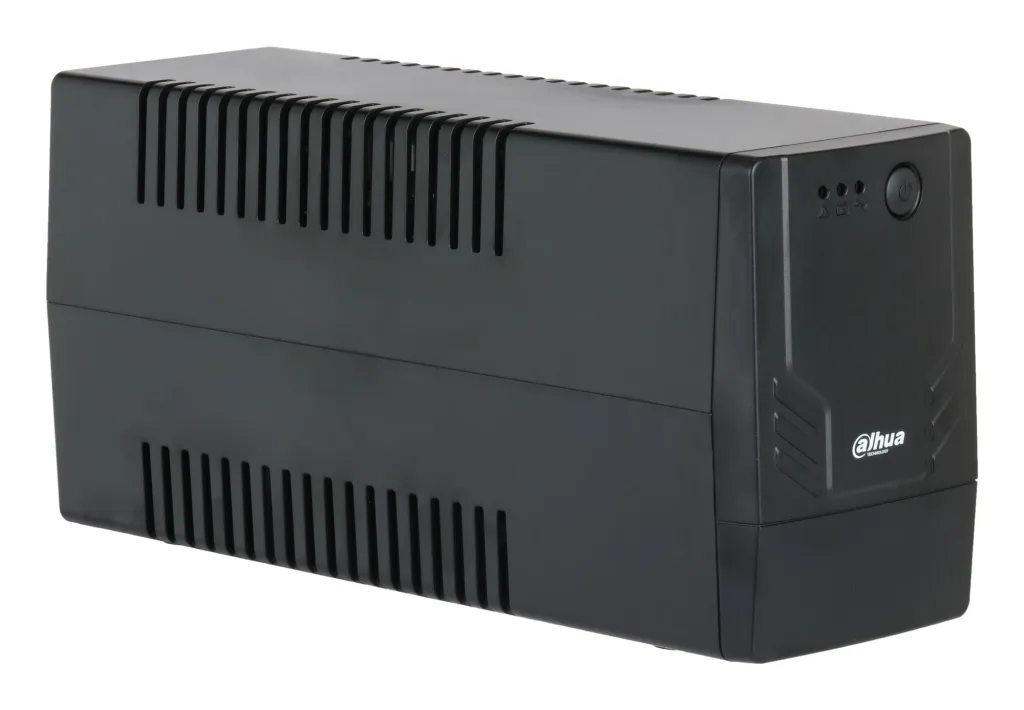

UPS|DAHUA|360 W|0.6 kVA|Waveform Sine/Pure sine|Line-Interactive|Black|PFM3350-600

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/Accessories/Power/UPS/PFM3350-600=V1

.: Disain :.

Toote värv

Black

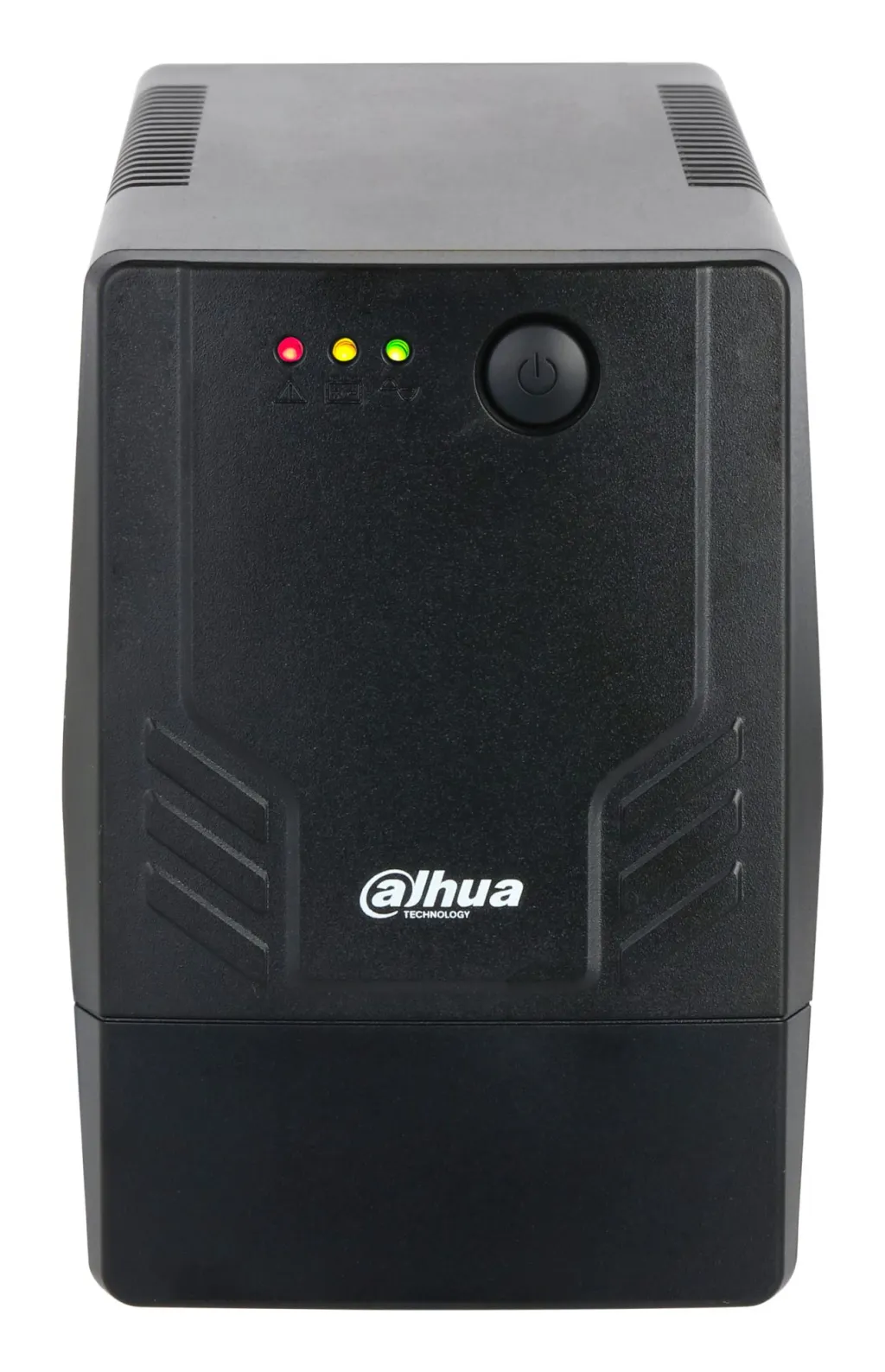

LED-indikaatorid

Fault/Power

.: Pesad & liidesed :.

Kaabli pikkus

1.2 m

.: Aku & Toiteallikas :.

Akutehnoloogia

Lead-Acid

Aku mahutavus

7 Ah

Võimsus ja energiatarve

Output frequency

50/60 Hz

Väljundvõimsus

360 W

.: Tehnilised andmed :.

Compliance certificates

CE

Logistika andmed

Kogus transpordikasti kohta

4

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 90 %

Hoiustamistemperatuur (T-T)

-15 - 55 °C

.: Pakendi andmed :.

Kasutusjuhend

Jah

Tehnilised andmed

Audible alarm modes

Alarm when on battery,Battery replacement,Fault,Low battery alarm,Overload alarm

Summary

Dahua Technology PFM3350-600. UPS topology: Line-Interactive, Output power capacity: 0.6 kVA, Output power: 360 W. AC outlets quantity: 2 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 7 Ah, Battery voltage: 13.7 V. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Compliance certificates: CE

Unit Calculated Weight

4.63 kg

Unit Calculated Volume

0.01308 cubm

Unit Box Width

0.345

Unit Box Length

0.145

Unit Box Height

0.22

Audible alarm(s)

Jah

Waveform

Sine/Pure sine

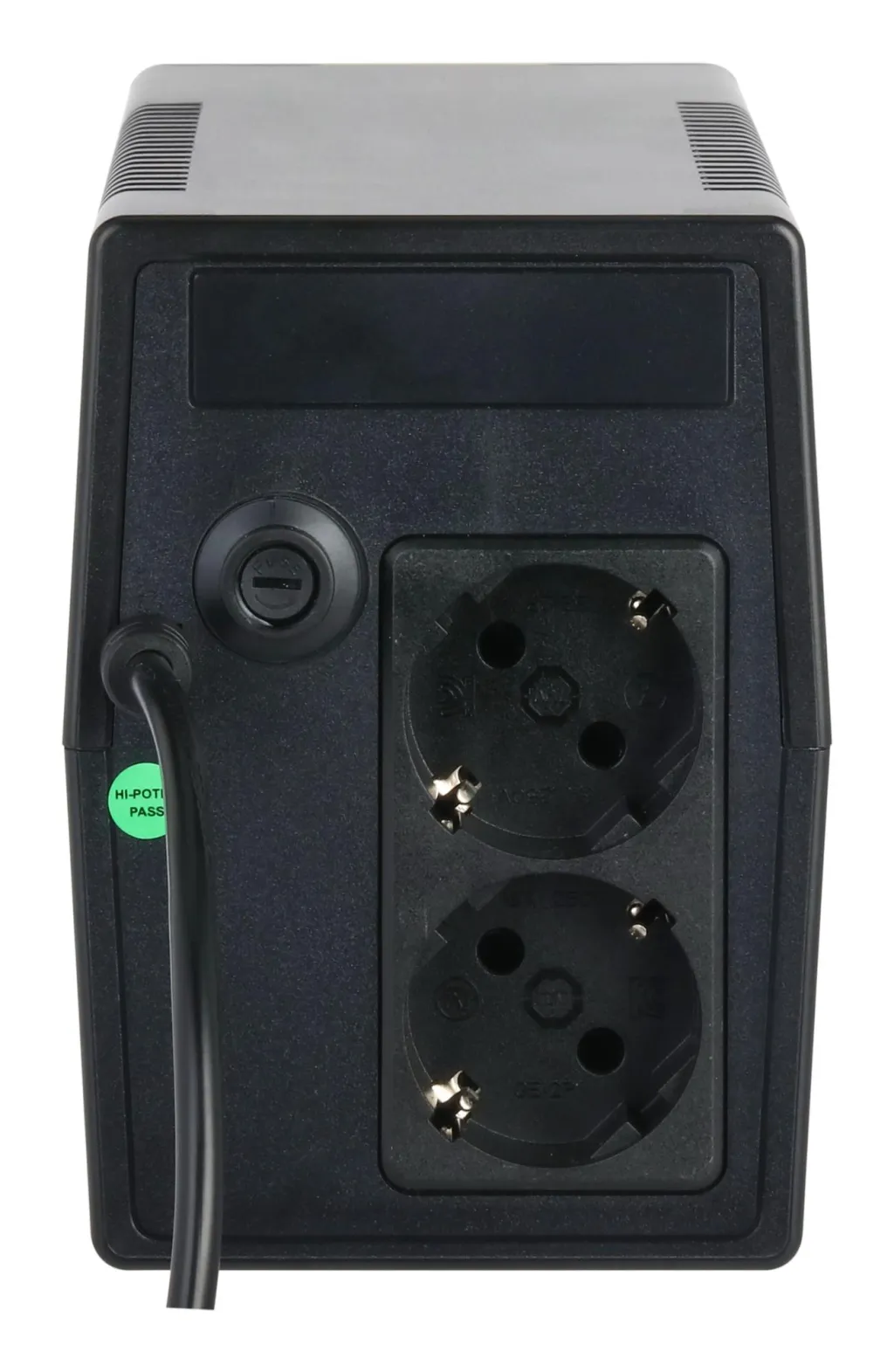

AC outlets quantity

2 AC outlet(s)

Input operation voltage (min)

170 V

Maximum current

2.9 A

Control type

Buttons

Power protection features

Overcharge/Overdischarge/Overload

UPS topology

Line-Interactive

Battery recharge time

4 h

Battery voltage

13.7 V

Built-in fan

Jah

Charging current

1 A

Housing material

Plastic

Input frequency

50/60 Hz

Input operation voltage (max)

280 V

Number of batteries included

1 pc(s)

Output operation voltage (max)

230 V

Output power capacity

0.6 kVA

Package depth

342 mm

Package height

223 mm

Package weight

4600 g

Package width

142 mm

Power factor

0.6

Response Time

4 ms

Storage relative humidity (H-H)

0 - 90 %

Tehnilised andmed

Laius

101.5 mm

Sügavus

298.4 mm

Kõrgus

142.2 mm

Toote kaal

4400 g
