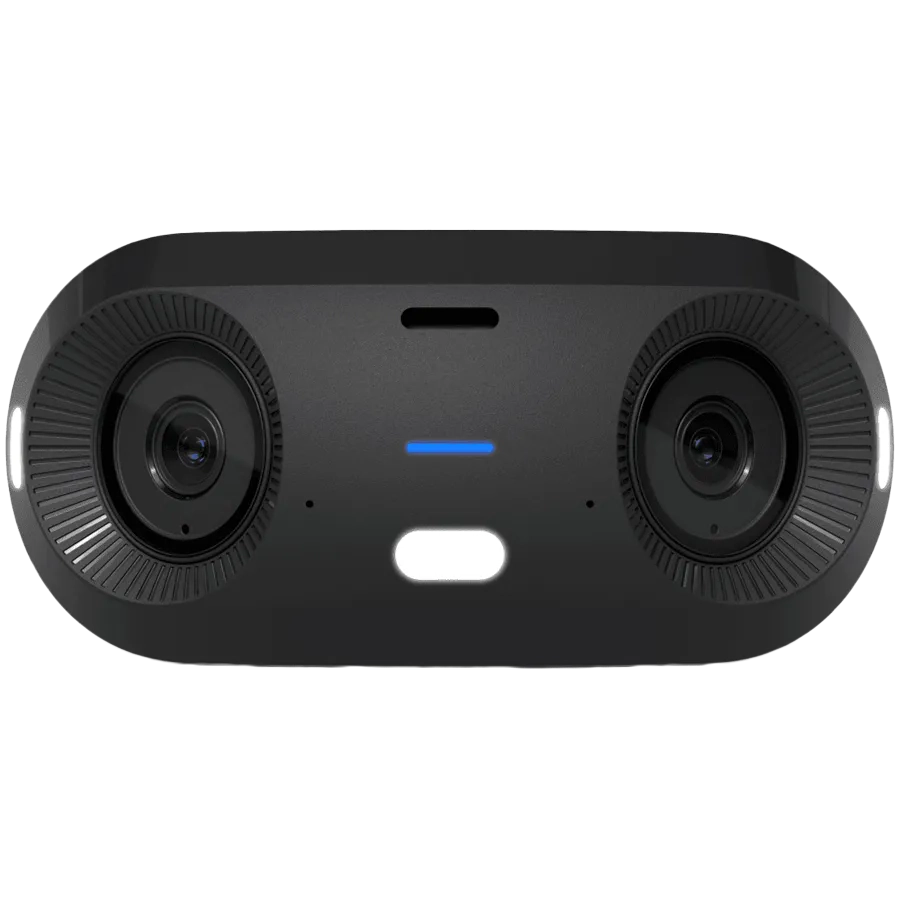

UBIQUITI UVC-G6-180-W Indoor/outdoor dual sensor 16MP 20 FPS PoE+ camera, with a Multi-TOPS AI Engine and panoramic 180 coverage

.: Pesad & liidesed :.

Liides

Ethernet

.: Tehnilised andmed :.

Vastavussertifikaadid

CE, FCC, IC

Korpuse värv

Valge

Logistika andmed

Transpordikarbi brutokaal

0.84 kg

Muud funktsioonid

Garantiiteave

Serial Number

Pakendi netokaal

0.2 kg

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

90 %

.: Pakendi andmed :.

Pakendi tüüp

Retail

Kogus pakendi kohta

1

Tehnilised andmed

Mounting Capability

Ceiling/Wallmount

Nominal Weight

0.839 kg

Packs in Box

1

Pack Length (mm)

136 mm

Pack Width (mm)

64 mm

Pack Height (mm)

92 mm

Warranty Products Returnable

Jah

Maximum Power Consumption

15 W

Warranty Term Notes

24 months - for EU

Image Sensor Technology

1/1.8"

Maximum Frame Capture Rate

20 fps

Web Cam Features

Night VisionPower over EthernetFace DetectionIR Cut FilterPet Detection3D DNRHuman Detection2D DNRHDRVehicle DetectionLicense Plate Recognition

Protection Standarts

IP66IK04

Horizontal Viewing Angle

180°

Vertical Viewing Angle

56.7°

Width (mm)

92 mm

Height (mm)

64 mm

Depth (mm)

136 mm

Minimum Operating Humidity

0 %

Minimum Operating Ambient Temperature

-20 °C

Maximum Operating Ambient Temperature

50 °C

Minimum Input Voltage

37 V

Maximum Input Voltage

57 V

Power Device Type

Power over Ethernet

Data Link Protocol Supports

Fast Ethernet/Ethernet

Lisaseadmed

Reset Button Card Reader (Micro SD) ARM Cortex A53

Camera type

IP kaamera

LAN

1 (RJ-45)

Maximum video resolution

7680x2160

Sensor Resolution

16 Mpixel

Tehnilised andmed

Tarvikud kaasa arvatud

Quick Start Guide Mount kit
