NET CAMERA 4MP DOME/HDBW5459R-ASE-IL-0280B DAHUA
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 14.87 €. Taotle järelmaksu ostukorvis.

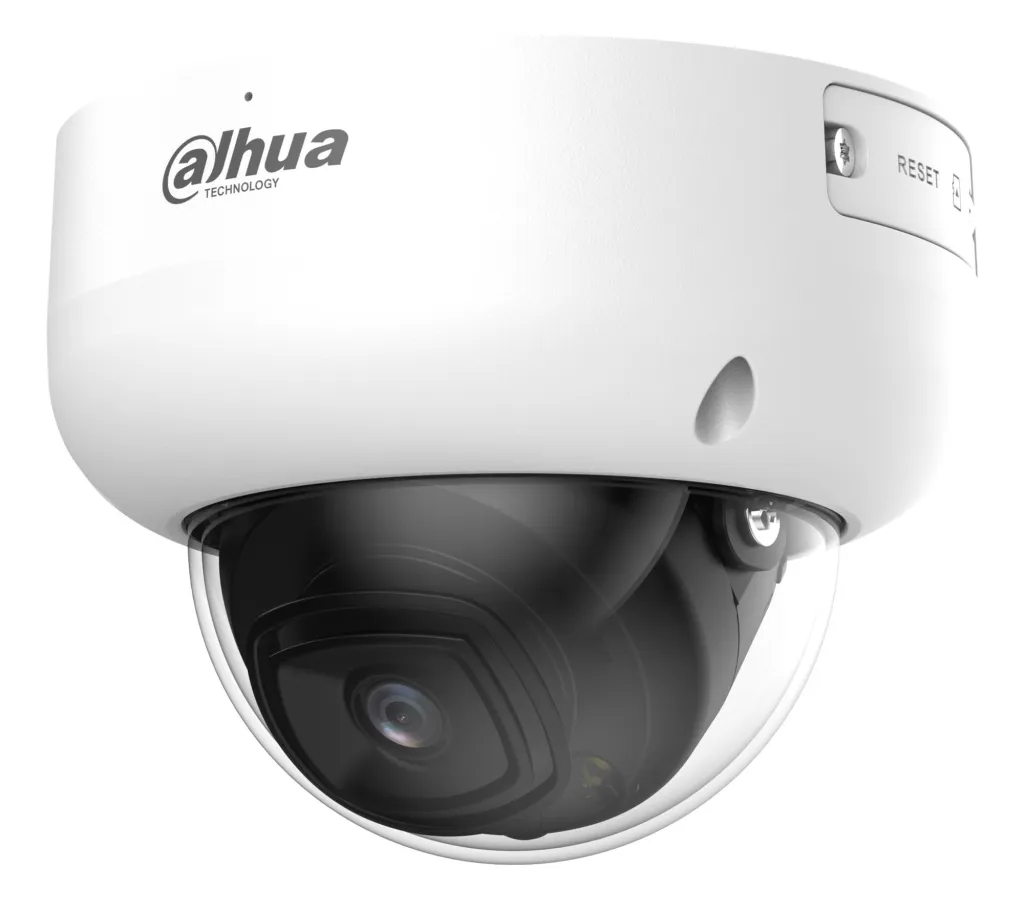

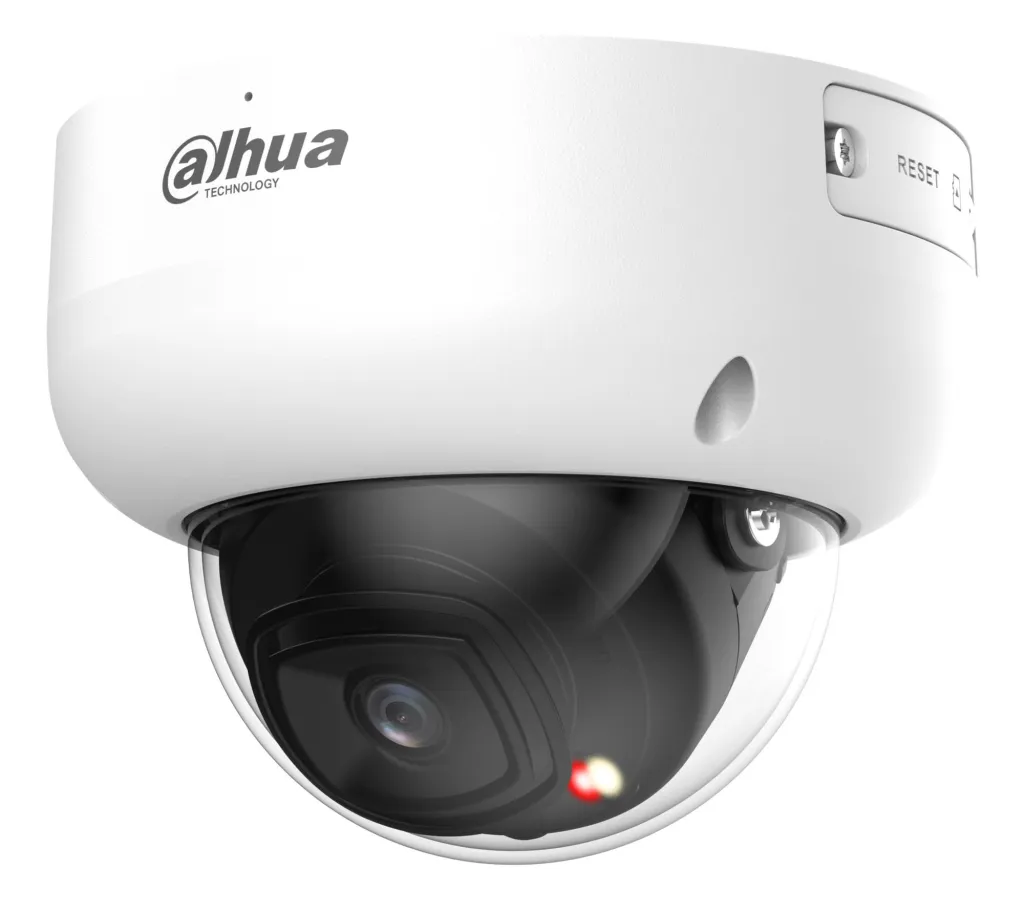

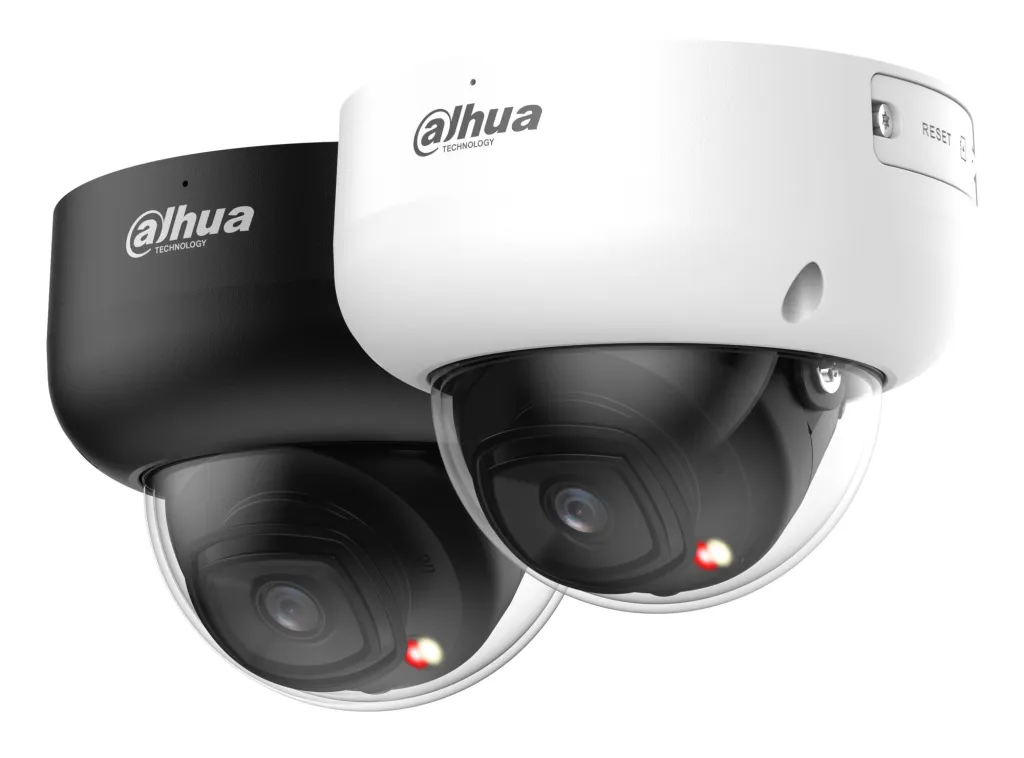

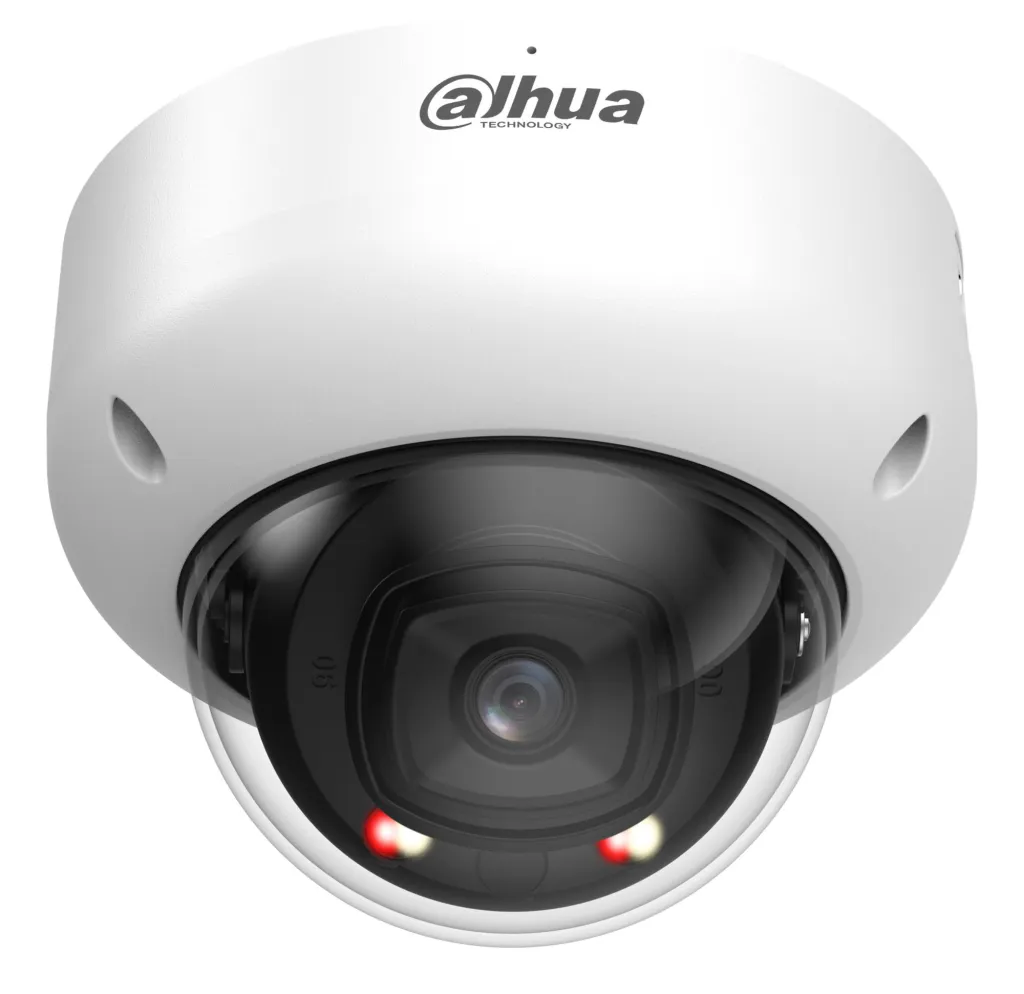

4MP Smart Dual Light Fixed-focal Vandal-proof Dome WizMind Network Camera
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
With its deep learning algorithms, the WizMind 5 Series camera offers advanced analytical capabilities for both audio and video. It integrates intelligent features such as video metadata, AcuPick, face detection, perimeter protection, and people counting. Powered by the Xinghan Large-Scale AI Models-Vision, the camera excels in object detection, recognition, and scene adaptation. Equipped with AI-ISP imaging technology, it offers enhanced night vision performance. The series is designed for durability, being dust-proof, waterproof, and vandal-proof, in compliance with IP67 and IK10 standards, though support for these certifications may vary across models.
Xinghan Large-Scale AI Models-Vision
Xinghan Large-Scale AI Models-Vision seamlessly expands the storage and operational capacity of algorithmic models through the powerful integration of edge AI model algorithms and NPU computing power. Engineered with a lightweight transformer architecture and enhanced by model distillation and quantization techniques, it optimizes the computing power consumption of ViT operators. This enables the system to collaborate on multiple tasks simultaneously through joint inference between small and large models optimized for edge devices.
Self-Learning
Empowered by deep learning technology, the device recognizes different types of targets and their statuses through learning and analyzing target features to detect targets and filter out false alarms.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
AcuPick
This industry-leading search technology effectively utilizes both front-end and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
- 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688 × 1520) @25/30 fps.
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
- With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
- 12 VDC/PoE power supply; ePoE
- IP67 and IK10 protection.
.: Üldised andmed :.
- Seadme tüüp
- IP security camera
- Tootja koduleht
- https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/4MP/IPC-HDBW5459R-ASE-IL
.: Üldised omadused :.
- Audioväljundi kanalid
- 1.0 channels
.: Disain :.
- Toote värv
- White
- Kujutegur
- Dome
.: Mälu :.
- Ühilduvad mälukaardid
- MicroSD (TransFlash)
- Paigaldatud operatiivmälu
- 2000 MB
.: Audio :.
- Toetatud audioformaadid
- AAC/G.711/G.723/G.726
.: Kaamera :.
- Lens viewing angle, vertical
- 58 °
- Valge tasakaalustus
- Auto/Manual/Outdoor
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3af
- Web browser
- Jah
- Ethernet LAN
- Jah
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- DC,PoE
Võimsus ja energiatarve
- Võimsustarve (tüüpiline)
- 4.4 W
.: Salvestusruum :.
- ROM capacity
- 4000 MB
Pildisensor
- Progressiivne skaneerimine
- Jah
.: Tehnilised andmed :.
- Compliance certificates
- CE/Federal Communications Commission (FCC)
Objektiivi süsteem
- Lens viewing angle, diagonal
- 137 °
- Lens viewing angle, horizontal
- 112 °
Ergonoomika
- Pöördenurga ulatus
- 355 °
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Toetatud resolutsioonid
- 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Töötingimused
- Kasutamistemperatuur (T-T)
- -40 - 60 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 0 - 95 %
- Hoiustamistemperatuur (T-T)
- -40 - 60 °C
.: Pakendi andmed :.
- Pakendi kaal
- 986 g
Tehnilised andmed
- Placement supported
- Indoor & outdoor
- Supported network protocols
- Pv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
- Number of cameras
- 1
- Wide Dynamic Range (WDR)
- Jah
- Alarm input/output
- Jah
- Unit Box Height
- 0.137
- Unit Box Length
- 0.148
- Unit Box Width
- 0.139
- Unit Calculated Volume
- 0.002818 cubm
- Unit Calculated Weight
- 0.71 kg
- Summary
- Dahua Technology IPC -HDBW5459R-ASE-IL-0280B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0007 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"), Number of effective pixels (H x V): 2688 x 1520 pixels. Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
- Adjustment shutter speed
- Auto/Manual
- Number of effective pixels (H x V)
- 2688 x 1520 pixels
- IK code
- IK10
- Back Light Compensation (BLC)
- Jah
- Highlight Compensation (HLC)
- Jah
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Jah
- Mirror
- Jah
- Number of sensors
- 1
- Number of lenses
- 1
- Intelligent Video Surveillance (IVS) system features
- Abandoned object/Missing object
- Region of Interest (ROI) encoding
- Jah
- Detect distance
- 70 m
- Identify distance
- 9.7 m
- Observe distance
- 28 m
- Recognize distance
- 14 m
- Streaming method
- Multicast/Unicast
- Dynamic range
- 140 dB
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Audio input channels
- 1.0 channels
- Alarm input channels
- 1
- Alarm output channels
- 1
- Flip & mirror
- Jah
- Gain control type
- Auto/Manual
- Signal-to-Noise Ratio (SNR) (panoramic camera)
- 56 dB
- Lens viewing angle, diagonal (second camera)
- 89 °
- Lens viewing angle, horizontal (second camera)
- 51 °
- Lens viewing angle, vertical (second camera)
- 101 °
- Camera shutter type
- Electronic
- Day/night mode
- Jah
- DC output voltage
- 12
- Ethernet LAN (RJ-45) ports
- 1
- Management software
- Smart PSS;DSS;DMSS
- Maximum aperture number
- 1.6
- Mobile operating systems supported
- Android/iOS
- Mounting type
- Ceiling
- Noise reduction
- Jah
- Sensor type
- CMOS
- Supported video modes
- 1080p/720p
- Video compression formats
- H.264/H.264B/H.264H/H.265/M-JPEG
- Video formats supported
- H.264/H.265
- Bit rate
- H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps-8192 Kbps
- Built-in HDD
- Ei
- Built-in microphone
- Jah
- Camera shutter speed
- 1/3 - 1/100000 s
- Certification
- CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
- Closest focusing distance
- 2 m
- Connectivity Technology
- Wired
- Diameter
- 122 mm
- Fixed focal length
- 2.8 mm
- Frame Rate
- 60 fps
- Housing material
- Metal
- Maximum memory card size
- 256 GB
- Minimum Illumination
- 0.0007 lx
- Number of users
- 20 user(s)
- Optical sensor size
- 1/1.8 "
- Pan range
- 0 - 355 °
- Total megapixels
- 4 MP
- Video streaming
- Jah
Tehnilised andmed
- Kõrgus
- 94 mm
- Toote kaal
- 713 g
