Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Tootja | GIGABYTE |
| Tootekood | B550M AORUS ELITE AX (REV. 1.4) |
| EAN | 4719331855055 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Toiteallika tüüp | ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Mälu :. | |
| Maksimaalne sisemälu | 128 GB |
| .: Audio :. | |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| WiFi | Jah |
| WiFi-standardid | Wi-Fi 6E (802.11ax) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.3 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

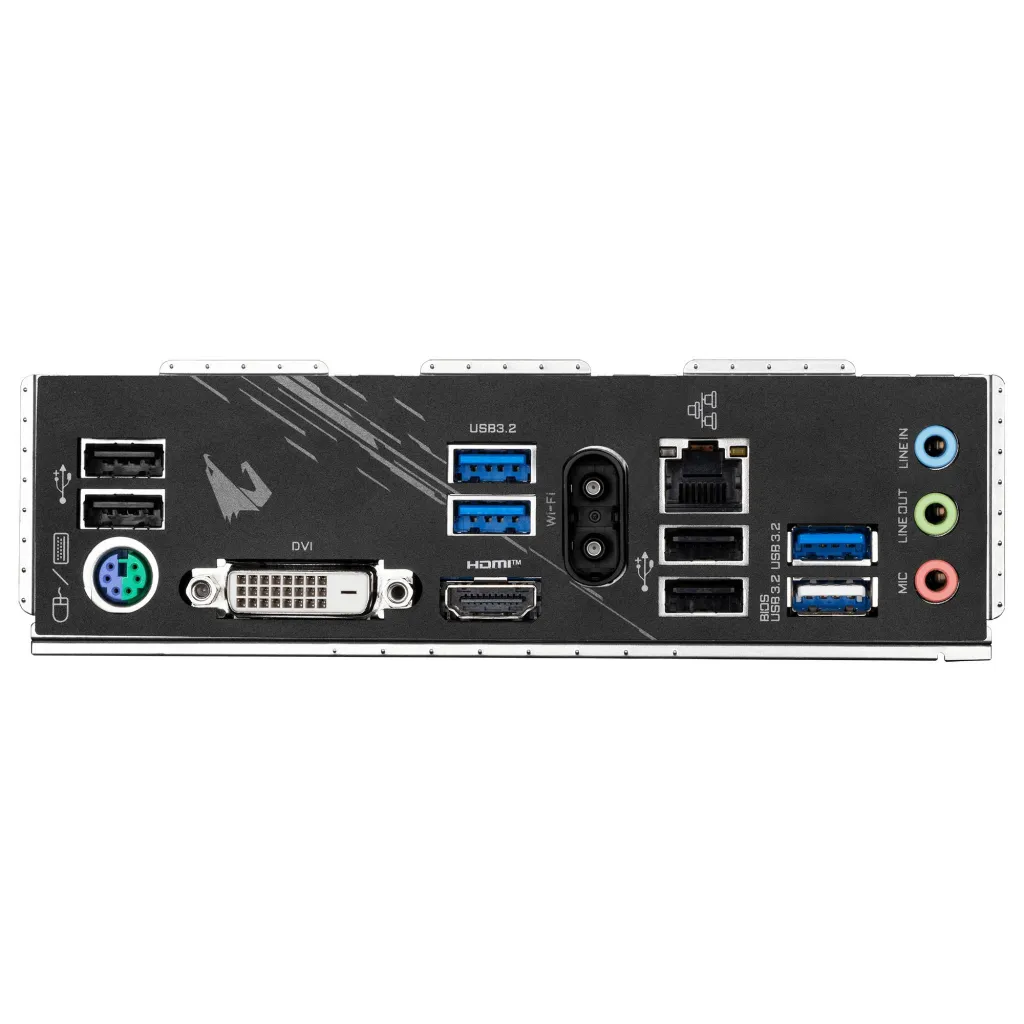

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| Muud näitajad | |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 2 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Parallel processing technology support | Not supported |
| Clear CMOS jumper | Jah |
| ACPI version | 5.0 |
| Number of M.2 (M) slots | 2 |
| Line-in | Jah |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Maximum number of SMP processors | 1 |
| WiFi-AP antenna jack | 2 |
| Supported storage drive interfaces | M.2,SATA III |
| Screws included | Jah |
| Processor manufacturer | AMD |
| Serial port headers | 1 |
| Antenna included | Jah |
| System management BIOS (SMBIOS) version | 2.7 |
| RGB LED pin header | Jah |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported memory clock speed (max) | 4733 MHz |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.265 |
| CnCode | 84733020 |
| Warranty period | 3 year(s) |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Unit Calculated Volume | 0.006165 cubm |
| Unit Calculated Weight | 1.26 kg |
| Summary | GIGABYTE B550M AORUS ELITE AX (REV. 1.4). Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Audio chip | Realtek ALC897 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| PC health monitoring | Fan/Temperature/Voltage |
| Desktop Management Interface (DMI) version | 2.7 |
| 12V power connector | Jah |
| Front panel connector | Jah |
| Kogus transpordikasti kohta | 10 |
| Toote värv | Brown |
| Number of CPU fan connectors | 1 |
| Kaasas tarkvara | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 5 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| Component for | PC |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Maksimaalne resolutsioon | 4096 x 2160 pixels |
| HDCP | Jah |
| Tootja koduleht | https://www.gigabyte.com/ |
| Jahutuse tüüp | Passive |
| Country of origin | China |
| DirectX version | 12.0 |
| DVI-D ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI versioon | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | AMD B550 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| BIOS memory size | 128 Mbit |
| LAN controller | Realtek RTL8111H |
| Mudel | B550M AORUS ELITE AX (REV. 1.4) |
| Number of memory slots | 4 |
| Package depth | 265 mm |
| Package height | 65 mm |
| Package weight | 1273 g |
| Package width | 265 mm |
| Processor Socket | Socket AM4 |
| Raid Levels | 0/1/10 |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| USB 2.0 connectors | 1 |
