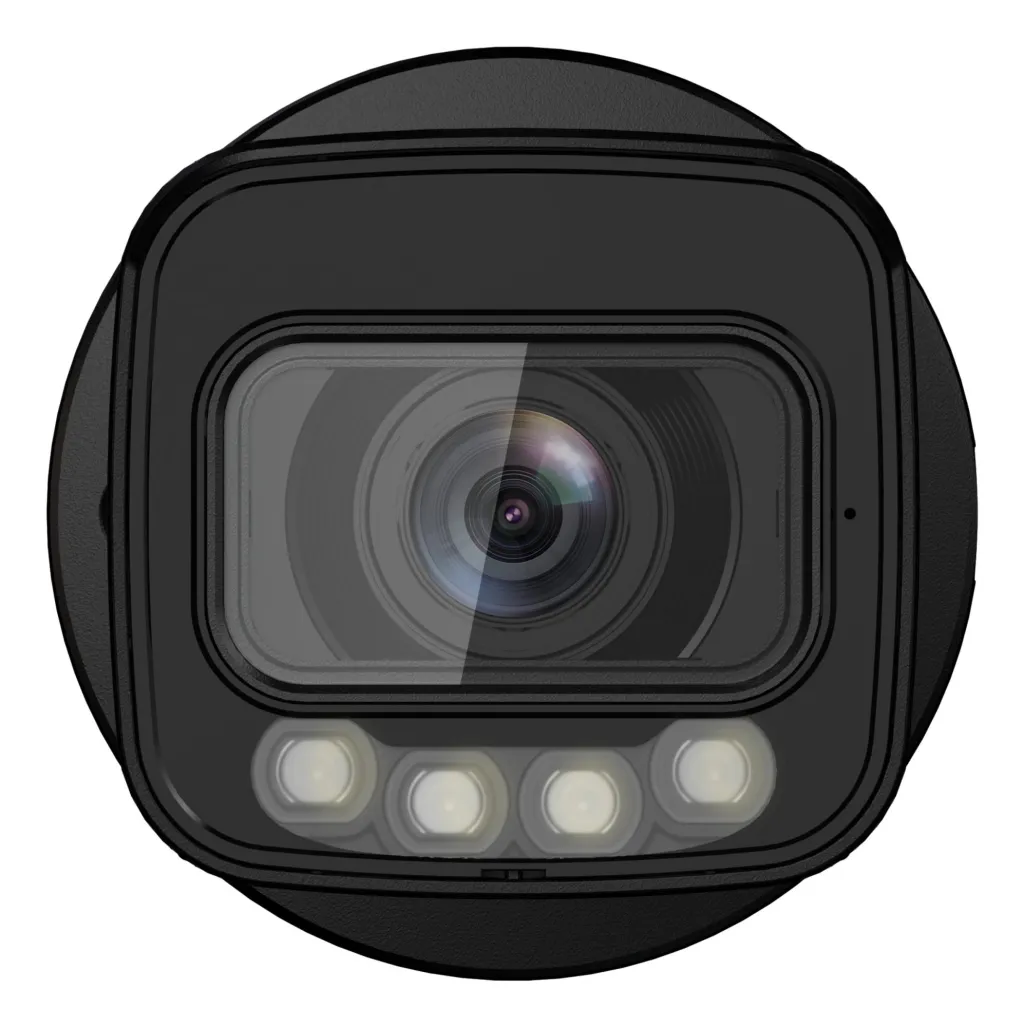

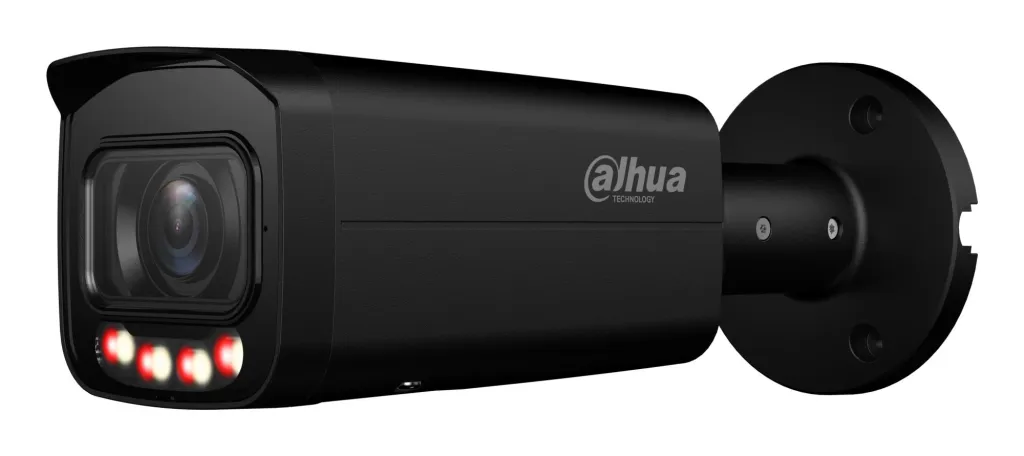

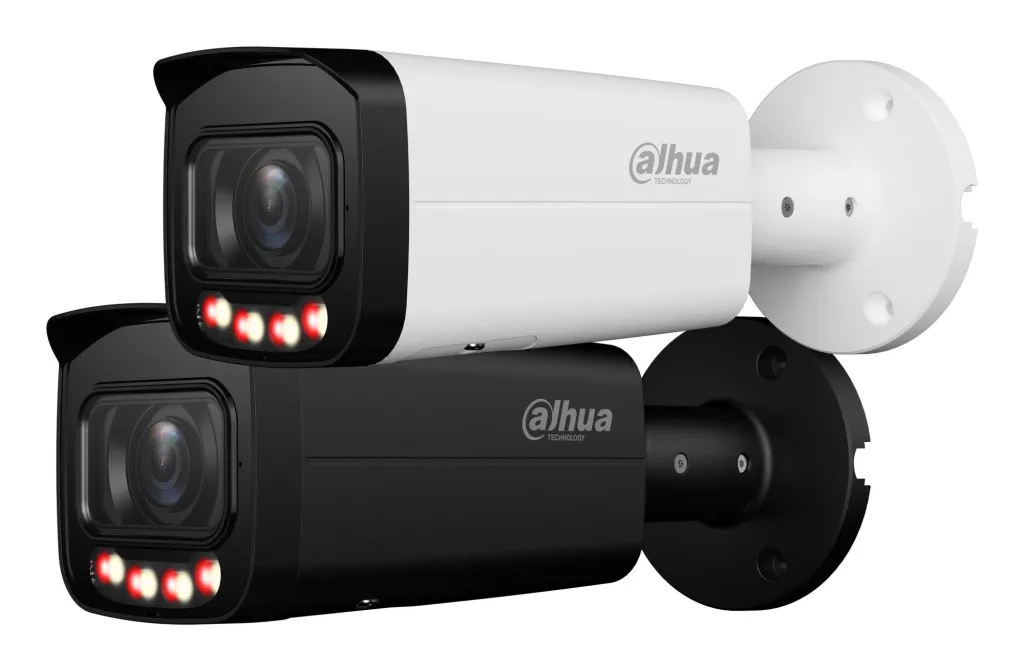

NET CAMERA 8MP BULLET/HFW3849T-ZAS-IL-27135-B DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/network-products/network-cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HFW3849T-ZAS-IL

Seadme tüüp

IP security camera

.: Üldised omadused :.

Audioväljundi kanalid

1.0 channels

.: Disain :.

Kokkuvõte

Dahua Technology WizSense IPC-HFW3849T-ZAS-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 114 - 32°, Lens viewing angle, vertical: 58 - 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 - 13.5 mm, Focus: Motorized/Manual, Detect distance (wide): 85.3 m

Kujutegur

Bullet

Toote värv

Must

.: Mälu :.

RAM capacity

1000 MB

Integreeritud kaardilugeja

Jah

Ühilduvad mälukaardid

MicroSD (TransFlash)

.: Audio :.

Toetatud audioformaadid

G.711 µ-law/G.711 A-law/G.723/G.726/PCM

.: Kaamera :.

Lens viewing angle, vertical

58 - 17 °

Valge tasakaalustus

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

.: Võrgustumine :.

Web browser

Jah

Võrgustandardid

IEEE 802.1x/IEEE 802.3af

Ethernet LAN

Jah

.: Pesad & liidesed :.

Ühenduvustehnoloogia

Juhtmega

.: Aku & Toiteallikas :.

Toiteallika tüüp

PoE,DC

Võimsus ja energiatarve

Võimsustarve (tüüpiline)

3.8 W

.: Salvestusruum :.

ROM capacity

256 MB

Pildisensor

Progressiivne skaneerimine

Jah

Objektiivi süsteem

Lens viewing angle, diagonal

138 - 36 °

Lens viewing angle, horizontal

114 - 32 °

Öövaatluse funktsioon

Öönägemine

Jah

Ergonoomika

Pöördenurga ulatus

360 °

Funktsioonid

Sensori tüüp

CMOS

Logistika andmed

Kogus transpordikasti kohta

10

Töötingimused

Hoiustamistemperatuur (T-T)

-40 - 60 °C

Kasutamistemperatuur (T-T)

-30 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

.: Pakendi andmed :.

Pakendi kaal

1090 g

Tehnilised andmed

Placement supported

Välitingimustesse

Supported network protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Number of cameras

1

Wide Dynamic Range (WDR)

Jah

Built-in light

Jah

Video motion detection

Jah

Number of illumination LEDs

4

LED type

IR/White

HTTPS encryption

Jah

Unit Box Height

0.11

Unit Box Length

0.3

Unit Box Width

0.12

Üksuse kalkuleeritud maht

0.00475 cubm

Tilt angle range

0 - 90 °

B/W night vision distance

60 m

Back Light Compensation (BLC)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

3D noise reduction

Privacy masking

Jah

Intelligent Video Surveillance (IVS) system features

Face detection/Intrusion/Tripwire/Vehicle detection

Region of Interest (ROI) encoding

Jah

Focal length range

2.7 - 13.5 mm

Dynamic range

120 dB

Number of Privacy masking areas

8

Bit rate control

Variable Bit Rate (VBR),Constant Bit Rate (CBR)

Audio input channels

1.0 channels

Power consumption (Power over Ethernet (PoE))

5.3 W

Cloud-managed

Jah

Alarm input channels

1

Alarm output channels

1

Flip & mirror

Jah

Gain control type

Automaatne

Detect distance (tele)

280 m

Detect distance (wide)

85.3 m

Identify distance (tele)

28 m

Identify distance (wide)

8.5 m

Observe distance (tele)

112 m

Observe distance (wide)

34 m

Recognize distance (tele)

56 m

Recognize distance (wide)

17.1 m

Colour night vision distance

60 m

Number of video streams

3

Cloud services supported

FTP

Rahvusvaheline Kaitsekood ( IP )

IP67

Camera shutter type

Elektrooniline

Day/night mode

Jah

DC output voltage

12

Ethernet LAN (RJ-45) ports

1

Maximum aperture number

1.4

Mobile operating systems supported

Android/iOS

Mounting type

Ceiling/wall

Noise reduction

Jah

Video compression formats

H.264/H.264B/H.264H/H.265/M-JPEG

Audio system

1-way

Built-in HDD

Ei

Built-in microphone

Jah

Camera shutter speed

1/3 - 1/100000 s

Closest focusing distance

0.1 m

Focus

Motorized/Manual

Frame Rate

30 fps

Housing material

Metall

Image stabilizer

Jah

Lens type

Varifocal

Maximum memory card size

512 GB

Night vision distance

60 m

Number of users

20 user(s)

Optical sensor size

1/2.7 "

Pan range

0 - 360 °

Signal-to-Noise Ratio (SNR)

56 dB

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

8 MP

Video streaming

Jah

Voice Codecs

G.711a/G.711Mu/G.723/G.726/PCM

Tehnilised andmed

Üksuse kalkuleeritud kaal

1.17 kg

Laius

90.7 mm

Sügavus

238.5 mm

Kõrgus

90.7 mm

Toote kaal

835 g
