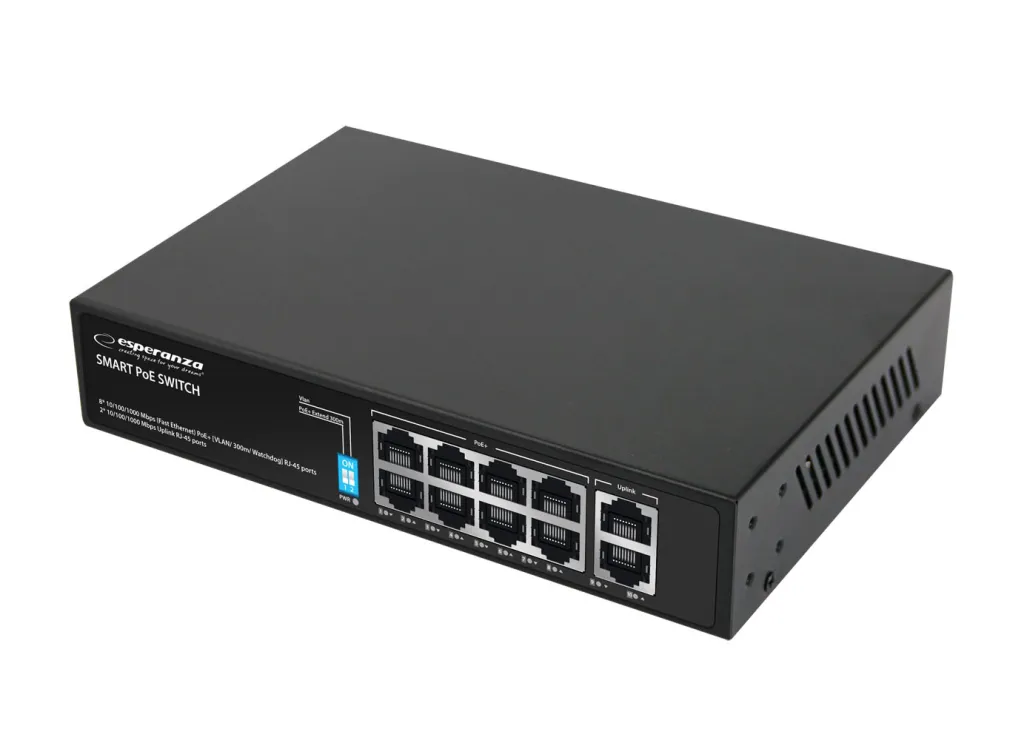

ESPERANZA 8 PoE + 2 UPLINK PORT ETHERNET SWITCH 10/100/1000 MATRIX
44.41€
EZ
EZ
Tarneaeg: 5 - 7 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Esperanza MATRIX 10-Port Gigabit PoE Switch – Maximum Performance for IP Surveillance Systems
Choose performance, stability, and modern networking technology. The Esperanza MATRIX Gigabit PoE Switch is an advanced networking device designed for demanding IP surveillance systems and modern network infrastructures. With Gigabit Ethernet support and intelligent management features, it delivers fast, reliable, and efficient connectivity for professional installations.
Gigabit Speed – Fast and Smooth Data Transmission
Equipped with 10/100/1000 Mbps ports, the switch offers significantly higher performance than standard Fast Ethernet solutions. This makes it an excellent choice for high-resolution surveillance systems, where large amounts of video data must be transmitted quickly and without interruption.
PoE Power Supply – Simplified Installation
Eight PoE ports allow simultaneous data transmission and power delivery through a single Ethernet cable. This provides:
- Reduced cabling requirements
- Faster installation
- Cleaner and more professional-looking setups
Up to 300 m Transmission Range – Greater Flexibility
The built-in Extend Mode (AI) increases both power and data transmission distance up to 300 meters, making the switch suitable for large facilities, warehouses, industrial sites, and outdoor surveillance installations.
Advanced Network Features
The switch includes intelligent functions designed to improve reliability and security:
- AI-PoE Watchdog – automatically restores inactive PoE ports
- VLAN Port Isolation – enhances transmission security
- Auto MDI/MDIX – automatically detects and adjusts network connections
High Performance Without Compromise
With a 20 Gbps switching capacity and a 14.88 Mpps packet forwarding rate, the switch ensures smooth operation even under heavy network traffic. This performance makes it ideal for demanding IP camera deployments and high-bandwidth network applications.
Plug & Play – Rapid Deployment
The switch operates in Plug & Play mode and requires no configuration. Simply connect your devices and start working immediately. This makes installation quick, convenient, and hassle-free.
Robust Design for Challenging Environments
A wide operating temperature range from -20°C to 55°C allows the switch to operate reliably in a variety of environments, from offices and commercial buildings to more demanding industrial locations.
Choose performance and reliability. The Esperanza MATRIX is a Gigabit PoE switch designed to meet the demands of modern IP surveillance systems and high-speed network installations.
Technical Specifications
- Product Type: Gigabit PoE Switch
- Product Name: Esperanza MATRIX
- Model / Index: ENS108
- EAN: 5901299960417
Product Functions
- PoE power supply for network devices
- Extend Mode (up to 300 m)
- VLAN (port isolation)
- AI-PoE Watchdog (automatic port recovery)
- Auto MDI/MDIX
- Plug & Play operation (no configuration required)
Product Construction

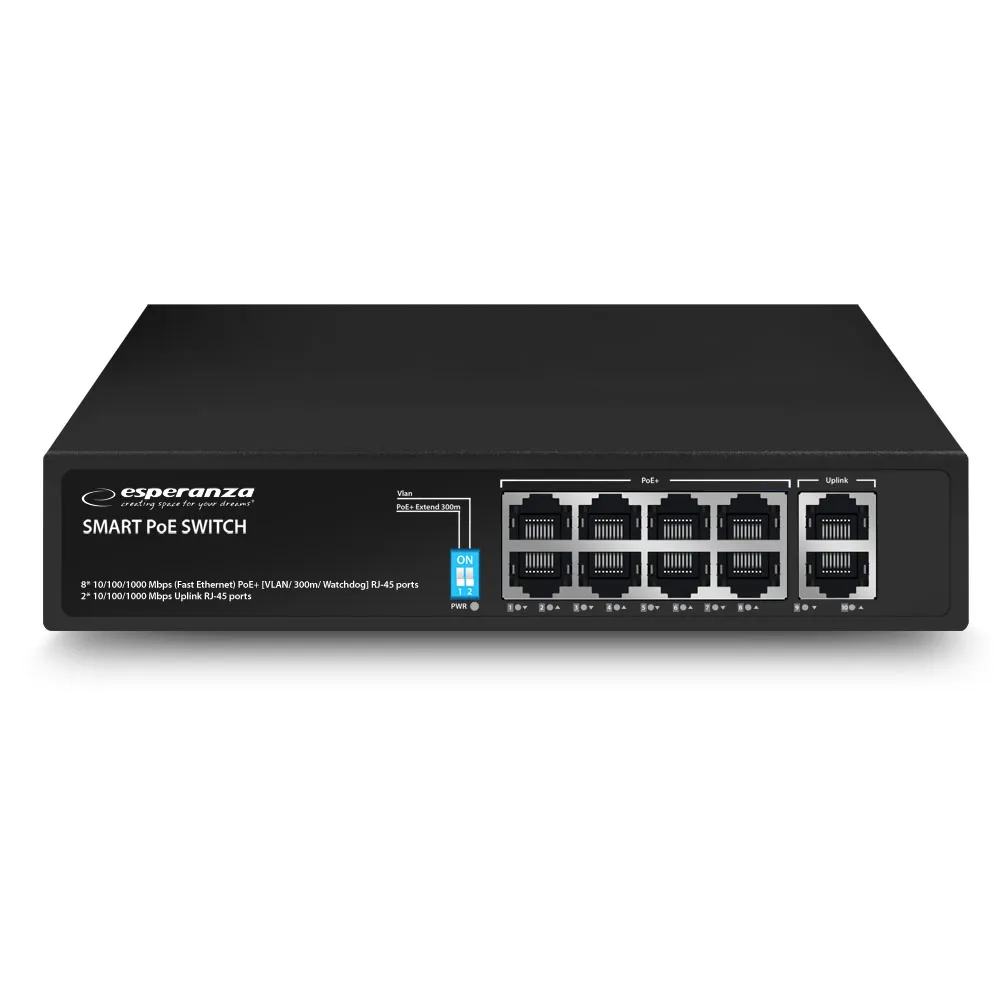

- 8 × RJ45 PoE 10/100/1000 Mbps ports
- 2 × RJ45 uplink ports
- PoE and network LED indicators
- Built-in power supply
Key Parameters
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- Buffer Memory: 1.25 M
- MAC Address Table: 4K
- Maximum Power per Port: 30 W
- Average Power per Port: 15.4 W
- Total PoE Power Budget: 120 W
Standards and Protocols
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3x
- IEEE 802.3i
- IEEE 802.3af/at (Ports 1–8)
Connectivity / Power Supply
- Power Supply: 220–240 V / 50 Hz
- Standby Power Consumption: < 4 W
- Power Consumption at Full Load: 120 W
Transmission
- 10BASE-T: Cat5 UTP (up to 300 m)
- 100BASE-TX: Cat5 or higher (up to 100 m)
Operating Conditions
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -40°C to 75°C
- Operating Humidity: 5%–90% (non-condensing)
- Storage Humidity: 5%–95% (non-condensing)
Overall Dimensions
- 195 × 135 × 40 [mm]
Other
- Certifications and Standards: CE
- Intended Use: IP surveillance systems, LAN networks
- Manufacturer Warranty: 24 months
