TV SET ACC CEILING MOUNT/50-75" BLACK N3LE-B ONKRON

.: Üldised andmed :.

Tootja koduleht

https://onkron-uk.co.uk/products/motorized-ceiling-tv-mount-50-75-max-40-kg-black-n3le?_pos=1&_psq=N3LE-B+&_ss=e&_v=1.0

.: Disain :.

Kokkuvõte

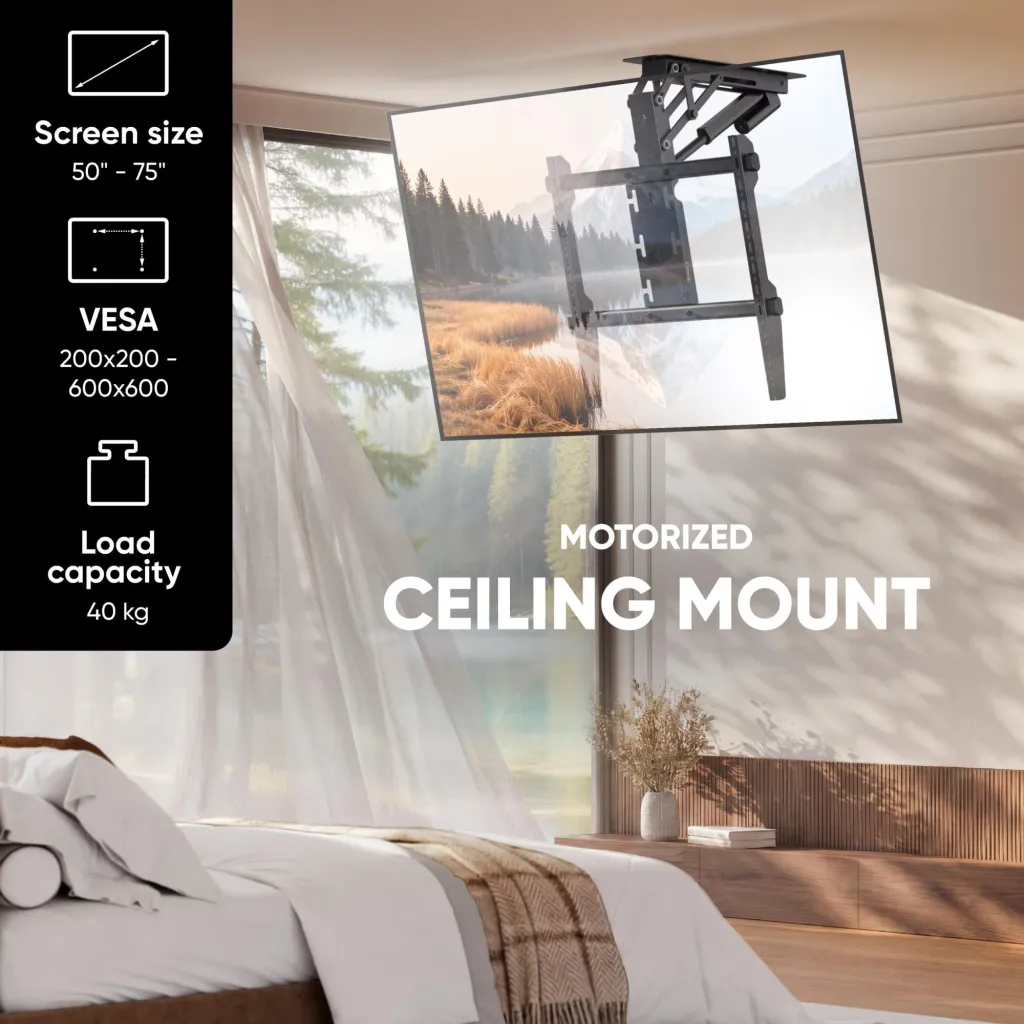

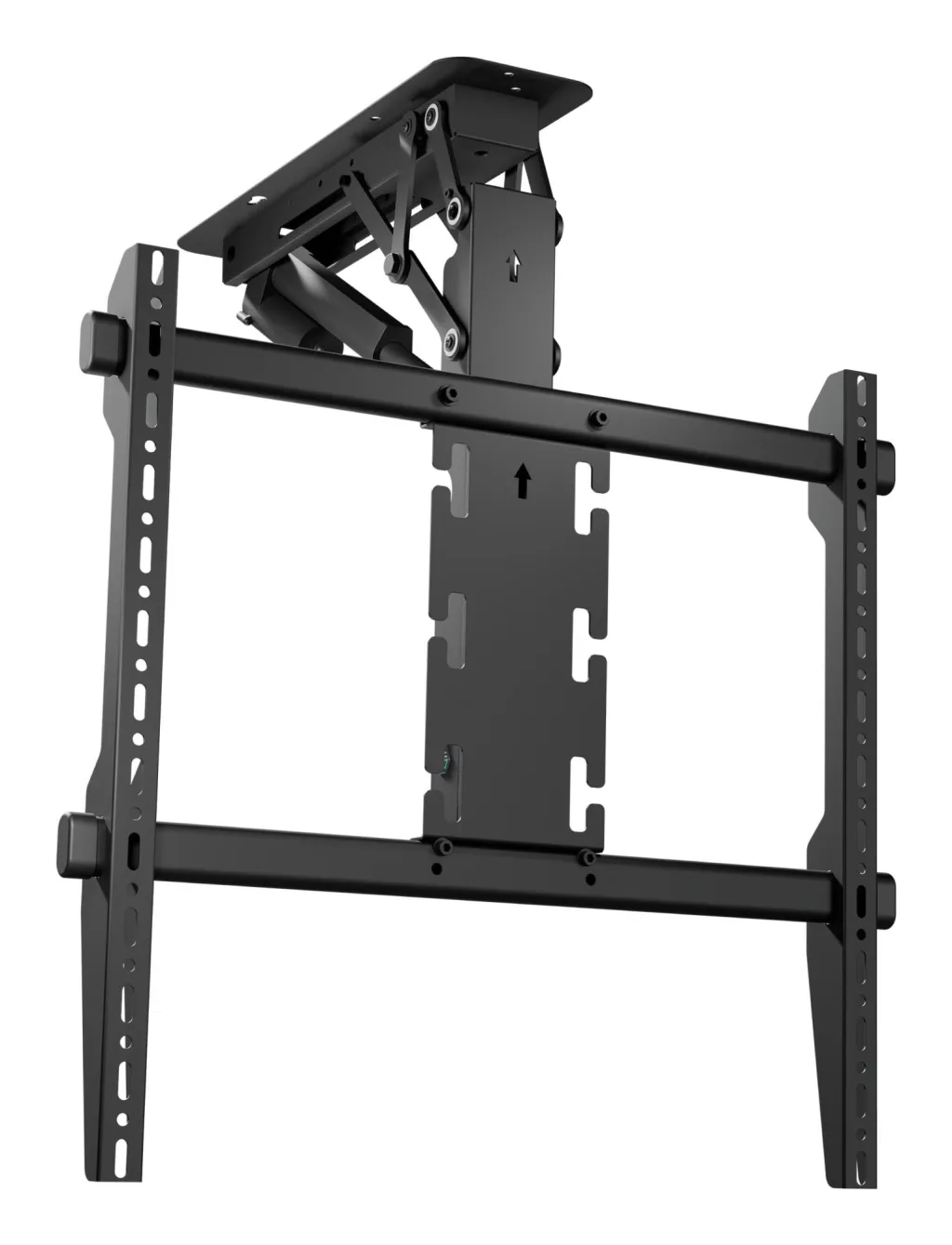

ONKRON N3LE-B. Maximum weight capacity: 40 kg, Minimum screen size: 127 cm (50"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 600 mm. Angle of rotation: 8°, Distance to the wall (max): 123.3 cm. Product colour: Black

Toote värv

Must

Võimsus ja energiatarve

Sisendsagedus

50/60 Hz

Ergonoomika

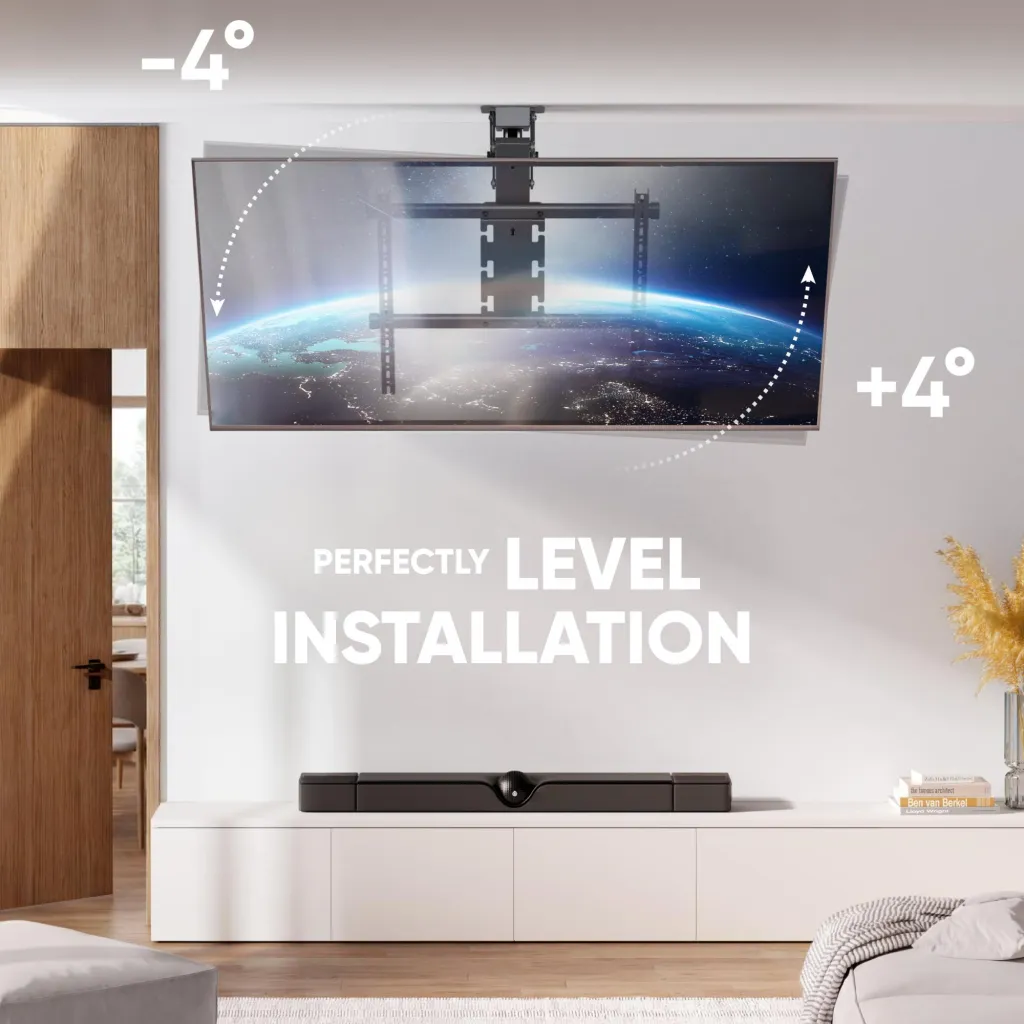

Pöördenurga ulatus

8 °

Funktsioonid

Vahelduvvoolu pinge

100 - 240 V

Logistika andmed

Kogus transpordikasti kohta

1

.: Pakendi andmed :.

Pakendi laius

755 mm

Pakendi kõrgus

217 mm

Package tare weight

15100 g

Kasutusjuhend

Jah

Pakendi sügavus

225 mm

Tehnilised andmed

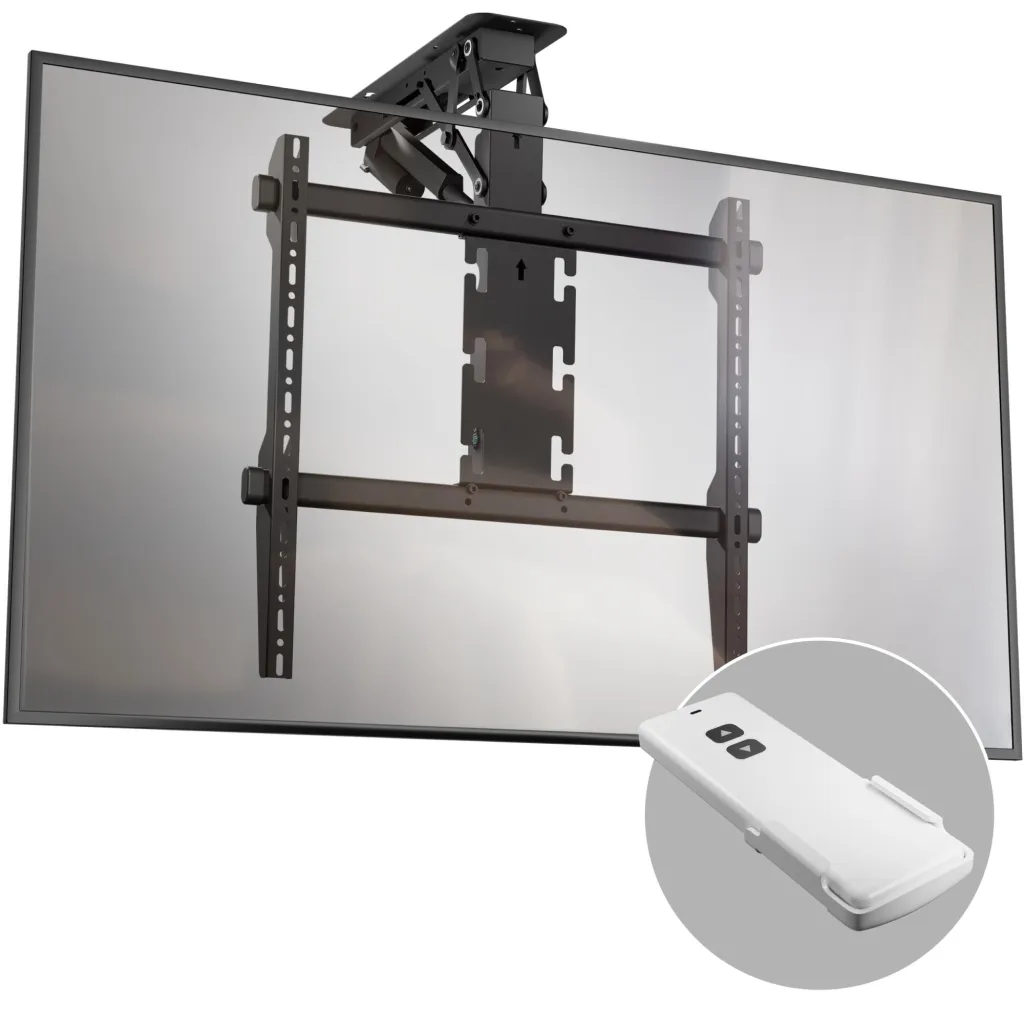

Remote control included

Jah

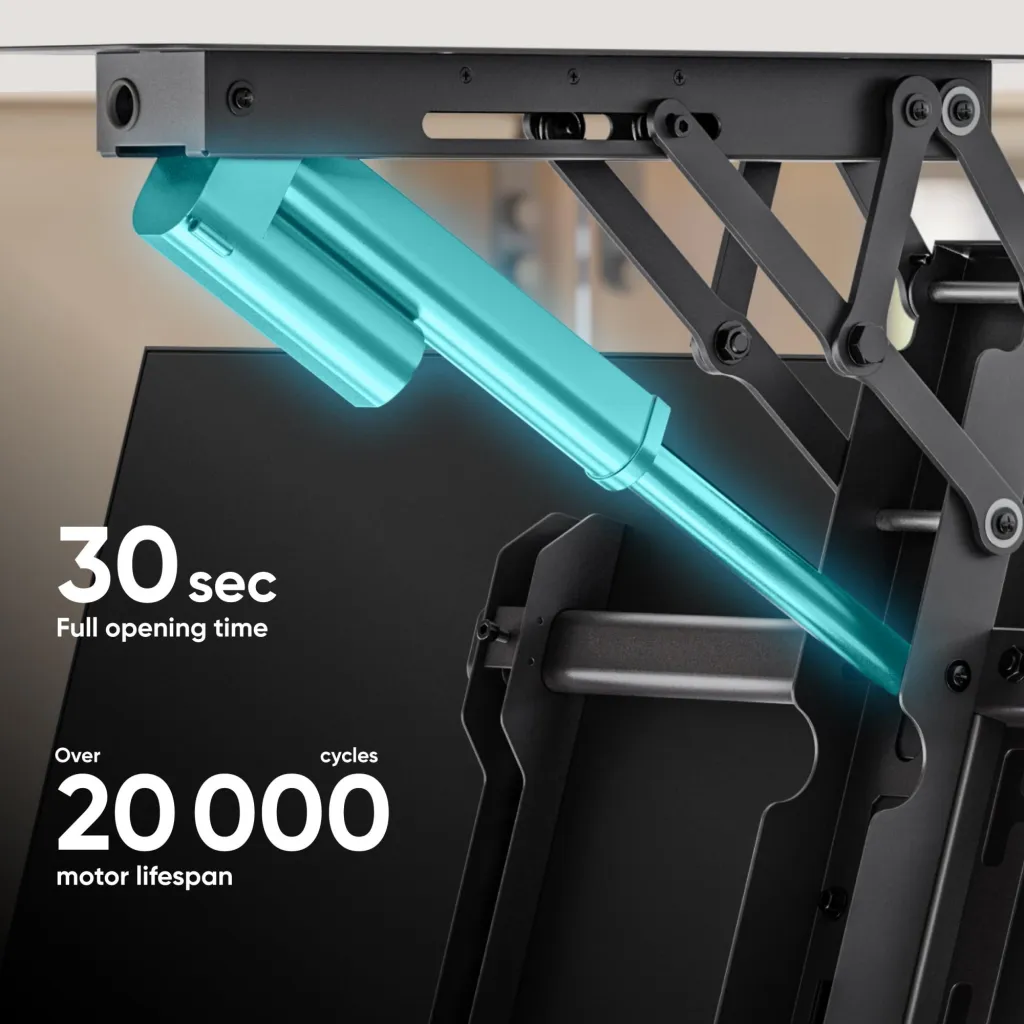

Motorized

Jah

Maximum Weight Capacity

40 kg

Unit Box Height

0.21

Unit Box Length

0.75

Unit Box Width

0.22

Üksuse kalkuleeritud maht

0.03465 cubm

Distance to the wall (max)

1233 mm

Panel mounting interface

200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/400 x 200/400 x 300/400 x 400/500 x 200/500 x 400/600 x 200/600 x 300/600 x 400/600 x 600 mm

Pallet gross volume

3680 dm³

Maximum screen size

75 "

Maximum VESA mount

600 x 600 mm

Minimum screen size

50 "

Minimum VESA mount

200 x 100 mm

Maximum weight capacity (per display)

40 kg

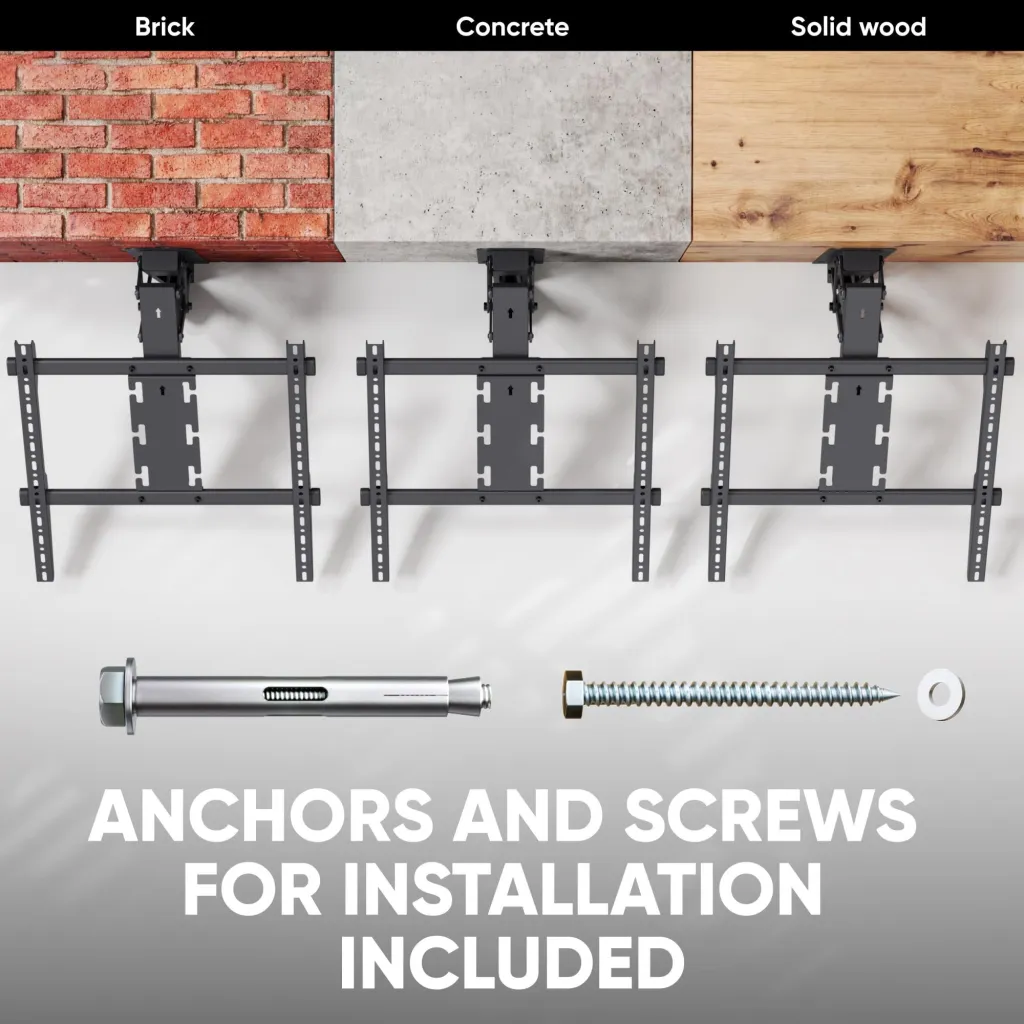

Screw nuts included

Jah

Number of displays supported

1

Tilt adjustment

Jah

Mounting type

Ceiling

Housing material

Plastic/SPCC/Steel

Maximum operating temperature

55 °C

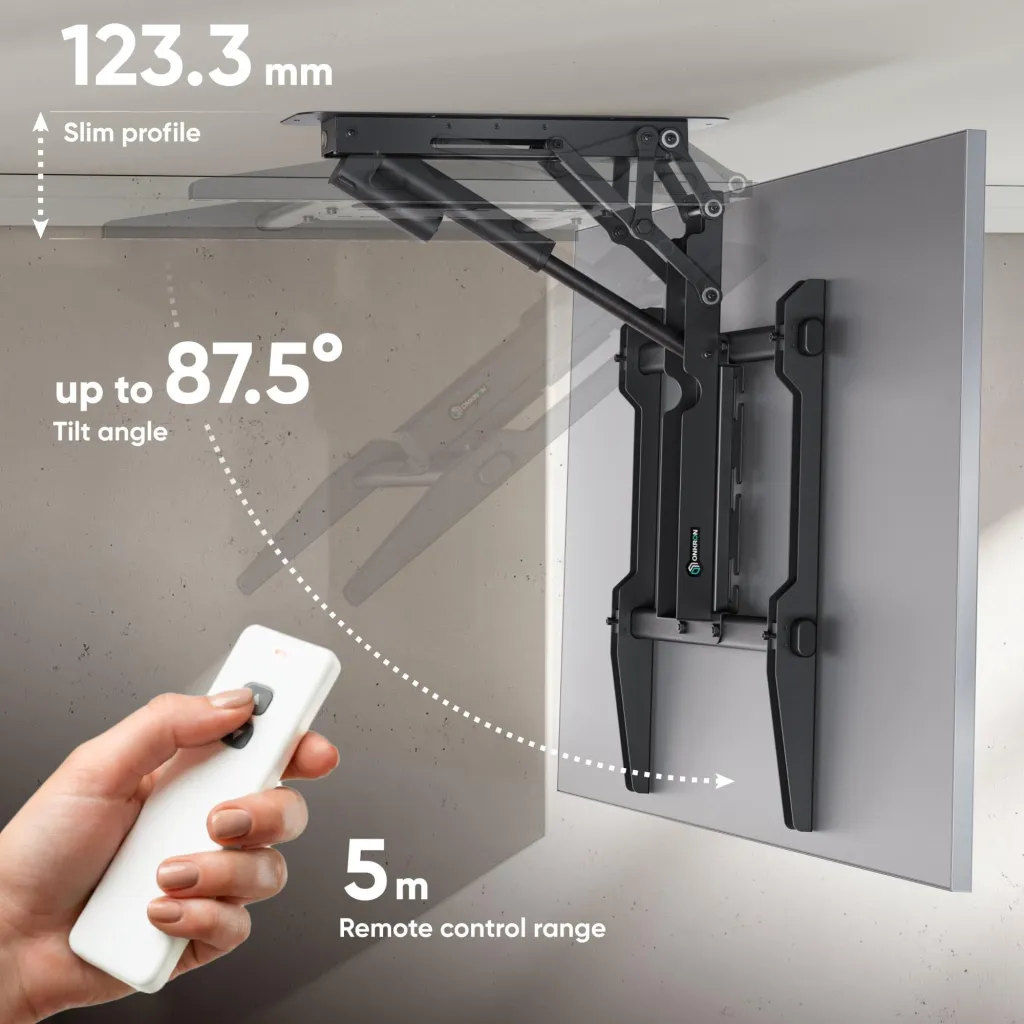

Tilt angle

87.5 °

Tehnilised andmed

Üksuse kalkuleeritud kaal

40 kg

Laius

684 mm

Kõrgus

630 mm

Tehnilised andmed

Kogus pakis

1 pair(s)

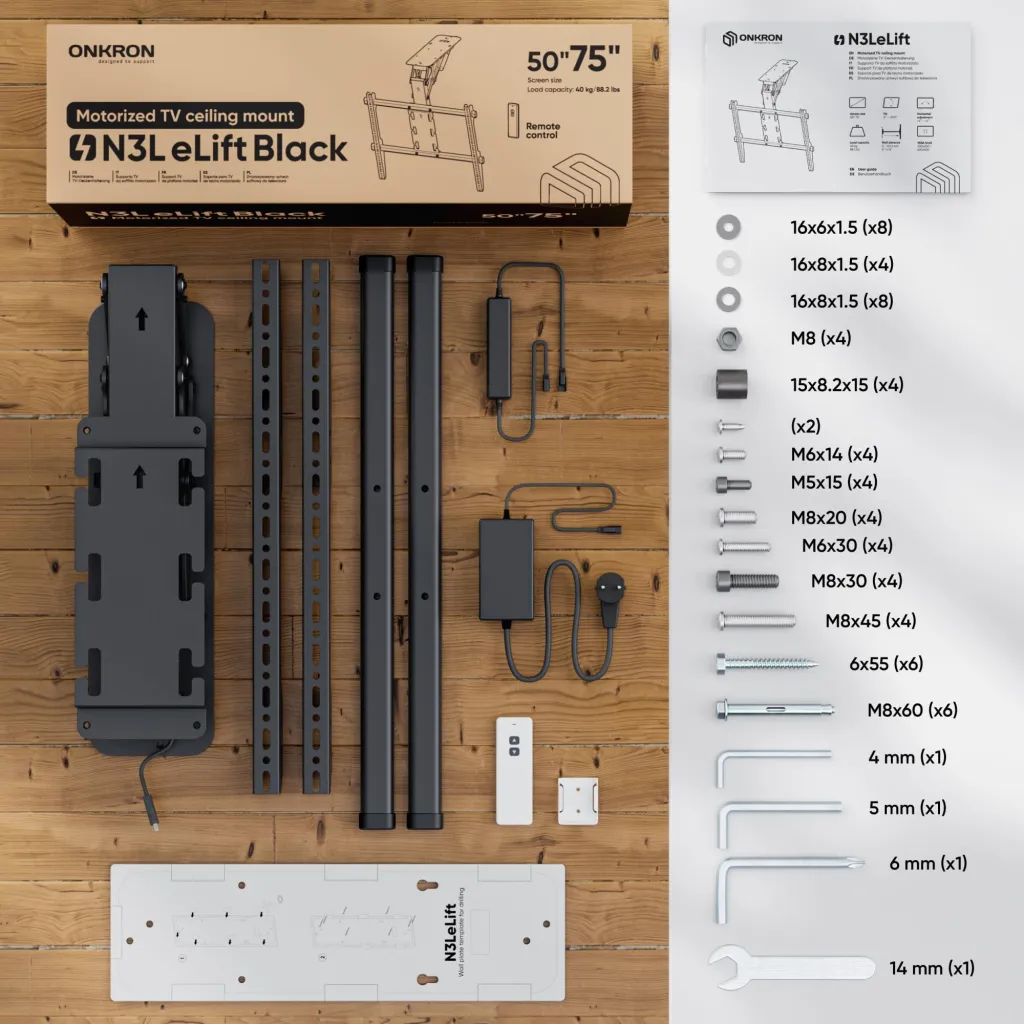

Paigalduskomplekt

Jah
