NAS STORAGE RACKST 4BAY 1U RP/NO HDD TS-432PXU-RP-2G QNAP
1318.83€
1320.50€
E1
1320.50€
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 40.54 €. Taotle järelmaksu ostukorvis.

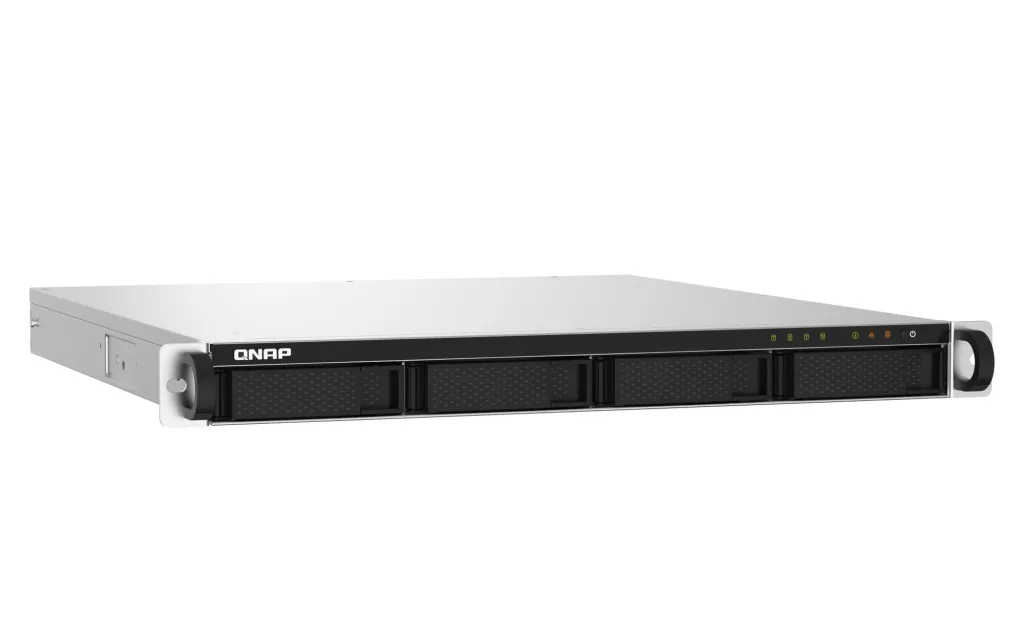

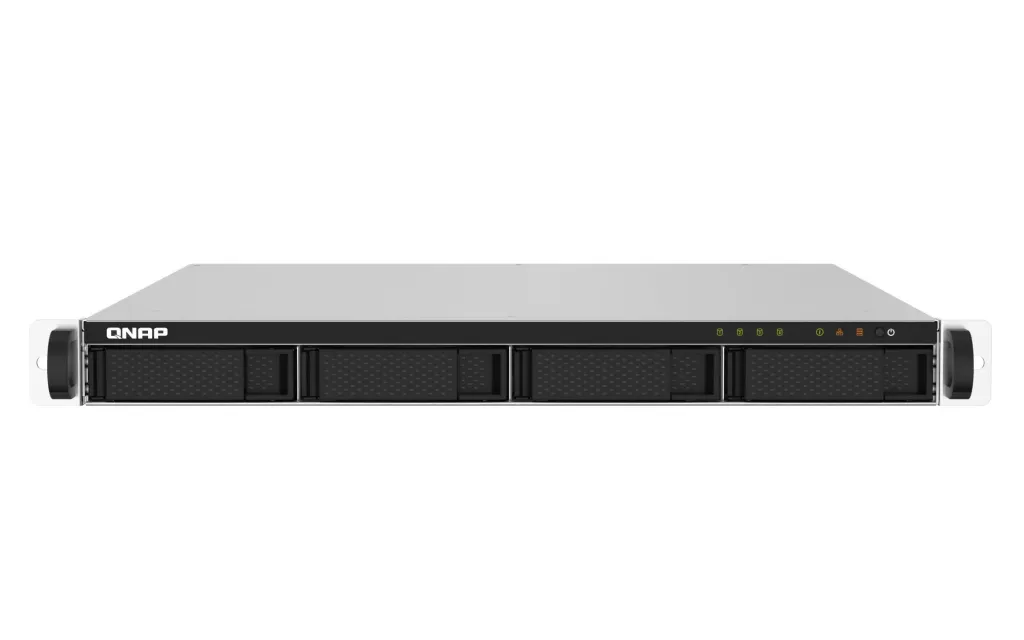

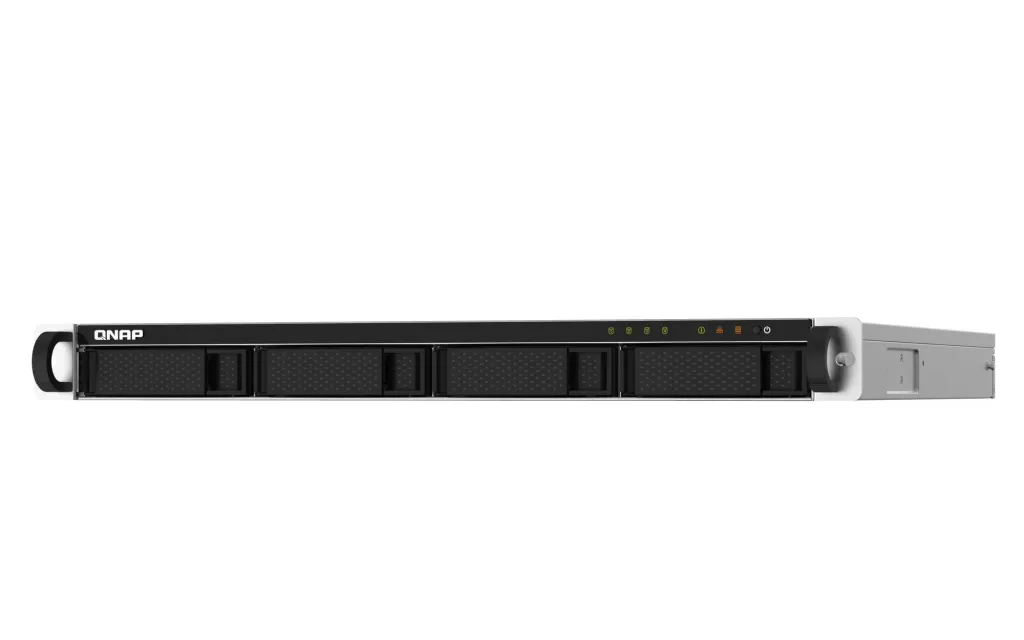

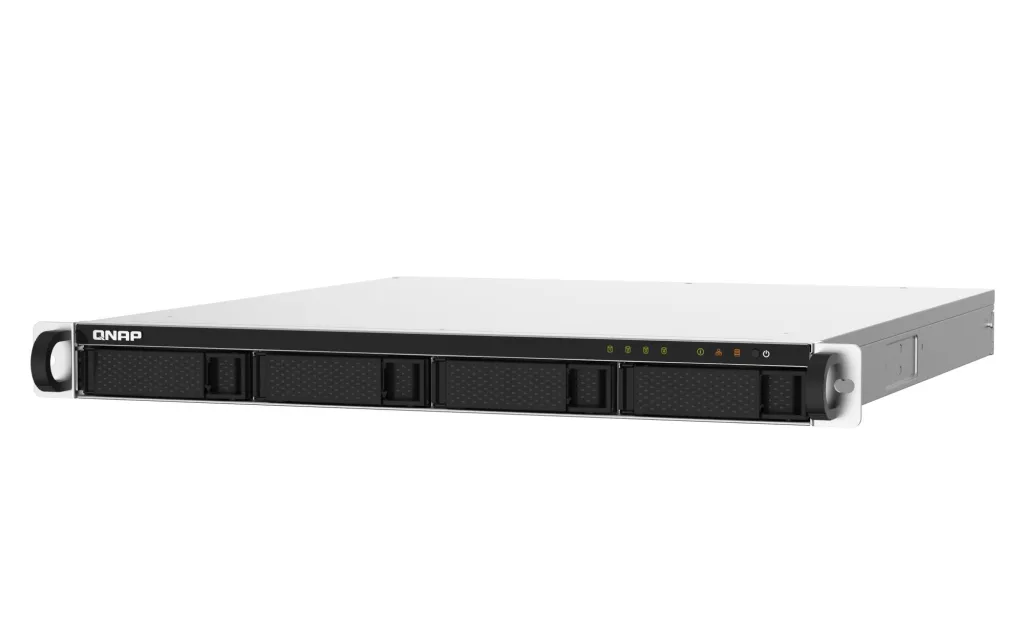

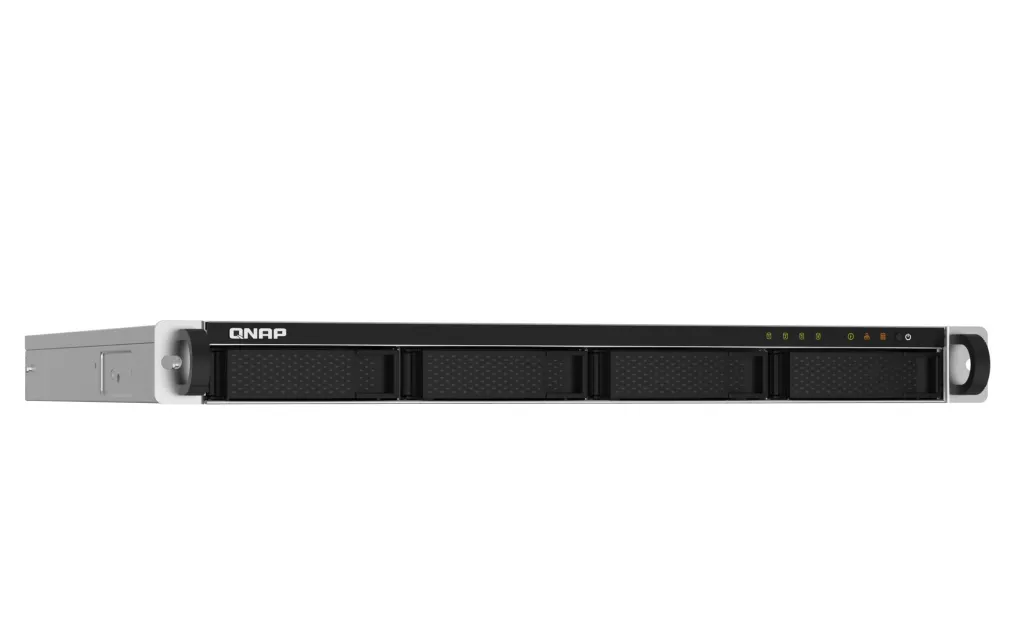

TS-432PXU-RP
Quad-core 1.7GHz rackmount NAS with 10GbE SFP+ and 2.5GbE ports and redundant power supply for SMB IT environments
With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity.
Higher performance x faster throughput
The TS-432PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 2GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-432PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-432PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
Balance performance and capacity
Boost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.
Extend SSD lifespan
SSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-432PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-432PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Easily find and automatically organize files and photos
The TS-432PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
File search
Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.
Photo management
QuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.
Auto archiving
Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.
Secure Google™ Workspace and Microsoft 365® backup
The convenience of Software as a Service (SaaS) solutions such as Google™ Workspace and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-432PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google™ Workspace and Microsoft 365® to provide an extra layer of data protection for business cloud data.
Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-432PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.
Flexibly expand storage capacity whenever needed
The storage capacity of the TS-432PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-432PXU-RP can also be used to expand the storage space of other QNAP NAS.

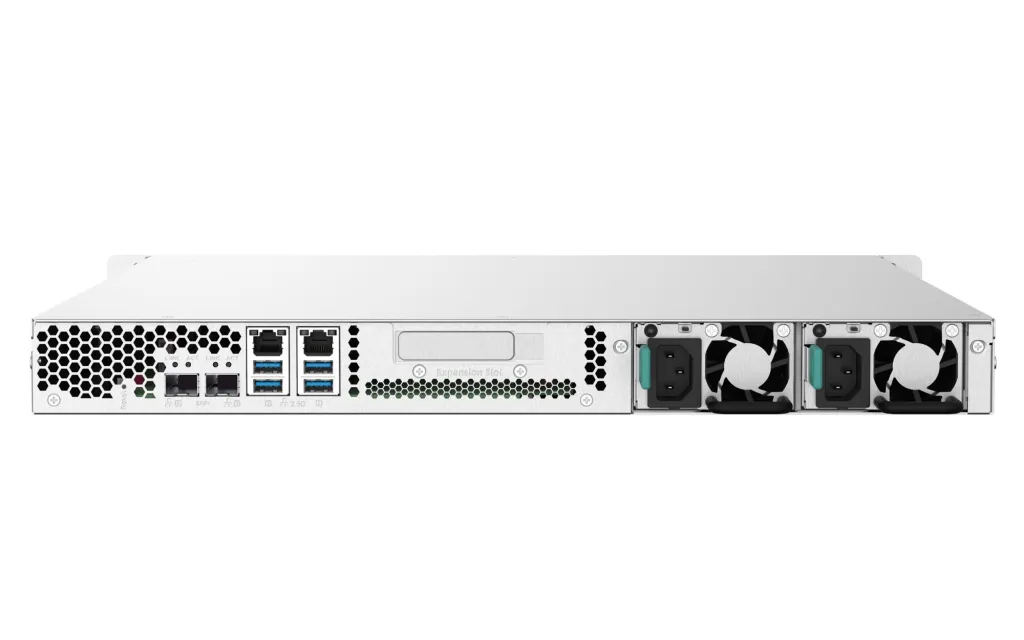

- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports accelerate file sharing
- HBS (Hybrid Backup Sync) backs up and syncs data to other NAS, servers and cloud storage for comprehensive disaster recovery planning
- Boxafe provides an extra layer of protection by backing up emails, cloud drives, contacts, and calendars of Google™ Workspace and Microsoft 365®
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
- Expand the application potential of the TS-432PXU-RP by installing a compatible PCIe card
- Increase the storage capacity of the TS-432PXU-RP with QNAP TR RAID expansion enclosures or TL JBOD
.: Üldised andmed :.
- Tootja koduleht
- https://www.qnap.com/en/product/ts-432pxu-rp
- Mudel
- QNAP TS-432PXU-RP-2G
- Seadme tüüp
- NAS
.: Üldised omadused :.
- Süsteemilogi
- Jah
- Momentvõte
- Jah
- Brauseritugi
- Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome
- Integreeritud FTP server
- Jah
- Jagatud kaust
- CIFS/SMB
- Kuumavaru
- Jah
- Mitmekeelne tugi
- Jah
- RAID-tasemed
- 0, 1, 5, 6, 10, JBOD
- RAID-tugi
- Jah
- S.M.A.R.T.-tugi
- Jah
- Seadme klass
- Väike ja keskmise suurusega ettevõte
- Sumisti
- Jah
- Välkmälu
- 512 MB
- Varundamise funktsioon
- Jah
- Varundamise omadused
- Pilv, iSCSI LUN
.: Disain :.
- Jahutuse tüüp
- Aktiivne
- Keretüüp
- Püstik (1U)
- LED-indikaatorid
- HDD/LAN/Status
- Sisse/välja lüliti
- Jah
- Toote värv
- Must
- Tüüp
- NAS
.: Toimimine :.
- USB copy function
- Jah
- USB kopeerimise funktsioon
- Jah
.: Protsessor :.
- Protsessori sagedus
- 1.7 GHz
- Protsessori perekond
- Annapurna Labs
- Protsessori mudel
- Alpine AL-324
- Protsessorituumad
- 4
- Protsessori seeria
- AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 quad-core 1.7GHz processor
.: Mälu :.
- Paigaldatud operatiivmälu
- 2 GB
- Maksimaalne toetatud RAM
- 16 GB
- Installeeritud ketas
- Ei
- Installeeritud ketaste tüüp
- Ei
- Käigultvahetuse kettalahtrid
- Jah
- Kõvaketta ühenduse tüüp
- Jada ATA II, Jada ATA III
- Mälu kujutegur
- UDIMM
- Toetatud ketaste tüübid
- HDD & SSD
- Toetatud ketaste suurused
- 2.5,3.5"
- Toetatud ketaste arv
- 4
- Mälupesad
- 1
- Sisemälu
- 2 GB
.: Võrgustumine :.
- Ethernet LAN toetatud andmeedastuskiirus (maks)
- 10000 Mbit/s
- WLAN adapter supported
- Jah
- Toetatud WLAN adapter
- Jah
- Ethernet LAN data rate supported (max)
- 10000 Mbit/s
- Koormuse tasakaalustamise süsteem
- Jah
- Linkide koondamine
- Jah
- iSCSI tugi
- Jah
- Wake-on-LAN valmidus
- Jah
- Ethernet LAN
- Jah
- Ethernet LAN-i andmeedastuskiirused
- 100/1000/10000/2500 Mbit/s
.: Pesad & liidesed :.
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 4
- Kiudjuhtme portide arv
- 2
- Fiiberoptiline pistmik
- SFP+
- Ethernet LAN (RJ-45) pordid
- 2
- USB port
- Jah
.: Tarkvara :.
- Operatsioonisüsteemi versioon
- 5,0,0
- Installitud operatsioonisüsteem
- QNAP Turbo System
Võimsus ja energiatarve
- Ventilaatori pinge
- 12 V
- AC-sisendpinge
- 100 - 240 V
- Toiteallikate arv
- 2
- Toiteploki (PSU) maht
- 250 W
- Võimsustarve (tüüpiline)
- 53.343 W
Turvalisus
- Pääsuloend (ACL)
- Jah
- Turvaalgoritmid
- 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
.: Salvestusruum :.
- Online RAID migration
- Jah
- Bad block scan
- Jah
- Vigase ploki skaneerimine
- Jah
- RAID rebuild
- Jah
- Online RAID expansion
- Jah
Jahutus
- Ventilaatori läbimõõt
- 4 cm
- Ventilaatorite arv
- 2 fan(s)
Protokollid
- DHCP-klient
- Jah
- DHCP-server
- Jah
.: Tehnilised andmed :.
- Garantiiaeg
- 3 year(s)
- Sisemälu tüüp
- DDR4
Andmeedastus
- Hiigelkaadrite tugi
- Jah
Juhtimisfunktsioonid
- Veebipõhine haldus
- Jah
- Universaalne Plug and Play (UPnP)
- Jah
Toide
- Toiteploki asukoht
- Sisseehitatud
- Toitenõuded
- 250W (x2) PSU, 100 - 240V
- Voolutarve
- 53.343 Watts
Ergonoomika
- On/off nupp
- Jah
- Lähtestusnupp
- Jah
Funktsioonid
- Mudeli originaalnimi
- TS-432PXU-RP
- Vahelduvvoolu pinge
- 100 - 240 V
Logistika andmed
- Harmonized System (HS) kood
- 84714100
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Protsessori tootja
- Annapurna Labs
- Toetatud failisüsteemid
- FAT32, HFS+, NTFS, ext3, ext4
- Toetatud võrguprotokollid
- PPTP, L2TP/IPSec, OpenVPN, QBelt
.: Toetatud operatsioonisüsteemid :.
- Toetatud Windowsi operatsioonisüsteemid
- Windows 10, Windows 7, Windows 8
- Toetatud Linuxi operatsioonisüsteemid
- Jah
- Toetatud Maci operatsioonisüsteemid
- Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
- Toetatud serverioperatsioonisüsteemid
- Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Töötingimused
- Hoiustamistemperatuur (T-T)
- -20 - 70 °C
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 5 - 95 %
.: Pakendi sisu :.
- Kruvide arv
- 28
.: Pakendi andmed :.
- Pakendi laius
- 625 mm
- Pakendi kõrgus
- 175 mm
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.07062 cubm
- Transpordipakendi kaal
- 11.1 kg
- Transpordipakendi kõrgus
- 17 cm
- Transpordipakendi laius
- 62 cm
- Transpordipakendi sügavus
- 67 cm
- Pakendi tüüp
- Box
- Kaablid kaasa arvatud
- AC/LAN (RJ-45)
- Pakendi sügavus
- 665 mm
- Pakendi kaal
- 11000 g
Tehnilised andmed
- Linux operating systems supported
- Jah
- Server operating systems supported
- Windows Server 2008 R2/Windows Server 2012/Windows Server 2012 R2/Windows Server 2016/Windows Server 2019
- S.M.A.R.T. support
- Jah
- Supported network protocols
- PPTP, L2TP/IPSec, OpenVPN, QBelt
- Power supply location
- Built-in
- Number of storage drives supported
- 4
- DHCP server
- Jah
- Jumbo frames support
- Jah
- Access Control List (ACL)
- Jah
- Number of screws
- 28
- Built-in FTP server
- Jah
- Device class
- Small & Medium Business
- Backup function
- Jah
- Backup features
- Cloud/iSCSI LUN
- Multilingual support
- Jah
- iSCSI support
- Jah
- Wake-on-LAN ready
- Jah
- Supported file systems
- ext3/ext4/FAT32/HFS+/NTFS
- Storage drives installed
- Ei
- Installed storage drive type
- Ei
- Supported storage drive types
- HDD & SSD
- Browser supported
- Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome
- System log
- Jah
- Supported storage drive interfaces
- Serial ATA II,Serial ATA III
- Hot-swap drive bays
- Jah
- Power supply unit (PSU) capacity
- 250 W
- Fiber optic connector
- SFP+
- Processor manufacturer
- Annapurna Labs
- Link aggregation
- Jah
- USB 3.2
- 4
- Unit Box Height
- 0.17
- Unit Box Length
- 0.67
- Unit Box Width
- 0.62
- CnKood
- 84717098
- Üksuse kalkuleeritud maht
- 0.07062 cubm
- Summary
- QNAP TS-432PXU-RP. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Annapurna Labs, Processor model: Alpine AL-324, Processor frequency: 1.7 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB
- Harmonized System (HS) code
- 84714100
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Storage drive sizes supported
- 2.5/3.5 "
- Fiber ports quantity
- 2
- Hot spare
- Jah
- Share folder
- CIFS/SMB
- Snapshot
- Jah
- Buzzer
- Jah
- Chassis type
- Rack (1U)
- Ethernet LAN (RJ-45) ports
- 2
- Load balancing system
- Jah
- Mac operating systems supported
- Mac OS X 10.10 Yosemite/Mac OS X 10.11 El Capitan/Mac OS X 10.12 Sierra/Mac OS X 10.13 High Sierra/Mac OS X 10.14 Mojave/Mac OS X 10.15 Catalina
- Memory form factor
- UDIMM
- NAS features
- Enterprise
- Operating system version
- 5.0.0
- RAID support
- Jah
- Windows operating systems supported
- Windows 10/Windows 7/Windows 8
- Fan Diameter
- 40 mm
- Fan voltage
- 12 V
- Flash memory (ROM)
- 512 MB
- HDD Tray
- 4 x 3.5" SATA 6Gb/s, 3Gb/s
- Maximum RAM supported
- 16 GB
- Number of drives/bays
- 4
- Rack 1U
- Jah
- Raid Levels
- 0/1/10/5/6/JBOD
- Supported drives
- 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 11.1 kg
- Netokaal
- 8.12 kg
- Brutokaal
- 11.1 kg
- Laius
- 439 mm
- Sügavus
- 499 mm
- Kõrgus
- 44 mm
- Mõõtmed (l x s x k)
- 44 × 439 × 499 mm
- Toote kaal
- 8120 g
