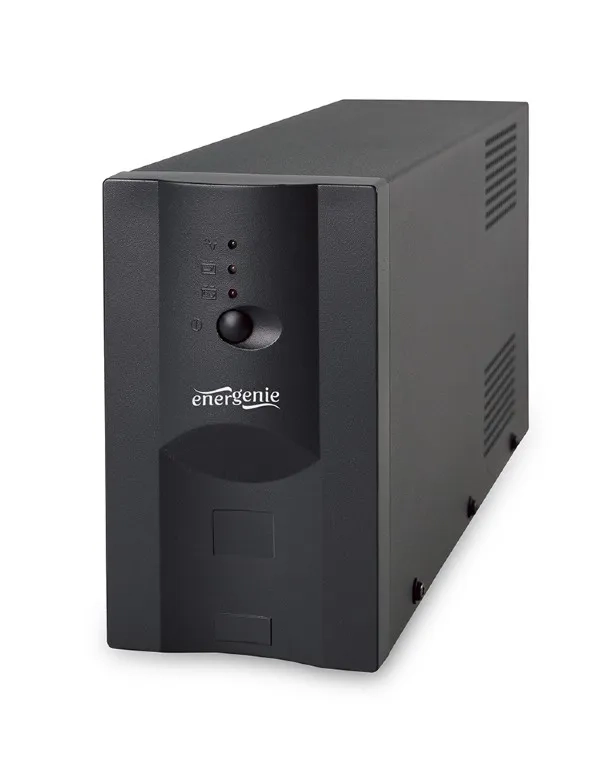

EnerGenie | UPS UPS-PC-1202AP | 1200 VA | 220 V | 220 V

.: Üldised andmed :.

Tootja

EnerGenie

Seadme tüüp

UPS

.: Disain :.

Kujutegur

Tower

Toote värv

Black

.: Pesad & liidesed :.

USB 2.0 portide arv

1

.: Aku & Toiteallikas :.

Akuelementide arv

Accumulator

Akutehnoloogia

Sealed Lead Acid (VR

Aku mahutavus

7 Ah

Võimsus ja energiatarve

Sisseehitatud aku

Jah

Väljundvõimsus

720 W

Andmekandja/Kõvaketas

Maht

1200 VA

.: Tehnilised andmed :.

Garantii

24

Muud funktsioonid

Muud funktsioonid

Input: AC 220V±25%, 50Hz/60Hz ±10%Output: AC 220V±10%, 50Hz/60Hz ±0.5% (on battery)Switching time: no more than 10 msBackup time: 8...20mins (depends on the load)Battery: sealed lead-acid 12V/7Ah x 2pcsCharge time: up to 12 hoursSockets: Schuko EU type, 1 input, 3 outputs; telephone RJ11x2pcs connectors; USB-BF connectorOperating conditions: 0°C~40°C, at humidity 10~90%RH non condensingPower: 1200VADimensions: 382x222x124 mmProduct weight: 10.4 kg

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

10 - 90 %

Kasutamistemperatuur (T-T)

0 - 40 °C

.: Pakendi andmed :.

Pakenditaara kaal

0.72 kg

Pakendi maht

0.02 m³

Kogus pakendi kohta

1.00 pc(s)

Pakendi sügavus

400.00 mm

Pakendi laius ( mm )

300 mm

Pakendi kõrgus ( mm )

185.00 mm

Pakendi sügavus

39 cm

Pakendi kõrgus

29.5 cm

Pakendi laius

18 cm

Tehnilised andmed

Gross height master carton

185 mm

WEE classification

CL109:5:2017-04-01

Composition of battery

CL127:KT:2016-12-09

Classification of battery

CL126:PE:2016-12-09

WEEE tax

Jah

TI weight (kg)

7.16 kg

Tare weight master carton

0.72 kg

Gross depth master carton

400.00 mm

Gross width master carton

300.00 mm

Net weight master carton

10.00 kg

Plastic (No PET)

720.00 g

Input operation voltage (min)

220 V

AC outlet types

C13 coupler, C14 cou

Modem (RJ-11) ports

2

AC outlets quantity

4

RoHS compliance

Jah

UPS topology

Line-Interactive

Battery recharge time

12 h

Battery voltage

12 V

Input operation voltage (max)

220 V

Output operation voltage (max)

220 V

Output operation voltage (min)

220 V

Output power capacity

1200 VA

Power supply input frequency

50/60 Hz

Response Time

10 ms

Special features

Regolazione automatica del voltaggio in output (AVR) Interfaccia USB Indicatori status del LED Protezione da corto circuiti Protezione da sovraccarichi e fulmini Allarmi sonori e visivi Protezione da sovraccaricamento e sovrascaricamento Protezione presa Fax/Modem/Telefono

Typical backup time at full load

20 min

Tehnilised andmed

Laius

22.2 cm

Sügavus

38.2 cm

Kõrgus

12.4 cm

Toote kaal

10.4 g

Brutokaal

10.72 kg

Netokaal

9.28
