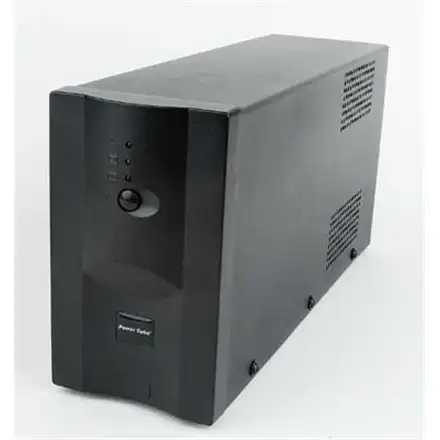

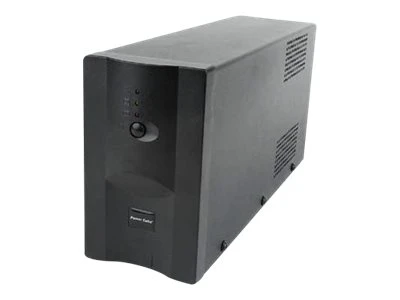

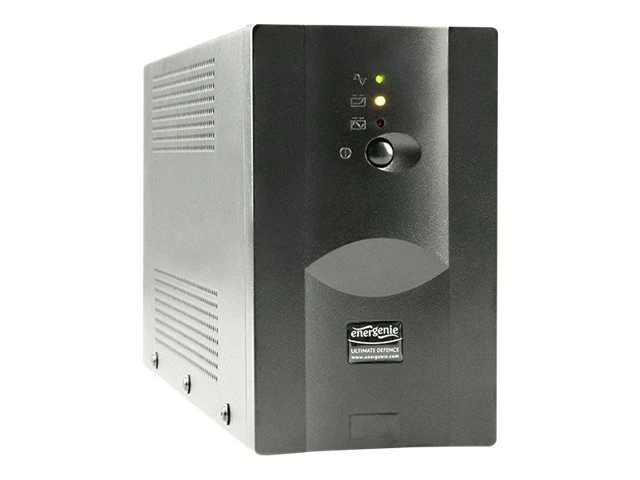

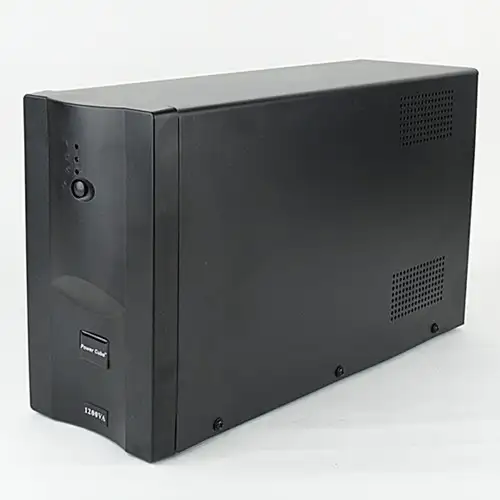

EnerGenie | UPS UPS-PC-850AP | 800 VA | 220 V | 220 V

.: Üldised andmed :.

Tootja

EnerGenie

Seadme tüüp

Input: 220 VAC ± 25%, 50 Hz/60 Hz ± 10%Output: 220 VAC ± 10%, 50 Hz/60 Hz ± 0.5% (on battery)Switching time: no more than 10 msBackup time: 8...20 mins (depends on the load)Battery: sealed lead-acid 12V/7Ah x 1 pcCharge time: up to 12 hoursSockets: Schuko EU type, 1 input, 2 outputs; USB-BF connectorOperating conditions: 0 °C~40 °C, at humidity 10~90 %RH non condensingPower: 850 VADimensions: 340 x 95 x 165 mmProduct weight: 7 kg

.: Disain :.

Kujutegur

Tower

Toote värv

Black

.: Pesad & liidesed :.

USB 2.0 portide arv

1

.: Aku & Toiteallikas :.

Akuelementide arv

Accumulator

Akutehnoloogia

Sealed Lead Acid (VR

Aku mahutavus

7 Ah

Võimsus ja energiatarve

Sisseehitatud aku

Jah

Väljundvõimsus

520 W

Andmekandja/Kõvaketas

Maht

800 VA

.: Tehnilised andmed :.

Garantii

24

Töötingimused

Suhteline õhuniiskus kasutamisel (H-H)

0 - 90 %

Kasutamistemperatuur (T-T)

0 - 40 °C

.: Pakendi andmed :.

Pakenditaara kaal

1.06 kg

Pakendi maht

0.01 m³

Kogus pakendi kohta

1.00 pc(s)

Pakendi sügavus

150 mm

Pakendi laius ( mm )

230 mm

Pakendi kõrgus ( mm )

380 mm

Pakendi sügavus

37.5 cm

Pakendi kõrgus

23 cm

Pakendi laius

14.5 cm

Tehnilised andmed

Tare weight master carton

1.06 kg

Input operation voltage (min)

220 V

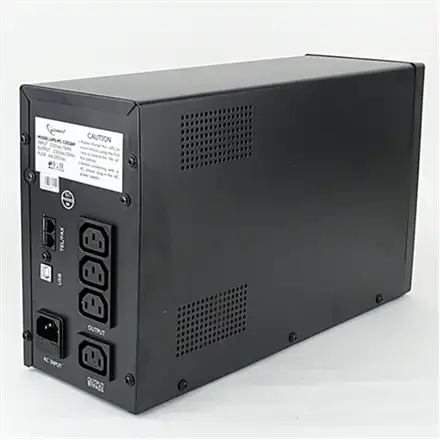

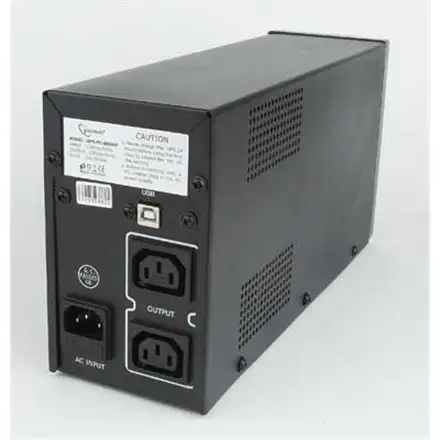

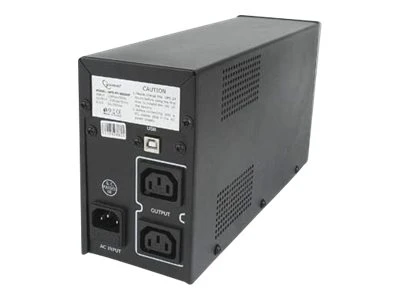

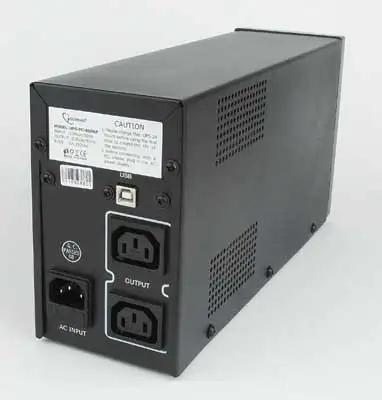

AC outlet types

C13 coupler, C14 cou

AC outlets quantity

2

WEEE tax

Jah

WEE classification

CL109:5:2017-04-01

Composition of battery

CL127:KT:2016-12-09

Classification of battery

CL126:PE:2016-12-09

TI weight (kg)

4.64 kg

Gross depth master carton

150.00 mm

Gross width master carton

230.00 mm

Gross height master carton

380.00 mm

Net weight master carton

5.80 kg

Plastic (No PET)

1060.00 g

Number of batteries supported

1

RoHS compliance

Jah

UPS topology

Line-Interactive

Battery recharge time

12 h

Battery voltage

12 V

Input operation voltage (max)

220 V

Output operation voltage (max)

220 V

Output operation voltage (min)

220 V

Output power capacity

850 VA

Power supply input frequency

50/60 Hz

Response Time

10 ms

Special features

Automatic output voltage regulation (AVR) USB interface LED status indication Short circuit protection Surge, spike and lightning protection Audible and visual alarms Overcharge and overdischarge protection Software is compatible with Windows Vista, Windows 7 and Windows 2008 server

Typical backup time at full load

20 min

Tehnilised andmed

Laius

9.5 cm

Sügavus

34 cm

Kõrgus

16.5 cm

Toote kaal

7 g

Brutokaal

6.86 kg

Netokaal

5.14
