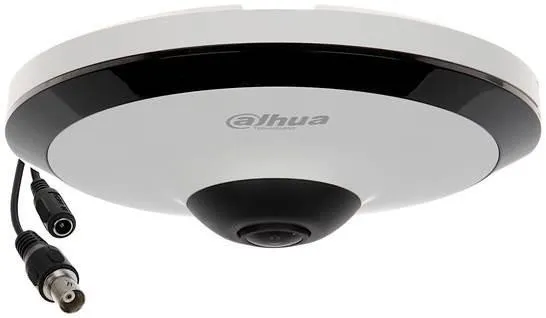

NET CAMERA 5MP FISHEYE IR DOME/IPC-EW5541-AS DAHUA
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 12.82 €. Taotle järelmaksu ostukorvis.
Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer's requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.
With fisheye lens, Dahua Fisheye series camera can realize 360°
surveillance, and it is widely applied in various scenes such as airports,
shopping centers, banks and hotels.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Heat Map
Duhua heat map technology is used to display the crowd density and
people appearance probability. Display the crowd status by different
colors. Generally, the crowd status is the statistics of people quantity in
space and time dimensions.
In Area No.
With advanced stereo image technology and deep leaning algorithm,
Dahua In Area No. technology recognizes human targets accurately to
count people in area in real-time. You can set people quantity threshold,
when the number larger or smaller than the threshold, it triggers
linkage. It is applicable in the scene that has limit on people quantity.
True WDR
With advanced Wide Dynamic Range (120dB WDR) technology, Dahua
network camera provides clear details in the environment of strong
brightness contrast. The bright and dark area can get clear video even in
high brightness environment or with backlight shadow.
Cyber Security
Dahua network camera is equipped with a series of key security
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which improve its security defense and data protection, and
prevent malicious programs from invading the device.
Protection (wide voltage)
The camera allows ±30% (for some power supplies) input voltage
tolerance (wide voltage range), and it is widely applied to outdoor
environment with instable voltage.
- · 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
- · Outputs max. 5MP (2592 × 1944) @25/30 fps
- · H.265 codec, high compression rate, ultra-low bit rate
- · Built-in efficient IR illuminator, and the max. illumination distance: 10 m
- · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- · 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- · Intelligent detection: Intrusion, tripwire, people counting in area
- · Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- · Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
- · 12V DC/PoE power supply, easy for installation
- · Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be expo
.: Üldised andmed :.
- Seadme tüüp
- IP security camera
- Tootja koduleht
- https://www.dahuasecurity.com/products/
.: Üldised omadused :.
- Audioväljundi kanalid
- 1.0 channels
.: Disain :.
- Toote värv
- Black/White
.: Mälu :.
- Integreeritud kaardilugeja
- Jah
- Ühilduvad mälukaardid
- MicroSD (TransFlash)
- Paigaldatud operatiivmälu
- 512 MB
.: Audio :.
- Toetatud audioformaadid
- G.726/PCM
- Sisseehitatud mikrofon
- Built-in
.: Kaamera :.
- Lens viewing angle, vertical
- 180 °
- Valge tasakaalustus
- Auto/Manual/Natural/Outdoor/Street lamp
.: Võrgustumine :.
- Web browser
- Jah
- Ethernet LAN
- Jah
.: Pesad & liidesed :.
- Audioväljund
- 1
.: Aku & Toiteallikas :.
- Toiteallika tüüp
- DC,PoE
Võimsus ja energiatarve
- Võimsustarve (tüüpiline)
- 3.6 W
.: Salvestusruum :.
- ROM capacity
- 128 MB
Pildisensor
- Progressiivne skaneerimine
- Jah
Objektiivi süsteem
- Lens viewing angle, diagonal
- 180 °
- Lens viewing angle, horizontal
- 180 °
Öövaatluse funktsioon
- Öönägemine
- Jah
Toide
- Toitenõuded
- 12V DC/PoE
- Voolutarve
- 7.3 Watts
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Toetatud resolutsioonid
- 1280 x 720 (HD 720)/1280 x 960/1600 x 1200 (UXGA)/2048 x 1536 (QXGA)/2592 x 1944/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Töötingimused
- Kasutamistemperatuur (T-T)
- -10 - 50 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 0 - 95 %
- Hoiustamistemperatuur (T-T)
- -40 - 60 °C
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.003584 cubm
- Transpordipakendi kaal
- 0.488 kg
- Transpordipakendi kõrgus
- 14 cm
- Transpordipakendi laius
- 16 cm
- Transpordipakendi sügavus
- 16 cm
- Pakendi kaal
- 411 g
Tehnilised andmed
- Placement supported
- Indoor & outdoor
- Supported network protocols
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
- Number of cameras
- 1
- Wide Dynamic Range (WDR)
- Jah
- Video motion detection
- Jah
- Number of illumination LEDs
- 3
- LED type
- IR
- Supports card capacities up to
- 256GB
- Unit Box Height
- 0.14
- Unit Box Length
- 0.16
- Unit Box Width
- 0.16
- CnCode
- 85258900
- Unit Calculated Volume
- 0.003584 cubm
- Unit Calculated Weight
- 0.488 kg
- Summary
- Dahua Technology WizMind IPC-EW5541P-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Metal, Plastic. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Detect distance: 28 m, Observe distance: 11.2 m, Recognize distance: 5.6 m
- Adjustment shutter speed
- Auto/Manual
- Number of effective pixels (H x V)
- 2592 x 1944 pixels
- Back Light Compensation (BLC)
- Jah
- Highlight Compensation (HLC)
- Jah
- Noise reduction technology
- 3D noise reduction
- Privacy masking
- Jah
- Number of sensors
- 1
- Number of lenses
- 1
- Intelligent Video Surveillance (IVS) system features
- Heat map/Intrusion/Tripwire
- Region of Interest (ROI) encoding
- Jah
- Detect distance
- 28 m
- Focal length range
- 1.4 mm
- Identify distance
- 2.8 m
- Observe distance
- 11.2 m
- Recognize distance
- 5.6 m
- Dynamic range
- 120 dB
- Bit rate control
- Constant Bit Rate (CBR),Variable Bit Rate (VBR)
- Audio input channels
- 1.0 channels
- Power consumption (Power over Ethernet (PoE))
- 4.4 W
- Alarm input channels
- 1
- Alarm output channels
- 1
- Day/night mode
- Jah
- DC output voltage
- 12
- Management software
- Smart PSS, DSS, DMSS
- Maximum aperture number
- 2
- Mobile operating systems supported
- Android/iOS
- Mounting type
- Ceiling/wall
- Noise reduction
- Jah
- Sensor type
- CMOS
- Supported video modes
- 720p
- Video compression formats
- H.264/H.264B/H.264H/H.265
- Video formats supported
- H.264+/H.265+
- Alarm In
- 1
- Alarm Out
- 1
- Bit rate
- H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
- Built-in microphone
- Jah
- Camera design
- Other
- Camera shutter speed
- 1/3 -1/100000 s
- Certification
- CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
- Closest focusing distance
- 2 m
- Connectivity Technology
- Wired
- Diameter
- 126.2 mm
- Electronic Shutter Speed
- Auto/Manual 1/3 s–1/100,000 s
- Environment
- Outdoor
- Focal Length
- 1.4 mm
- Frame Rate
- 30 fps
- Housing material
- Metal/Plastic
- Lens Mount
- M12
- Maximum memory card size
- 256 GB
- MicroSD Card Slot
- 1
- Min. Illumination
- 0.006 Lux
- Minimum Illumination
- 0.006 lx
- Night vision distance
- 10 m
- Number of users
- 20 user(s)
- Operating temperature range
- –10°C to +50°C
- Optical sensor size
- 1/2.7 "
- Pixel Resolution
- 5 Mega Pixel
- Power Options
- 12V/PoE
- Resolution
- 5 Mega Pixel
- Sensor size
- 1/2.7"
- Signal-to-Noise Ratio (SNR)
- 56 dB
- Total megapixels
- 5 MP
Tehnilised andmed
- Netokaal
- 0.299 kg
- Netokaal
- 0.299 kg
- Brutokaal
- 0.488 kg
- Kõrgus
- 44.6 mm
- Mõõtmed (l x s x k)
- 44.6 mm × Φ126.2 mm
- Toote kaal
- 299 g
