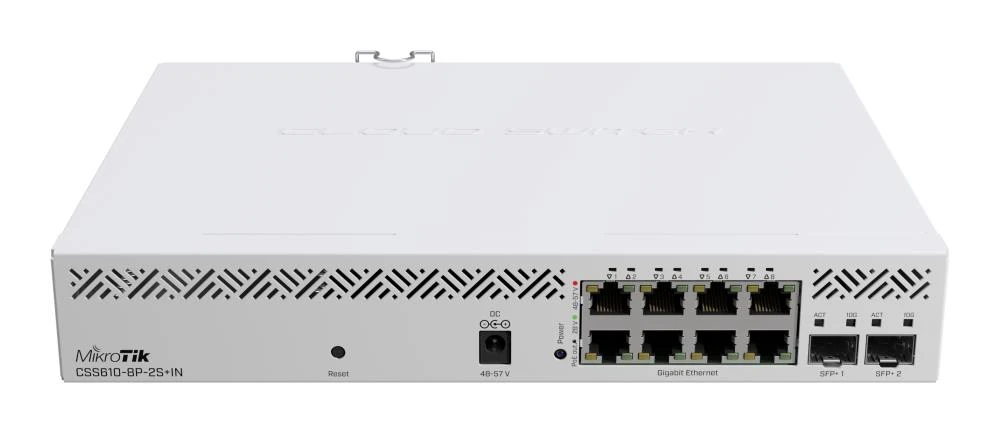

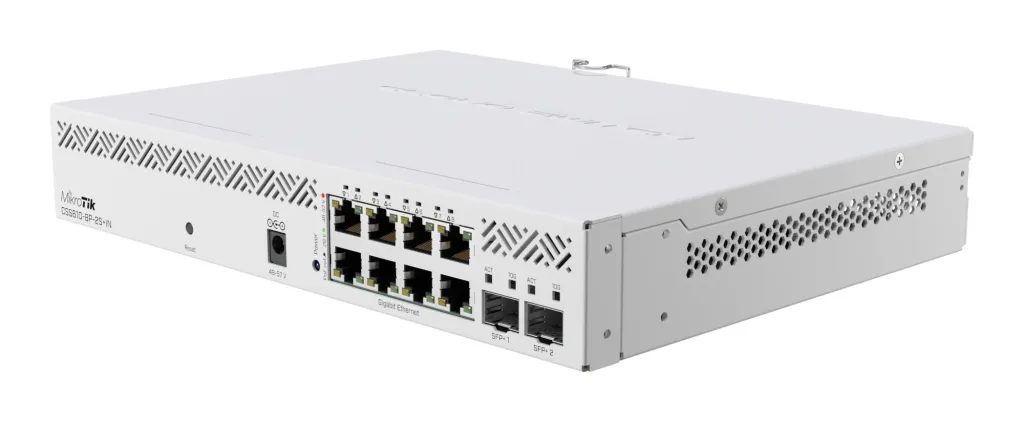

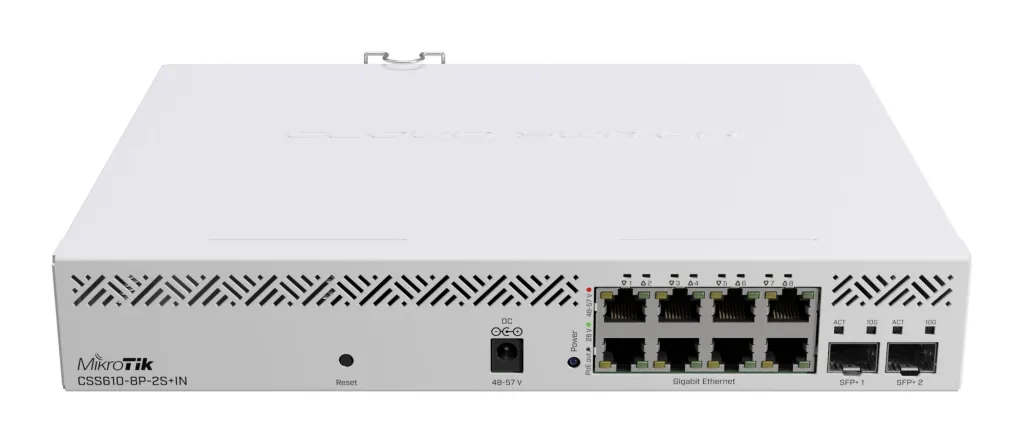

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.
There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out.
This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.
But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!
Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.
.: Üldised andmed :.
- Tootja koduleht
- https://mikrotik.com/product/css610_8p_2s_in#fndtn-downloads
.: Üldised omadused :.
- Välkmälu
- 0.064 MB
.: Disain :.
- Toote värv
- White
- LED-indikaatorid
- Jah
.: Protsessor :.
- Protsessori mudel
- Marvell 88E6193X
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3af/IEEE 802.3at
- VLAN-i tugi
- Jah
.: Tarkvara :.
- Installitud operatsioonisüsteem
- SwitchOS Lite
Võimsus ja energiatarve
- Sisendvool
- 2.2 A
- Power over Ethernet (PoE)
- Jah
- Sisendsagedus
- 50 - 60 Hz
.: Tehnilised andmed :.
- Sustainability compliance
- Jah
- Compliance certificates
- CE/RoHS
Toide
- Toiteallikas
- AC/DC
Ergonoomika
- Lähtestusnupp
- Jah
Funktsioonid
- Vahelduvvoolu pinge
- 100 - 240 V
Internet elektrivõrgu kaudu (PoE)
- Power over Ethernet (PoE) type supported
- Passive PoE
Logistika andmed
- Kogus transpordikasti kohta
- 5
Töötingimused
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi andmed :.
- Kaablid kaasa arvatud
- AC
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.006175 cubm
- Transpordipakendi kaal
- 1.981 kg
- Transpordipakendi kõrgus
- 25 cm
- Transpordipakendi laius
- 6.5 cm
- Transpordipakendi sügavus
- 38 cm
Tehnilised andmed
- Installed SFP+ modules quantity
- 2
- Rack mounting
- Jah
- MAC address filtering
- Jah
- Broadcast storm control
- Jah
- 10G support
- Jah
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE) ports quantity
- 8
- DC input voltage
- 48 - 57 V
- Fanless
- Jah
- Rack mount kit
- Jah
- Unit Box Height
- 0.25
- Unit Box Length
- 0.38
- Unit Box Width
- 0.065
- Unit Calculated Volume
- 0.00741 cubm
- Unit Calculated Weight
- 2.2 kg
- Summary
- Mikrotik CSS610-8P-2S+IN. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Rack mounting
- Power supply included
- Jah
- 10Base-T / 100Base-TX / 1000Base-T
- 8
- Certification
- EAC
- Mean time between failures (MTBF)
- 200000 h
- Primary port count
- 8
- SFP+
- 2
- Switch type
- Managed
- Switching capacity
- 56 Gbit/s
- Total Power over Ethernet (PoE) budget
- 140 W
Tehnilised andmed
- Netokaal
- 0.7 kg
- Netokaal
- 0.7 kg
- Brutokaal
- 1.98 kg
- Laius
- 272 mm
- Sügavus
- 216 mm
- Kõrgus
- 50 mm
- Mõõtmed (l x s x k)
- 272 x 216 x 50 mm
