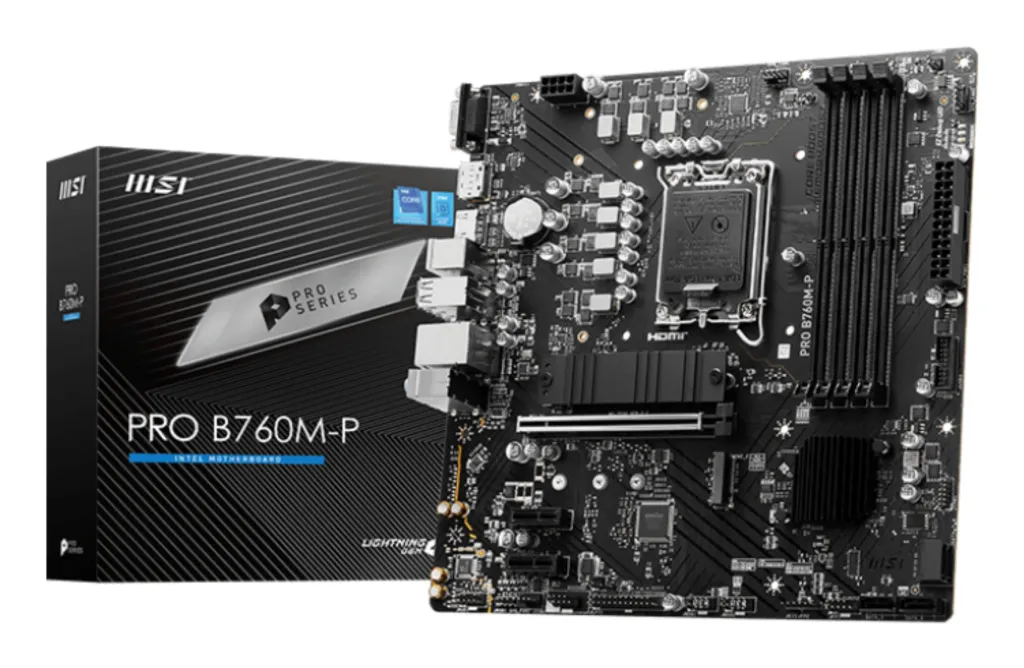

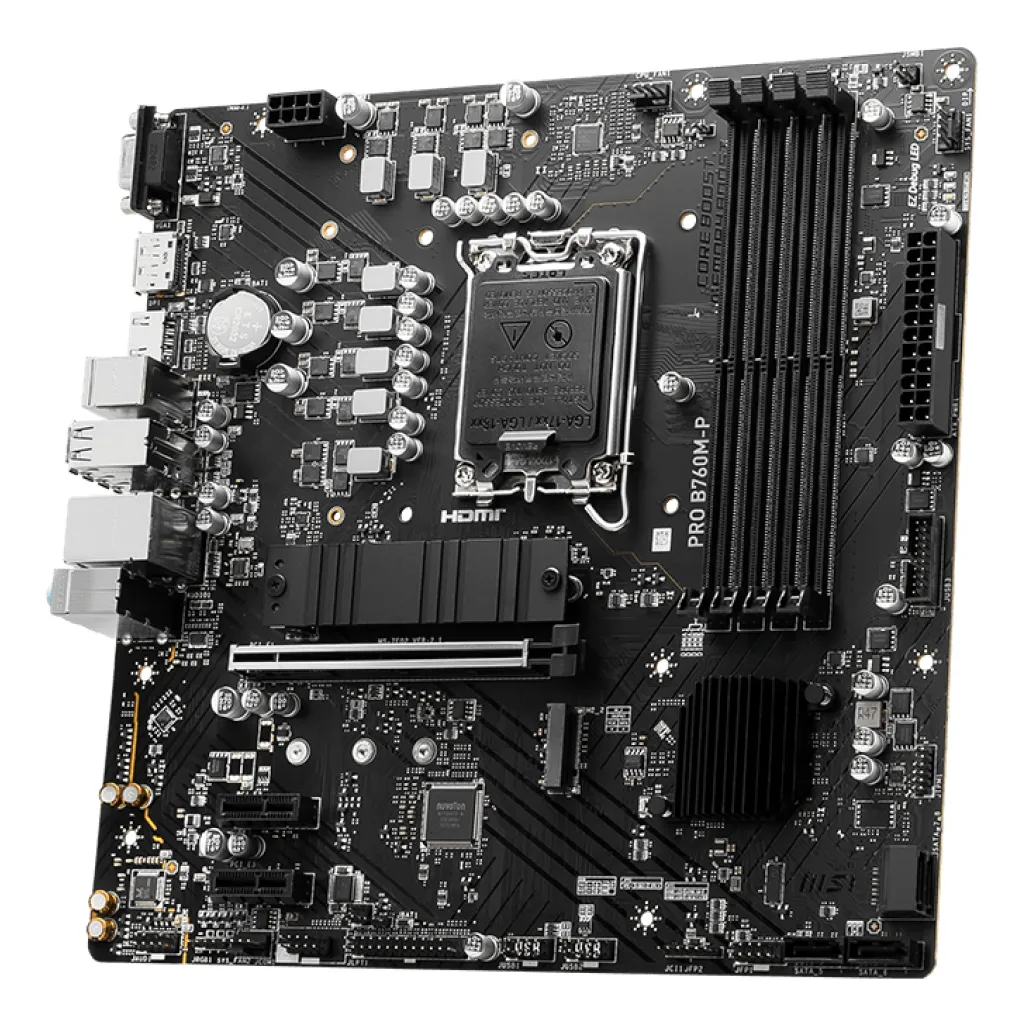

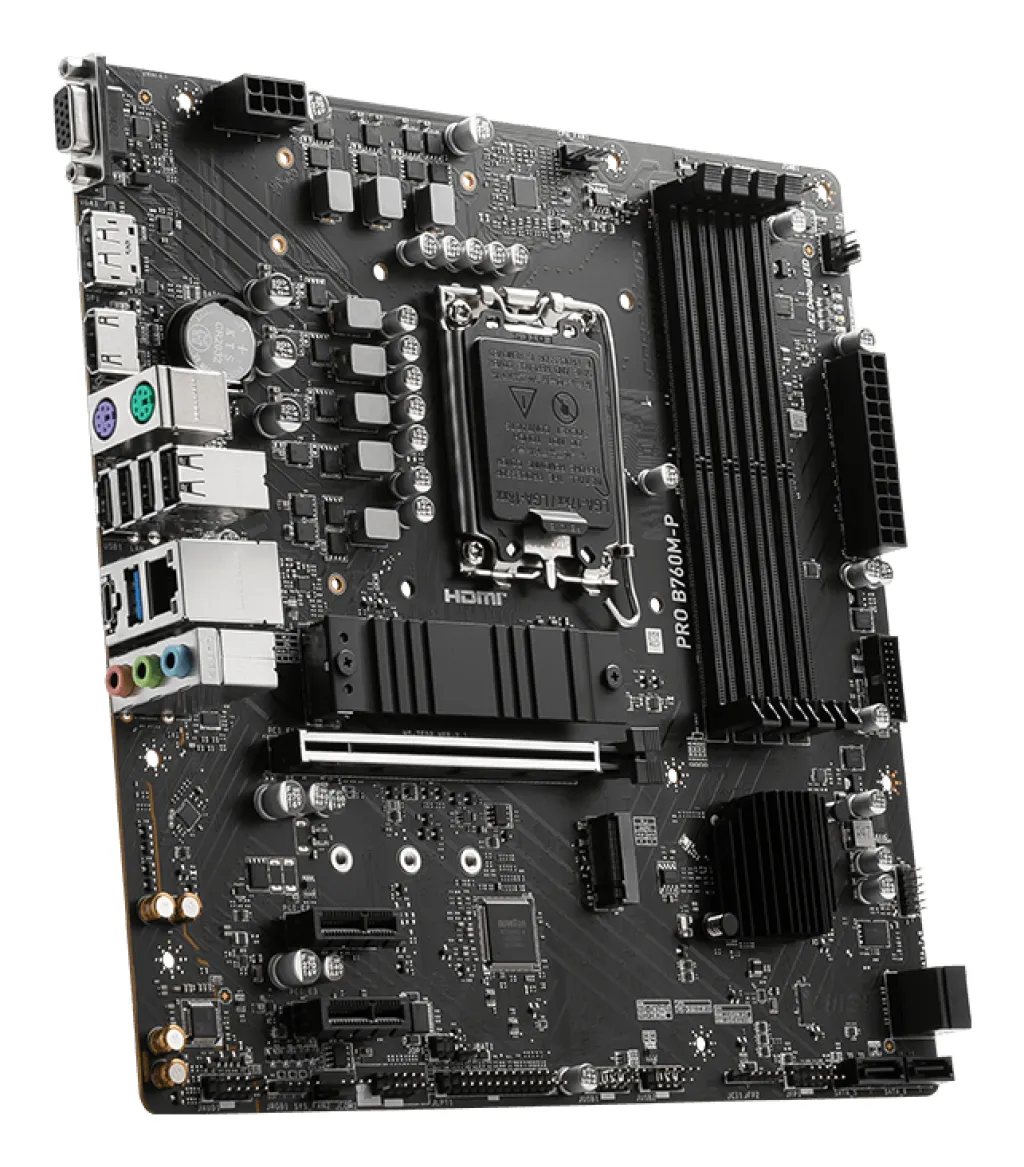

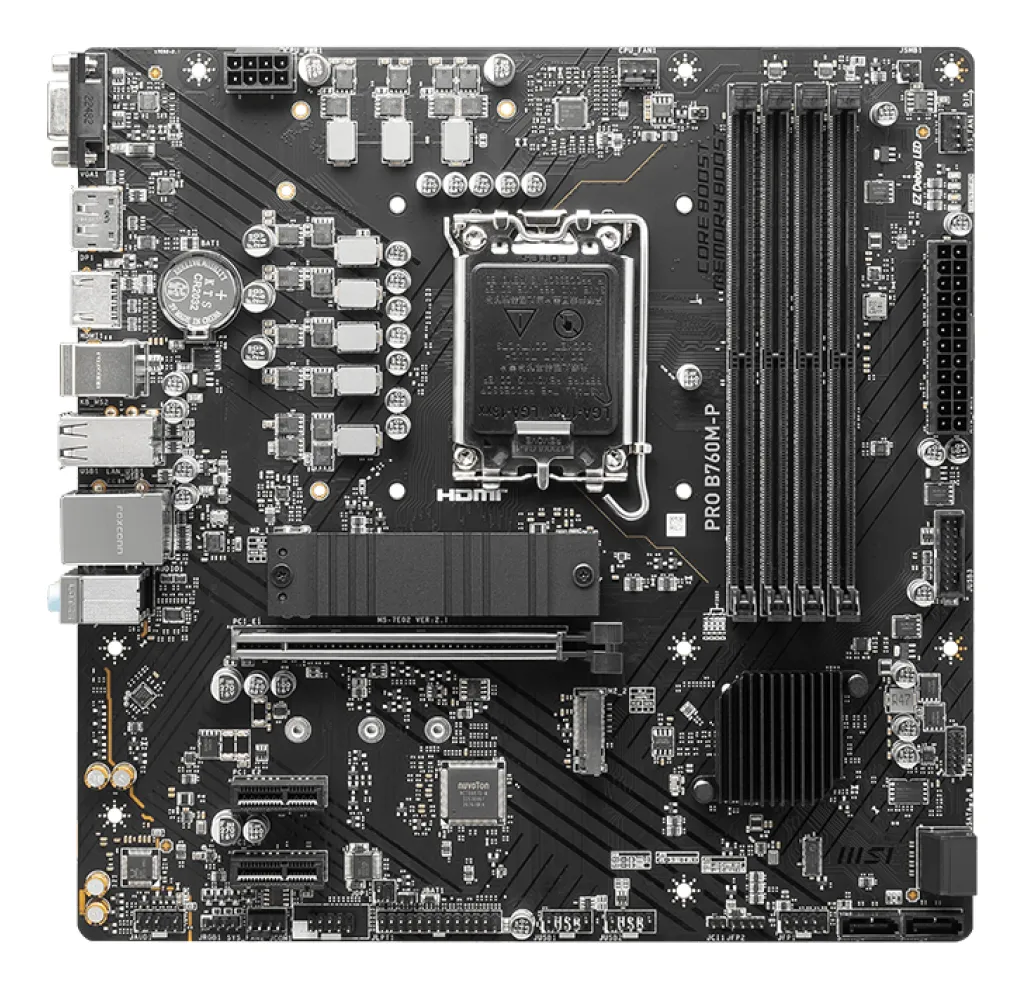

MSI PRO B760M-P emaplaat Intel B760 LGA 1700 Mikro ATX

Muud näitajad

Compatible processor series

Intel® Celeron®/Intel® Pentium® Gold

Supported processor sockets

LGA 1700

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

Motherboard chipset family

Intel

Number of COM connectors

1

Chassis intrusion connector

Jah

Supported memory types

DDR5-SDRAM

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Clear CMOS jumper

Jah

ACPI version

6.4

Line-in

Jah

Number of storage drives supported

6

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

SATA III

Processor manufacturer

Intel

System management BIOS (SMBIOS) version

3.5

RGB LED pin header

Jah

DisplayPort arv

1

DisplayPort versioon

1.4

RGB LED pin ots

Jah

USB 3.2

Jah

USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk

1

USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk

1

USB 3.2 Gen 1 (3.1 Gen 1) pistmikud

2

USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk

0

USB 3.2 Gen 2 (3.1 Gen 2) konnektorid

0

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) pilud

1

Unit Box Height

0.056

Unit Box Length

0.3

Unit Box Width

0.275

CnCode

84733020

PCI Express x1 (Gen 4.x) pesad

2

ECC сompatibility

Non-ECC

ECC ühilduvus

Mitte-ECC

Unit Calculated Volume

0.005452 cubm

Unit Calculated Weight

1 kg

Summary

MSI PRO B760M-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Audio chip

Realtek ALC897

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Front panel connector

Jah

PCI Express x1 (Gen 4.x) slots

2

DisplayPort versioon

1.4

Kogus transpordikasti kohta

10

USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk

0

Component for

PC

COM-pistmike arv

1

Paralleelpistmik

Jah

Toetatud kõvaketaste arv

4

Toetatud ketaste tüübid

HDD & SSD

Toetatud ketaste arv

6

Tootja koduleht

https://www.msi.com/Motherboard/PRO-B760M-P/Specification

Transpordipakendi kaal

0.9 kg

Transpordipakendi kõrgus

5.6 cm

Transpordipakendi laius

27.5 cm

Transpordipakendi sügavus

30 cm

HDMI-versioon

1.4

DisplayPorts quantity

1

Sisendkanal

Jah

Ethernet interface type

Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

1.4

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

Intel B760

RAID support

Jah

Toetatud protsessoripesad

LGA 1700

Unbuffered memory

Jah

VGA (D-Sub) ports quantity

1

Windows operating systems supported

Windows 10 x64/Windows 11 x64

BIOS memory size

256 Mbit

DisplayPort

1

LAN controller

Realtek RTL8111H

Mudel

PRO B760M-P

Number of memory slots

4

Parallel connector

Jah

Processor Socket

LGA 1700

Raid Levels

0/1/10/5

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz

USB 2.0 connectors

4

USB-C

1
