Mainboard|MSI|AMD B840|SAM5|ATX|Memory slots 4|5xPCI-Express 16x|2xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B840GAMINGPLUSWIFI
137.29€
AL1
AL1
168.31€
AC
AC
134.85€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 8.19 €. Taotle järelmaksu ostukorvis.

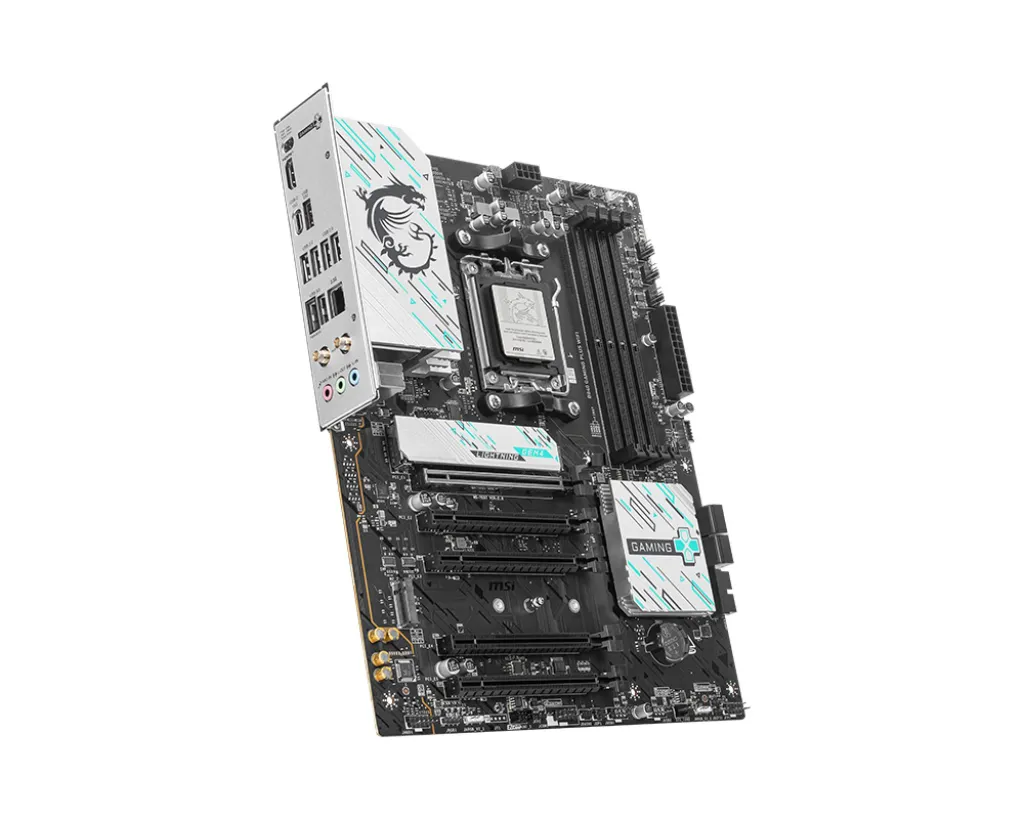

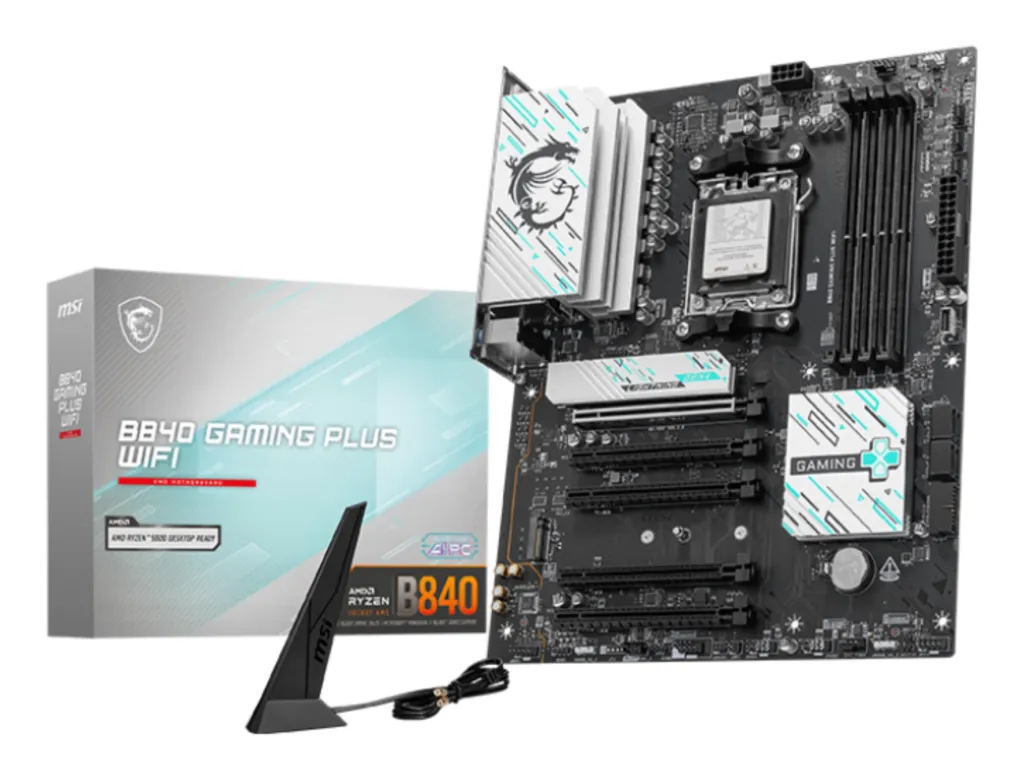

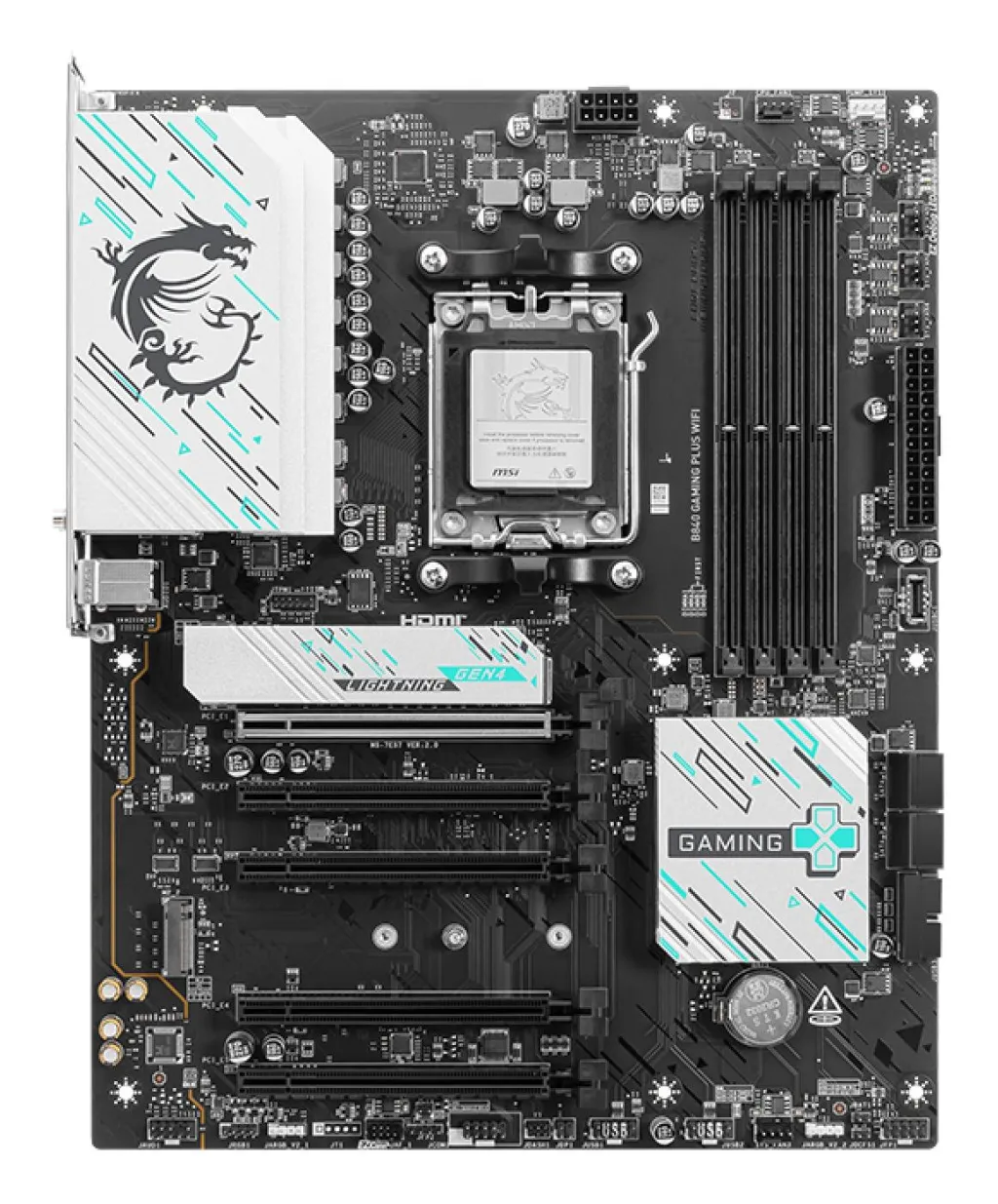

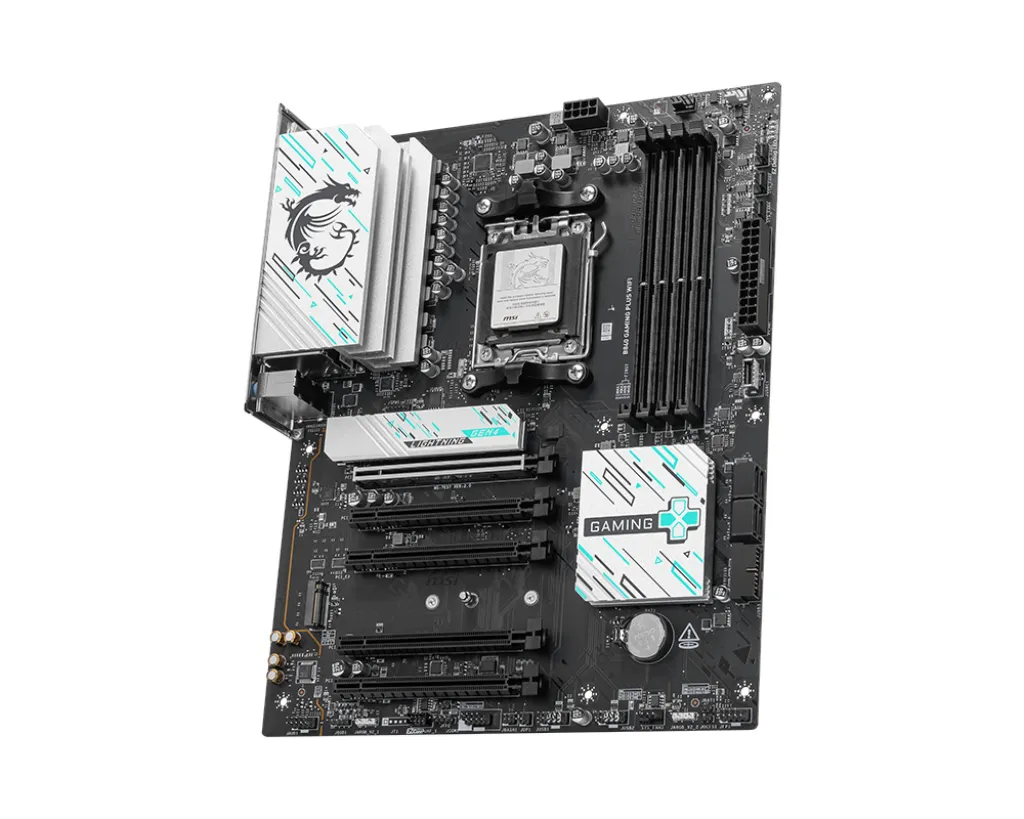

B840 GAMING PLUS WIFI
The B840 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8-pin power connector and exclusive Core Boost technology, the B840 GAMING PLUS WIFI is ready to sustain heavy gaming loadings.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Tootja
MSI
Tootekood
B840 GAMING PLUS WIFI
EAN
4711377286589
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Komponent
- PC
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 243.84 mm
- Sügavus
- 304,8 mm
- Toetatud Windowsi operatsioonisüsteemid
- Windows 11 x64
- PC tervise monitoorimine
- CPU, Ventilaator, Temperatuur, Pinge
.: Protsessor :.
- Protsessori tootja
- AMD
- Ühilduvad protsessoriseeriad
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Emaplaadi kiibistik
- AMD
- Kiibistik ( Chipset)
- AMD B840
- Emaplaadi kiip
- AMD B840
.: Mälu :.
- Toetatud mälutüübid
- DDR5-SDRAM
- Mälupesa tüüp
- DIMM
- Toetatud mälu taktsagedused
- 4800,5600,8000 MHz
- Taktsagedus
- 4800/4866/4933/5000/5066/5100/5133/5200/5300/5333/5400/5500/5600/5800/6000/6200/6400/6600/6666/6800/7000/7200/7400/7467/7500/7600/7800/7900/7950/8000 MHz
- Pesade arv
- 4
- Mälupesad
- 4
- Mälukanalid
- Kahe kanaliga
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Helikiip
- Realtek ALC897
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 7.1 channels
- Sisseehitatud mikrofon
- 1
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- Ethernet-liidese tüüp
- 2.5 Gigabit Ethernet
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.4
Laienduspesad
- PCI Expressi x16 pesad
- 5
- PCI Expressi x16 (Gen 3.x) pesad
- 4
Kõvaketta tugi
- Kõvaketta ühenduse tüüp
- M.2, Micro SATA III
- SATA
- Jah
- SATA-ühenduste arv
- 0
- SATA II ühenduste arv
- 0
- SATA III ühenduste arv
- 4
- SATA 3.0
- Jah
- M.2 (M) siinide arv
- 2
- RAID-tugi
- Jah
- RAID-tasemed
- 0, 1, 10
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- Kere ventilatsiooniühenduste arv
- 5
- USB 2.0 pistmikud
- 4
- TPM-ühenduspesa
- Header

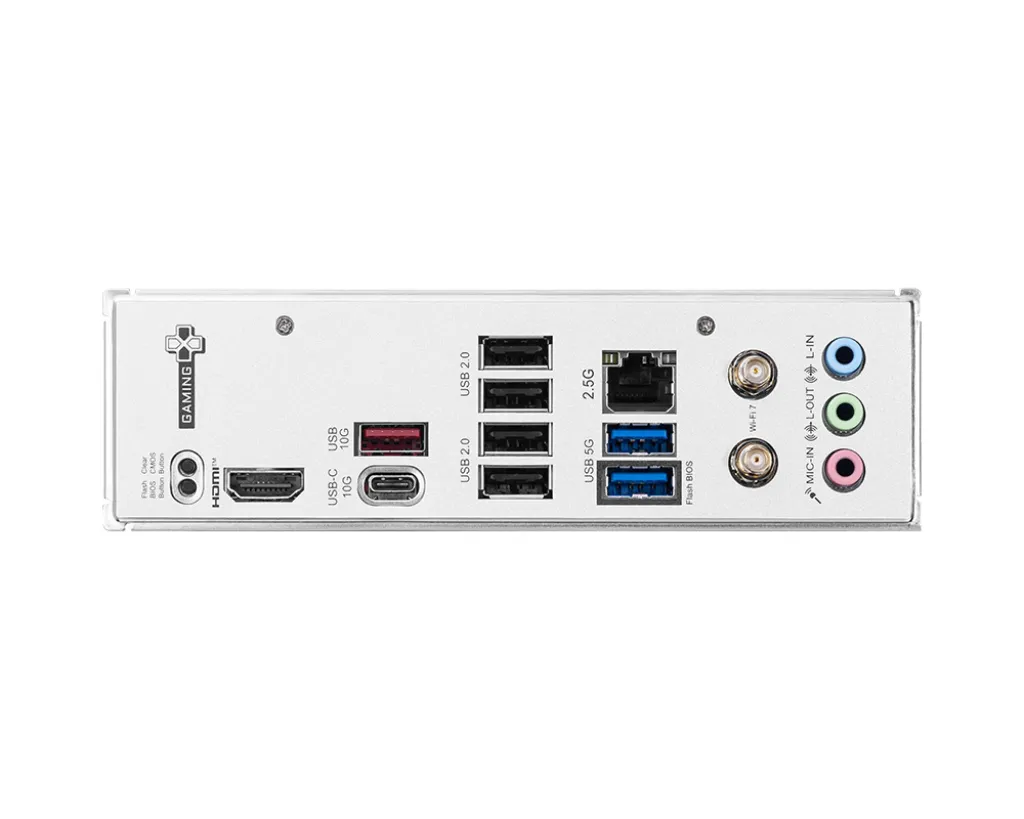

Tagapaneeli I/O pesad
- VGA (D-Sub) portide arv
- 0
- HDMI-portide arv
- 1
- DVI-D liideste arv
- 0
- Audioväljund
- 1
- Audio sisend
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
BIOS
- BIOS-i tüüp
- UEFI AMI
- ACPI versioon
- 6.5
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.74 kg
- Netokaal
- 1.3 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.008299 cubm
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Pesa AM5
- BIOS type
- UEFI AMI
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 5
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 4
- ACPI version
- 6.5
- Number of M.2 (M) slots
- 2
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,Micro SATA III
- Processor manufacturer
- AMD
- RGB LED pin header
- Jah
- RGB LED pin ots
- Jah
- USB 3.2
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) pistmikud
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) konnektorid
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) pilud
- 1
- Supported memory clock speed (max)
- 8000 MHz
- Unit Box Height
- 0.07
- Unit Box Length
- 0.345
- Unit Box Width
- 0.275
- CnKood
- 84733020
- Toetatud mälu taktsageduse kiirus (maks)
- 8000 MHz
- ECC сompatibility
- Non-ECC
- ECC ühilduvus
- Mitte-ECC
- Üksuse kalkuleeritud maht
- 0.008299 cubm
- Üksuse kalkuleeritud kaal
- 1.74 kg
- Kokkuvõte
- MSI B840 GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Total number of SATA connectors
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- CPU/Fan/Temperature/Voltage
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Tootja koduleht
- https://www.msi.com/Motherboard/B840-GAMING-PLUS-WIFI/Overview
- HDMI versioon
- 2.1
- Mudel
- B840 GAMING PLUS WIFI
- USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk
- 1
- Number of CPU fan connectors
- 1
- Protsessoriventilaatori ühenduste arv
- 1
- Number of water pump connectors
- 1
- Veepumba liitmike arv
- 1
- Number of RGB LED pin headers
- 3
- RGB LED-pooljuhtide arv
- 3
- 1st M.2 largest key size
- 2280
- 1. M.2 suurim võtme suurus
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- 1. M.2 kõrgeima PCI Expressi põlvkonna M.2
- 4.0
- 2nd M.2 largest key size
- 22110
- 2. M.2 suurim võtme suurus
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 4.0
- 2. M.2 kõrgeima PCI Express põlvkonna M.2
- 4.0
- Transpordipakendi kaal
- 17.44 kg
- Transpordipakendi kõrgus
- 38 cm
- Transpordipakendi laius
- 39 cm
- mSATA-pesade arv
- 0
- Transpordipakendi sügavus
- 56 cm
- Kogus transpordikasti kohta
- 10
- Toetatud kõvaketaste arv
- 4
- Protsessori poolt toetatud maksimaalne operatiivmälu
- 256 GB
- Toetatud ketaste tüübid
- HDD & SSD
- Toetatud ketaste arv
- 6
- HDMI-versioon
- 2.1
- SATA-ühenduste koguarv
- 4
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Toote värv
- Must
- Motherboard chipset
- AMD B840
- RAID support
- Jah
- Toetatud protsessoripesad
- Protsessoripesa AM5
- Windows operating systems supported
- Windows 11 x64
- Maximum internal memory supported by processor
- 256 GB
- Number of memory slots
- 4
- Processor Socket
- Pesa AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4800/5600/8000 MHz
- USB 2.0 connectors
- 4
- USB-C
- Jah
