Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|PROZ790-PWIFI
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 9.83 €. Taotle järelmaksu ostukorvis.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 304.8 mm
- Sügavus
- 243.84 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel Z790
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/5000/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 6
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Laienduspesad
- PCI Expressi x1 pesad
- 1
- PCI Expressi x16 pesad
- 3
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 4
- RAID
- SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

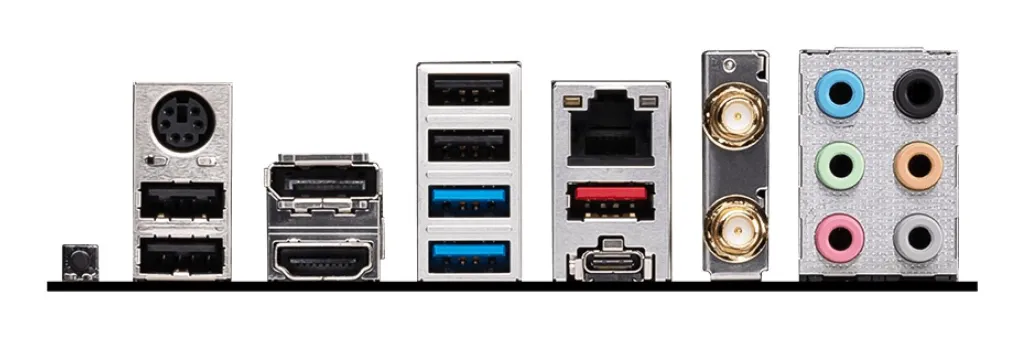

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.56 kg
- Netokaal
- 1.3 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.006371 cubm
Muud n?itajad
- System management BIOS (SMBIOS) version
- 3.5
- On-board graphics card
- Ei
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Unit Calculated Weight
- 1.65 kg
- Product Net Weight
- 1.3 kg
- Unit Calculated Volume
- 0.007339 cubm
- ECC сompatibility
- Non-ECC
- CnCode
- 84733020
- Unit Box Width
- 0.27
- Unit Box Length
- 0.347
- Unit Box Height
- 0.068
- Supported memory clock speed (max)
- 7000 MHz
- USB 3.2
- Jah
- RGB LED pin header
- Jah
- Summary
- MSI PRO Z790-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, Internal storage capacity: 10 GB. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
- Processor manufacturer
- Intel
- Supported storage drive interfaces
- M.2,PCI Express
- Supported storage drive types
- HDD & SSD
- Number of M.2 (M) slots
- 4
- Parallel processing technology support
- Not supported
- Number of SATA III connectors
- 6
- Front panel audio connector
- Jah
- Supported memory types
- DDR5-SDRAM
- S/PDIF out port
- Jah
- Motherboard chipset family
- Intel
- BIOS type
- UEFI AMI
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- Front panel connector
- Jah
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Audio chip
- Realtek ALC897
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- DisplayPort versioon
- 1.4
- Kogus transpordikasti kohta
- 10
- Toote värv
- Black
- Kaasas tarkvara
- Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition
- Component for
- PC
- Tootja koduleht
- https://www.msi.com/Motherboard/PRO-Z790-P-WIFI/Overview
- Transpordipakendi kaal
- 1.56 kg
- Transpordipakendi kõrgus
- 6.8 cm
- Transpordipakendi laius
- 27 cm
- Transpordipakendi sügavus
- 34.7 cm
- DisplayPorts quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Motherboard chipset
- Intel Z790
- RAID support
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- Internal storage capacity
- 10 GB
- Mudel
- PRO Z790-P WIFI
- Number of memory slots
- 4
- Processor Socket
- LGA 1700
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 4800/5000/5200/5400/5800/6000/6400/6600/6800/7000 MHz
- USB 2.0 connectors
- 4
- USB-C
- 1
