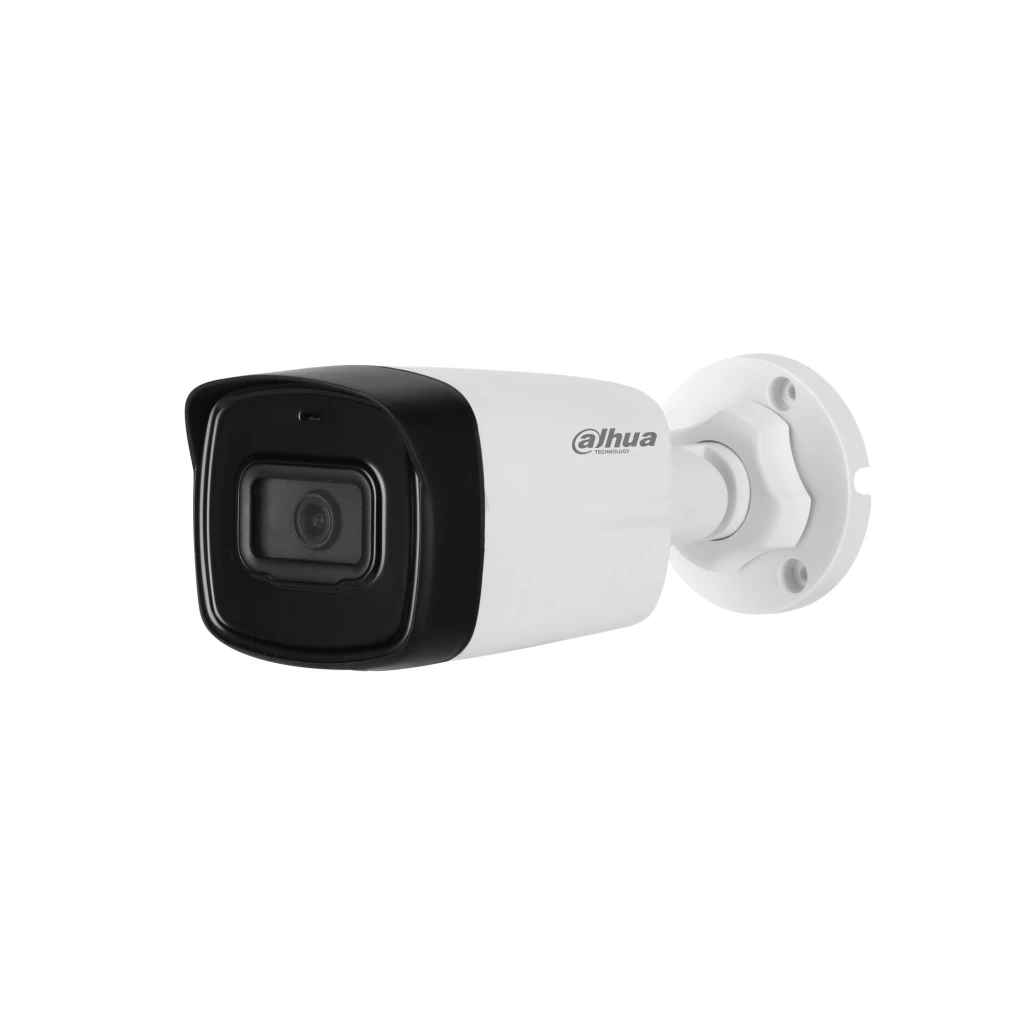

CAMERA HDCVI 1080P IR BULLET/HAC-HFW1200TL-0360B DAHUA

.: Üldised andmed :.

Tootja koduleht

https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/1080-P/HAC-HFW1200TL-A

Seadme tüüp

CCTV security camera

.: Disain :.

Kujutegur

Bullet

Toote värv

Black/White

.: Audio :.

Sisseehitatud mikrofon

Built-in

.: Kaamera :.

Valge tasakaalustus

Auto/Manual

.: Aku & Toiteallikas :.

Toiteallika tüüp

DC

Pildisensor

Progressiivne skaneerimine

Jah

Objektiivi süsteem

Lens viewing angle, horizontal

87.5 °

Öövaatluse funktsioon

Öönägemine

Jah

Toide

Toitenõuded

12 VDC

Voolutarve

5.3 Watts

Ergonoomika

Pöördenurga ulatus

360 °

Logistika andmed

Kogus transpordikasti kohta

20

Töötingimused

Hoiustamistemperatuur (T-T)

-40 - 60 °C

Kasutamistemperatuur (T-T)

-40 - 60 °C

Suhteline õhuniiskus kasutamisel (H-H)

0 - 95 %

.: Pakendi andmed :.

Max kogus transpordipakendis

20

Pakendi maht

0.004671 cubm

Transpordipakendi kaal

8.8 kg

Transpordipakendi kõrgus

25 cm

Transpordipakendi laius

53 cm

Transpordipakendi sügavus

70.5 cm

Pakendi kaal

400 g

Tehnilised andmed

Number of cameras

1

Unit Box Length

0.25

Unit Box Width

0.135

CnKood

85258900

Üksuse kalkuleeritud maht

0.004671 cubm

Summary

Dahua Technology Lite HAC-HFW1200TL-A. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.02 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 87.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 1920 x 1080 pixels. Fixed focal length: 3.6 mm

Tilt angle range

0 - 90 °

Unit Box Height

0.11

LED type

IR

Number of illumination LEDs

2

Number of effective pixels (H x V)

1920 x 1080 pixels

Wide Dynamic Range (WDR)

Jah

Camera pan control

Jah

Camera tilt control

Jah

Back Light Compensation (BLC)

Jah

Digital Wide Dynamic Range (DWDR)

Jah

Highlight Compensation (HLC)

Jah

Noise reduction technology

2D noise reduction

Privacy masking

Jah

Smart IR

Jah

Mirror

Jah

Number of sensors

1

Number of lenses

1

Placement supported

Indoor & outdoor

Infrared (IR) cut-off filter

Jah

Rahvusvaheline Kaitsekood ( IP )

IP67

Camera shutter type

Electronic

Day/night mode

Jah

DC output voltage

12

Maximum aperture number

1.9

Mounting type

Ceiling/wall

Noise reduction

Jah

Sensor type

CMOS

Supported video modes

1080p/720p

BNC

1

Built-in HDD

Ei

Built-in microphone

Jah

Camera design

Bullet

Camera shutter speed

1/3 - 1/100000 s

Certification

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Connectivity Technology

Wired

Effective pixels

1920(H)×1080(V)

Electronic Shutter Speed

PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s

Environment

Outdoor

Fixed focal length

3.6 mm

Frame Rate

30 fps

Housing material

Metal/Plastic

IR Illumination

Jah

Min. Illumination

0.02 Lux

Minimum Illumination

0.02 lx

Net camera resolution

2 - 4MP

Network Camera Type

HDTV/Megapixel/Outdoor

Night vision distance

80 m

Optical sensor size

1/2.7 "

Pan range

0 - 360 °

Pixel Resolution

2 Mega Pixel

Power Options

12V

Resolution

2 Mega Pixel

Sensor size

1/2.7"

Signal-to-Noise Ratio (SNR)

65 dB

Storage relative humidity (H-H)

0 - 95 %

Total megapixels

2 MP

Video interface

HDCVI

Tehnilised andmed

Üksuse kalkuleeritud kaal

0.44 kg

Netokaal

0.23 kg

Brutokaal

0.44 kg

Laius

76.2 mm

Sügavus

198.9 mm

Kõrgus

80.2 mm

Mõõtmed (l x s x k)

80.2 x 76.2 x 198.9mm

Toote kaal

270 g
