Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-K
84.92€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu

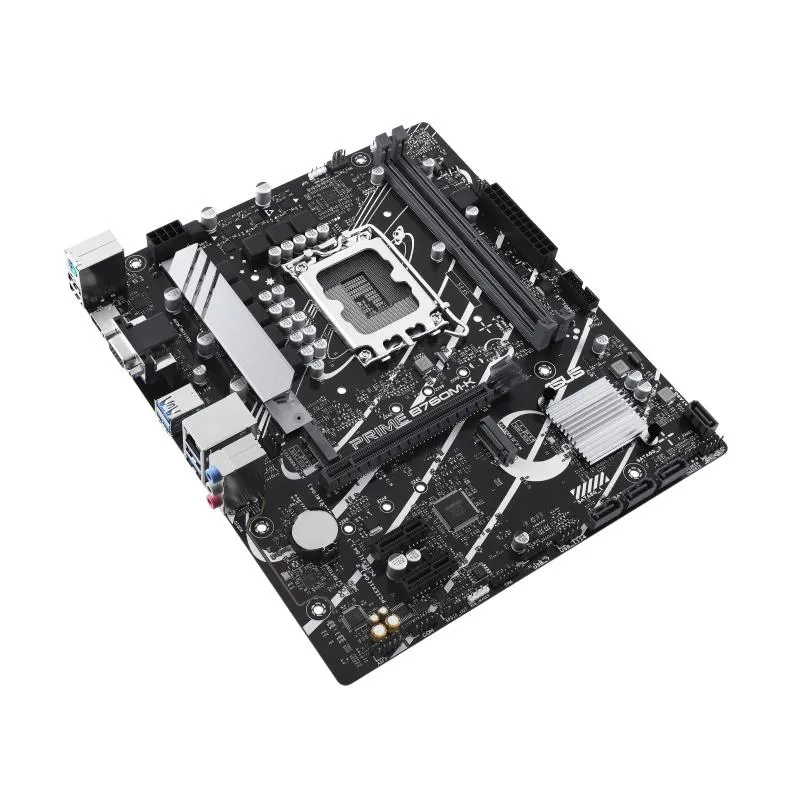

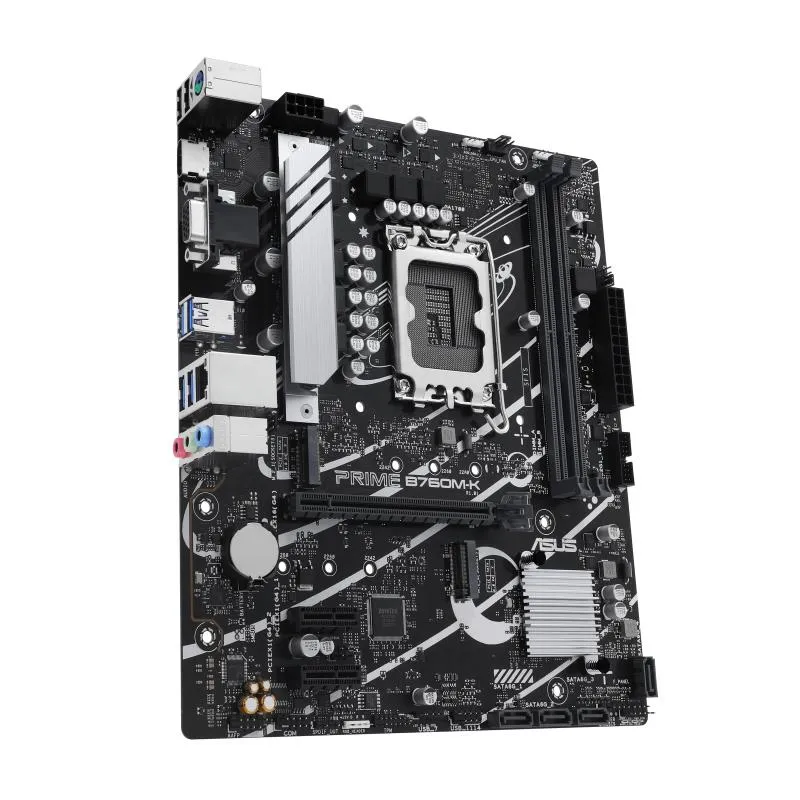

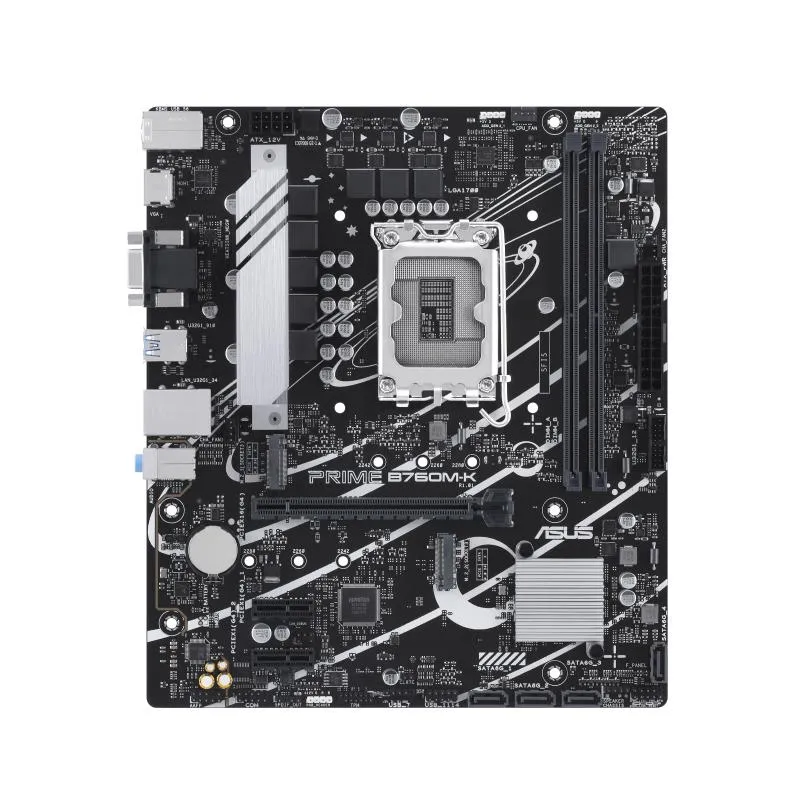

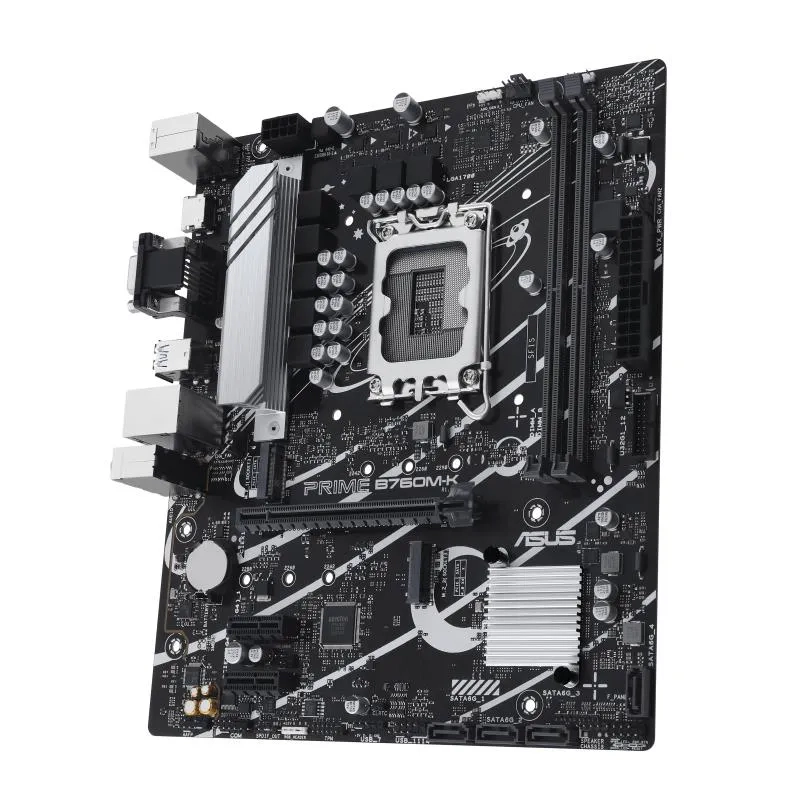

B760M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 244 mm
- Sügavus
- 211 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel B760 Express
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 96 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Ei
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header
Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1

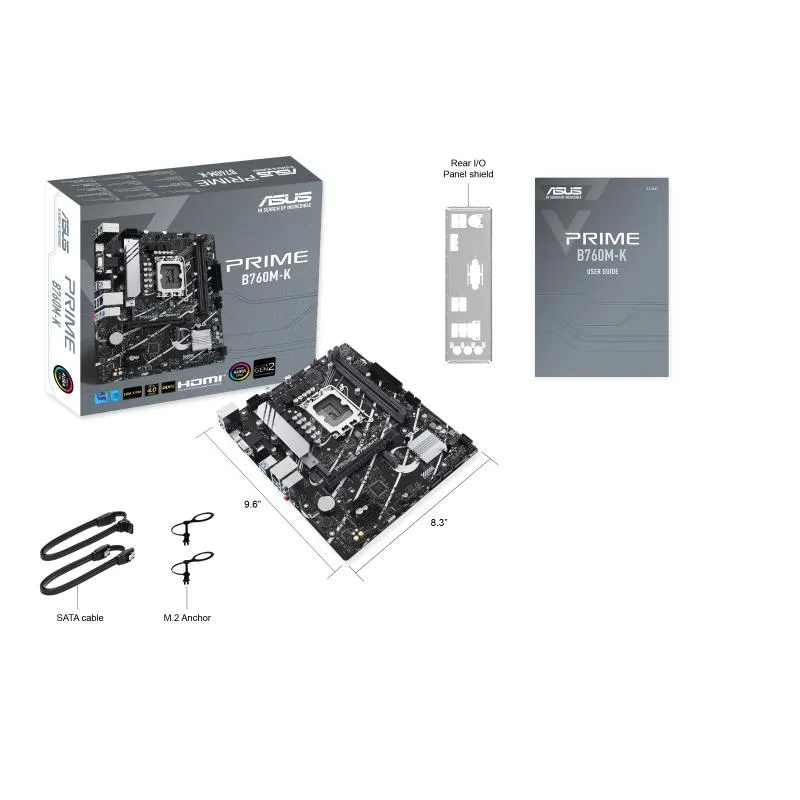

Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.02 kg
- Netokaal
- 0.7 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.004834 cubm
Muud näitajad
- Compatible processor series
- Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Number of chassis fan connectors
- 1
- Number of COM connectors
- 1
- S/PDIF out port
- Jah
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- S/PDIF out connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Ei ole toetatud
- Number of M.2 (M) slots
- 2
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- Intel
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 1x
- 2
- Supported memory clock speed (max)
- 8000 MHz
- Unit Box Height
- 0.055
- Unit Box Length
- 0.275
- Unit Box Width
- 0.265
- CnKood
- 84733020
- ECC сompatibility
- Non-ECC
- Üksuse kalkuleeritud maht
- 0.004834 cubm
- Üksuse kalkuleeritud kaal
- 1.02 kg
- Kokkuvõte
- ASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- 12V power connector
- Jah
- PCI Express x1 (Gen 4.x) slots
- 2
- Tootja koduleht
- https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/
- Mudel
- PRIME B760M-K
- Pakendi laius
- 270 mm
- Pakendi kõrgus
- 51.5 mm
- Component for
- PC
- Transpordipakendi kaal
- 10.2 kg
- Transpordipakendi kõrgus
- 29.5 cm
- Transpordipakendi laius
- 29 cm
- Transpordipakendi sügavus
- 56.5 cm
- Kogus transpordikasti kohta
- 10
- Pakendi sügavus
- 263 mm
- Pakendi kaal
- 1015 g
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Motherboard chipset
- Intel B760
- RAID support
- Jah
- Unbuffered memory
- Jah
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10 x64/Windows 11
- BIOS memory size
- 128 Mbit
- Number of memory slots
- 2
- Processor Socket
- LGA 1700
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
- USB 2.0 connectors
- 2
