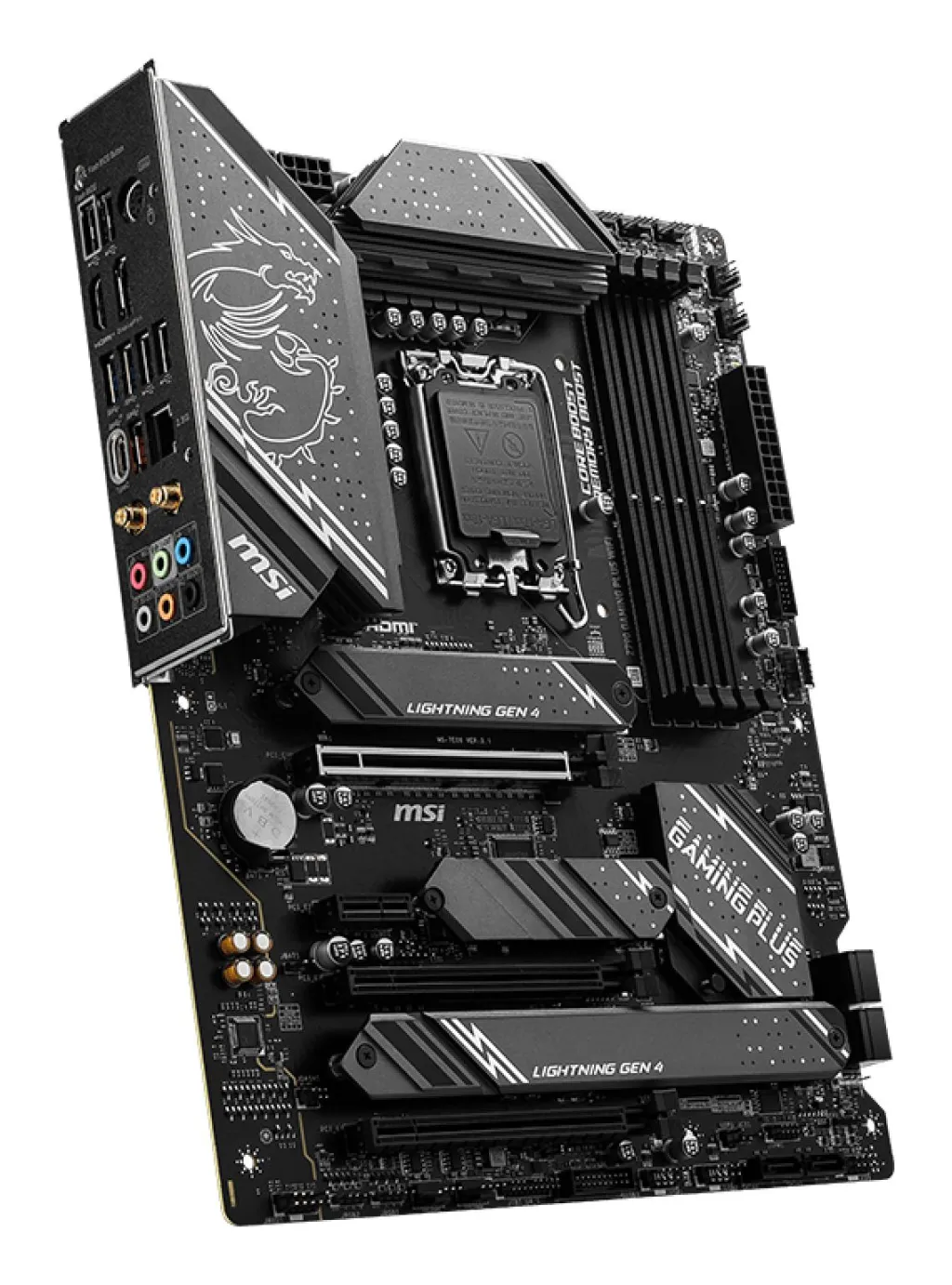

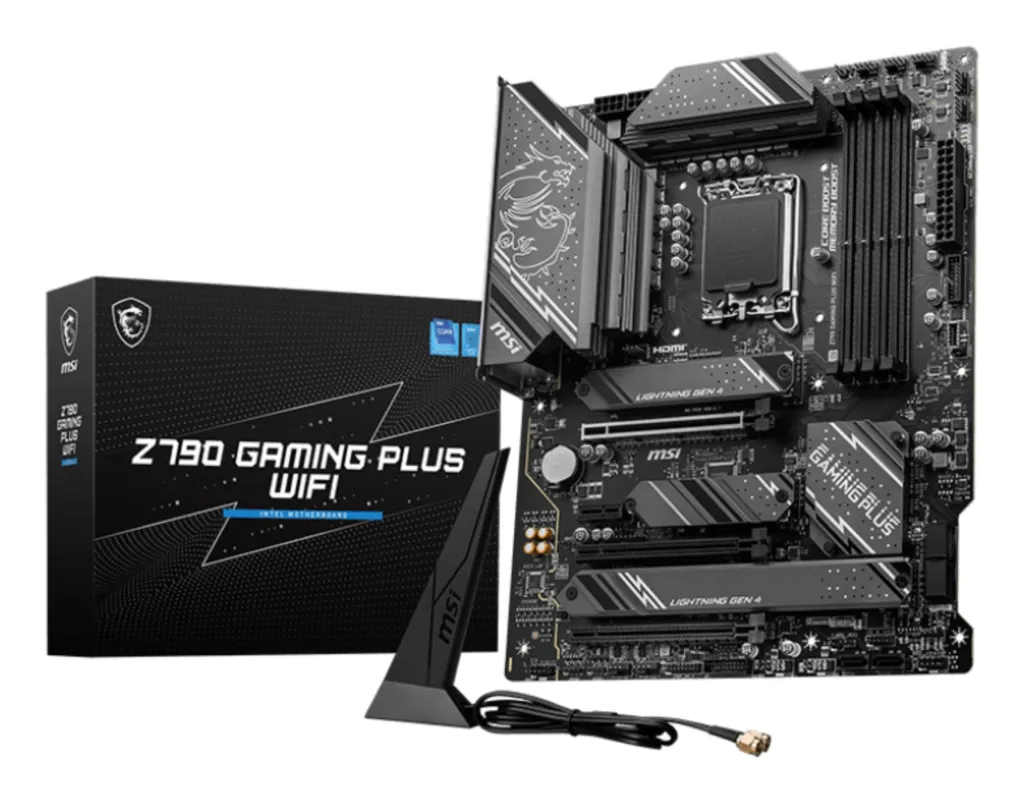

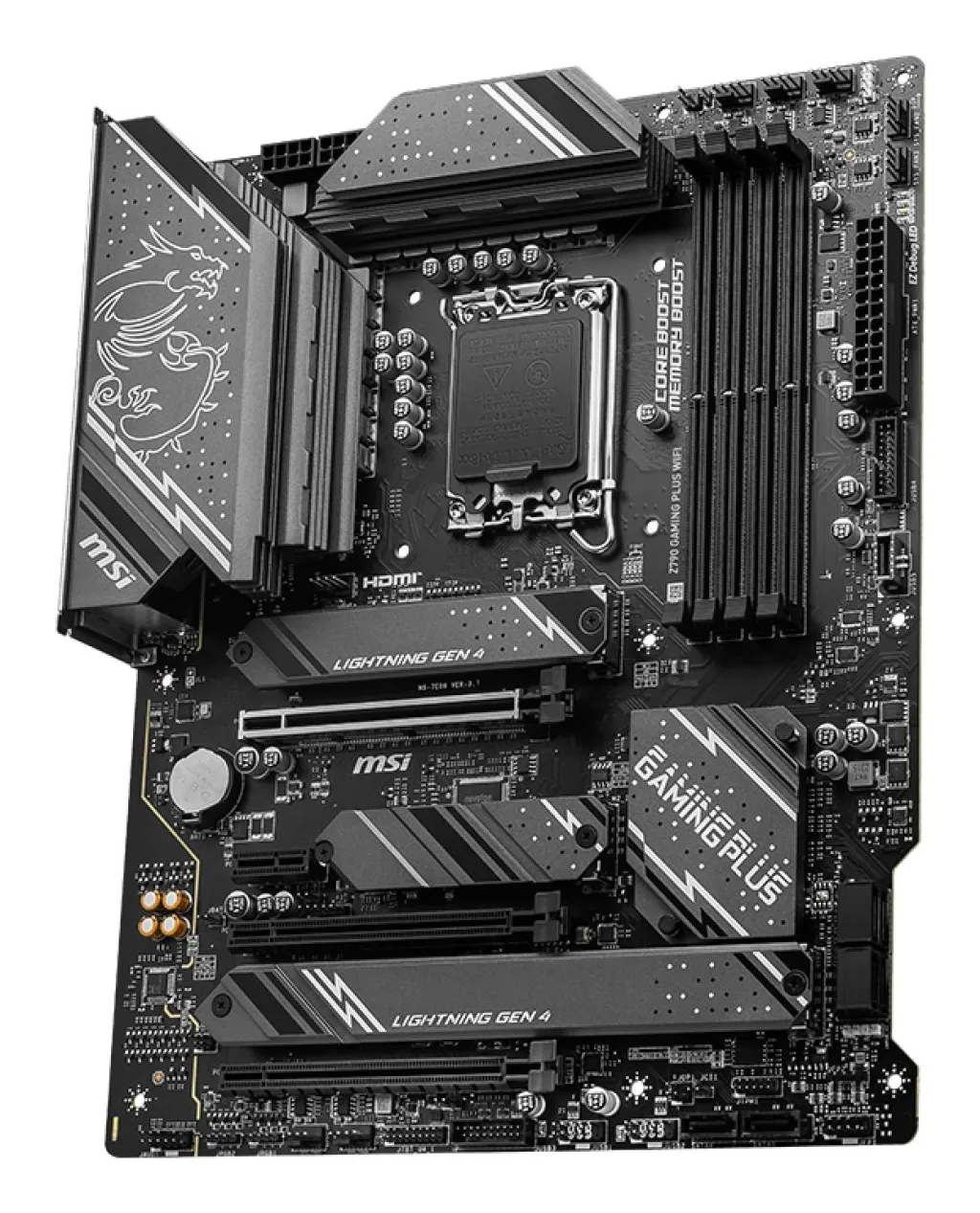

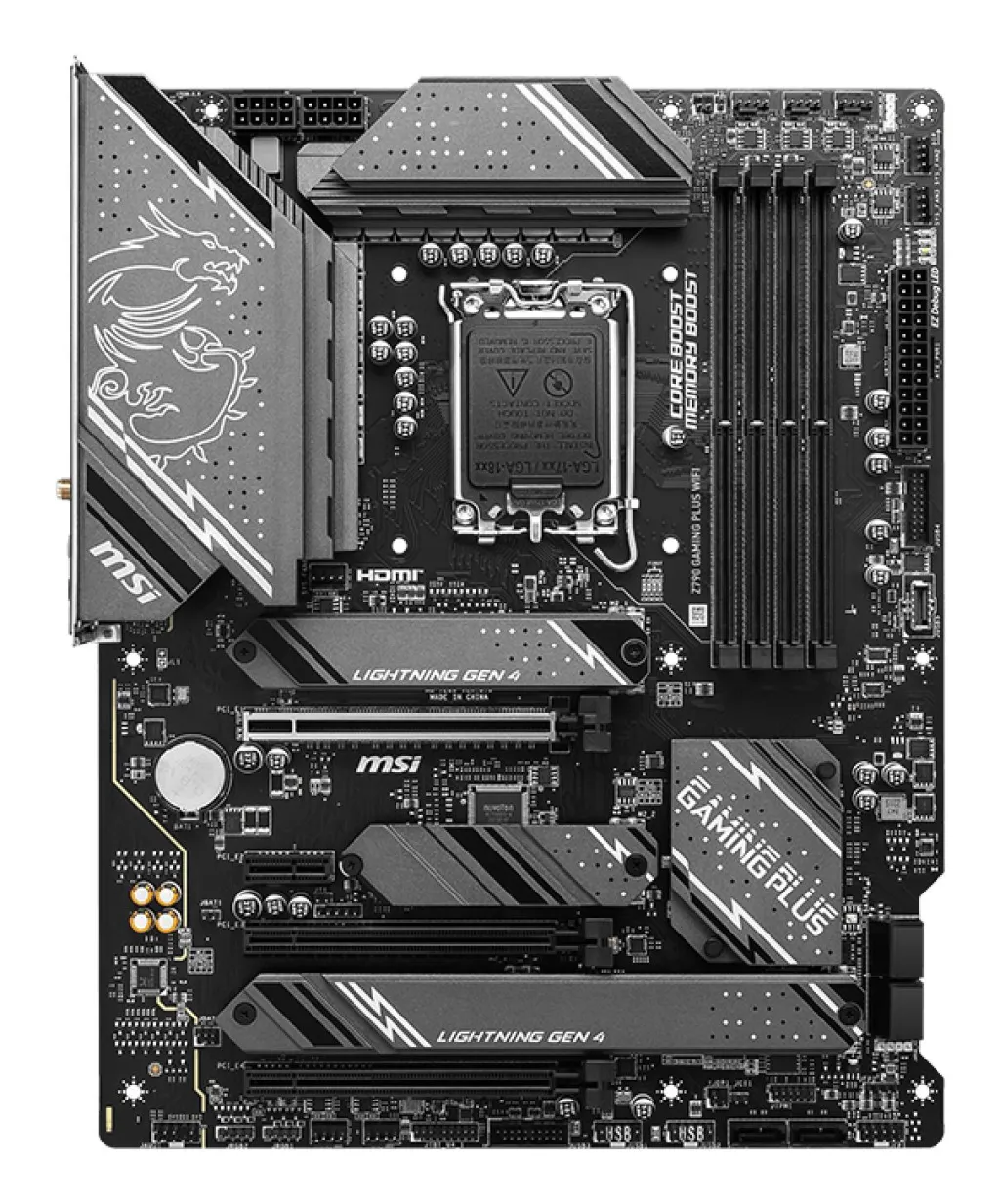

Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Tootja | MSI |
| Tootekood | Z790GAMINGPLUSWIFI |
| EAN | 4711377134712 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | ATX |
| Kujutegur | ATX |
| Laius | 243.84 mm |
| Sügavus | 304.8 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1700 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel Z790 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 192 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Realtek ALC897 |
| Audioväljundi kanalid | 6 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.3 |
| Laienduspesad | |
| PCI Expressi x1 pesad | 1 |
| PCI Expressi x16 pesad | 3 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 4 |
| RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |

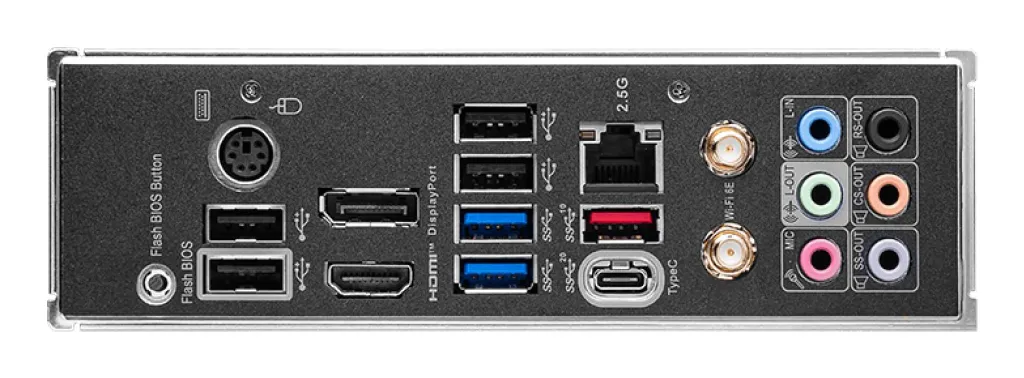

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.78 kg |
| Netokaal | 1.6 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.006521 cubm |
| Muud näitajad | |
| RGB LED pin header | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Summary | MSI Z790 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Unit Calculated Weight | 1.95 kg |
| Product Net Weight | 1.6 kg |
| Unit Calculated Volume | 0.008014 cubm |
| Units per Shipping Box | 5 |
| ECC сompatibility | Non-ECC |
| CnCode | 84733020 |
| Unit Box Width | 0.27 |
| Unit Box Length | 0.345 |
| Unit Box Height | 0.07 |
| Supported memory clock speed (max) | 7200 MHz |
| USB 3.2 | Jah |
| Product colour | Black |
| Processor manufacturer | Intel |
| Supported storage drive interfaces | M.2,PCI Express |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 4 |
| Parallel processing technology support | Not supported |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Jah |
| Supported memory types | DDR5-SDRAM |
| S/PDIF out port | Jah |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®/Intel® Pentium® Gold |
| Audio chip | Realtek ALC897 |
| Front panel connector | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| On-board graphics card | Ei |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Component for | PC |
| Tootja koduleht | https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI |
| Transpordipakendi kaal | 1.78 kg |
| Transpordipakendi kõrgus | 7 cm |
| Transpordipakendi laius | 27 cm |
| Transpordipakendi sügavus | 34.5 cm |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Motherboard chipset | Intel Z790 |
| PCI slots | 4 |
| RAID support | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| DisplayPort | 1 |
| Mudel | Z790 GAMING PLUS WIFI |
| Number of memory slots | 4 |
| Processor Socket | LGA 1700 |
| Raid Levels | 0/1/10/5 |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
| USB 2.0 connectors | 4 |
| USB-C | 1 |
