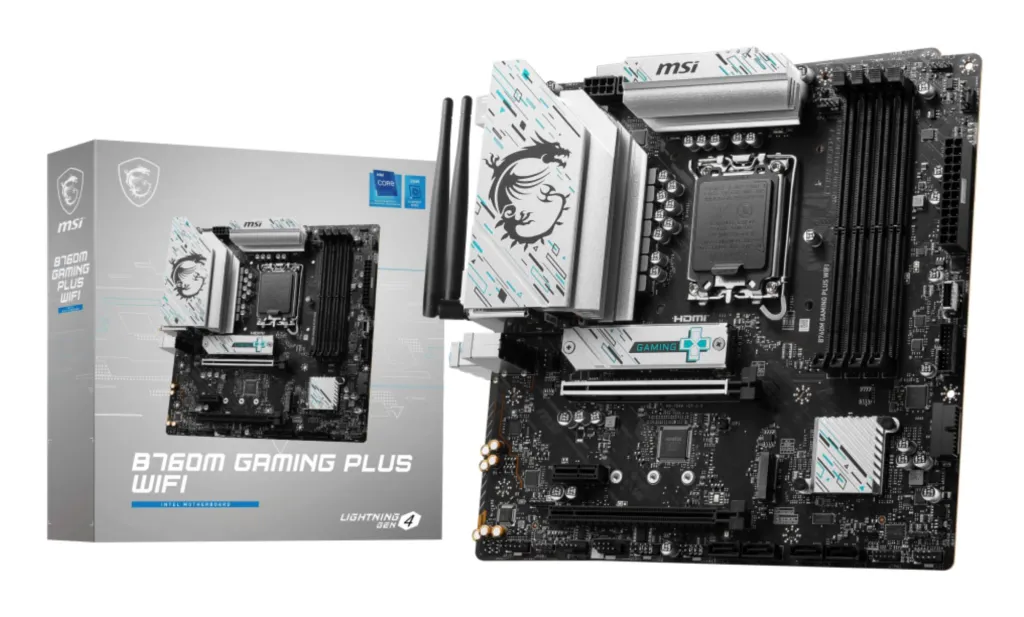

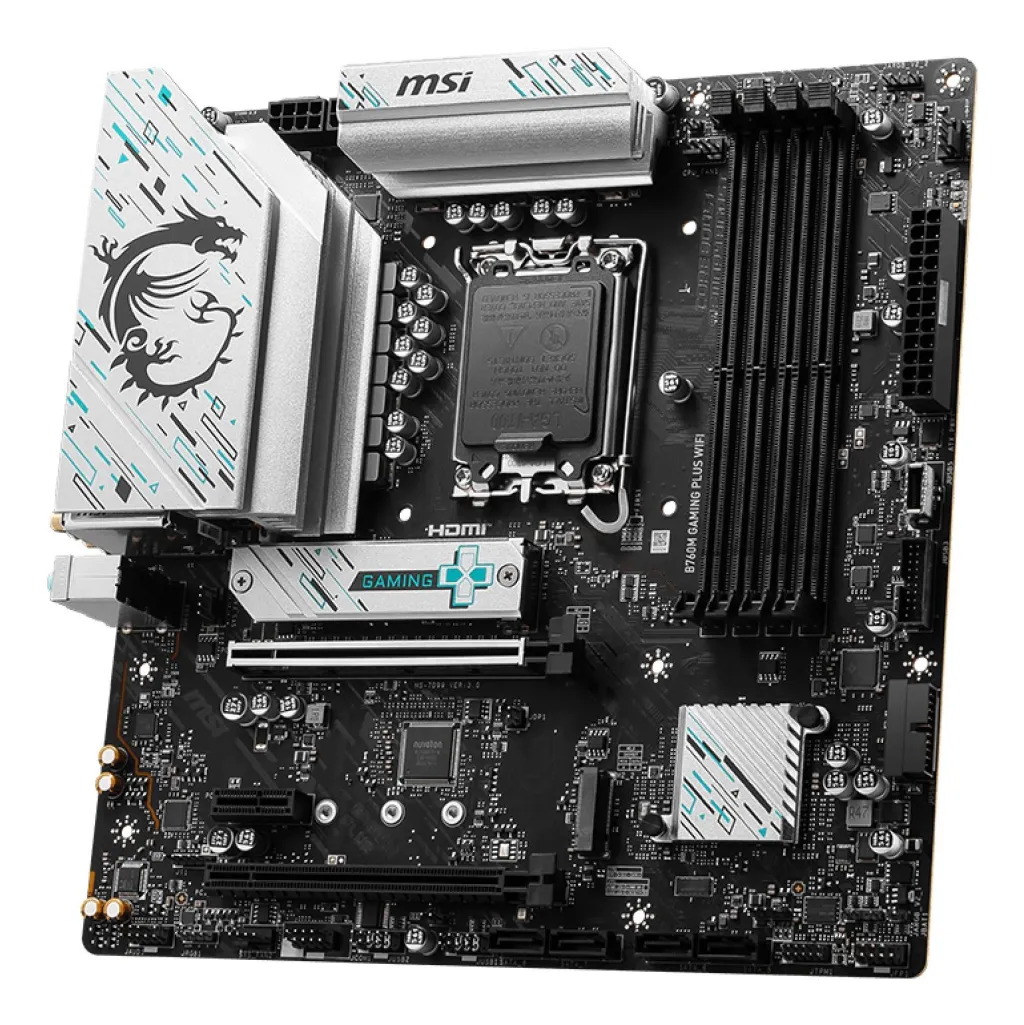

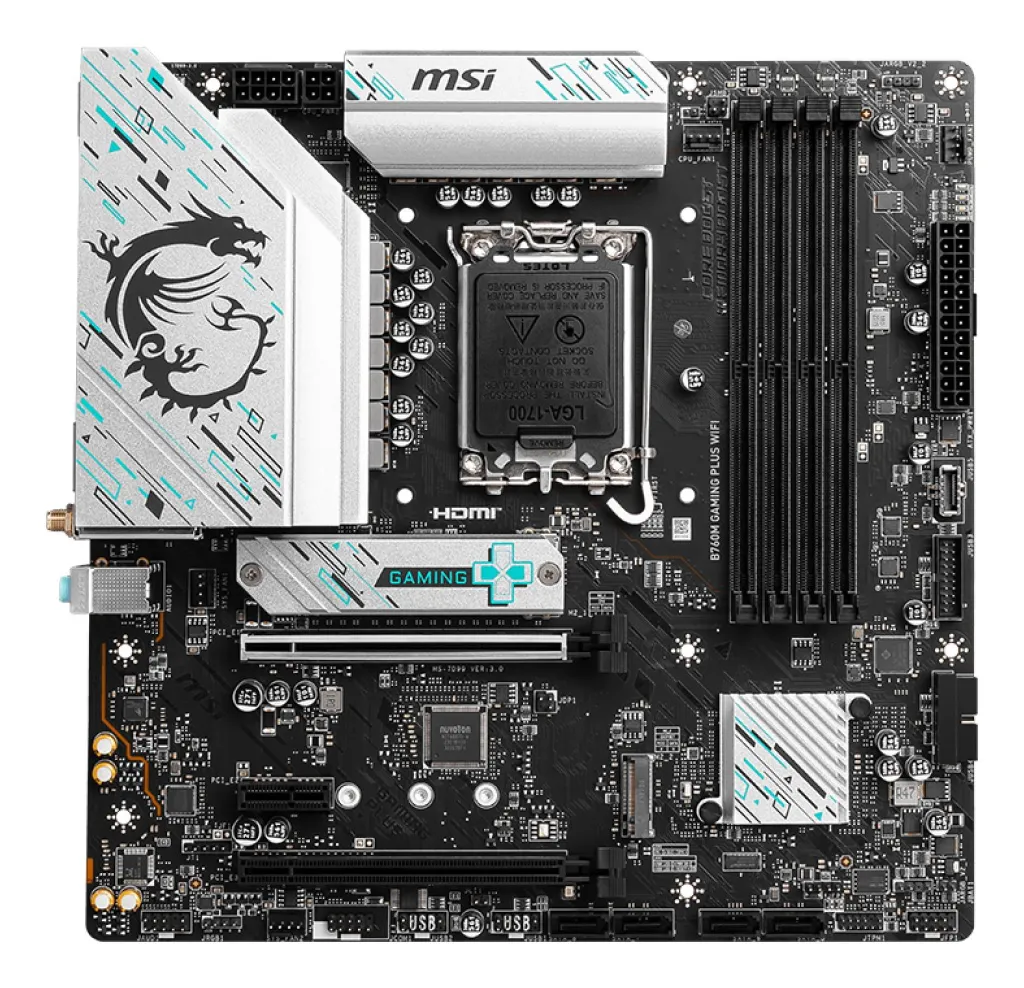

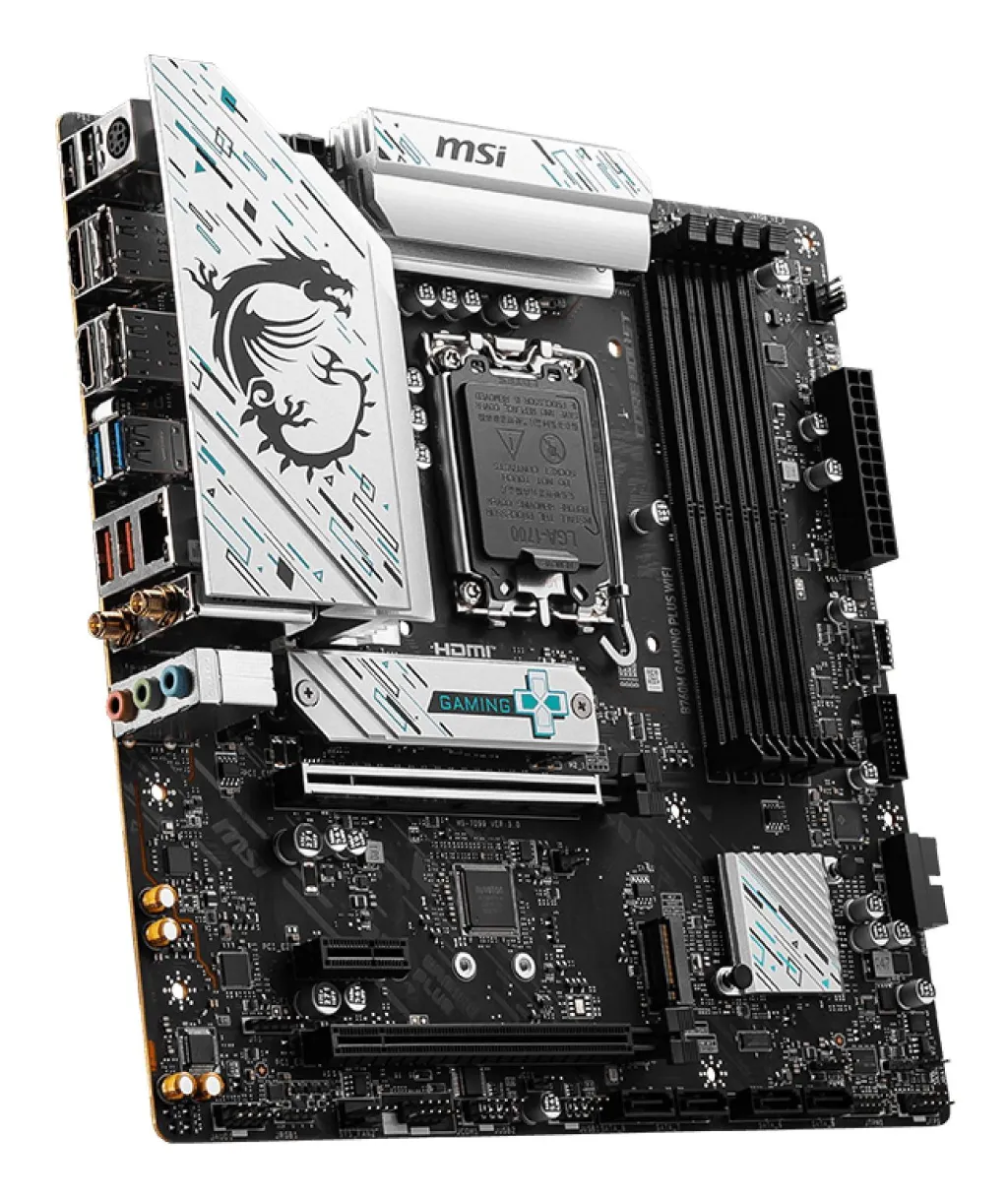

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|2xM.2|2xHDMI|2xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B760MGAMINGPLUSWIFI
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.40 €. Taotle järelmaksu ostukorvis.
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
.: Disain :.
- Emaplaadi kujutegur
- micro ATX
- Kujutegur
- Micro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 243.84 mm
- Sügavus
- 243.84 mm
.: Protsessor :.
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel B760 Express
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 192 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

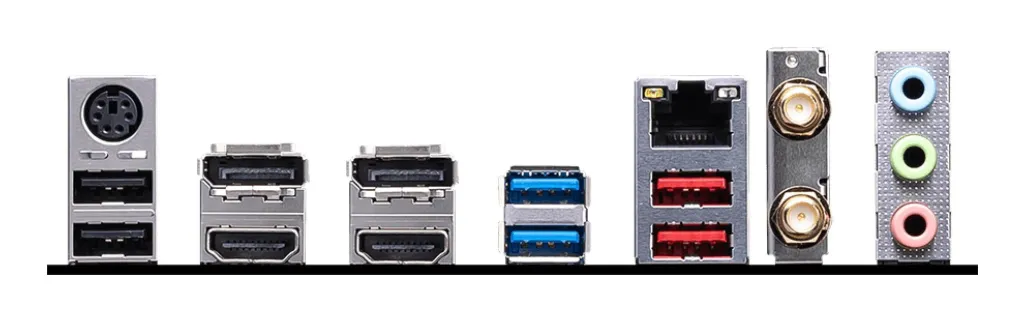

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 2
- USB 2.0 portide arv
- 2
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
- Serial
- Jah
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.34 kg
- Netokaal
- 1.1 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.005495 cubm
Muud n?itajad
- PCI Express x1 (Gen 3.x) slots
- 2
- Unit Calculated Volume
- 0.005495 cubm
- CnCode
- 84733020
- Unit Box Width
- 0.0275
- Unit Box Length
- 0.3
- Unit Box Height
- 0.055
- Supported memory clock speed (max)
- 6800 MHz
- PCI-Express 4.0 4x
- 1
- PCI-Express 4.0 16x
- 1
- USB 3.2
- Jah
- RGB LED pin header
- Jah
- System management BIOS (SMBIOS) version
- 3.5
- Processor manufacturer
- Intel
- Supported storage drive interfaces
- M.2,SATA III
- Maximum number of SMP processors
- 1
- ECC сompatibility
- Non-ECC
- ACPI version
- 6.4
- Clear CMOS jumper
- Jah
- Number of SATA III connectors
- 4
- CPU fan connector
- Jah
- Front panel audio connector
- Jah
- Memory channels
- Dual-channel
- Supported memory types
- DDR5-SDRAM
- Motherboard chipset family
- Intel
- Memory slots type
- DIMM
- ATX Power connector (24-pin)
- Jah
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- BIOS type
- UEFI AMI
- Product Net Weight
- 1.1 kg
- Front panel connector
- Jah
- Unit Calculated Weight
- 1.34 kg
- Summary
- MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- Audio chip
- Realtek ALC897
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- DisplayPort versioon
- 1.4
- Kogus transpordikasti kohta
- 10
- Component for
- PC
- Tootja koduleht
- https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Overview
- Transpordipakendi kaal
- 13.37 kg
- Transpordipakendi kõrgus
- 33 cm
- Transpordipakendi laius
- 30 cm
- Transpordipakendi sügavus
- 55.5 cm
- DisplayPorts quantity
- 2
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Motherboard chipset
- Intel B760
- RAID support
- Jah
- Windows operating systems supported
- Windows 10/Windows 11
- BIOS memory size
- 256 Mbit
- DisplayPort
- 2
- Mudel
- B760M GAMING PLUS WIFI
- Number of memory slots
- 4
- Processor Socket
- LGA 1700
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
- USB 2.0 connectors
- 4
