Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Tootja | GIGABYTE |
| Tootekood | B760M D3HP DDR4 |
| EAN | 4719331862848 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1700 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel B760 Express |
| .: Mälu :. | |
| Sisemälu tüüp | DDR4 |
| Taktsagedus | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | Gigabit |
| WiFi | Ei |
| Laienduspesad | |
| PCI Expressi x1 (Gen 3.x) pesad | 2 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |

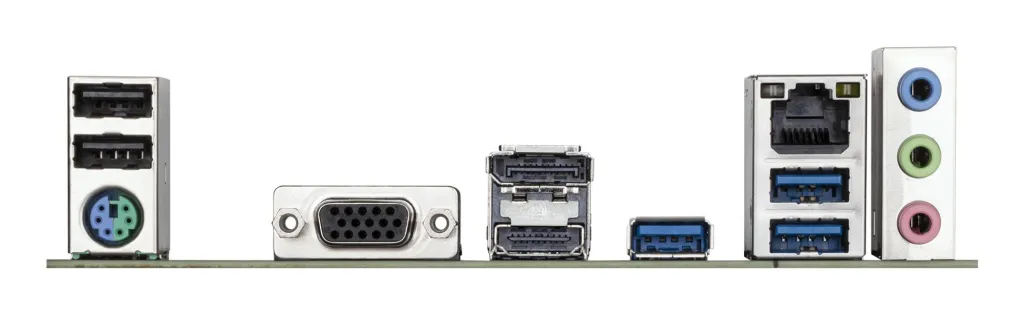

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| VGA (D-Sub) portide arv | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 2 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 0.993 kg |
| Netokaal | 0.7 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 10 |
| Pakendi maht | 0.004836 cubm |
| Muud näitajad | |
| DisplayPort version | 1.4 |
| PCI Express x16 slots | 1 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of chassis fan connectors | 3 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| S/PDIF out connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Parallel processing technology support | Not supported |
| Clear CMOS jumper | Jah |
| ACPI version | 5.0 |
| Number of M.2 (M) slots | 2 |
| Line-in | Jah |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| PCI Express x1 slots | 1 |
| Power fan connector | Jah |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Supported memory module capacities | 12GB/16GB/1GB/2GB/32GB/4GB/8GB |
| Supported storage drive interfaces | M.2,SATA III |
| Processor manufacturer | Intel |
| Serial port headers | 1 |
| System management BIOS (SMBIOS) version | 2.7 |
| RGB LED pin header | Jah |
| USB 3.2 | Jah |
| PCI-Express 4.0 16x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported memory clock speed (max) | 5333 MHz |
| Unit Box Height | 0.275 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.055 |
| CnCode | 84733020 |
| Warranty period | 3 year(s) |
| ECC сompatibility | ECC & Non-ECC |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004836 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 0.993 kg |
| Summary | GIGABYTE B760M D3HP DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A |
| Product colour | Brown |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Products per shipping (inner) case | 1 pc(s) |
| Total number of SATA connectors | 4 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Desktop Management Interface (DMI) version | 2.7 |
| 12V power connector | Jah |
| Audio connector | Jah |
| Front panel connector | Jah |
| Lithium weight per battery | 0.07 g |
| PCI Express x4 slots | 1 |
| Number of Parallel ATA connectors | 1 |
| Kaasas tarkvara | Norton Internet Security |
| Component for | PC |
| Akuelementide arv | 1 |
| Akutehnoloogia | Lithium-Manganese Dioxide (LiMnO2) |
| Maksimaalne resolutsioon | 4096 x 2304 pixels |
| HDCP | Jah |
| Tootja koduleht | https://www.gigabyte.com |
| Transpordipakendi kaal | 9.93 kg |
| Transpordipakendi kõrgus | 29 cm |
| Transpordipakendi laius | 29 cm |
| Transpordipakendi sügavus | 57.5 cm |
| Kõrgus | 35 mm |
| Country of origin | China |
| Digital audio optical out | 3 |
| DirectX version | 12.0 |
| DisplayPorts quantity | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B760 Express |
| Power source type | ATX |
| RAID support | Jah |
| Unbuffered memory | Jah |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Windows operating systems supported | Windows 10/Windows 11 |
| Batteries Included | Jah |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 128 Mbit |
| DisplayPort | 1 |
| Maximum internal memory supported by processor | 128 GB |
| Mudel | B760M D3HP DDR4 |
| Number of memory slots | 4 |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Package width | 265 mm |
| Parallel connector | Jah |
| Processor Socket | LGA 1700 |
| Raid Levels | 0/1/10/5 |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| USB 2.0 connectors | 2 |
| USB-C | Jah |
