Tulen ise kaubale järele

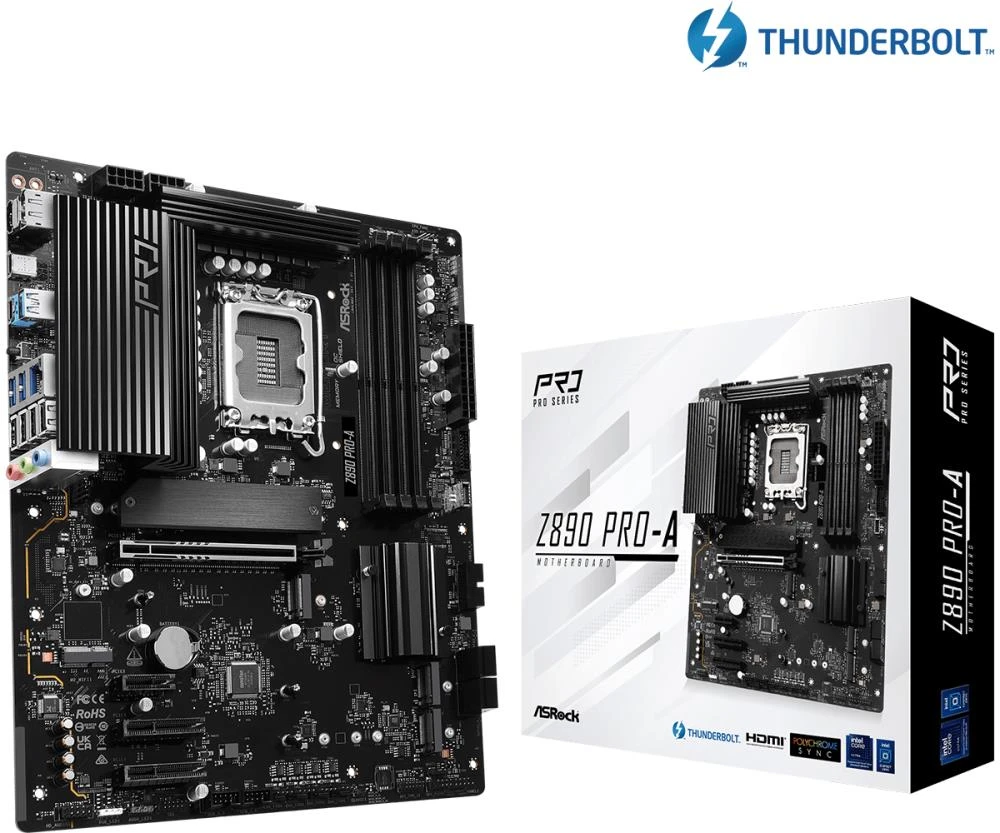

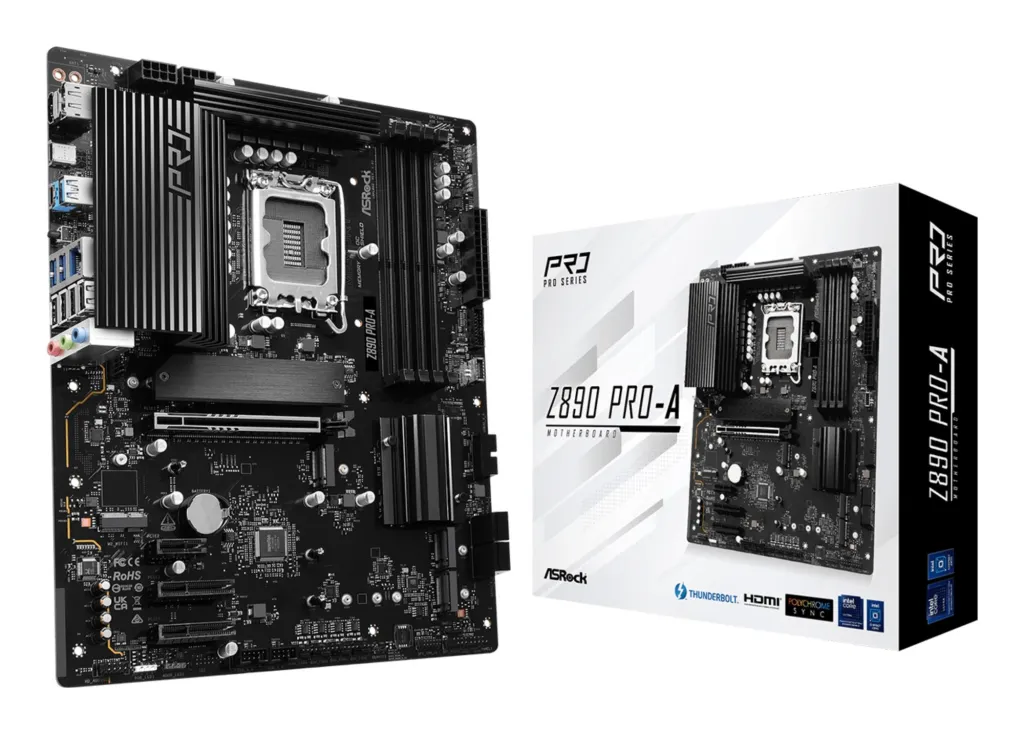

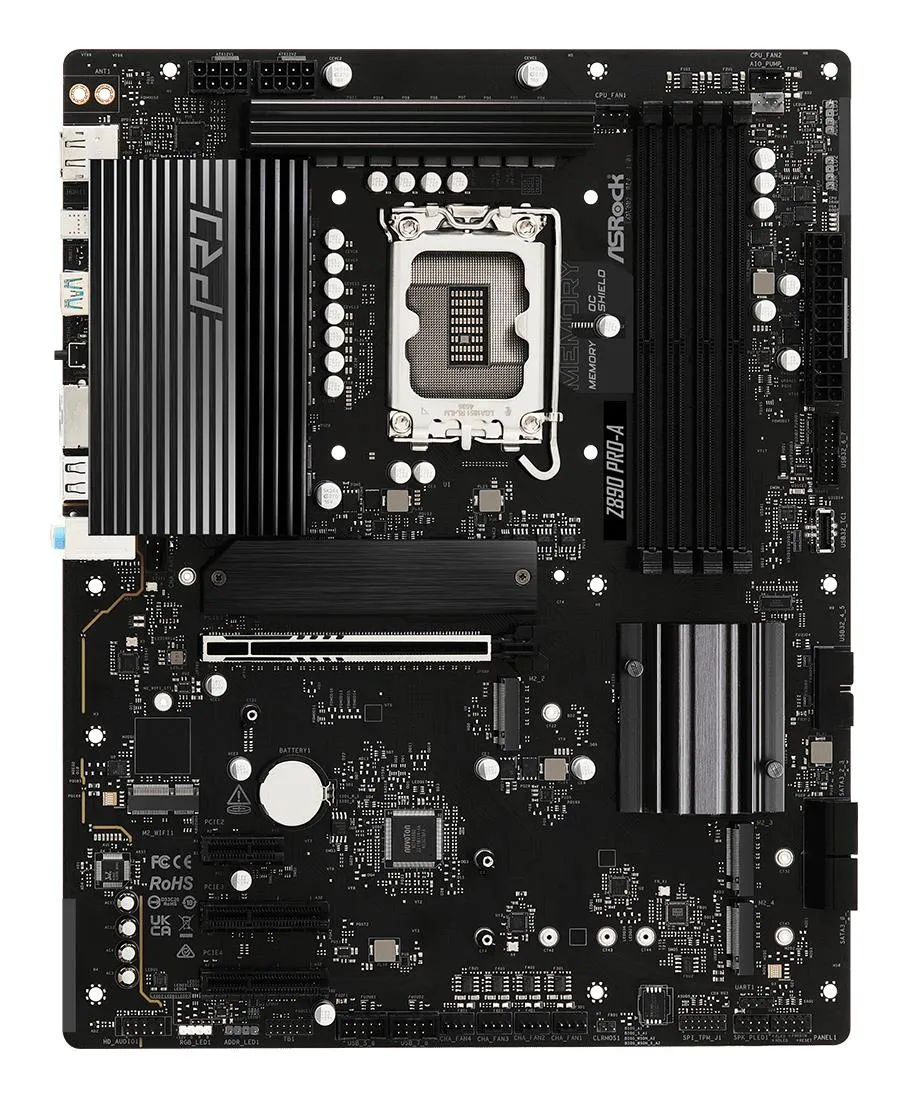

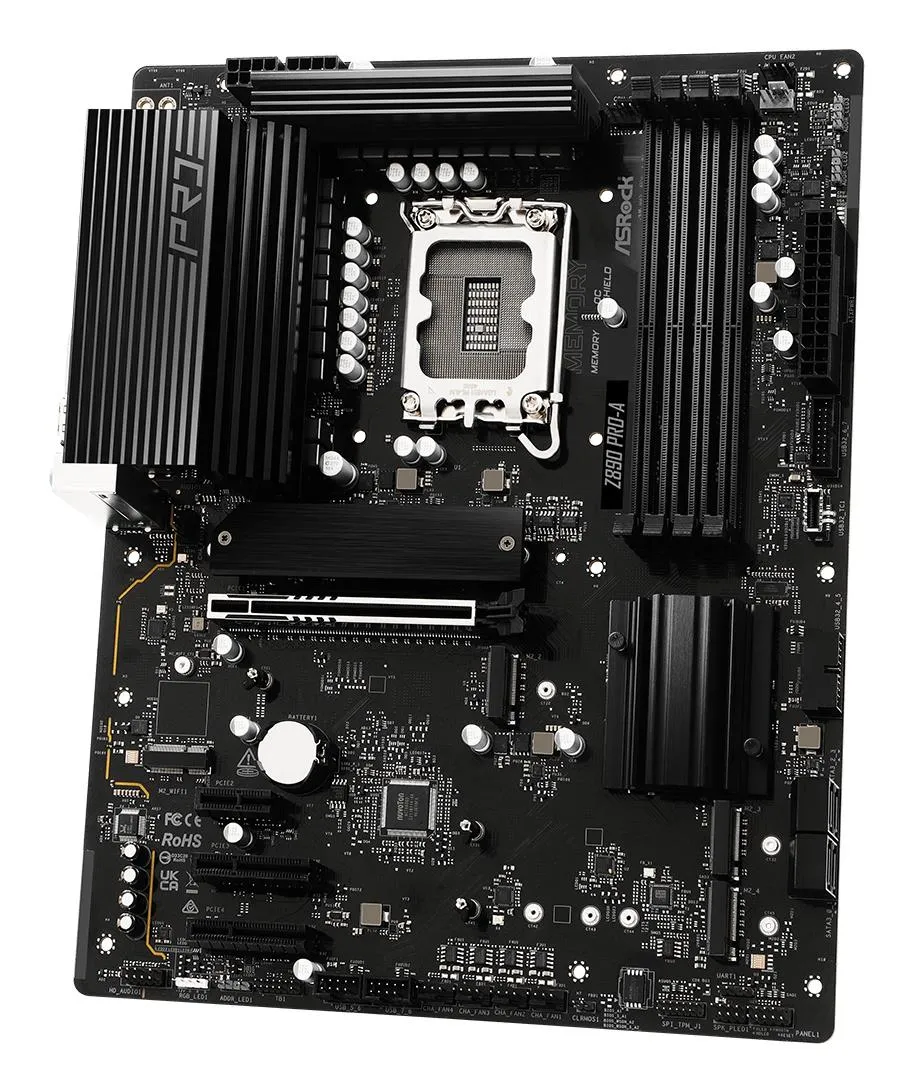

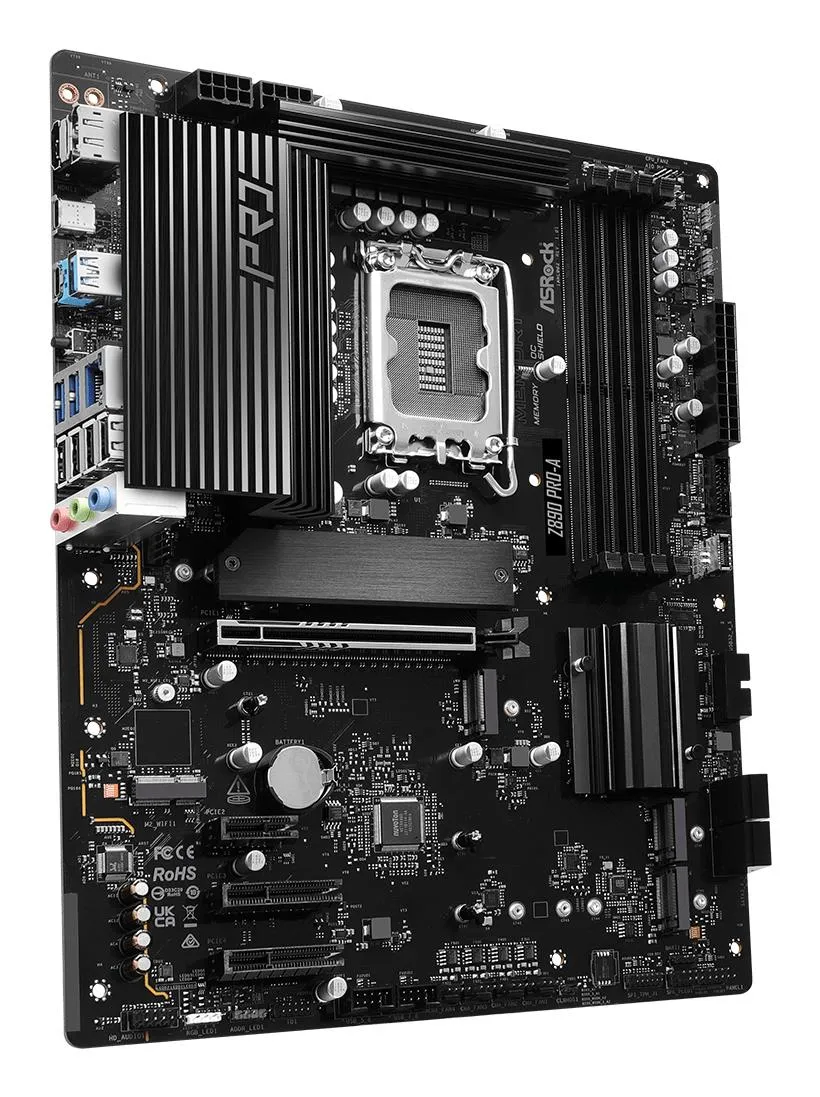

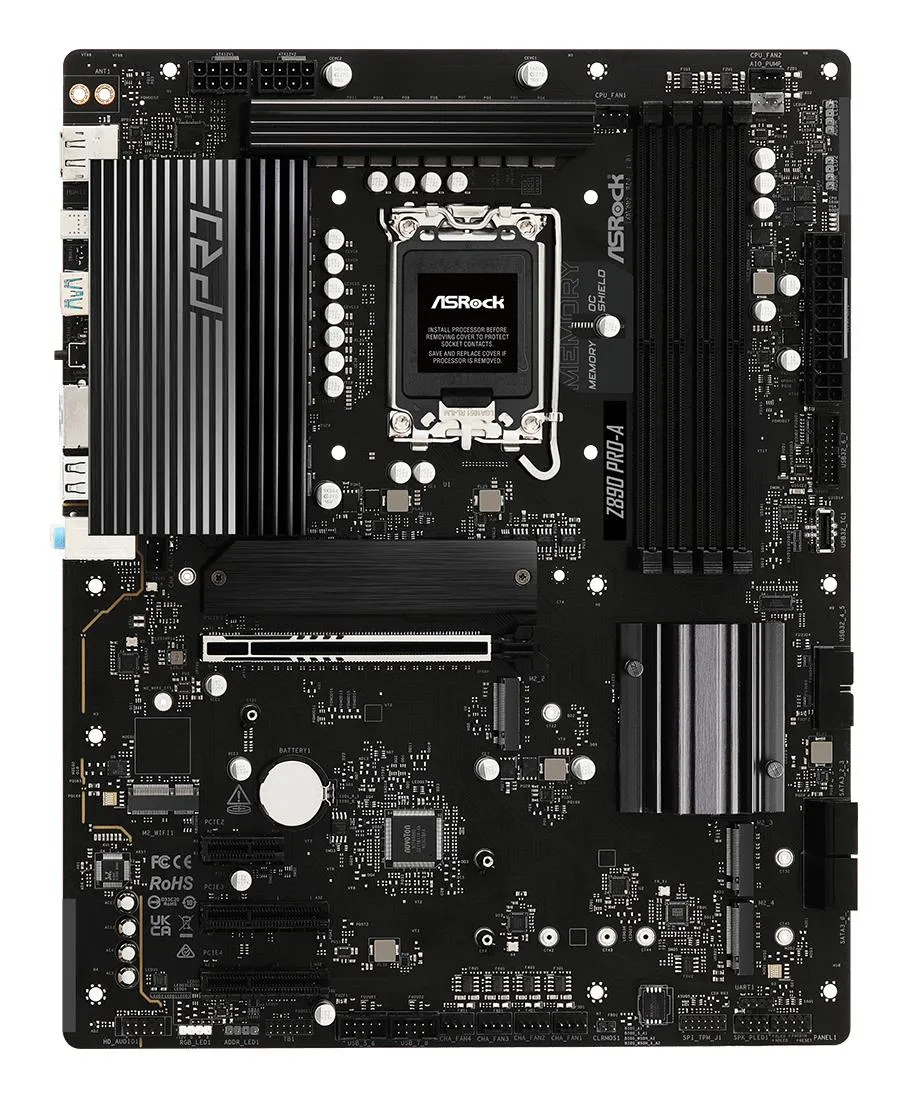

Mainboard|ASROCK|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2 type B|1xUSB 3.2|1xUSB-C|1xUSB-C w/Thunderbolt|1xRJ45|3xAudio port|Z890PRO-A
Toode on läbimüüdud
Tellimine ei ole võimalik.
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:
●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 9066+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5 x4)
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 Thunderbolt™ 4 Type-C (Rear)
- 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
- 1 USB 3.2 Gen2 Type-A (Rear)
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- LGA1851
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- Intel Z890
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Ei
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
- RAID
- SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

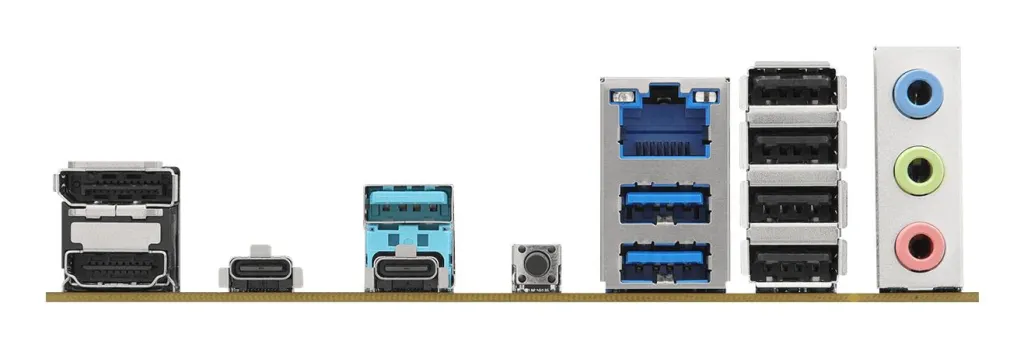

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- 4
- Ethernet LAN (RJ-45) pordid
- 1
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.88 kg
- Netokaal
- 1 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 5
- Pakendi maht
- 0.008906 cubm
Muud näitajad
- DisplayPort versioon
- 1.4
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- Intel
- Number of chassis fan connectors
- 5
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Line-in
- Jah
- Number of storage drives supported
- 8
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2,SATA III
- Thunderbolt ports quantity
- 1
- Screws included
- Jah
- Processor manufacturer
- Intel
- RGB LED pin header
- Jah
- USB-C w/Thunderbolt
- 1
- USB 3.2
- 1
- USB 3.2 type B
- 2
- PCI-Express 4.0 1x
- 1
- PCI-Express 4.0 4x
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI-Express 5.0 16x
- 1
- Supported memory clock speed (max)
- 9066 MHz
- Unit Box Height
- 0.075
- Unit Box Length
- 0.35
- Unit Box Width
- 0.28
- CnKood
- 84733020
- Vastavussertifikaadid
- CE/Federal Communications Commission (FCC)
- ECC сompatibility
- Non-ECC
- Üksuse kalkuleeritud maht
- 0.008906 cubm
- Üksuse kalkuleeritud kaal
- 1.88 kg
- Kokkuvõte
- Asrock Z890 Pro-A. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- PCI Express x4 (Gen 4.x) slots
- 2
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- 12V power connector
- Jah
- Audio connector
- Jah
- PCI Express x1 (Gen 4.x) slots
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Tootja koduleht
- https://www.asrock.com/mb/Intel/Z890%20Pro-A/index.asp#Overview
- Mudel
- Z890 Pro-A
- Number of CPU fan connectors
- 2
- Component for
- PC
- Transpordipakendi kaal
- 9.39 kg
- Transpordipakendi kõrgus
- 30.5 cm
- Transpordipakendi laius
- 36.5 cm
- Transpordipakendi sügavus
- 40 cm
- Kogus transpordikasti kohta
- 5
- Tarvikud kaasa arvatud
-
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket - DisplayPorts quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- Intel Z890
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 11 x64
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- LAN controller
- Dragon RTL8125BG
- Number of memory slots
- 4
- Processor Socket
- LGA 1851 (Socket V1)
- Raid Levels
- 0/1/10/5
- USB 2.0 connectors
- 2
- USB-C
- 1
