Mainboard|GIGABYTE|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|5xM.2|2xUSB 2.0|8xUSB 3.2|2xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|2xAudio port|Z890AORUSMASTER

Muud n?itajad

Compatible processor series

Intel Core Ultra (Series 2)

Supported processor sockets

LGA 1851

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

Intel

S/PDIF out port

Jah

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Number of SATA III connectors

4

Clear CMOS jumper

Jah

Clear CMOS button

Jah

ACPI version

5.0

Number of M.2 (M) slots

5

Number of storage drives supported

4

Supported storage drive types

HDD & SSD

Supported memory module capacities

12GB/16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB

Supported storage drive interfaces

M.2,SATA III

Thunderbolt ports quantity

2

Processor manufacturer

Intel

System management BIOS (SMBIOS) version

2.7

RGB LED pin header

Jah

USB-C w/Thunderbolt

2

USB 3.2

Jah

PCI-Express 4.0 1x

1

PCI-Express 4.0 4x

1

PCI-Express 5.0 16x

1

Supported memory clock speed (max)

9500 MHz

Unit Box Height

0.08

Unit Box Length

0.34

Unit Box Width

0.27

CnCode

84733020

Warranty period

3 year(s)

ECC сompatibility

Non-ECC

Unit Calculated Volume

0.01018 cubm

Product Net Weight

2 kg

Unit Calculated Weight

2.89 kg

Summary

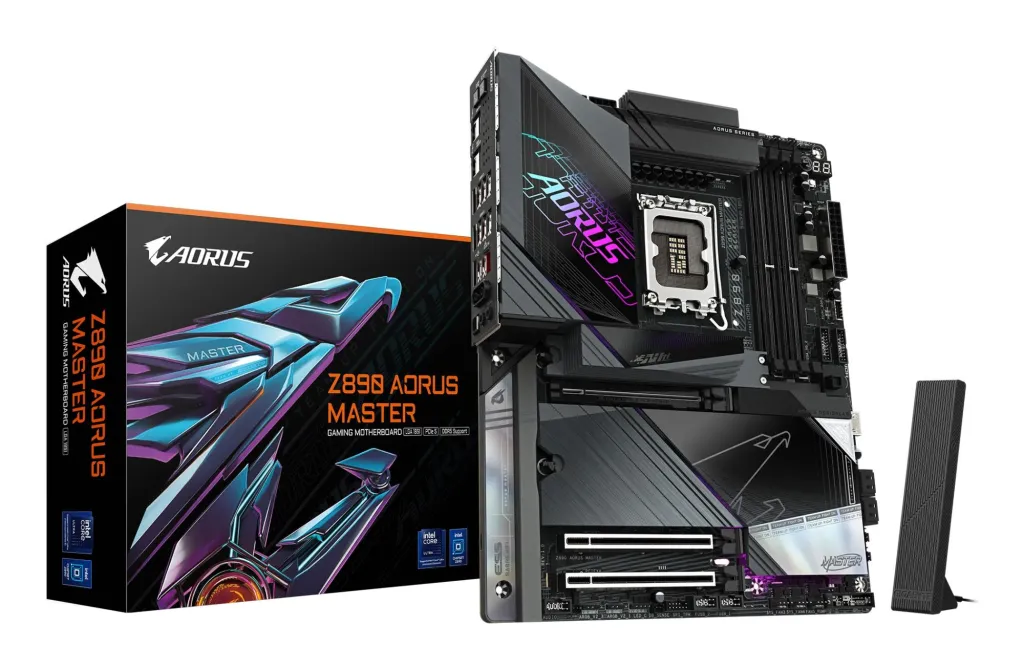

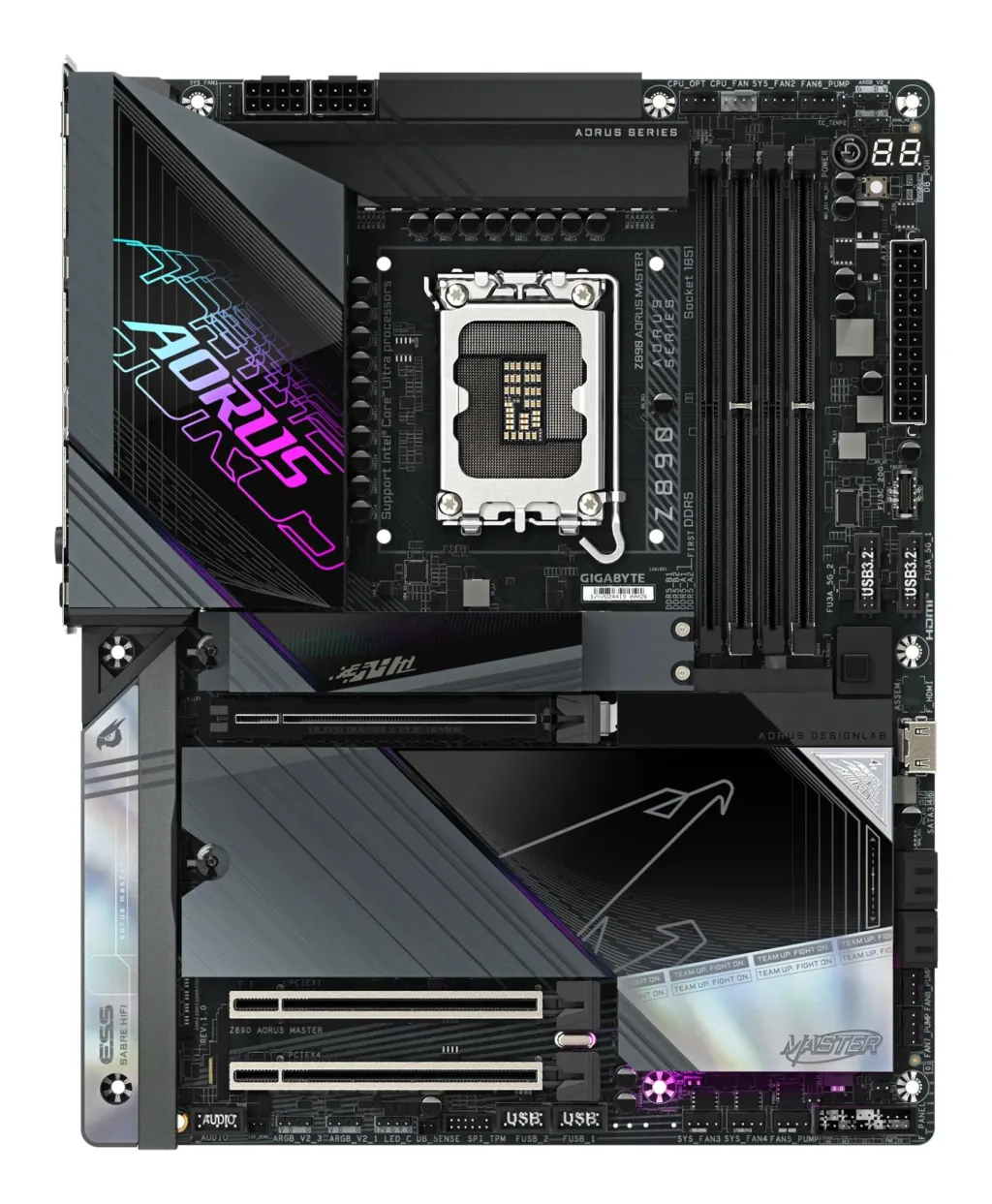

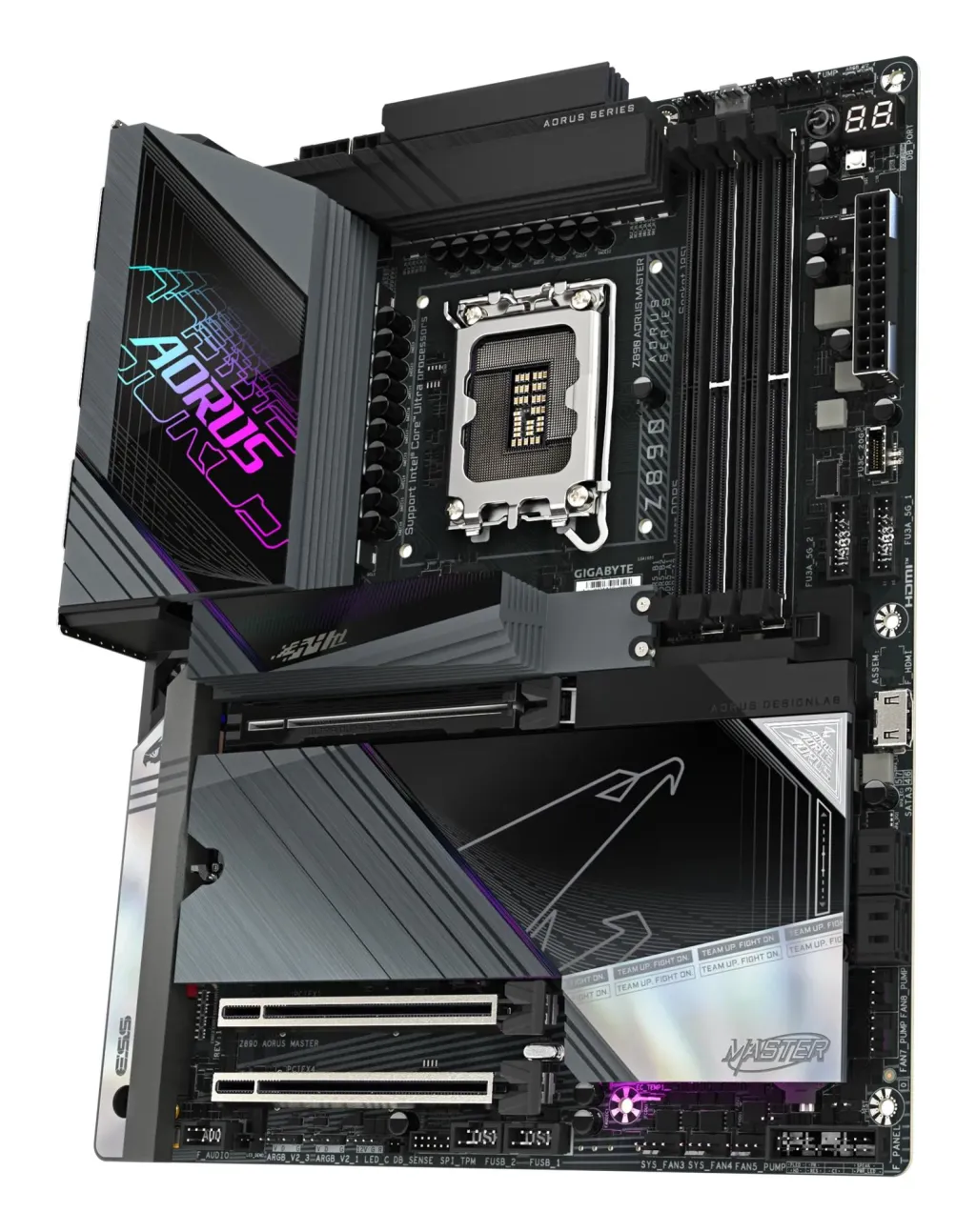

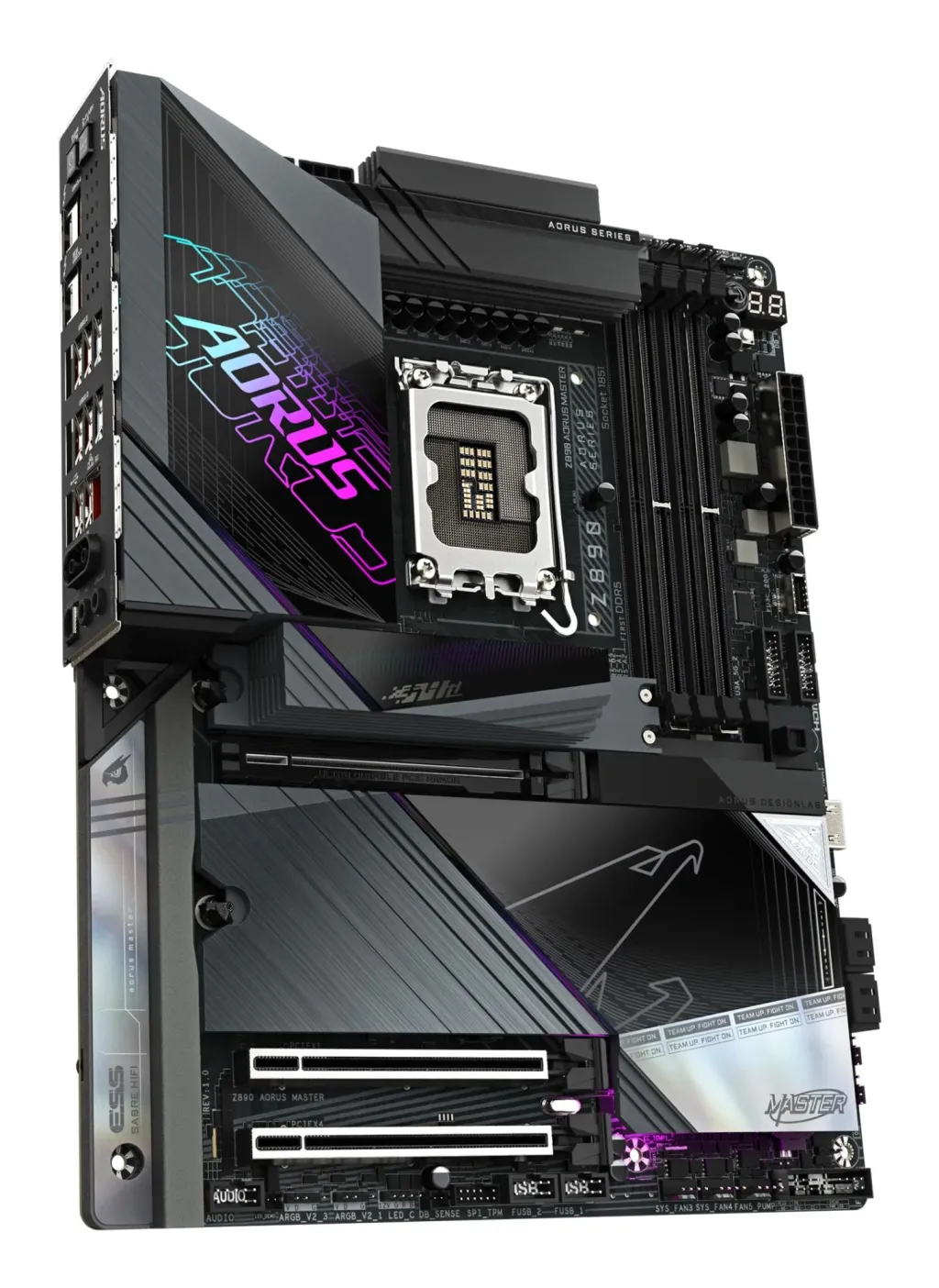

GIGABYTE Z890 AORUS MASTER Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 phases VRM, up to 9500MHz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, Thunderbolt 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Products per shipping (inner) case

1 pc(s)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Intel Wi-Fi 7 BE200

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

Total number of SATA connectors

4

Number of HDDs supported

9

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

PC health monitoring

Fan/Temperature/Voltage

Desktop Management Interface (DMI) version

2.7

12V power connector

Jah

Lithium weight per battery

0.07 g

USB 3.2 Gen 2x2 connectors

1

Kogus transpordikasti kohta

5

Toote värv

Black

Kaasas tarkvara

Norton® Internet Security (OEM version) LAN bandwidth management software

Component for

PC

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Tootja koduleht

https://www.gigabyte.com/

Transpordipakendi kaal

14.43 kg

Transpordipakendi kõrgus

37.5 cm

Transpordipakendi laius

30.5 cm

Transpordipakendi sügavus

44.5 cm

Kõrgus

35 mm

Toote kaal

2190 g

Country of origin

China

DirectX version

12.0

DisplayPorts quantity

2

Ethernet interface type

10 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

Microphone in

Jah

Motherboard chipset

Intel Z890

RAID support

Jah

Windows operating systems supported

Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

Maximum internal memory supported by processor

256 GB

Mudel

Z890 AORUS MASTER

Number of memory slots

4

Optical S/PDIF

1

Package depth

270 mm

Package height

80 mm

Package weight

2510 g

Package width

335 mm

Processor Socket

LGA 1851 (Socket V1)

Raid Levels

0/1/10/5

Supported memory clock speeds

5600/5800/6000/6200/6400/6600/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/9500 MHz

Thunderbolt

Jah

USB 2.0 connectors

2

USB-C

Jah
