Switch|MERCUSYS|Desktop/pedestal|10x10Base-T / 100Base-TX|PoE+ ports 8|MS110P
27.90€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu

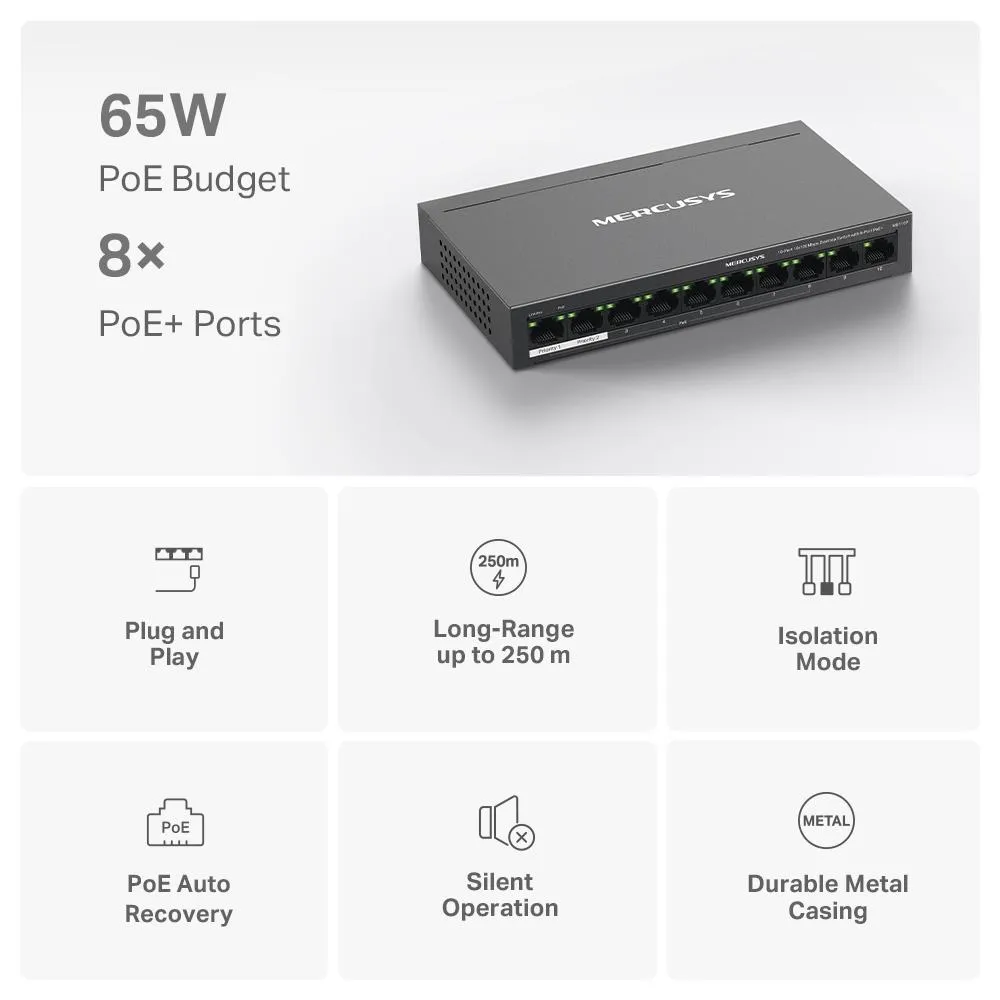

8 PoE+ Ports (65 W Budget) for Network Deployment
Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.

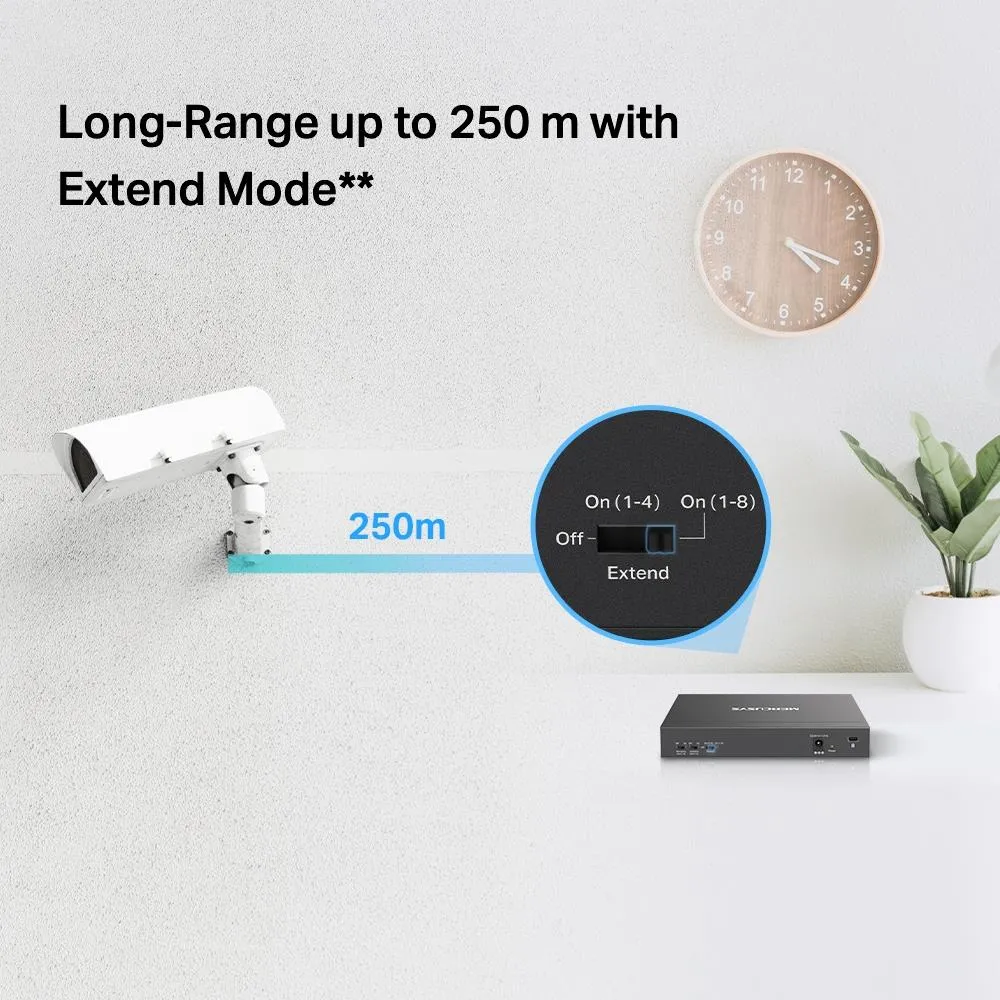

Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

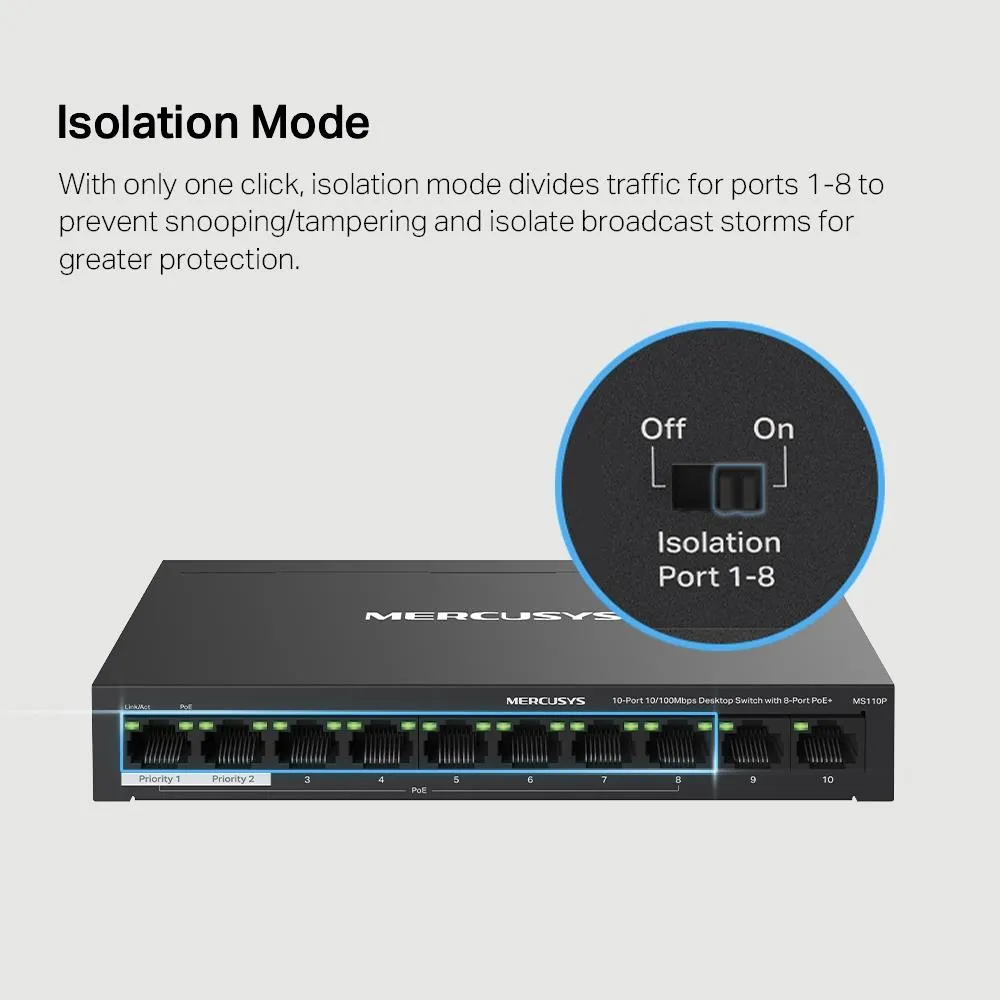

Traffic Separation
With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.

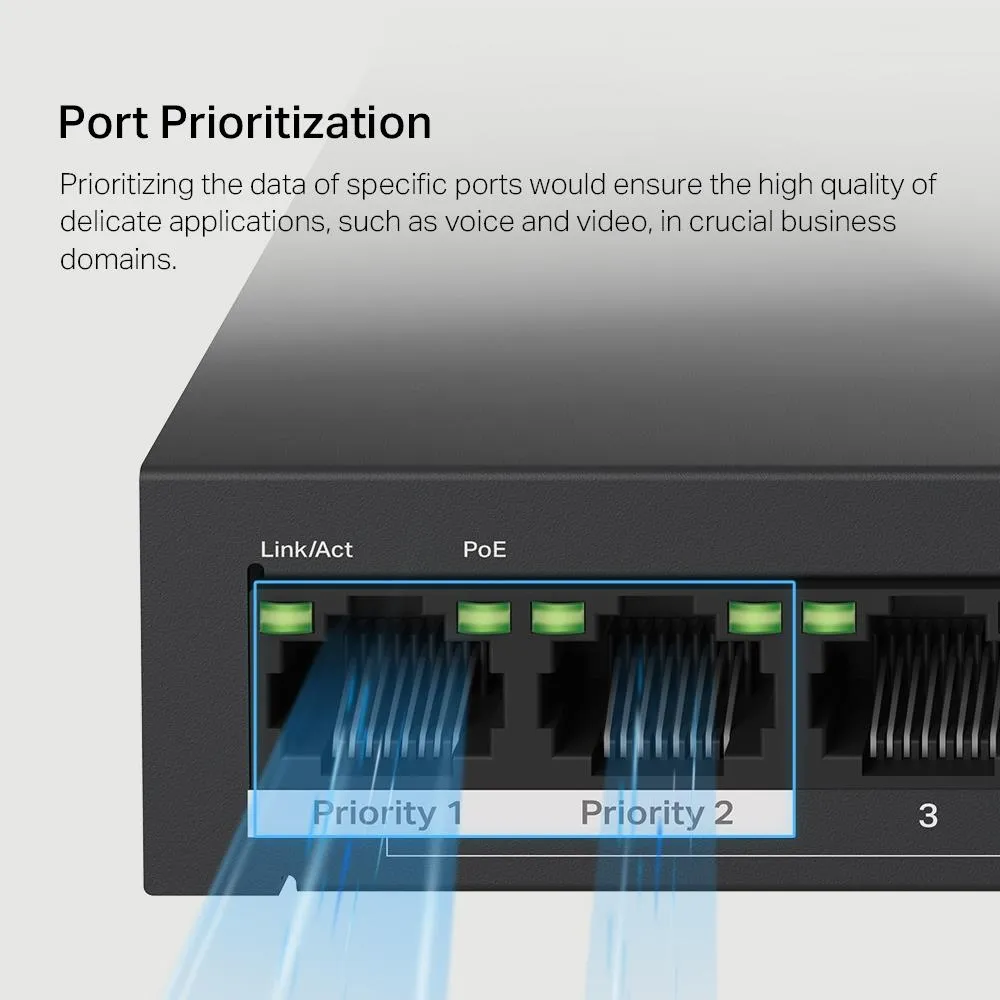

Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

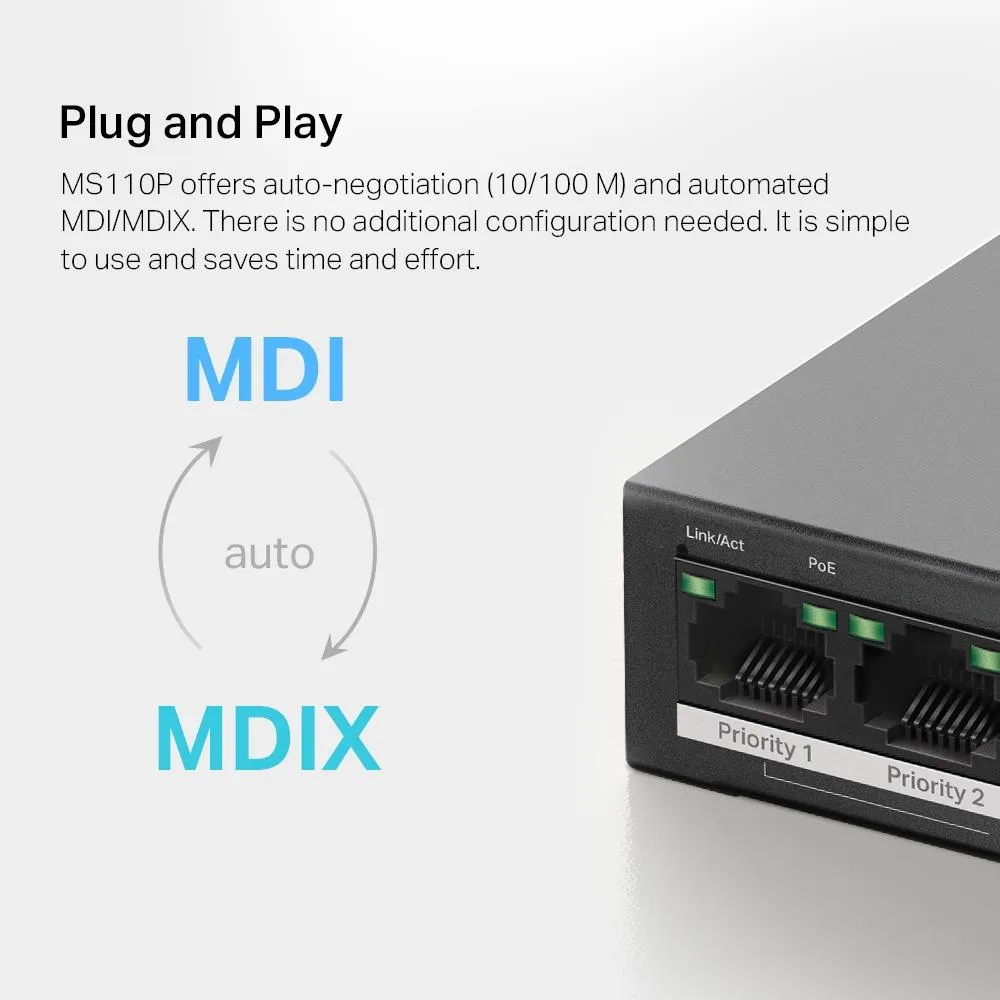

Plug and Play
MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

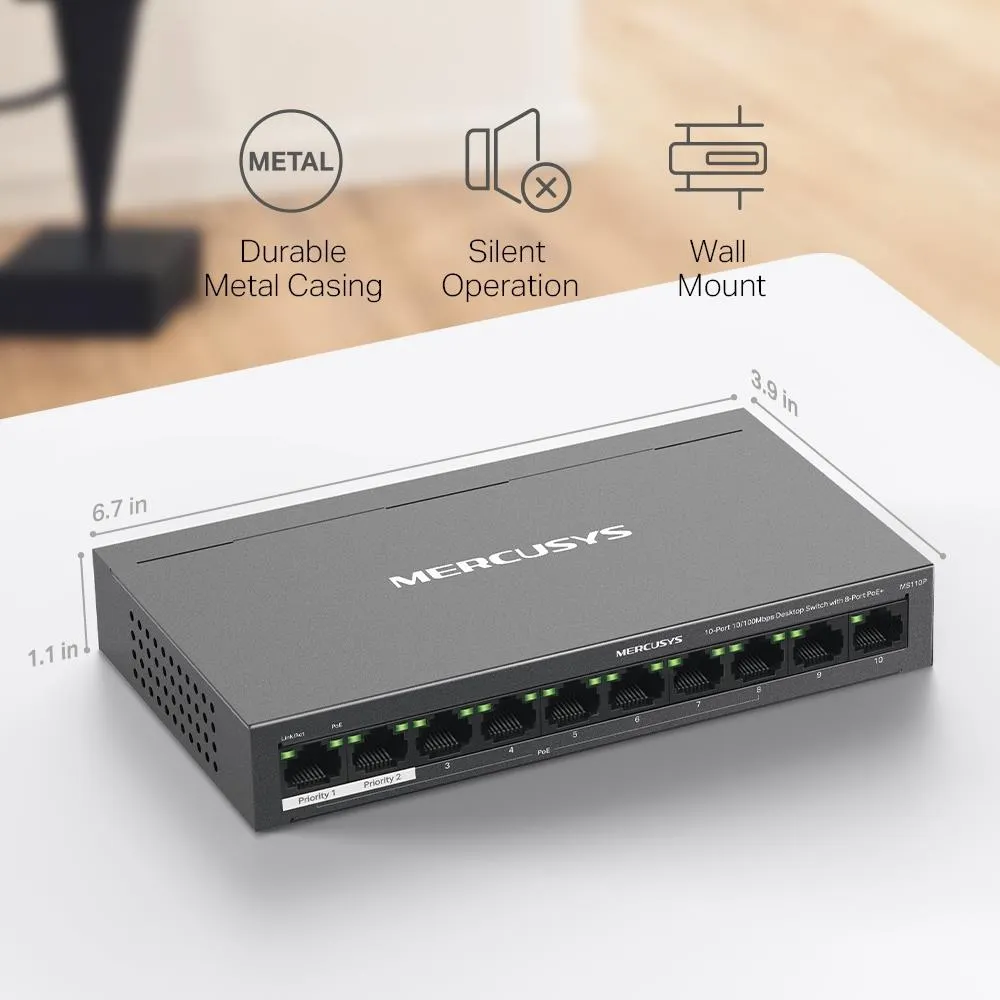

Durable and Silent
MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

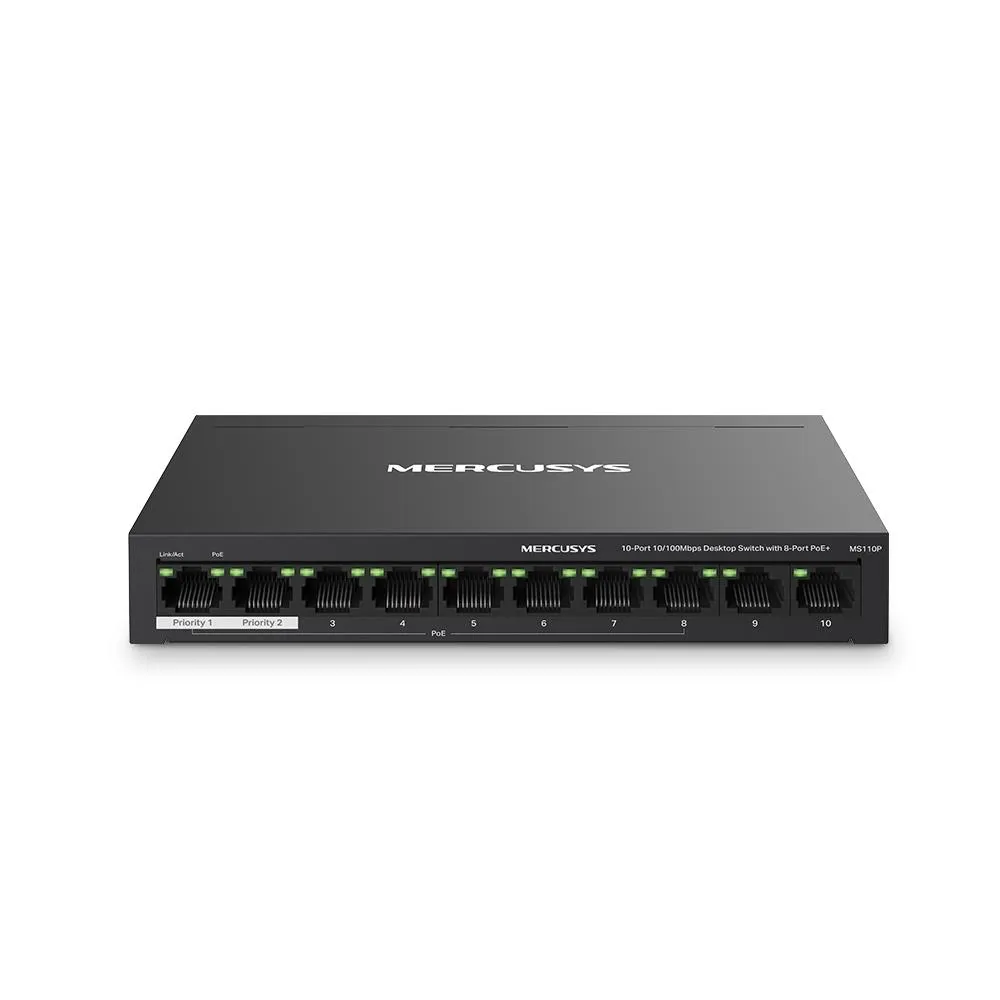

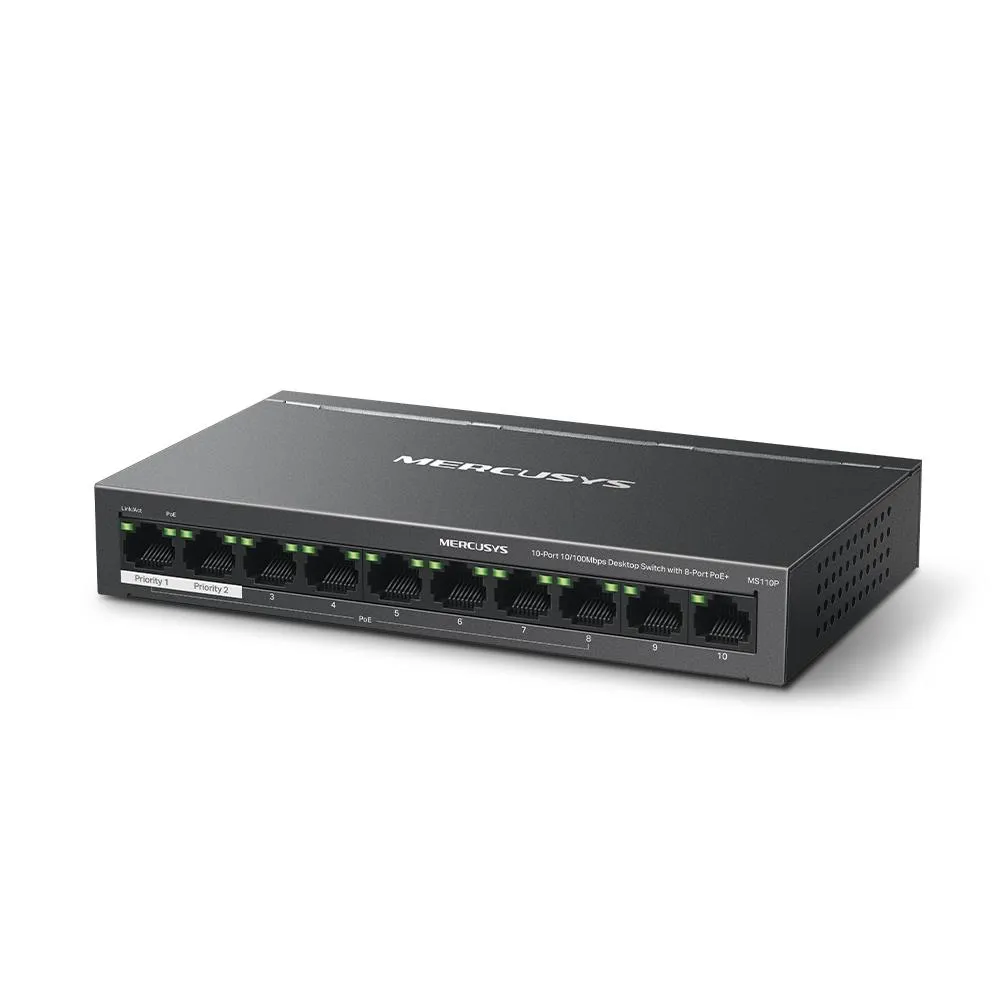

- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

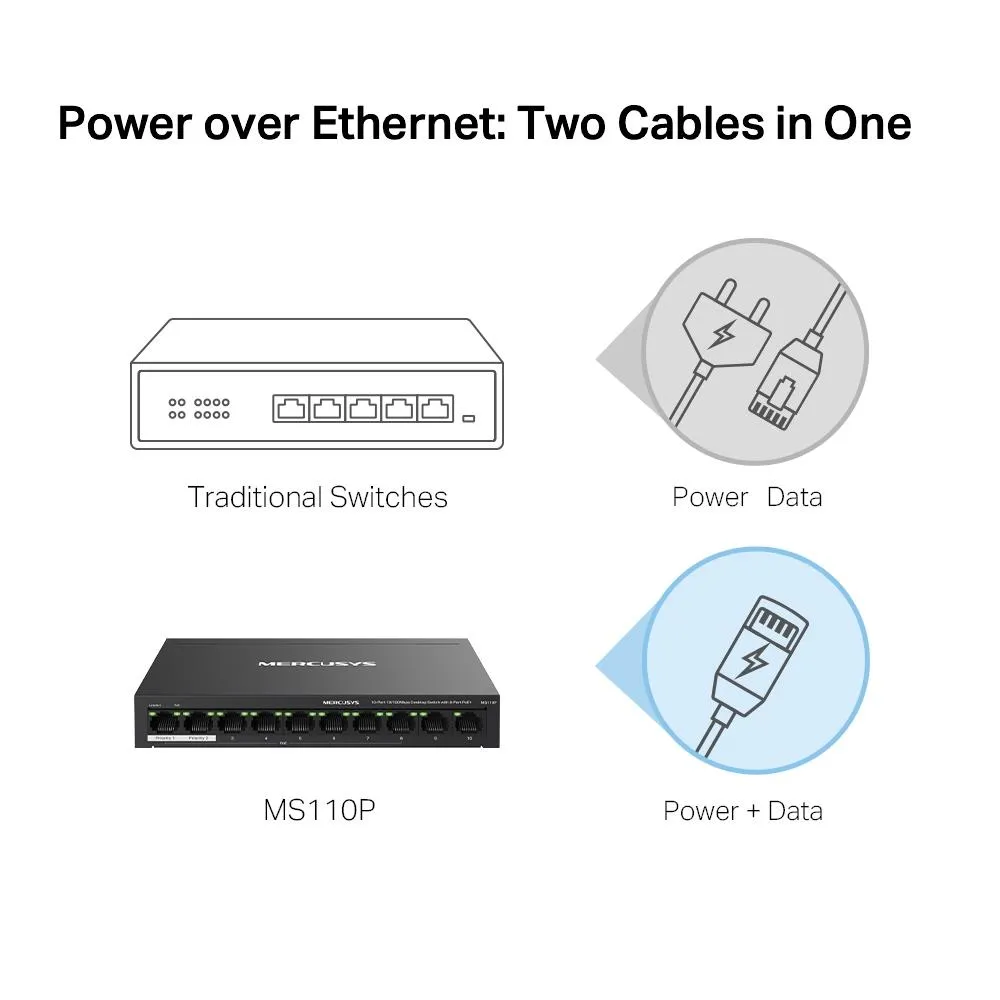

- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
.: Üldised andmed :.
- Tootja koduleht
- https://www.mercusys.com/en/product/details/ms110p
- Mudel
- MS110P
.: Disain :.
- Kokkuvõte
- Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
- Toote värv
- Must
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.3af/IEEE 802.3at/IEEE 802.3x
- Auto MDI/MDI-X
- Jah
- Ethernet LAN-i andmeedastuskiirused
- 10,100 Mbit/s
Võimsus ja energiatarve
- Sisendvool
- 1.31 A
- Power over Ethernet (PoE)
- Jah
- Sisendsagedus
- 50 Hz
- Võimsustarve (tüüpiline)
- 2.96 W
.: Tehnilised andmed :.
- Policy-based routing
- Jah
Juhtimisfunktsioonid
- Veebipõhine haldus
- Jah
Toide
- Toiteallikas
- Vahelduvvool
Ethernet LAN-funktsioonid
- IEEE 802.3af
- Jah
- IEEE 802.3at
- Jah
- IEEE 802.3x
- Jah
Funktsioonid
- Mudeli originaalnimi
- MS110P
- Vahelduvvoolu pinge
- 220 V
Logistika andmed
- Kogus transpordikasti kohta
- 12
Töötingimused
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 12
- Pakendi maht
- 0.00252 cubm
- Transpordipakendi kaal
- 10.3 kg
- Transpordipakendi kõrgus
- 28 cm
- Transpordipakendi laius
- 27 cm
- Transpordipakendi sügavus
- 40 cm
- Kaablid kaasa arvatud
- Vahelduvvool
Tehnilised andmed
- Full duplex
- Jah
- Power over Ethernet plus (PoE+) ports quantity
- 2
- Unit Box Height
- 0.09
- Unit Box Length
- 0.12
- Rack mounting
- Ei
- Wall mountable
- Jah
- Üksuse kalkuleeritud maht
- 0.00252 cubm
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 10
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Unit Box Width
- 0.19
- Power over Ethernet (PoE) ports quantity
- 8
- Flow control support
- Jah
- DC input voltage
- 53.5 V
- CnKood
- 85176200
- Power supply included
- Jah
- 10Base-T / 100Base-TX
- 10
- Auto-negotiation
- Jah
- Desktop/pedestal
- Jah
- Heat dissipation
- 263.568 BTU/h
- MAC address table
- 2000 entries
- PoE+ ports
- 8
- Power over Ethernet (PoE) power per port
- 65 W
- Primary port count
- 10
- Stackable
- Ei
- Storage relative humidity (H-H)
- 5 - 95 %
- Switch type
- Managed
Tehnilised andmed
- Üksuse kalkuleeritud kaal
- 0.858 kg
- Netokaal
- 0.6 kg
- Brutokaal
- 0.858 kg
- Laius
- 171 mm
- Sügavus
- 98 mm
- Kõrgus
- 27 mm
- Mõõtmed (l x s x k)
- 171x98x27mm
Tehnilised andmed
- Kiirpaigaldusjuhend
- Ei
- Tarvikud kaasa arvatud
- Switch; Power Adapter; Installation Guide
